Section 372 (Radiator): Inspection
WARNING: This page is about a different car, the 2004 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
DENSO Made:

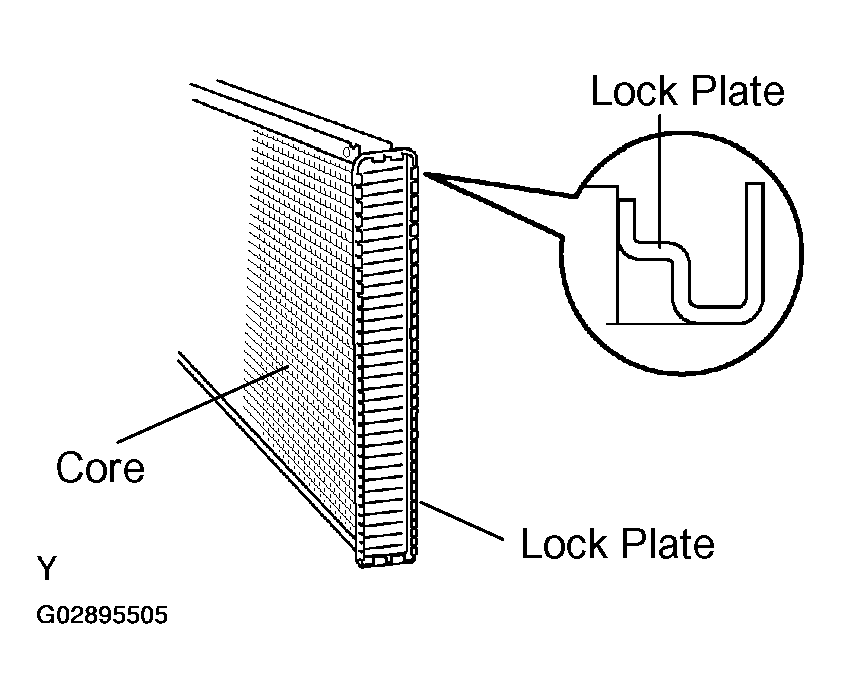

INSPECT LOCK PLATE FOR DAMAGE
HINT:
- If the sides of the lock plate groove are deformed, reassembly of the tank will be impossible.
- Therefore, first correct any deformation with pliers or similar object. Water leakage will result if the bottom of the lock plate groove is damaged.
NOTE:
The radiator can only be recaulked 2 times. After the 2nd time, the radiator core must be replaced.
