Home >> Toyota >> 2004 >> Corolla LE, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Front Seat >> Components

Front Seat: Components

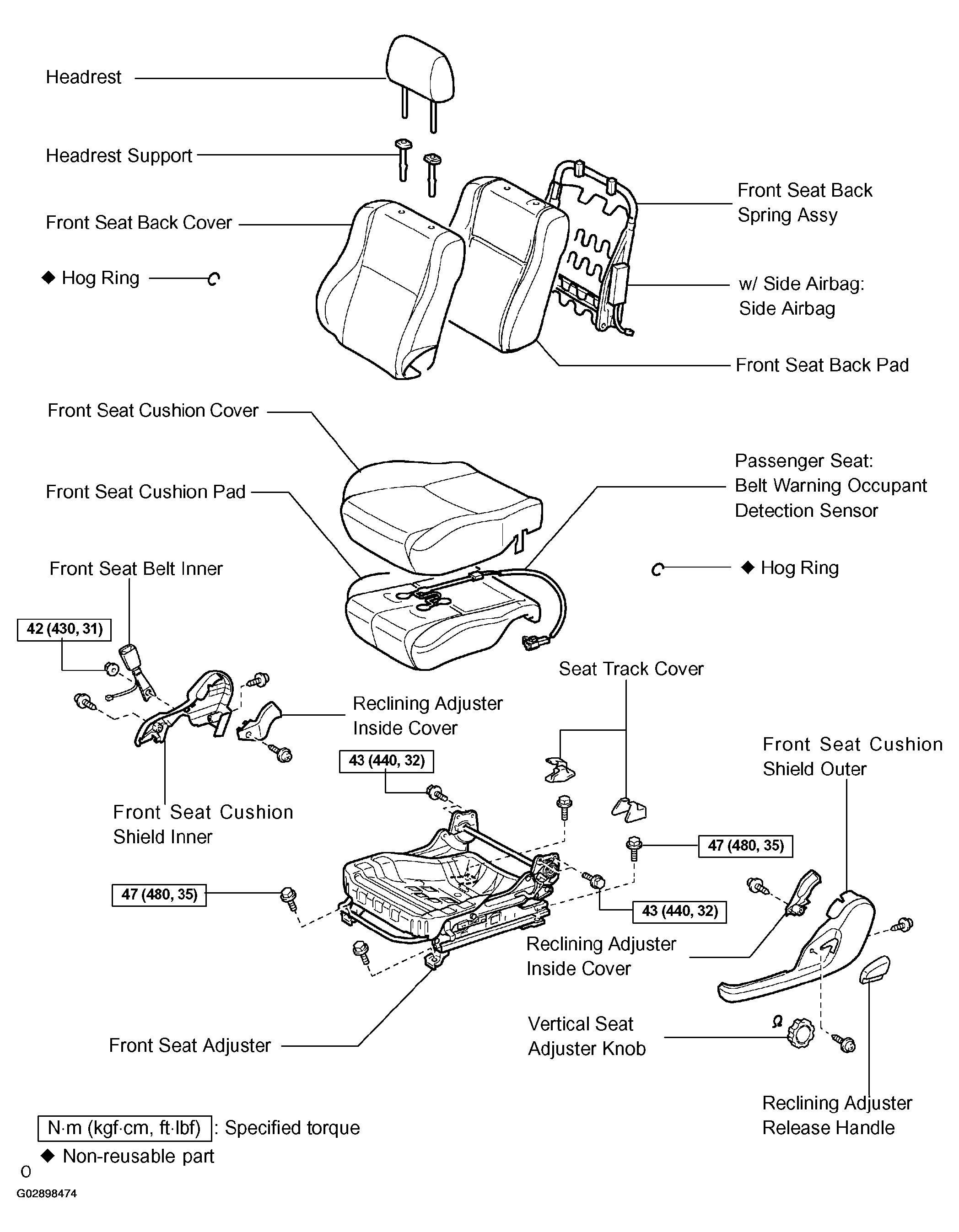

Fig 1: Identifying Front Seat Components

G02898474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
