TOYOTA Vehicle Intrusion Protection System
>>
Location
TOYOTA Vehicle Intrusion Protection System: Location

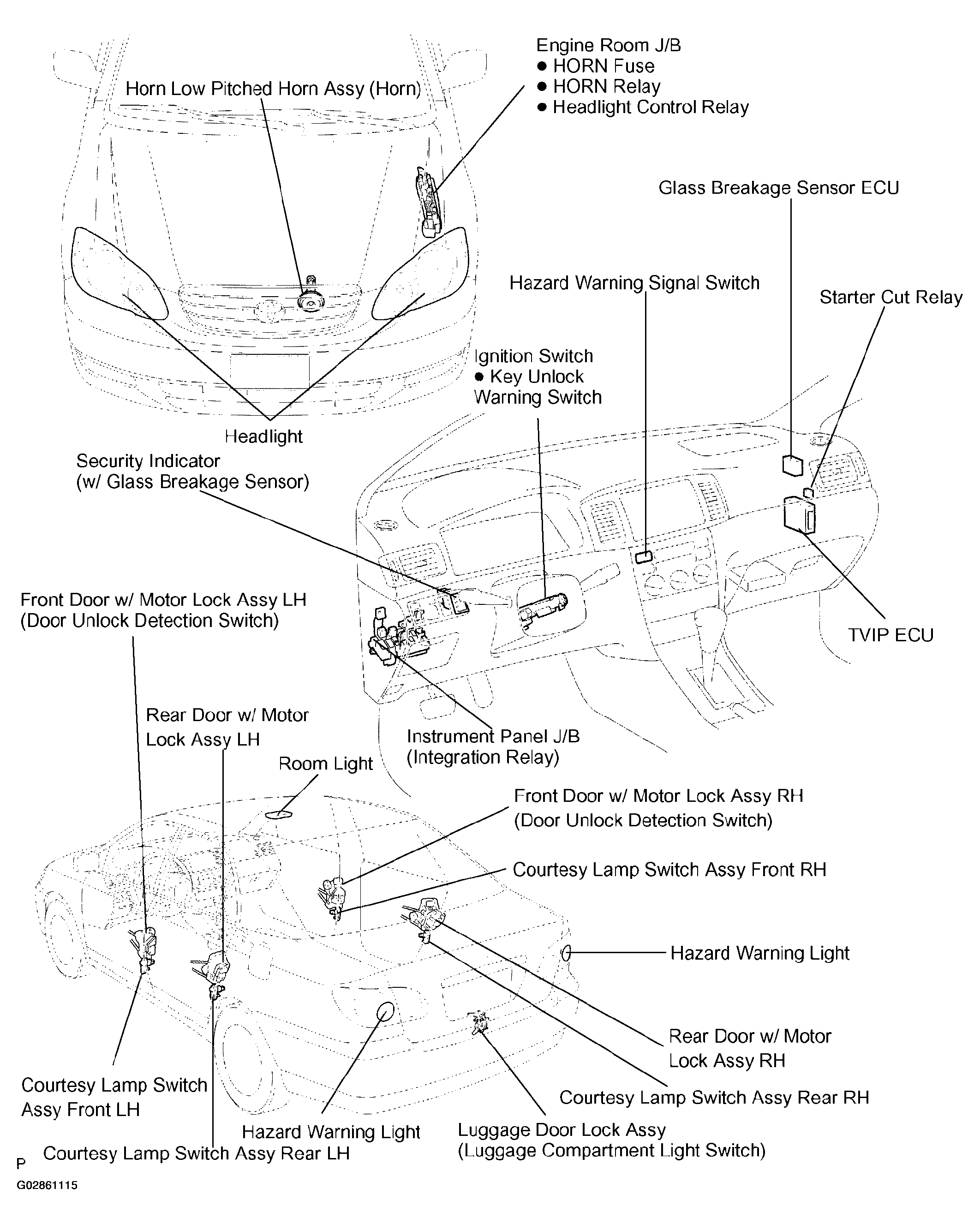

Fig 1: Identifying Component Location Of Toyota Vehicle Intrusion Protection System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
