Throttle Body ASSY: Components

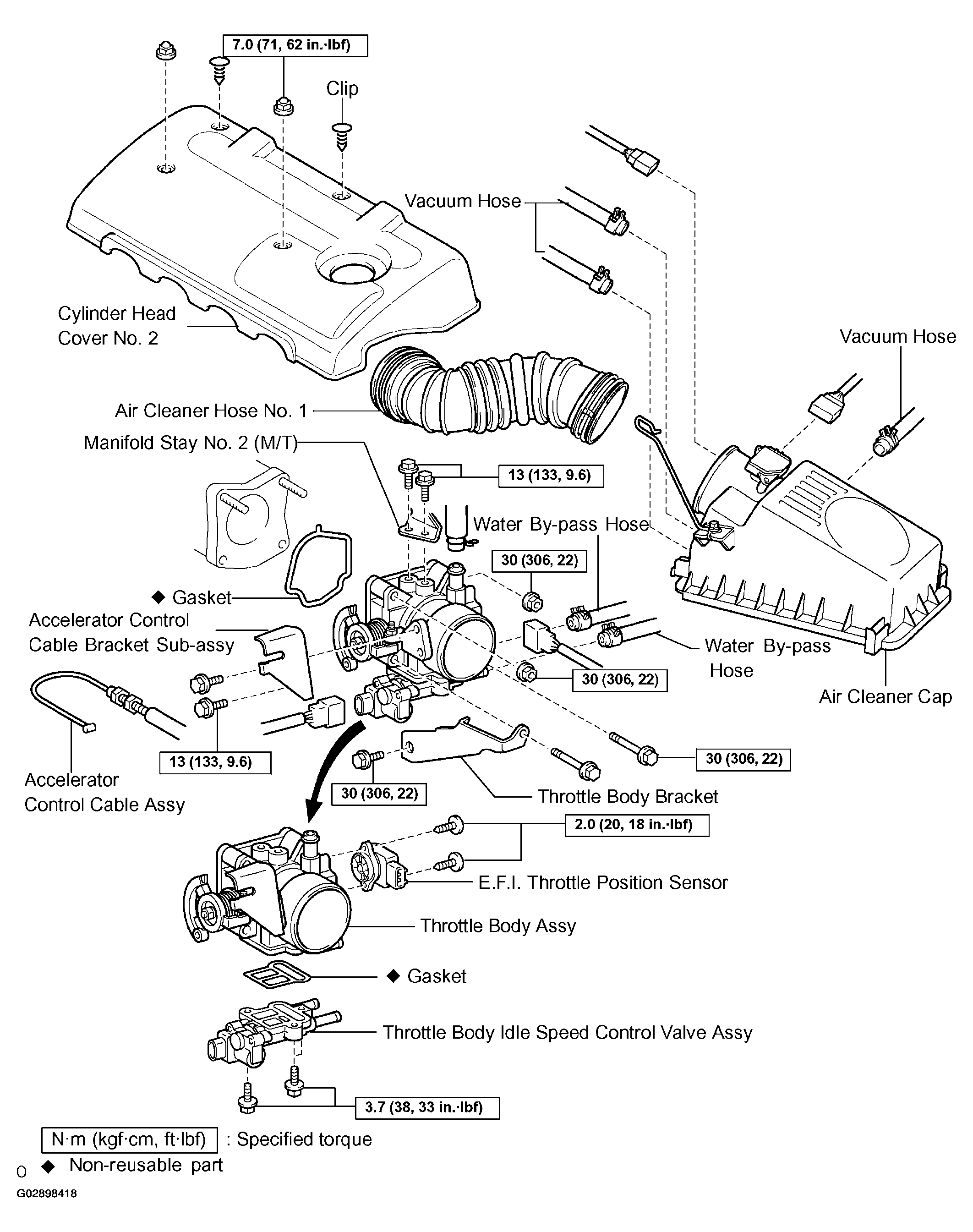

Fig 1: Exploded View Of Throttle Body Assy Components

G02898418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
