Seat Belt: Installation

NOTE:
  • Never use seat belt pretensioner from another vehicle. When replacing parts, replace them with new parts.
  • Make sure that the front seat outer belt is installed with the specified torque.
  • If the front seat outer belt has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front seat outer belt with a new one.
  • When installing the front seat outer belt, take care that the wiring does not interfere with other parts and is not pinched between other parts.
  1. INSTALL RETRACTOR OF FRONT SEAT OUTER BELT
    1. Install the retractor of front seat outer belt with the 2 bolts.
      1. Torque:
      2. Upper bolt: 7.5 N.m (76 kgf.cm, 66 in..lbf)
      3. Lower bolt: 43 N.m (440 kgf.cm, 32 ft.lbf)

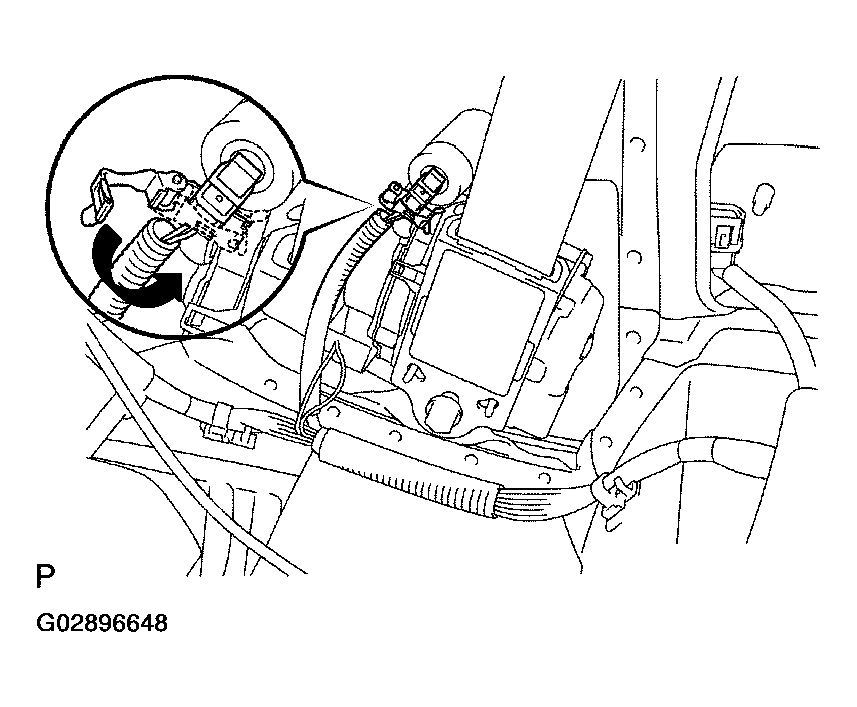

        Fig 1: Connecting Pretensioner Connector
        G02896648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the pretensioner connector as shown in the illustration.
    3. Connect the retractor switch connector.
  2. INSTALL FRONT SEAT OUTER BELT SHOULDER ANCHOR
    1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
  3. INSTALL FRONT SEAT OUTER BELT FLOOR ANCHOR
    1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
  4. INSTALL QUARTER TRIM PANEL
  5. INSTALL REAR SEAT OUTER BELT FLOOR ANCHOR
    1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
  6. INSTALL REAR SEATBACK LOCK STRIKER
  7. INSTALL REAR SEATBACK HINGE
  8. INSTALL DECK TRIM SIDE PANEL
  9. INSTALL REAR DECK TRIM COVER
  10. INSTALL LUGGAGE COMPARTMENT MAT
  11. INSTALL LUGGAGE COMPARTMENT TRAY
  12. INSTALL REAR SEAT (See  INSTALLATION  )
  13. INSTALL PACKAGE TRAY TRIM
  14. INSTALL DOOR SCUFF PLATE
