Seat Belt: Components

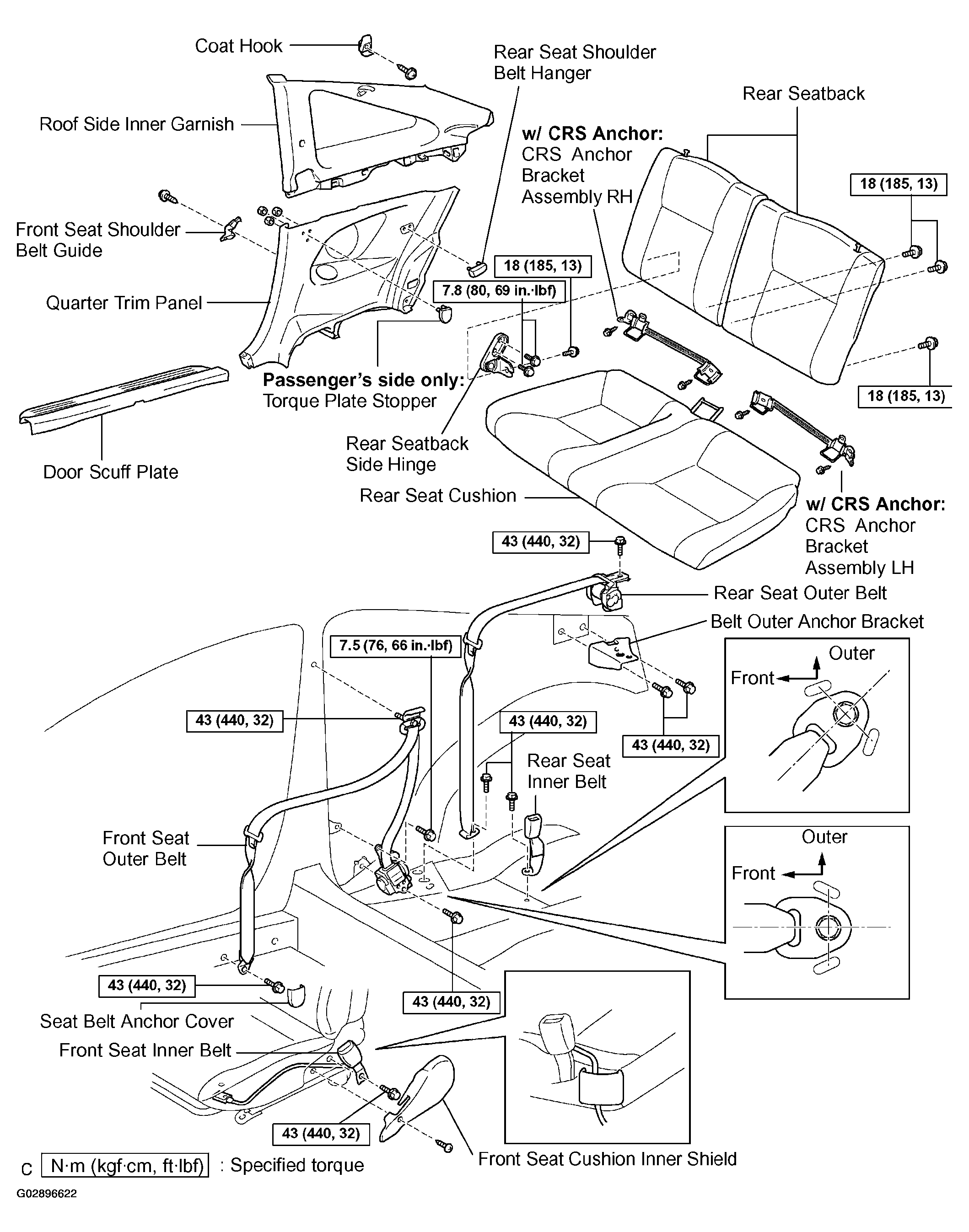

Fig 1: Identifying Seat Belt Components

G02896622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
