Engine Controls (1ZZ-FE) - Diagnostics
>>
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
Troubleshoot in accordance with the procedure on the following page.

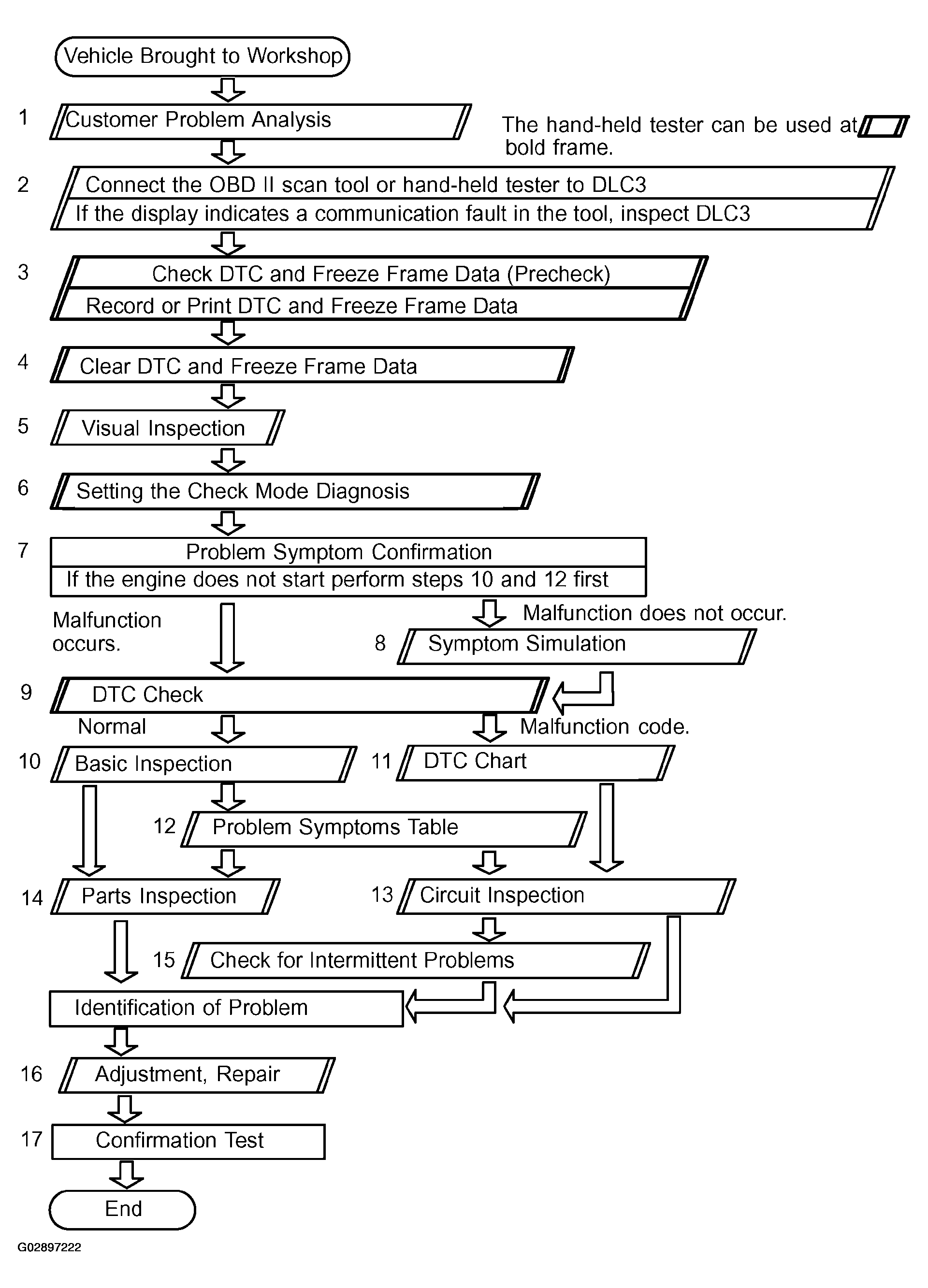

Fig 1: Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
