Diagnostic Trouble Code Table
DIAGNOSTIC TROUBLE CODE
| DTC | Description |
|---|---|
| DTC P0010 | Camshaft Position "A" Actuator circuit (Bank 1) |
| DTC P0011, P0012 | Camshaft Position "A" -Timing Over-Advanced or System Performance (Bank 1), Camshaft Position "A" -Timing Over-Retarded (Bank 1) |
| DTC P0016 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| DTC P0031, P0032, P0037, P0038 | Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 1), Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 1), Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2), Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 2) |
| DTC P0100 | Mass or Volume Air Flow Circuit |
| DTC P0101 | Mass Air Flow Circuit Range/Performance Problem |
| DTC P0110 | Intake Air Temp. Circuit Malfunction |
| DTC P0115 | Engine Coolant Temperature Circuit |
| DTC P0116 | Engine Coolant Temperature Circuit Range/Performance Problem |
| DTC P0120 | Throttle Position Sensor/Switch "A" Circuit Malfunction |
| DTC P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem |
| DTC P0125 | Insufficient coolant temperature for closed loop fuel control |
| DTC P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |
| DTC P0130 | Oxygen Sensor Circuit (Bank 1 Sensor 1) |
| DTC P0133 | Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1) |
| DTC P0134 | Oxygen Sensor Circuit No Activity Detected (Bank 1 Sensor 1) |
| DTC P0136 | Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2) |
| DTC P0171, P0172 | System too Lean (Bank 1), System too Rich (Bank 1) |
| DTC P0300, P0301, P0302, P0303, P0304 | Random/Multiple Cylinder Misfire Detected, Cylinder 1 Misfire Detected, Cylinder 2 Misfire Detected, Cylinder 3 Misfire Detected, Cylinder 4 Misfire Detected |
| DTC P0325 | Knock Sensor 1 Circuit (Bank 1 or Single Sensor) |
| DTC P0335, P0339 | Crankshaft Position Sensor "A" Circuit Malfunction, Crankshaft Position Sensor "A" Circuit Intermittent |
| DTC P0340, P0341 | Camshaft Position Sensor "A" Circuit (Bank 1 or Single Sensor), Camshaft Position Sensor "A" Circuit Range/Performance |
| DTC P0351, P0352, P0353, P0354 | Igniter Coil "A" Primary/Secondary Circuit, Igniter Coil "B" Primary/Secondary Circuit, Igniter Coil "C" Primary/Secondary Circuit, Igniter Coil "D" Primary/Secondary Circuit |
| DTC P0420 | Catalyst System Efficiency Below Threshold (Bank 1) |
| DTC P0441, DTC P0446 | Evaporative Emission Control System Incorrect Purge Flow, Evaporative Emission Control System Vent Control Malfunction |
| DTC P0442, P0456 | Evaporative Emission Control System Leak Detected (Small Leak), Evaporative Emission Control System Leak Detected (Very Small Leak) |
| DTC P0451 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance |
| DTC P0500 | Vehicle Speed Sensor Malfunction |
| DTC P0505, DTC P0511 | Idle Air Control System, Idle Air Control Circuit |
| DTC P0560 | System Voltage |
| DTC P0617 | Starter Relay Circuit High |
| DTC P1645 | Body ECU Malfunction |
HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

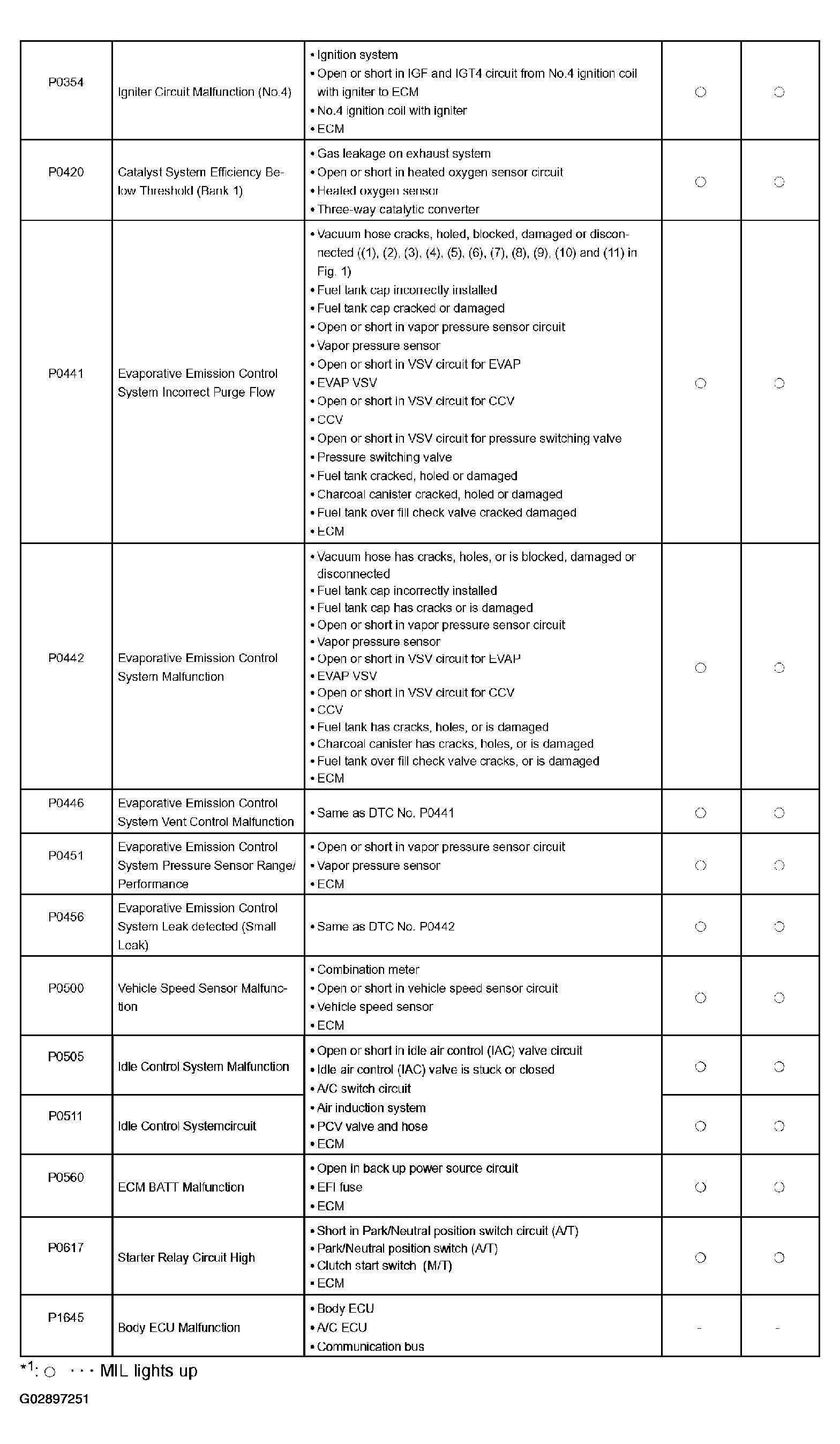

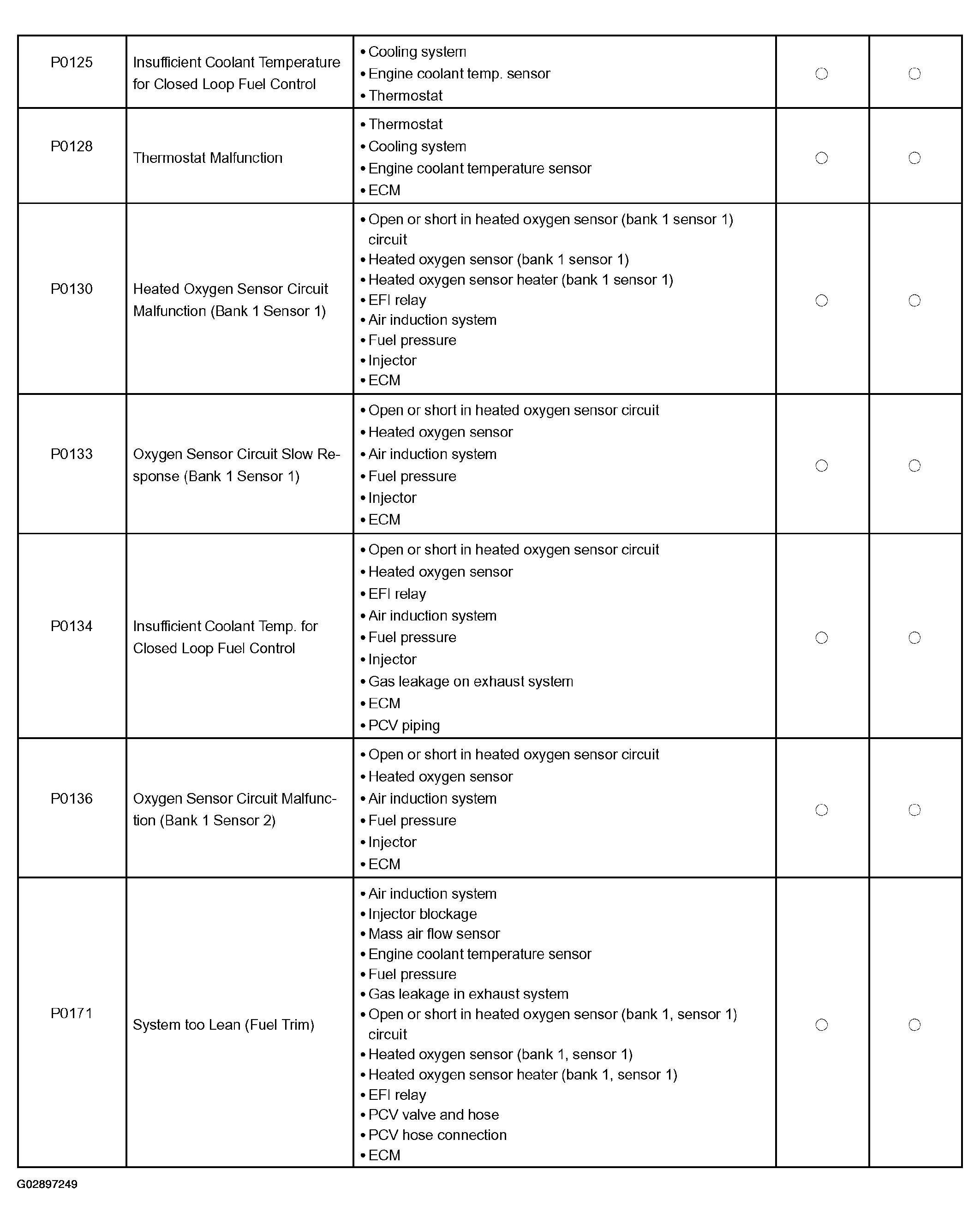

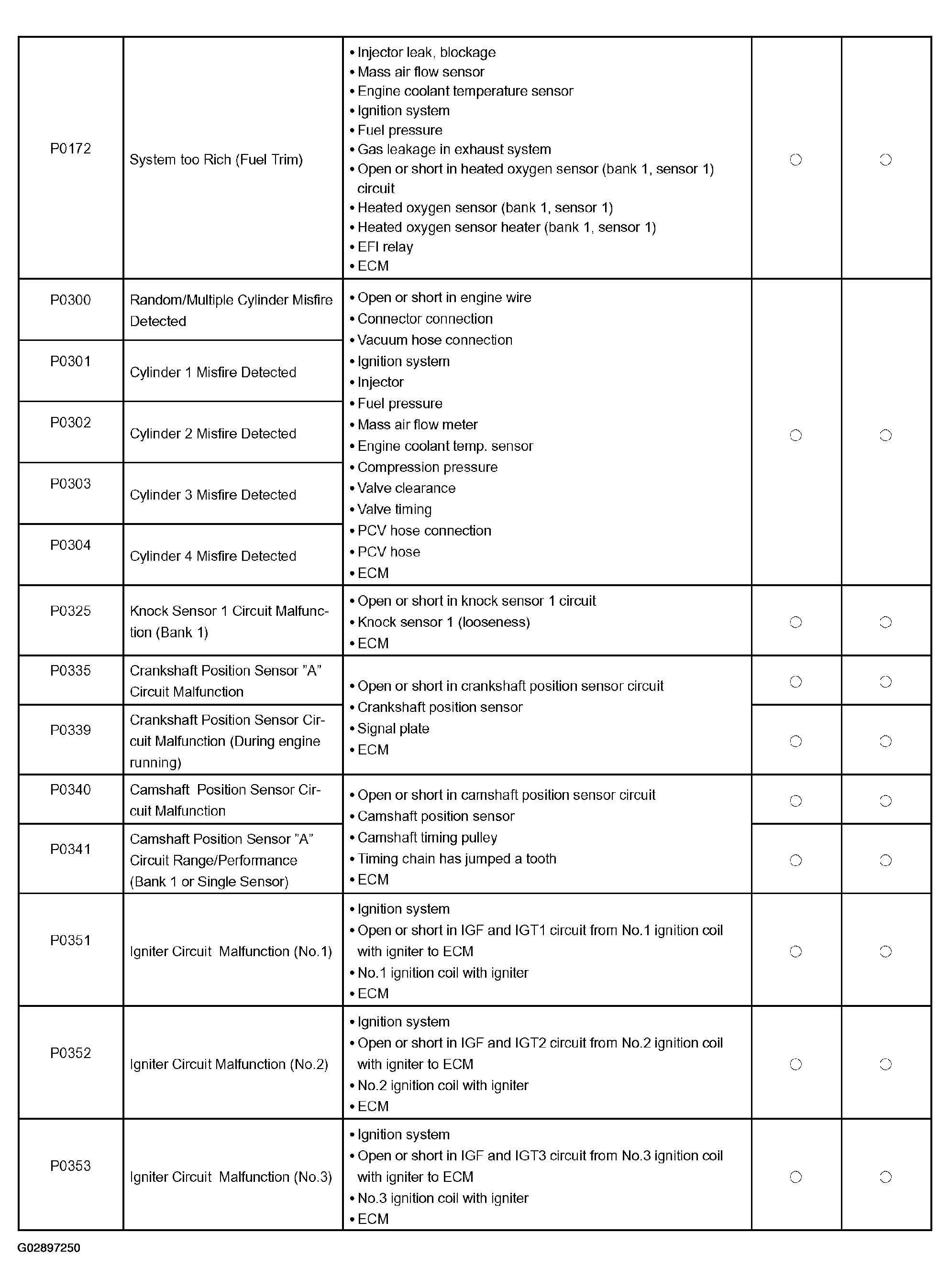

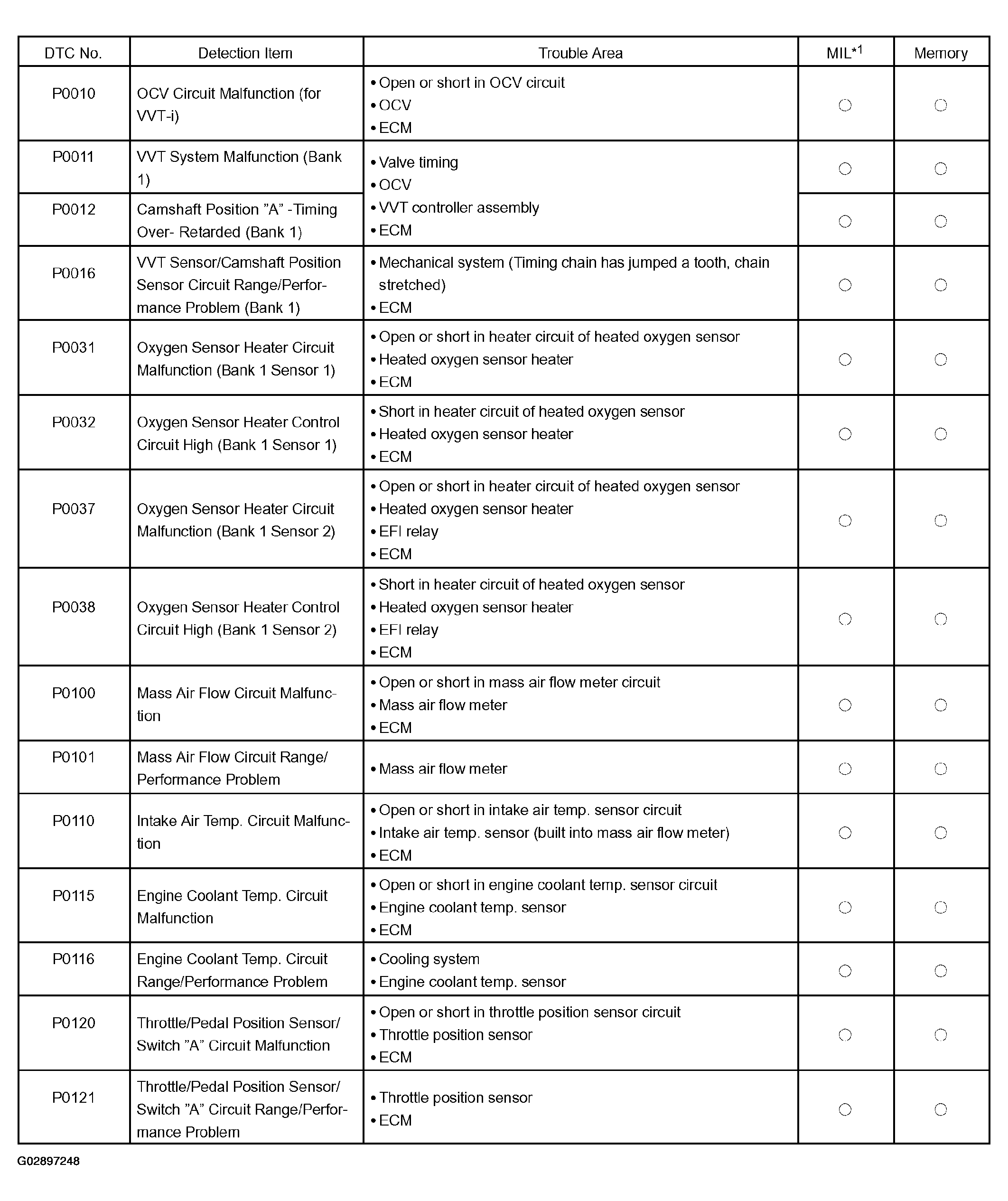

If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table below. For details of each code, refer to the "See page" under the respective "DTC No." in the DTC chart.
