Throttle Body (2ZZ-GE): Components

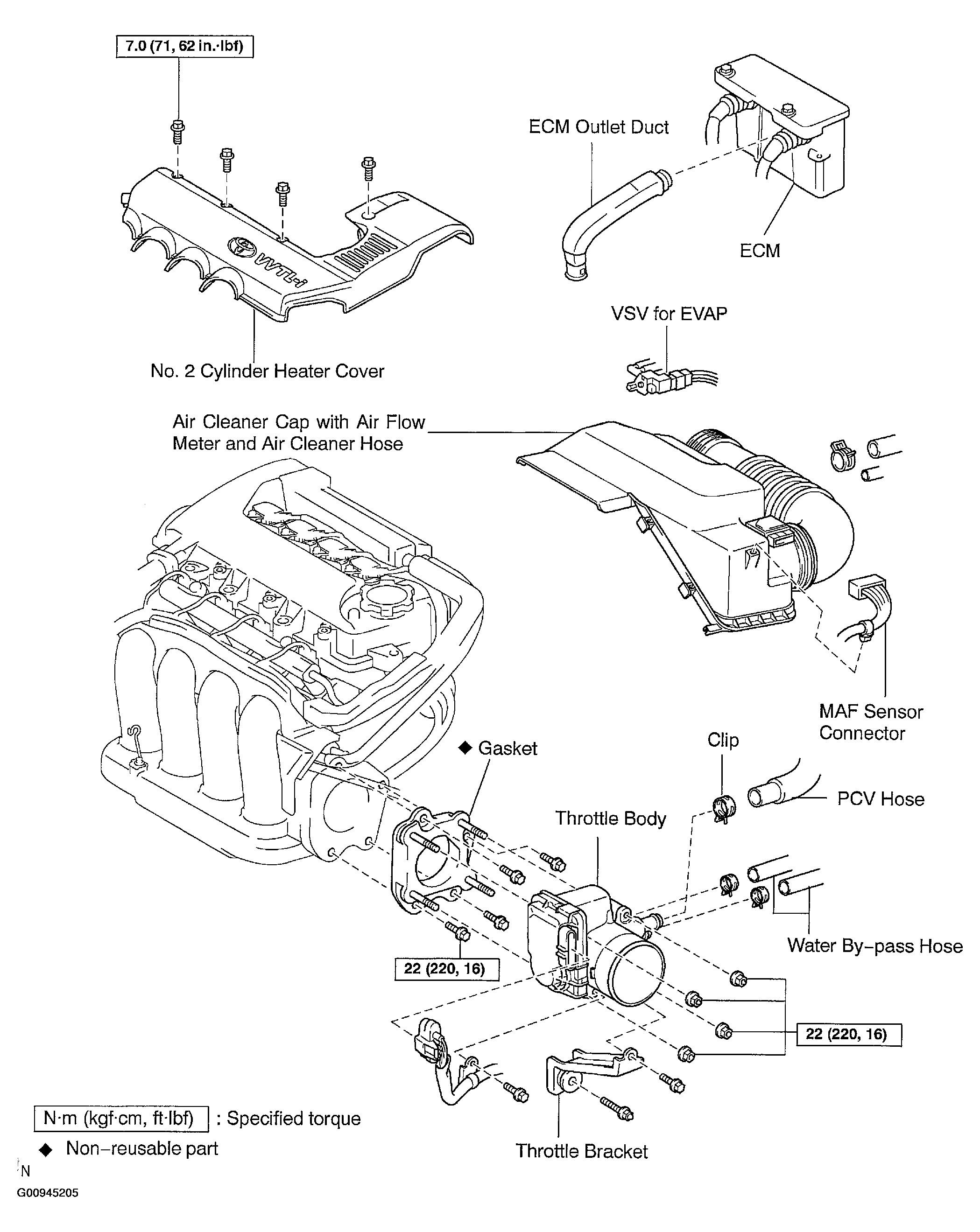

Fig 1: Throttle Body (2ZZ-GE) Components

G00945205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
