Mass Air Flow (MAF) Meter: Inspection

Using an ohmmeter, measure the resistance between terminals THA and E2.

Fig 1: Measuring Resistance Between Terminals THA & E2 Using An Ohmmeter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Resistance:

Fig 2: MAF Meter Resistance Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the resistance is not as specified, replace the MAF meter.

1. Connect the MAF meter connector.
2. Turn the ignition switch to ON.
   Fig 3: Connecting MAF Meter Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

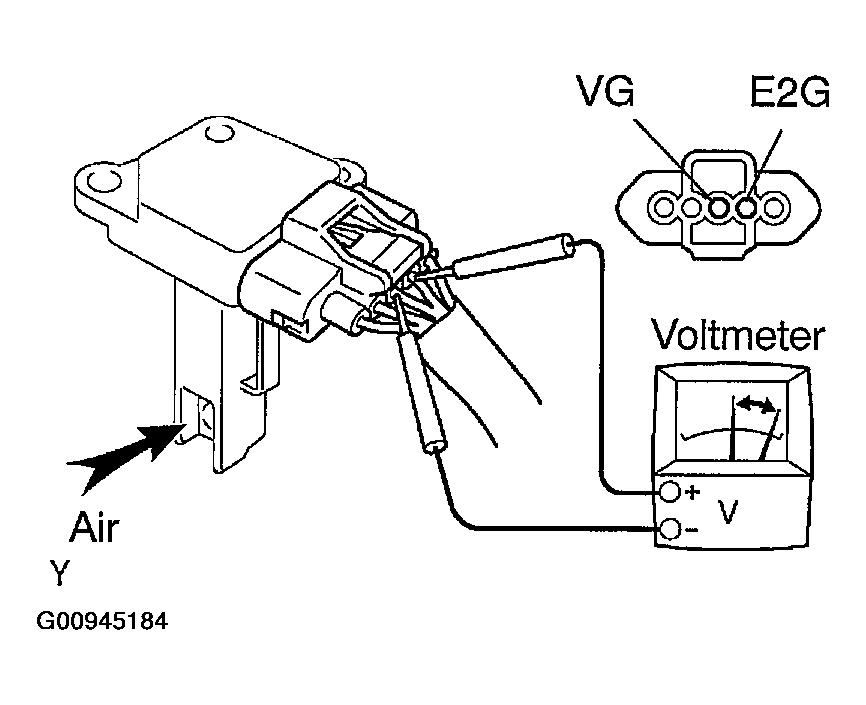

3. Using a voltmeter, connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
4. Blow air into the MAF meter, and check that the voltage fluctuates.

   If operation is not as specified, replaced the MAF meter.

5. Turn the ignition switch LOCK.
6. Disconnect the MAF meter connector.
