Engine Lubrication System: Reassembly

1. Place the drive and driven rotors into pump body with the marks facing the pump body cover side.
2. 1ZZ-FE:
   1. Install the pump body cover with the 3 screws.
   2. Torque: 10.5 N.m (107 kgf.cm, 8 ft.lbf)
3. 2ZZ-GE:

1. Install the pump body cover with the 5 screws.
2. Torque: 10.5 N.m (107 kgf.cm, 8 ft.lbf)

Insert the relief valve and spring into the pump body hole, and install the plug.

1. Torque:
2. 1ZZ-FE: 37 N.m (375 kgf.cm, 27 ft.lbf)
3. 2ZZ-GE: 49 N.m (500 kgf.cm, 36 ft.lbf)

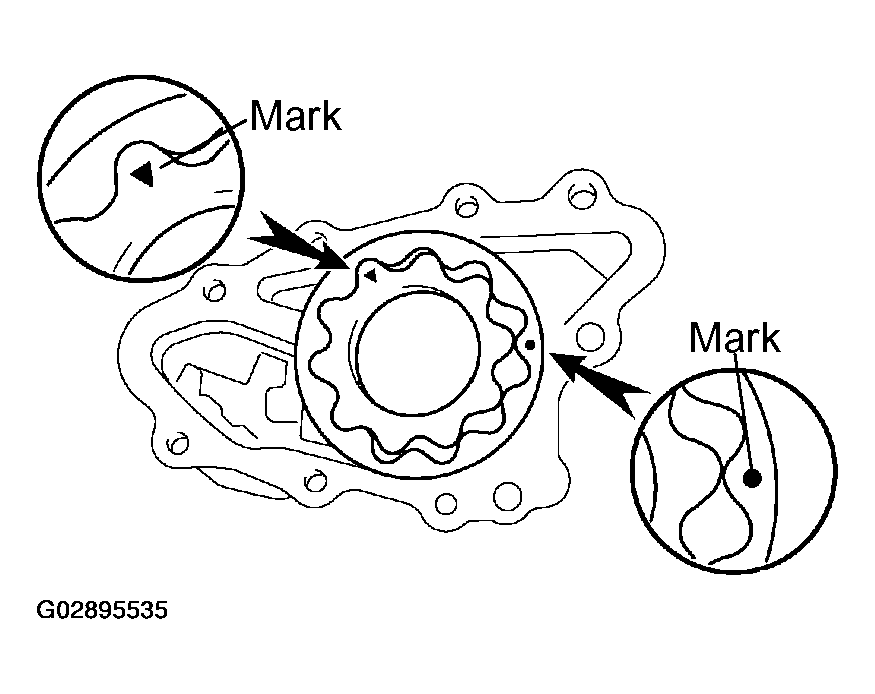

   Fig 1: Placing Drive And Driven Rotors Into Pump Body With Marks Facing Pump Body Cover Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
