Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

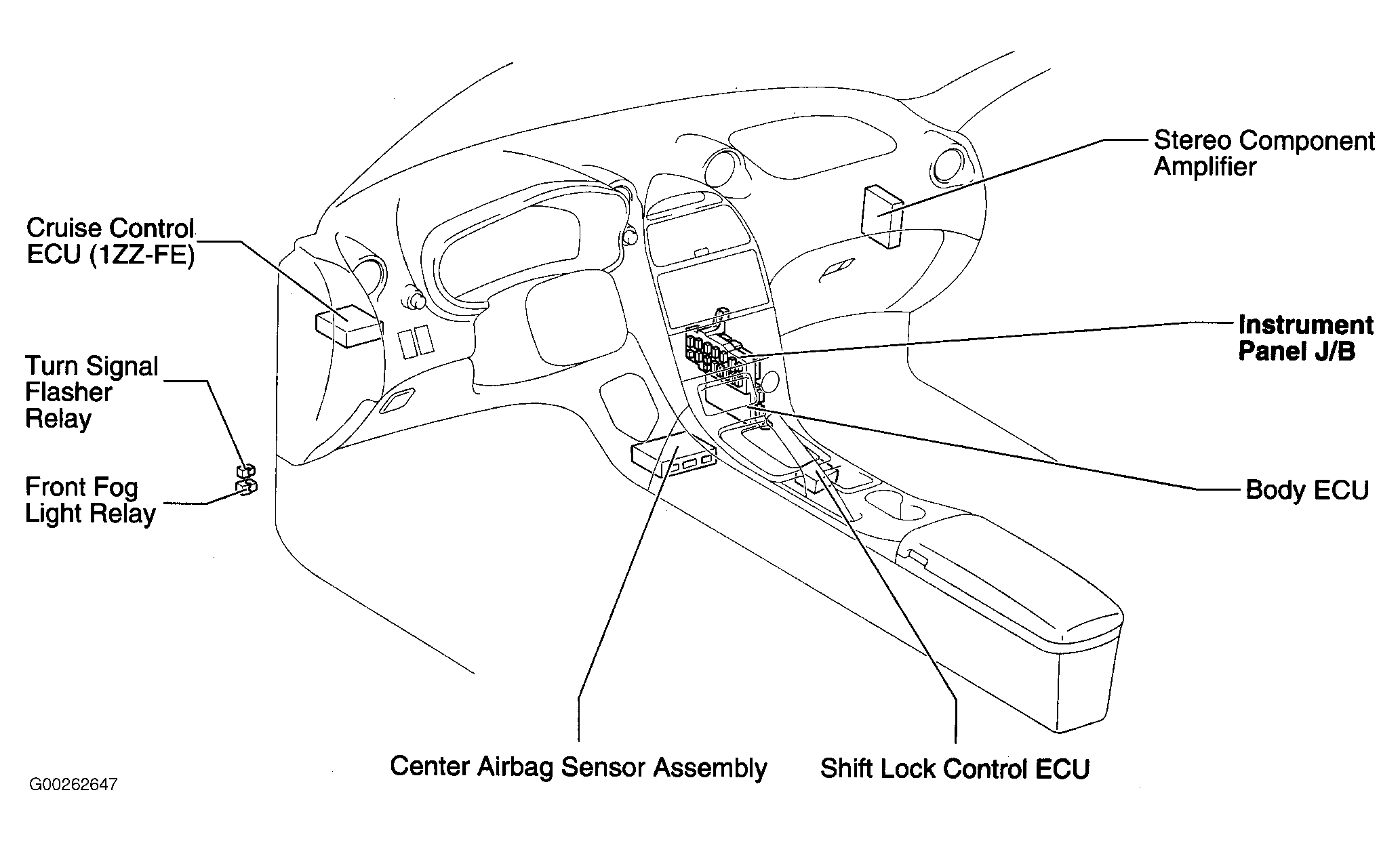

| Body ECU | Behind panel on right side of center console. See Figure. |
| Center Air Bag Sensor Assembly | Behind lower center of dash. See Figure. |
| Cruise Control ECU (1.8L GT) | Behind left side of dash, near base of "A" pillar. See Figure. |

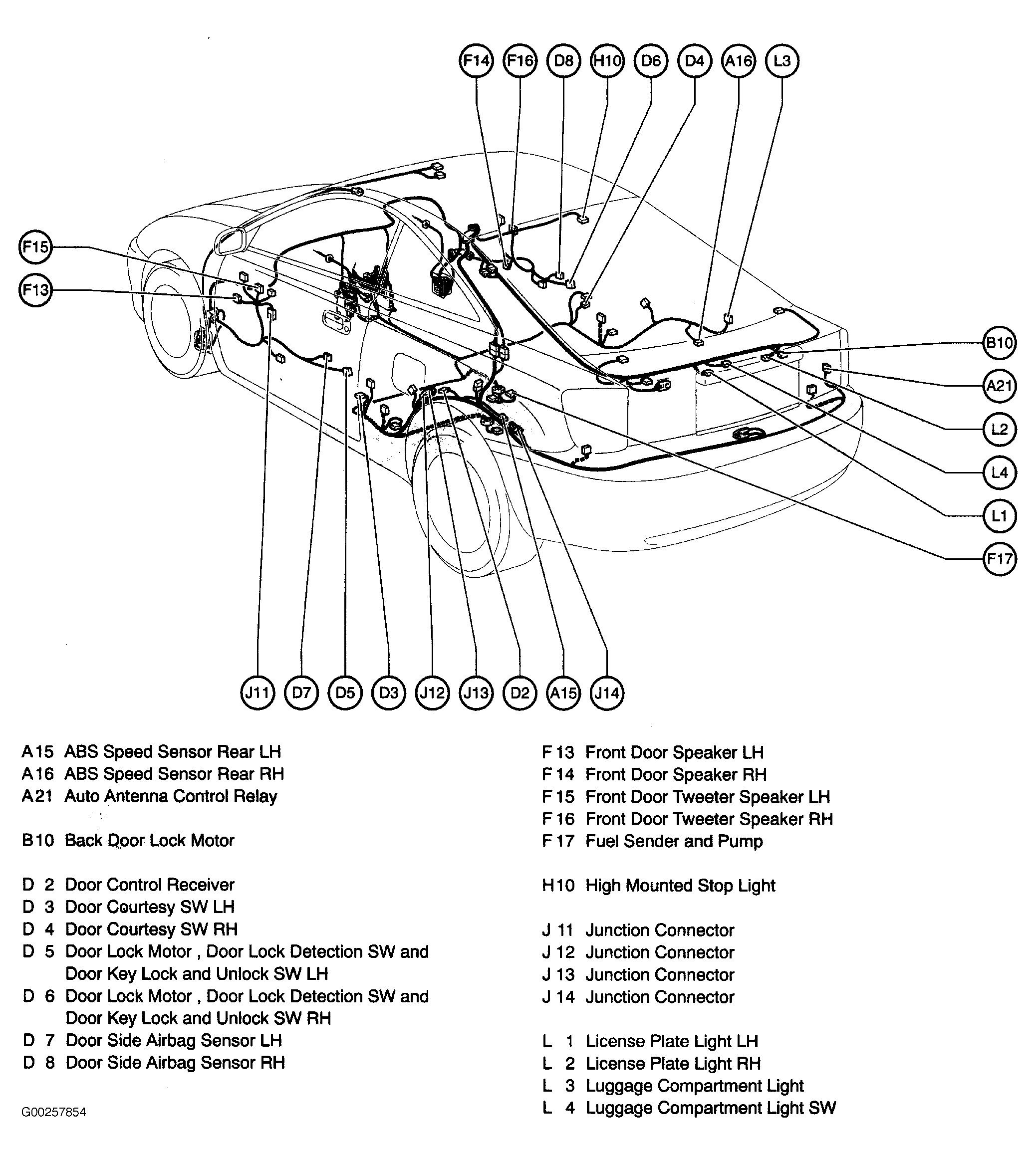

| Door Control Receiver | Behind trim panel, above left rear fenderwell. See Figure. |

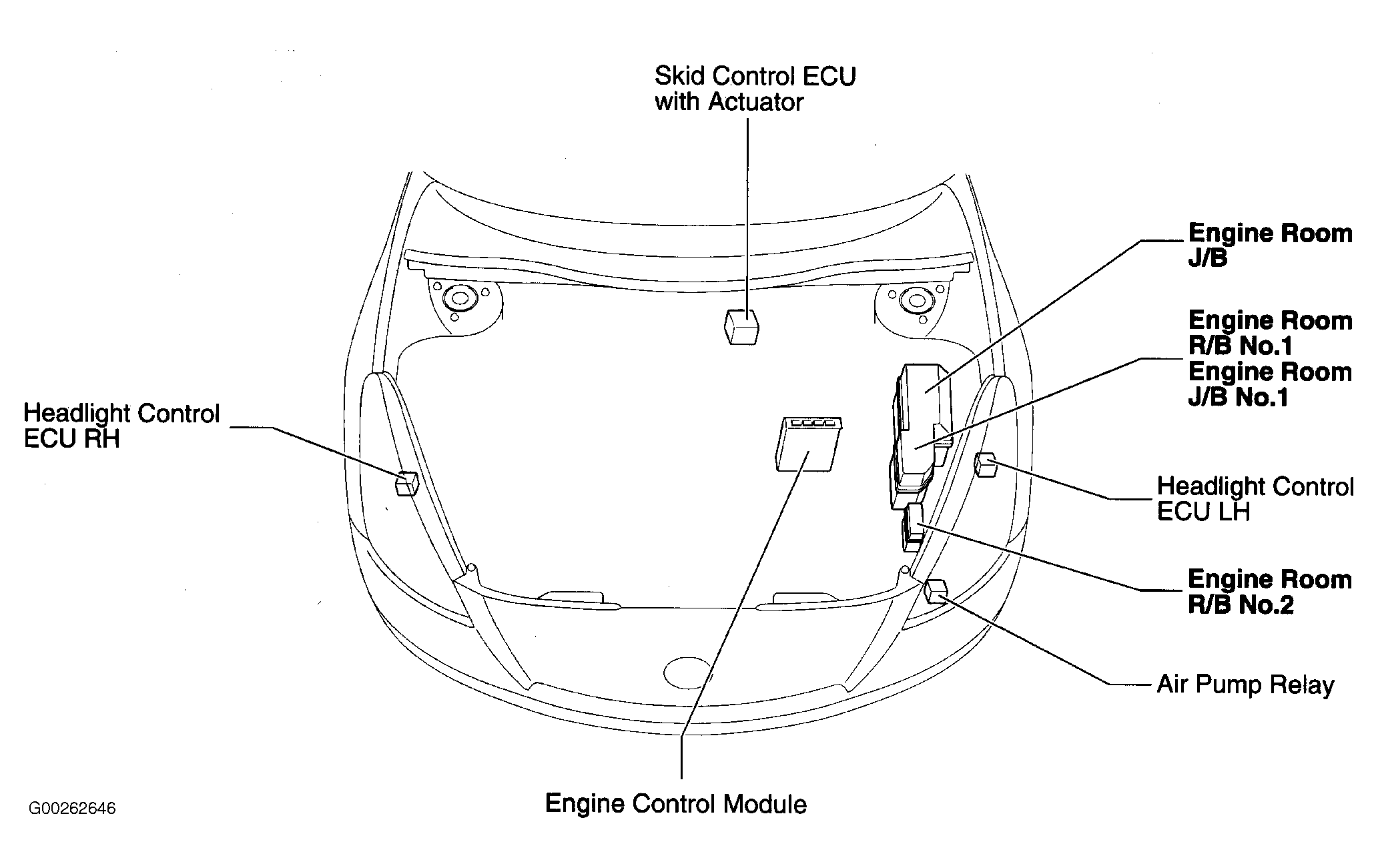

| Engine Control Module (ECM) | On left side of engine compartment, forward of battery. See Figure. |

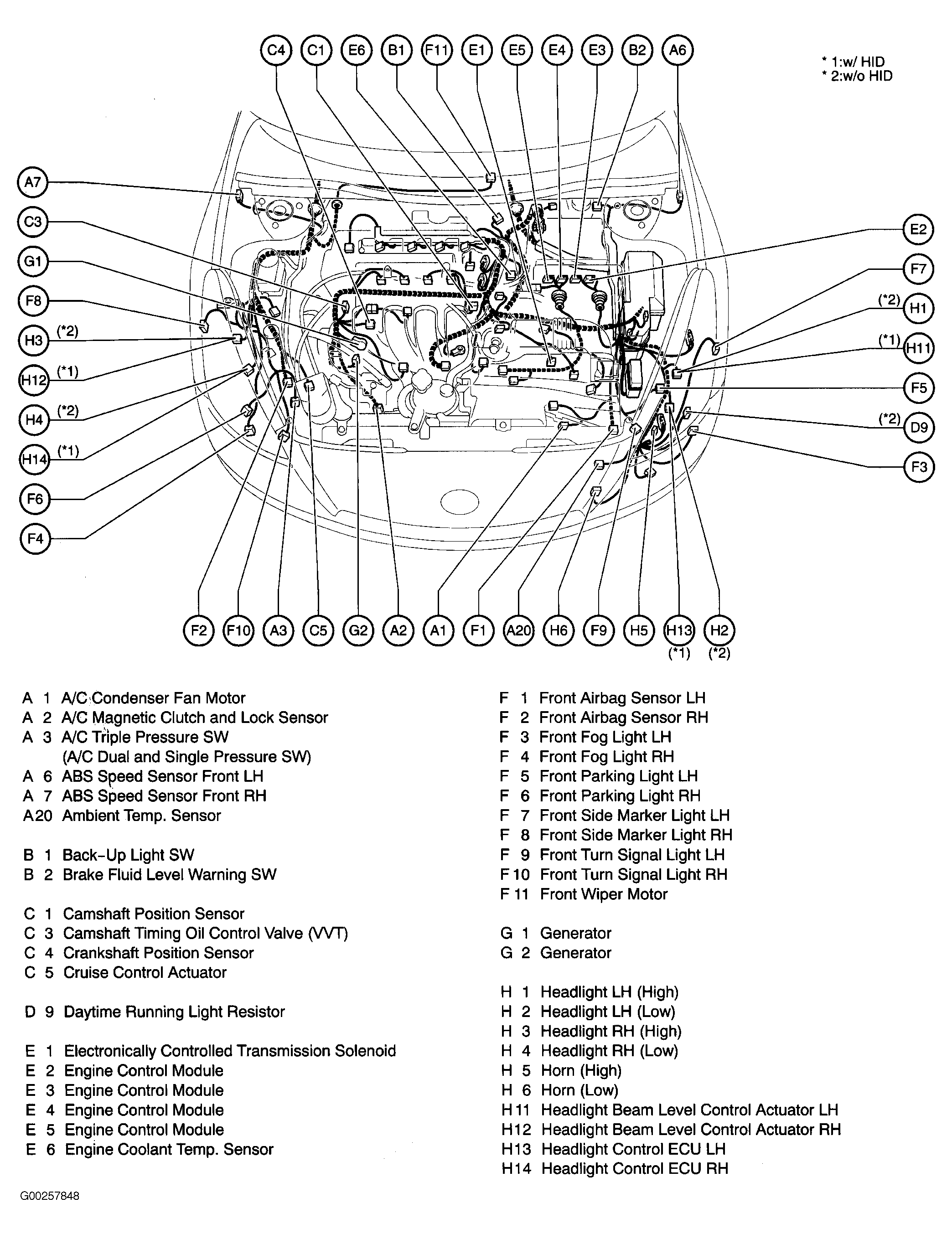

| Headlight Control ECU LH (1.8L GT) | Left front of engine compartment. See Figure. |

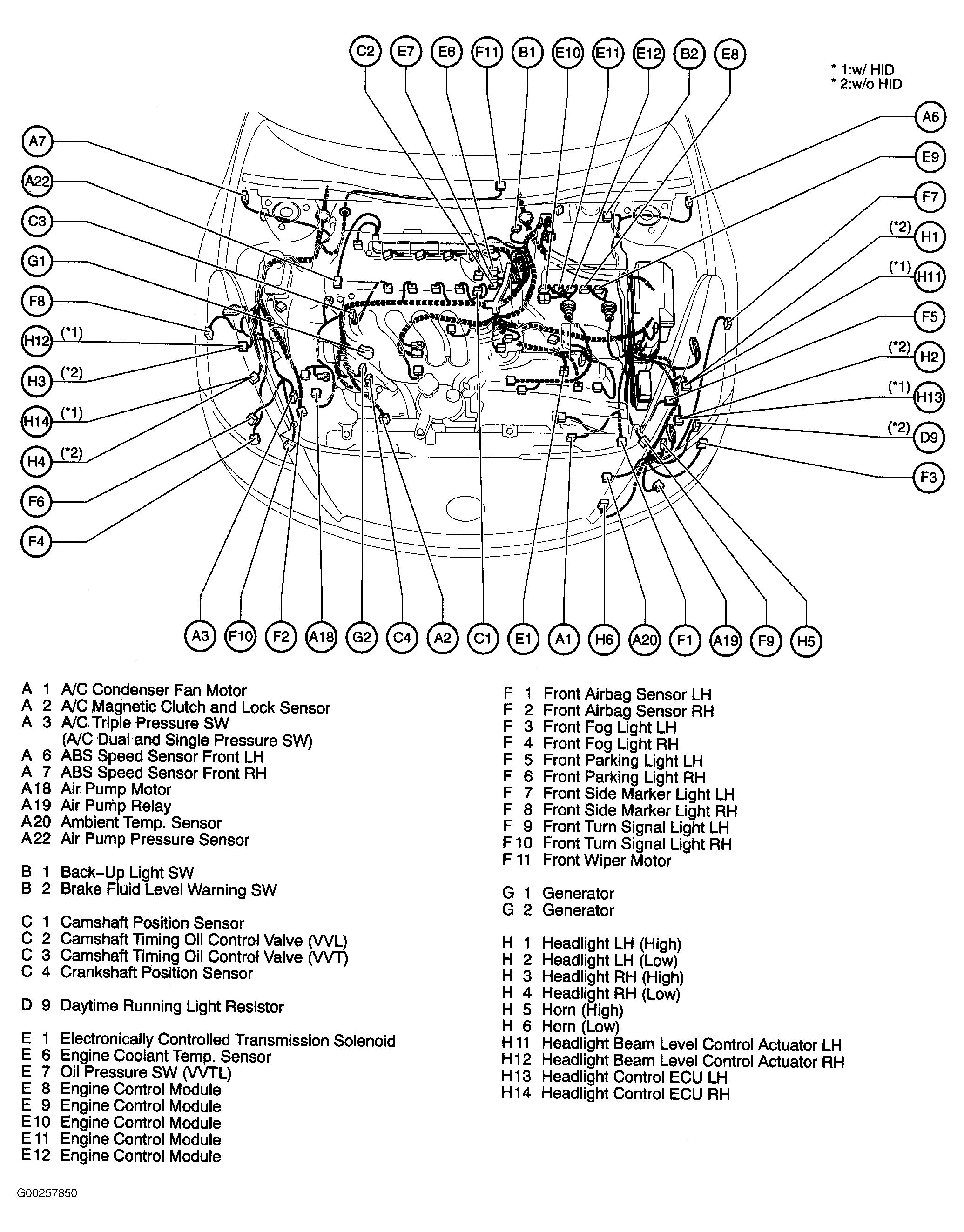

| Headlight Control ECU LH (1.8L GT-S) | Left front of engine compartment. See Figure. |
| Headlight Control ECU RH (1.8L GT) | Right front of engine compartment. See Figure. |
| Headlight Control ECU RH (1.8L GT-S) | Right front of engine compartment.Figure. |
| Shift Lock Control ECU | Under center console, right of parking brake lever. See Figure. |

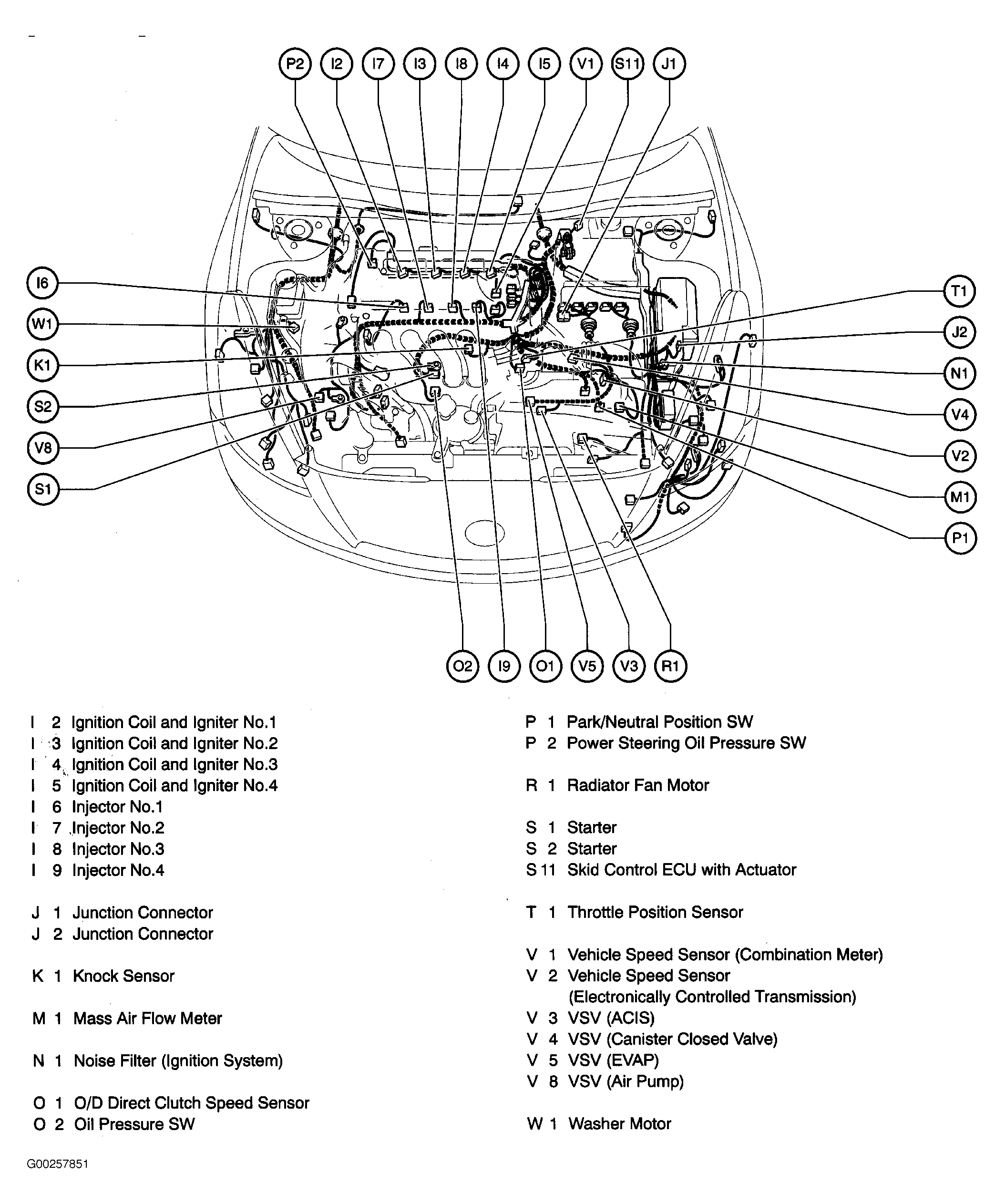

| Skid Control ECU W/Actuator (1.8L GT) | Left rear of engine compartment. See Figure. |

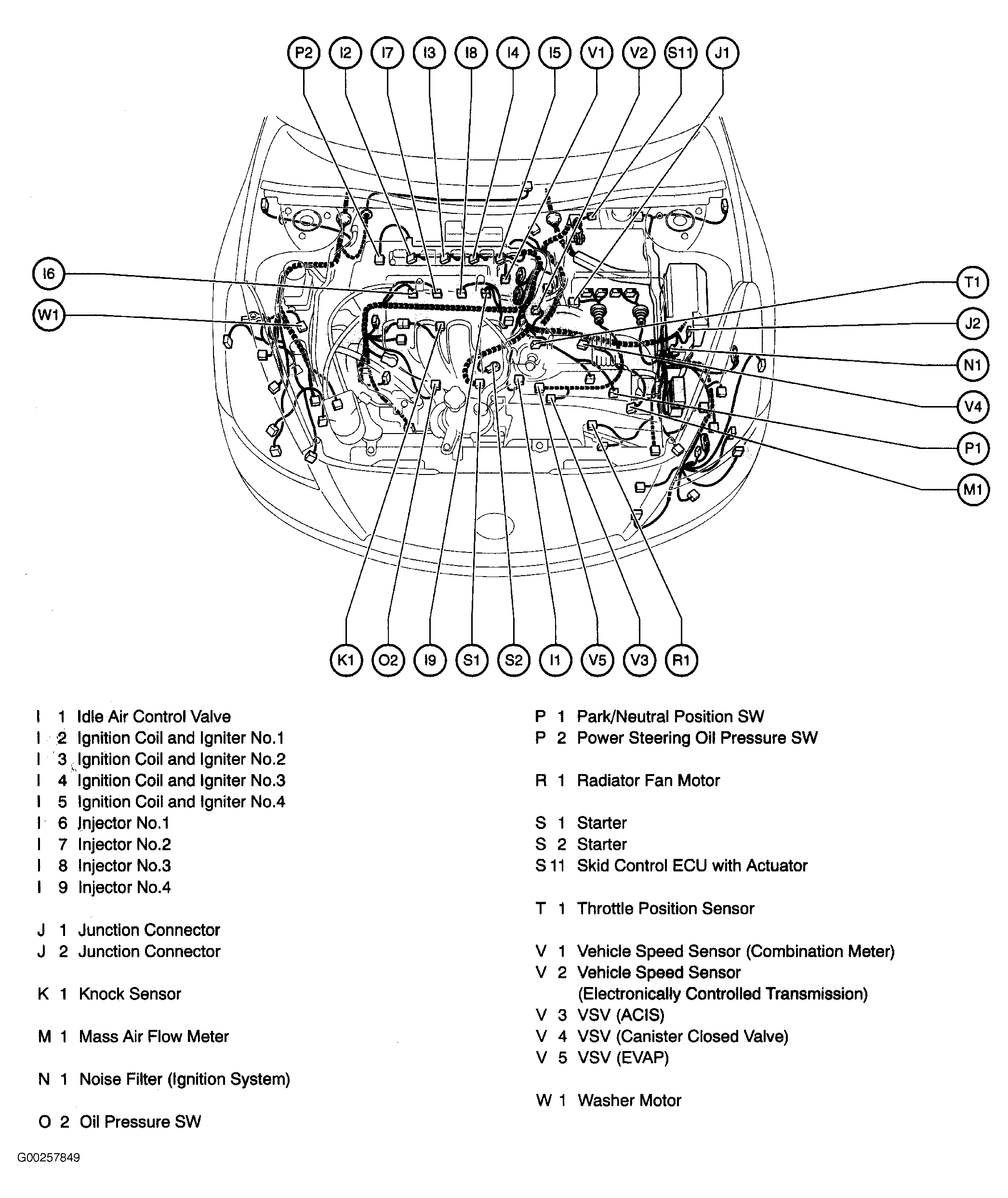

| Skid Control ECU W/Actuator (1.8L GT-S) | Left rear of engine compartment. See Figure. |
