Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

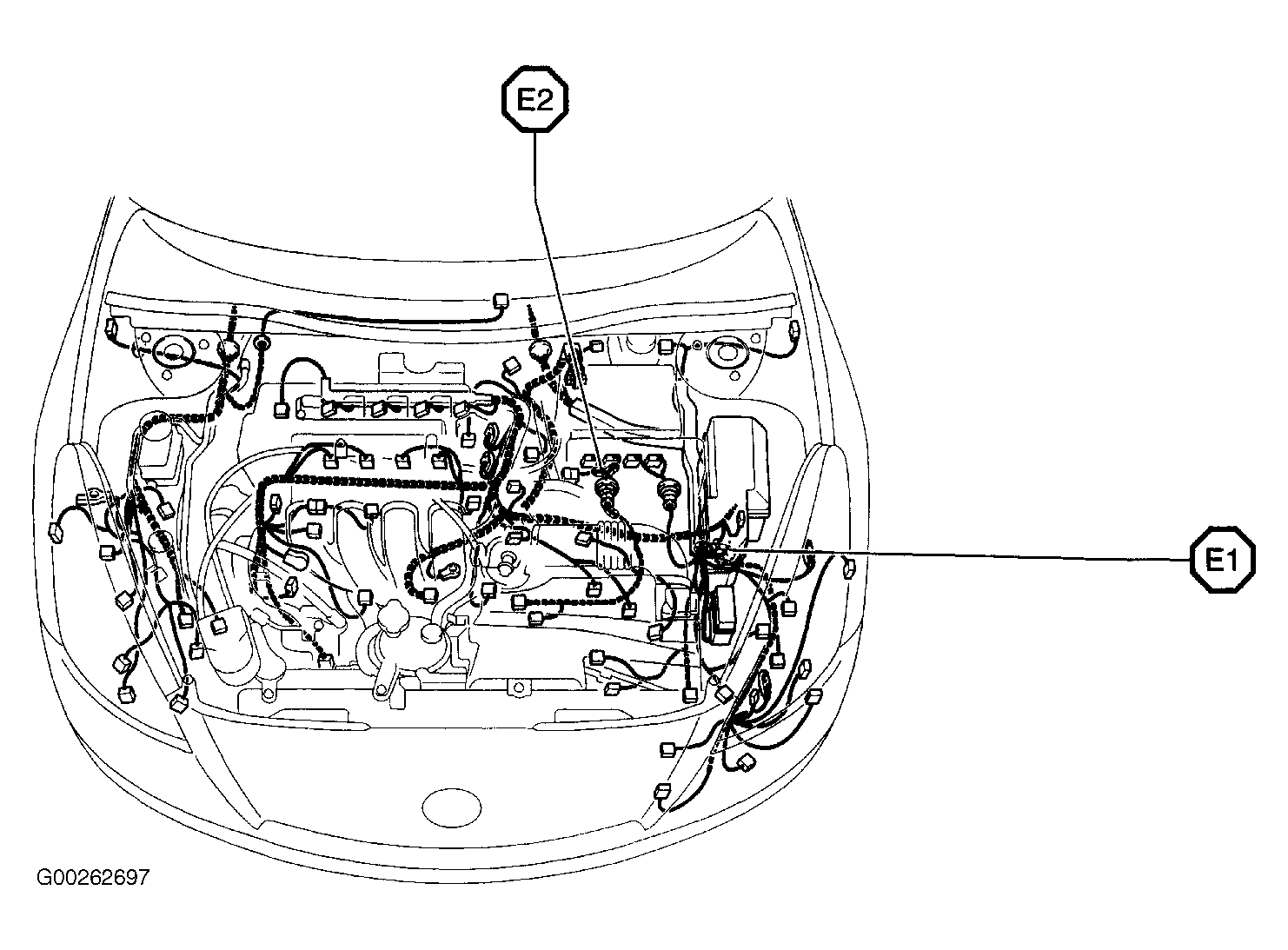

Fig 1: Engine Compartment (1.8L GT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment (1.8L GT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment (1.8L GT-S)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Compartment (1.8L GT-S)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

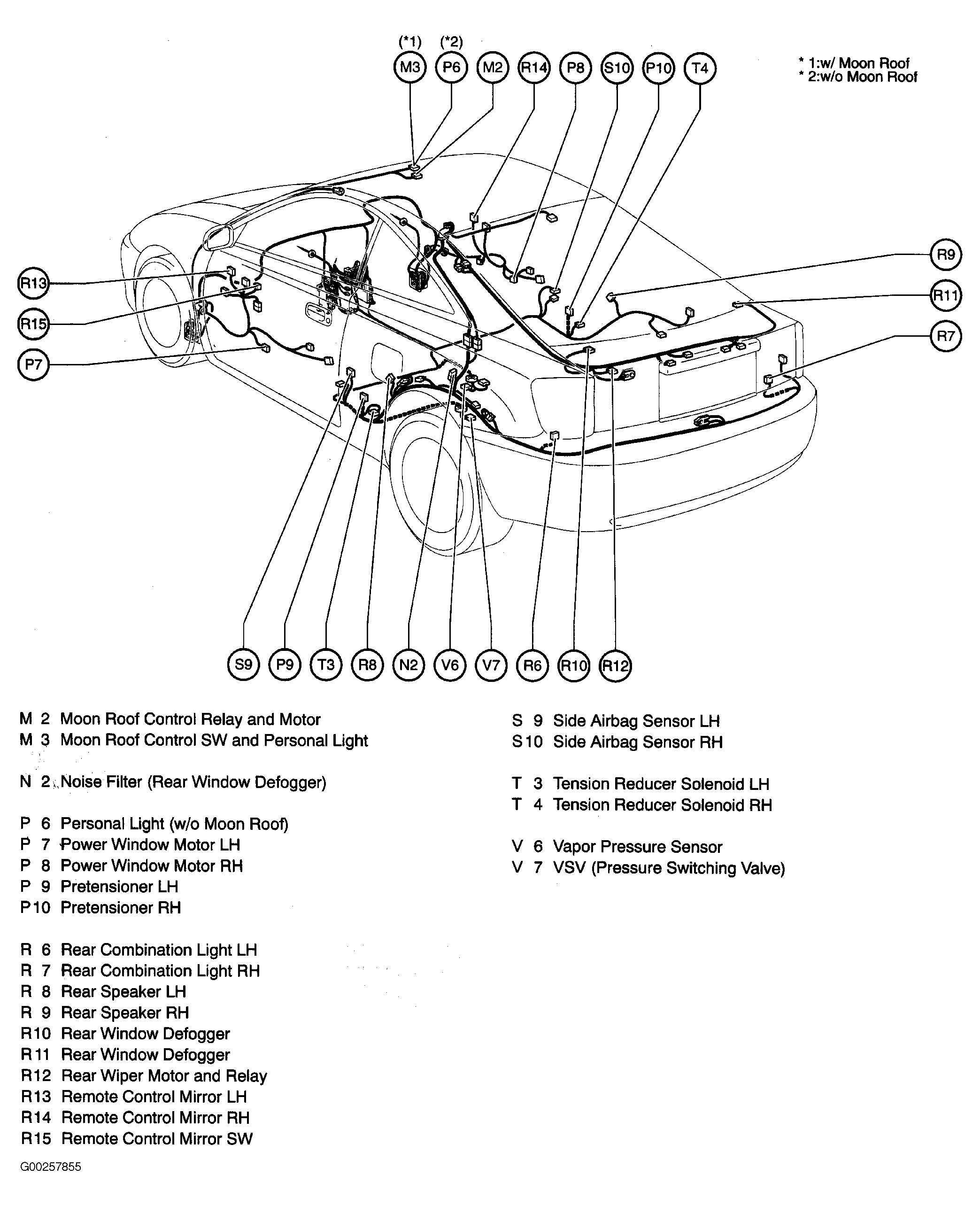

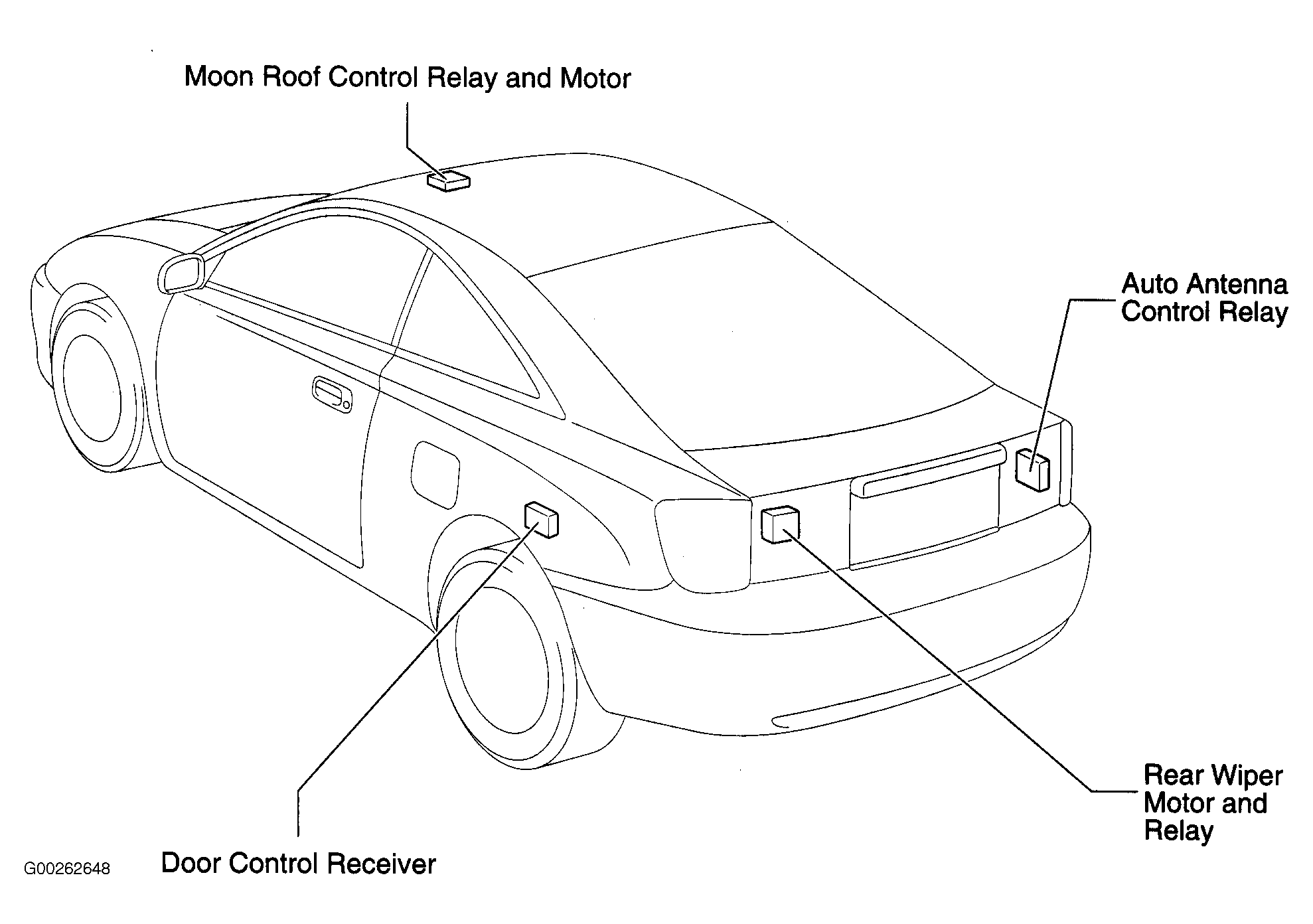

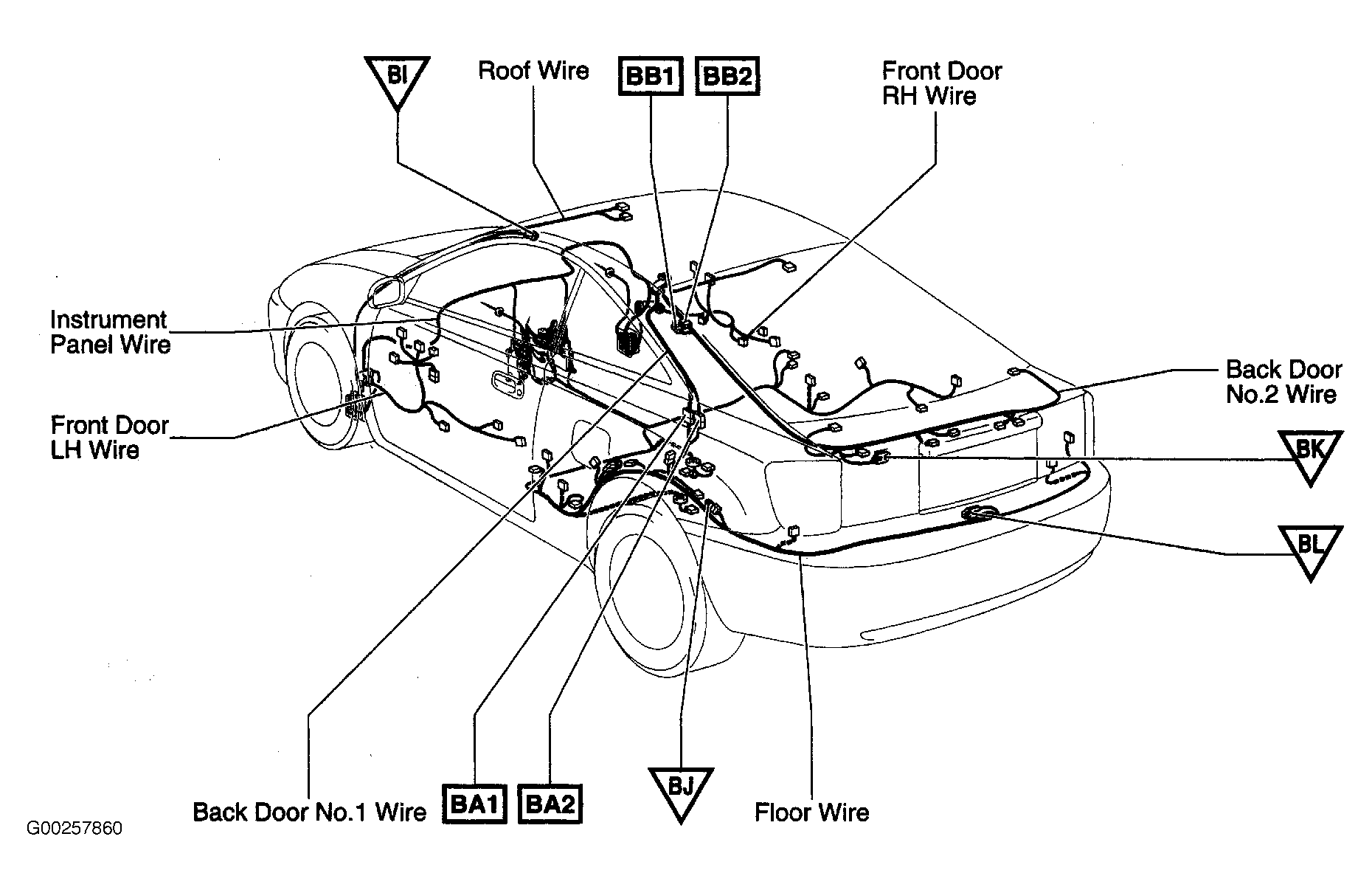

Fig 6: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VEHICLE OVERVIEW RELAY IDENTIFICATION

RELAY DESCRIPTION
Moon Roof Control Relay and Motor
Auto Antenna Control Relay
Rear Wiper Motor and Relay

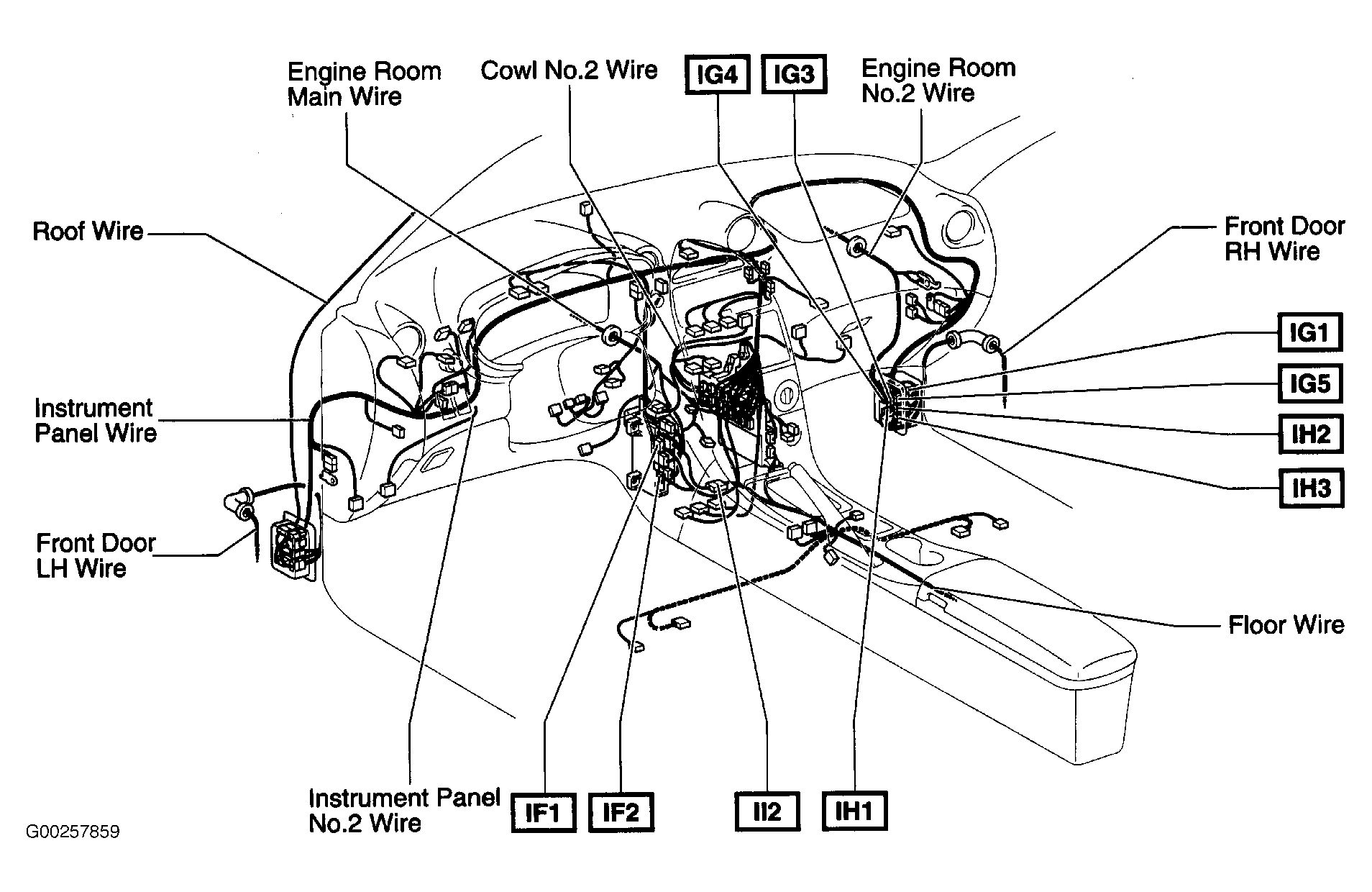

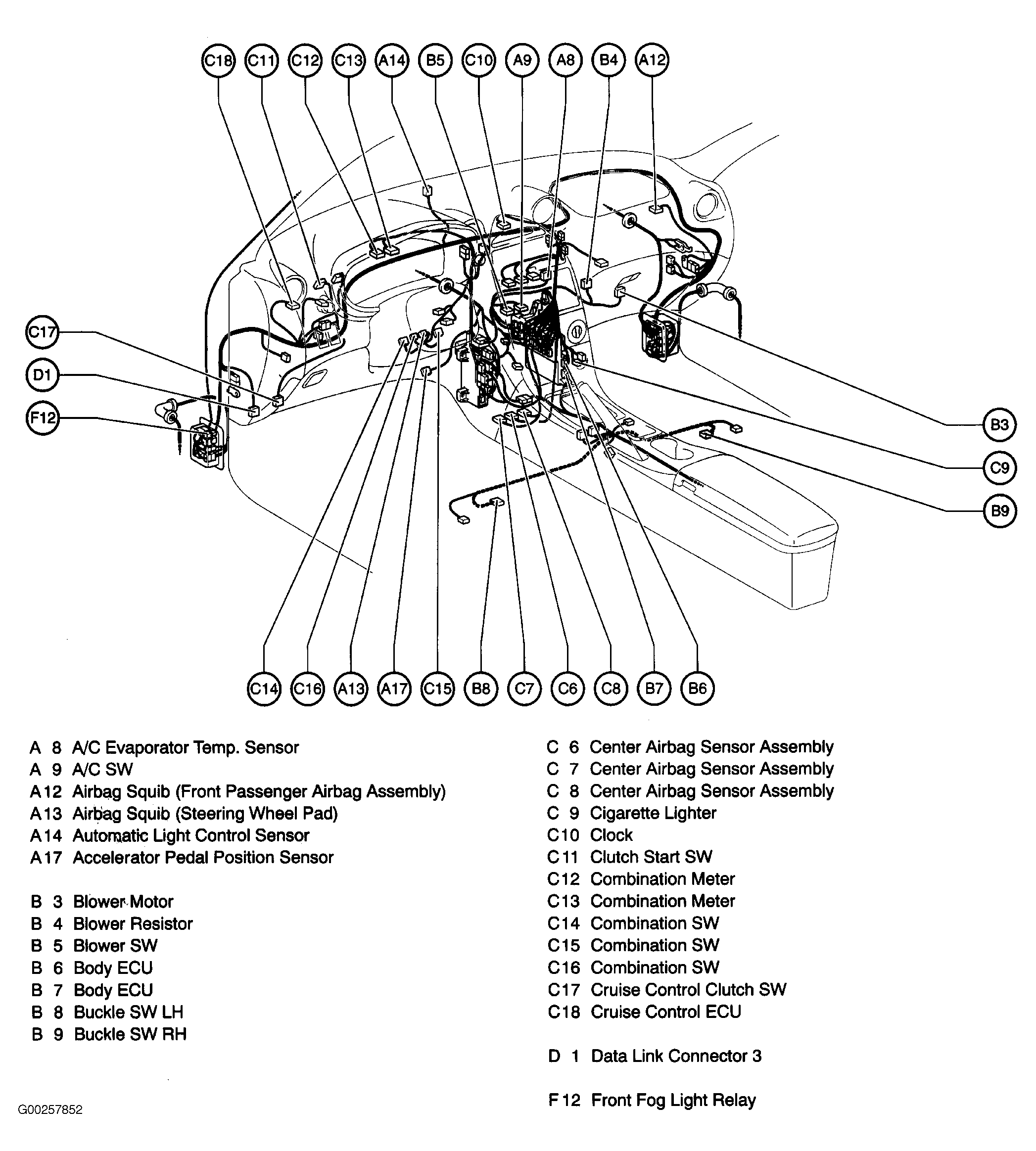

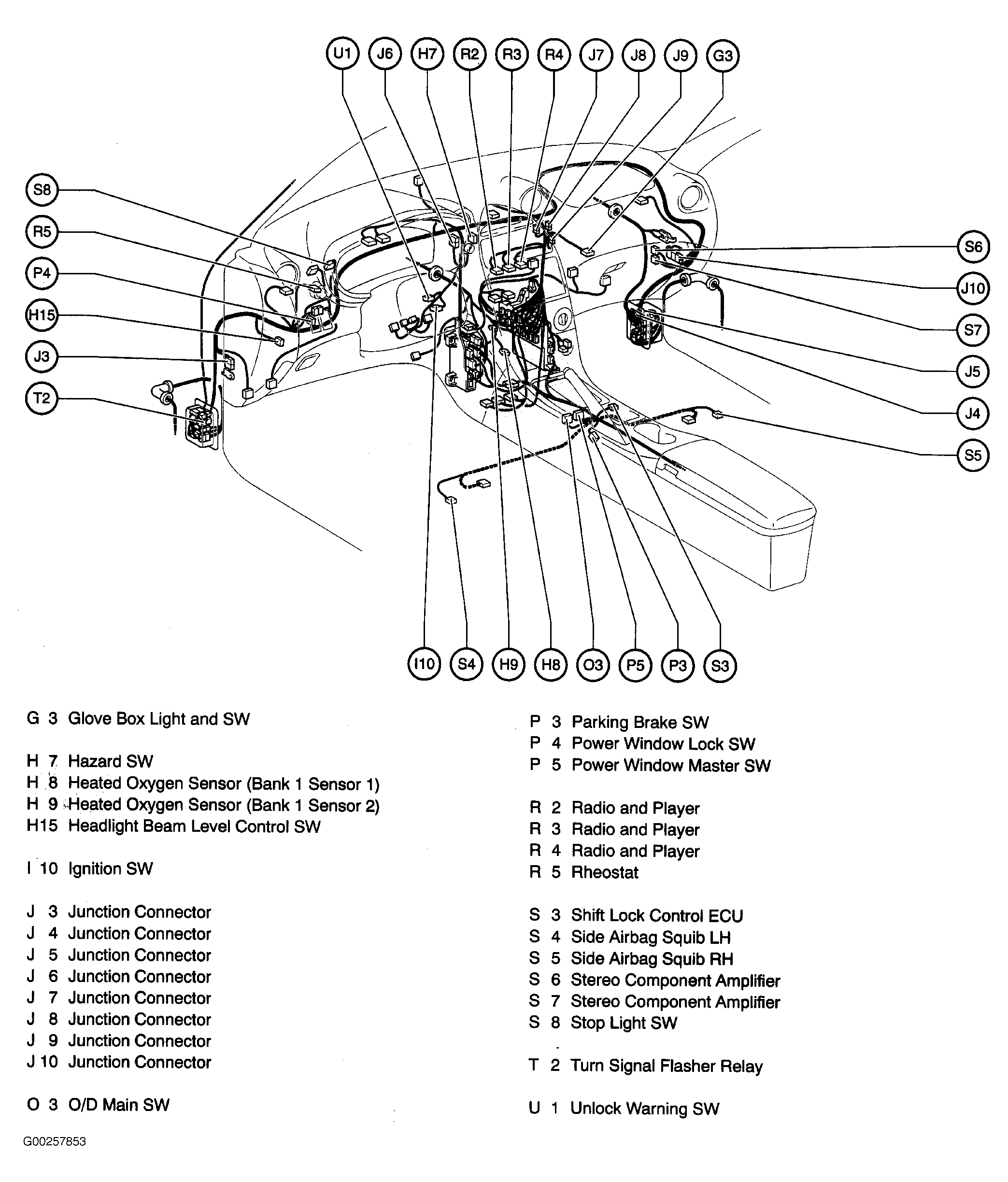

Fig 7: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

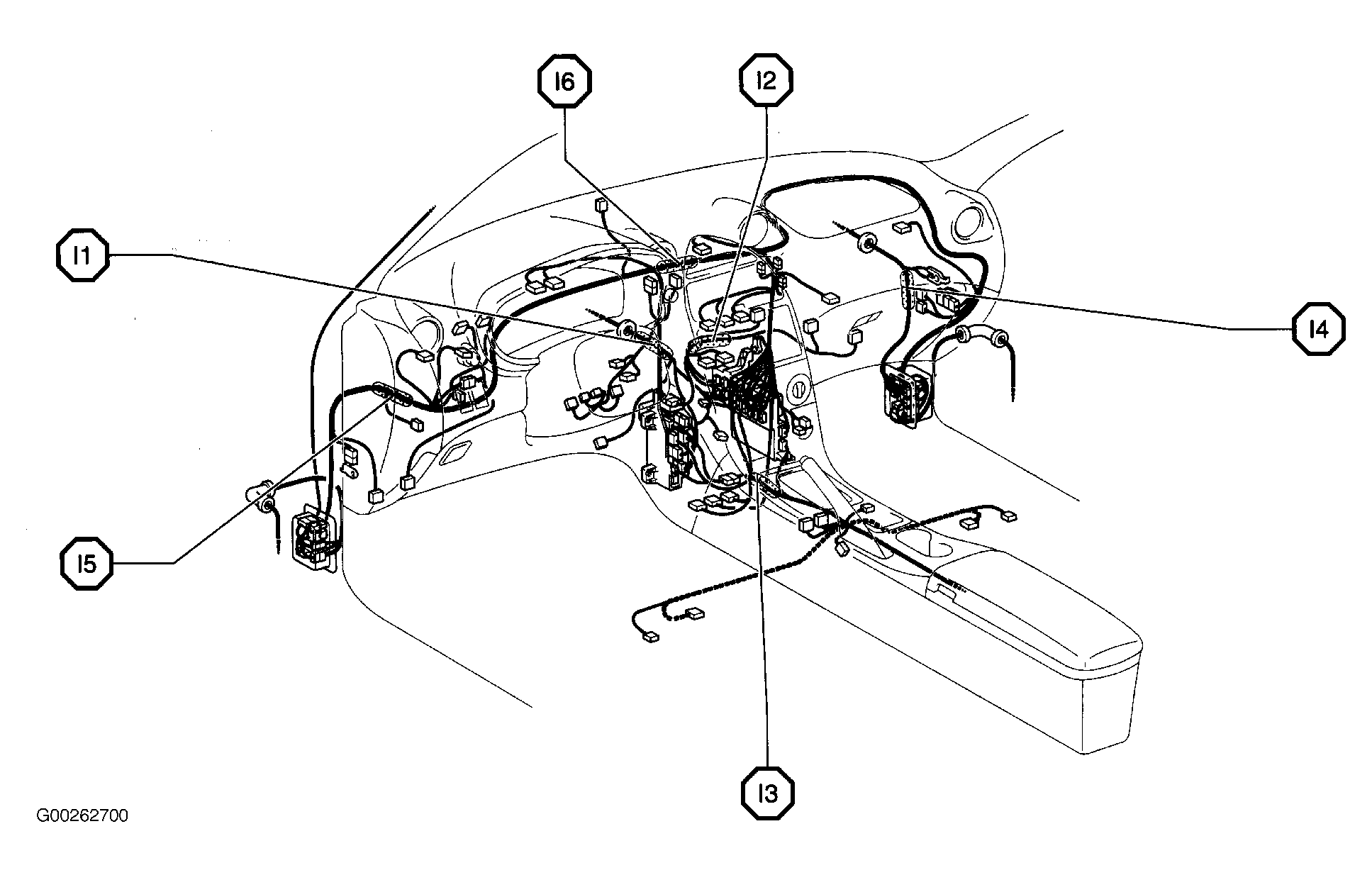

Fig 8: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

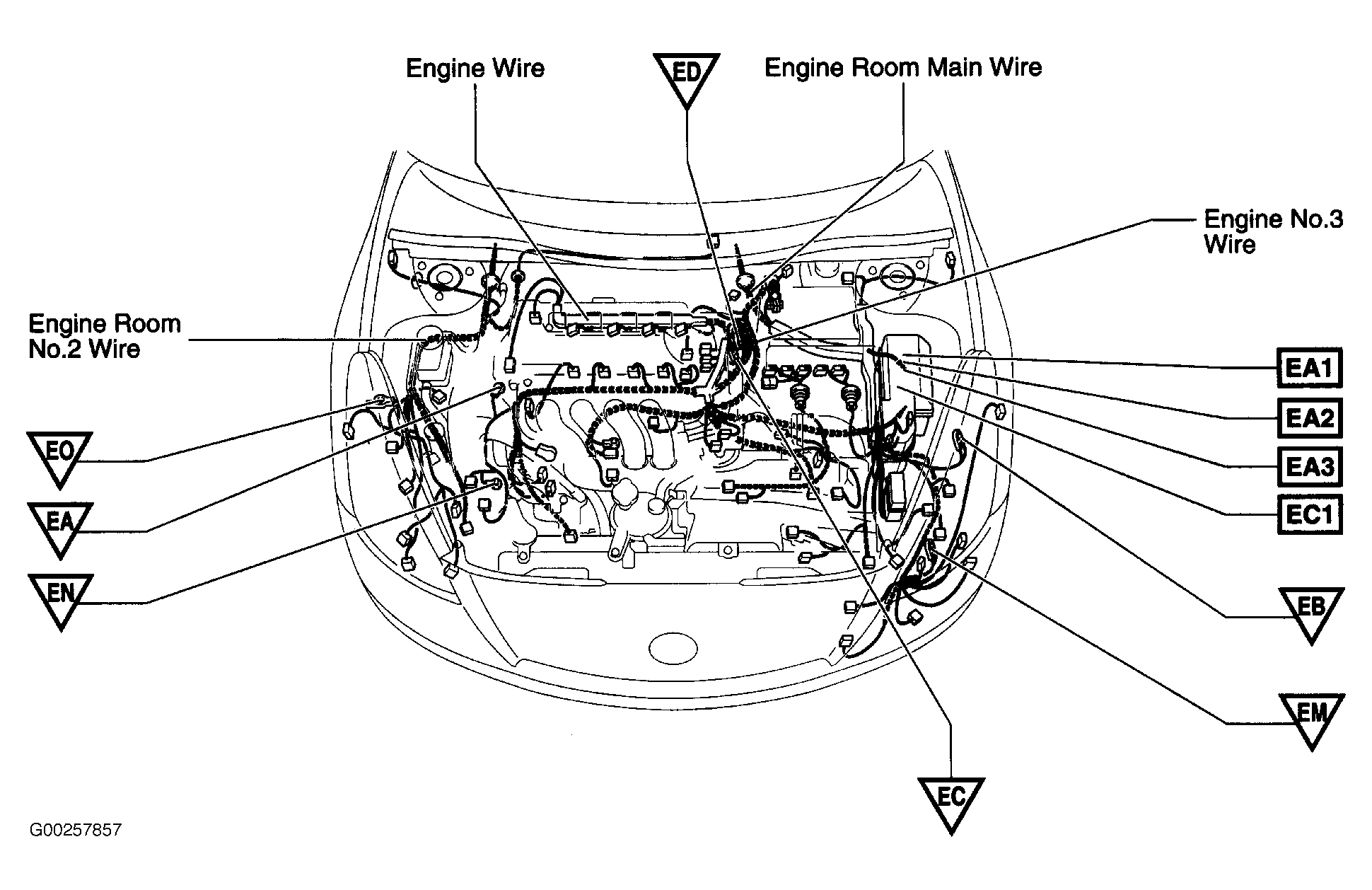

Fig 10: Engine Compartment (1.8L GT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

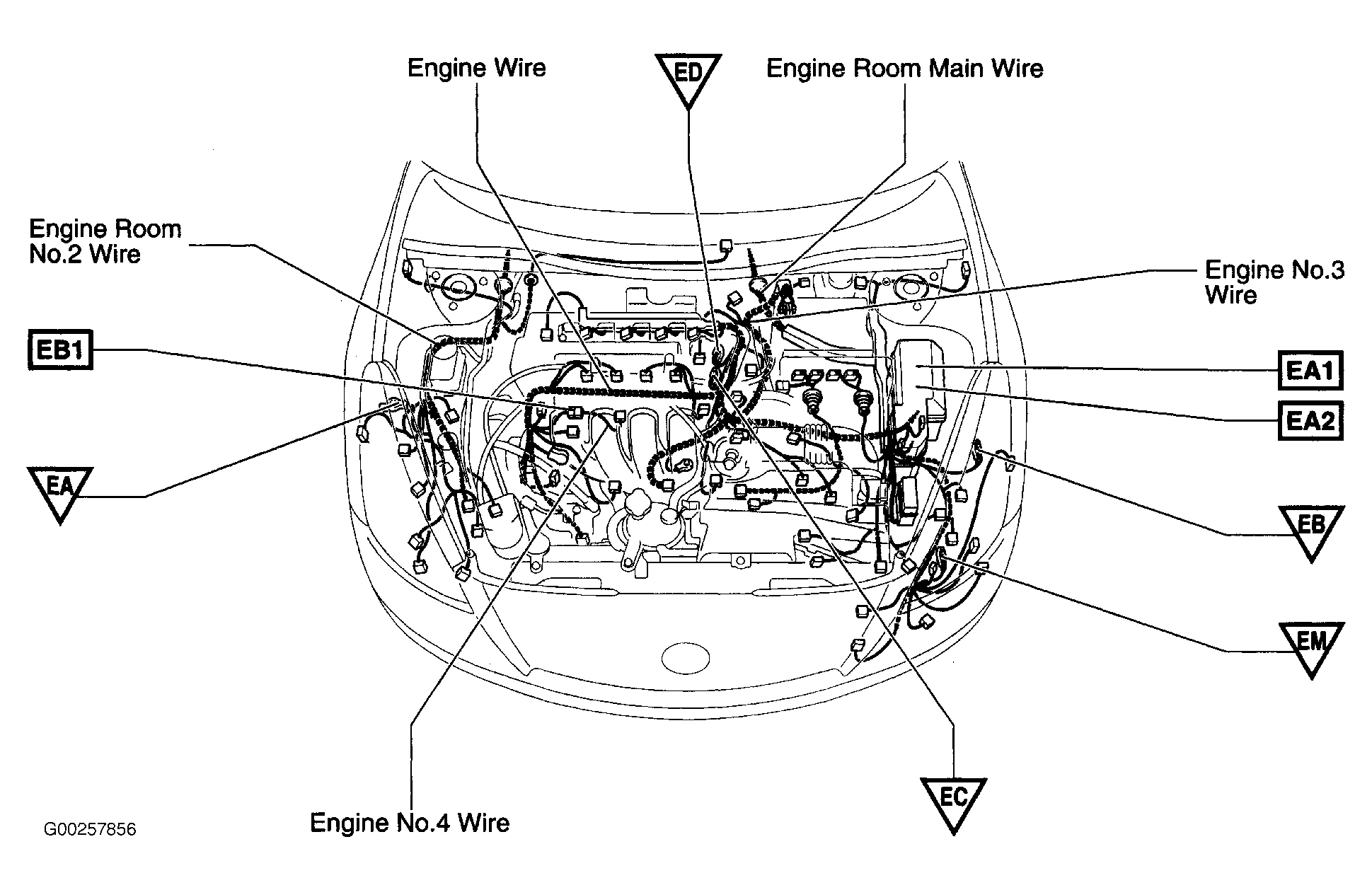

Fig 11: Engine Compartment (1.8L GT-S)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

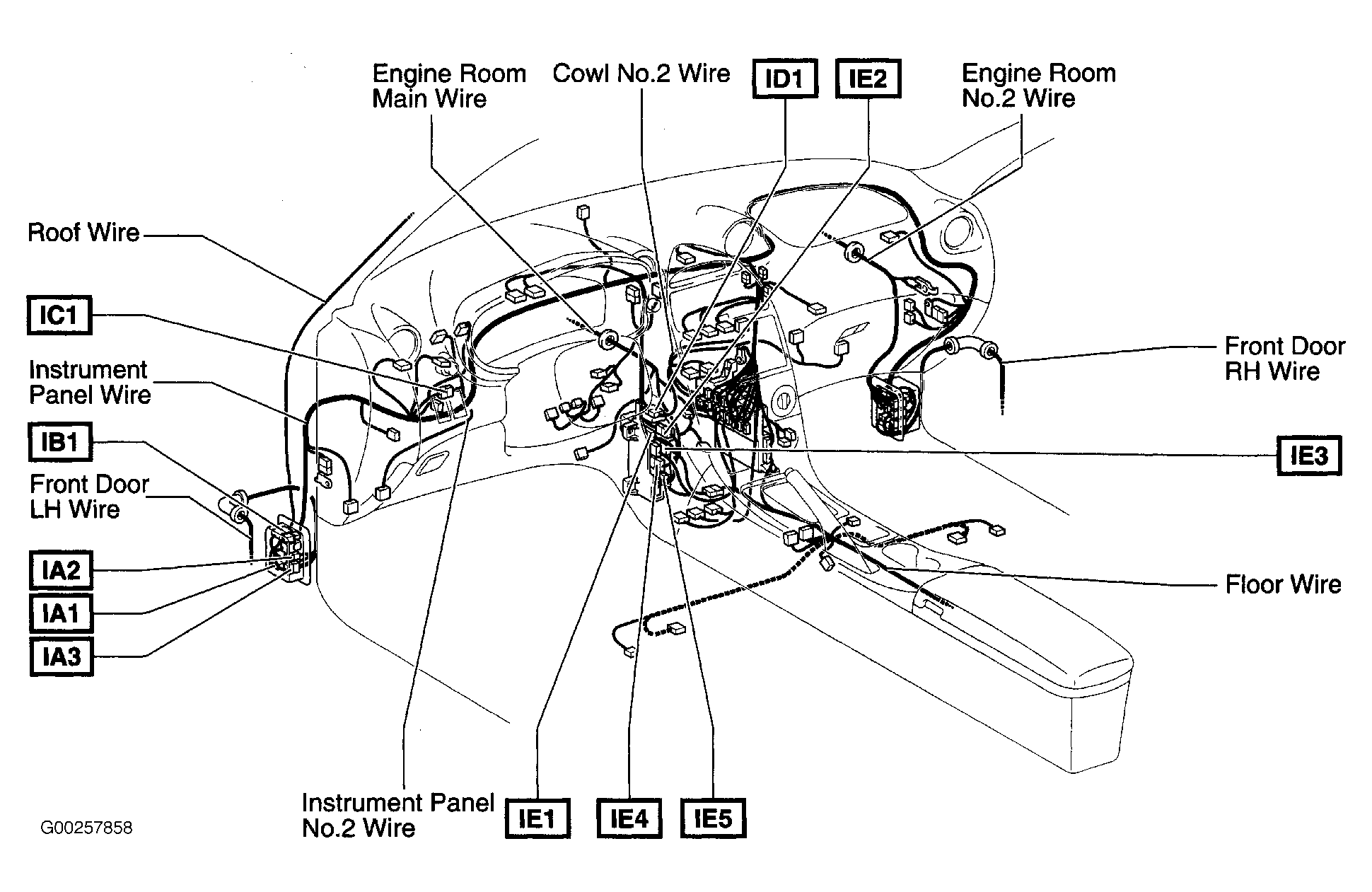

Fig 12: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Light Relay
Turn Signal Flasher Relay

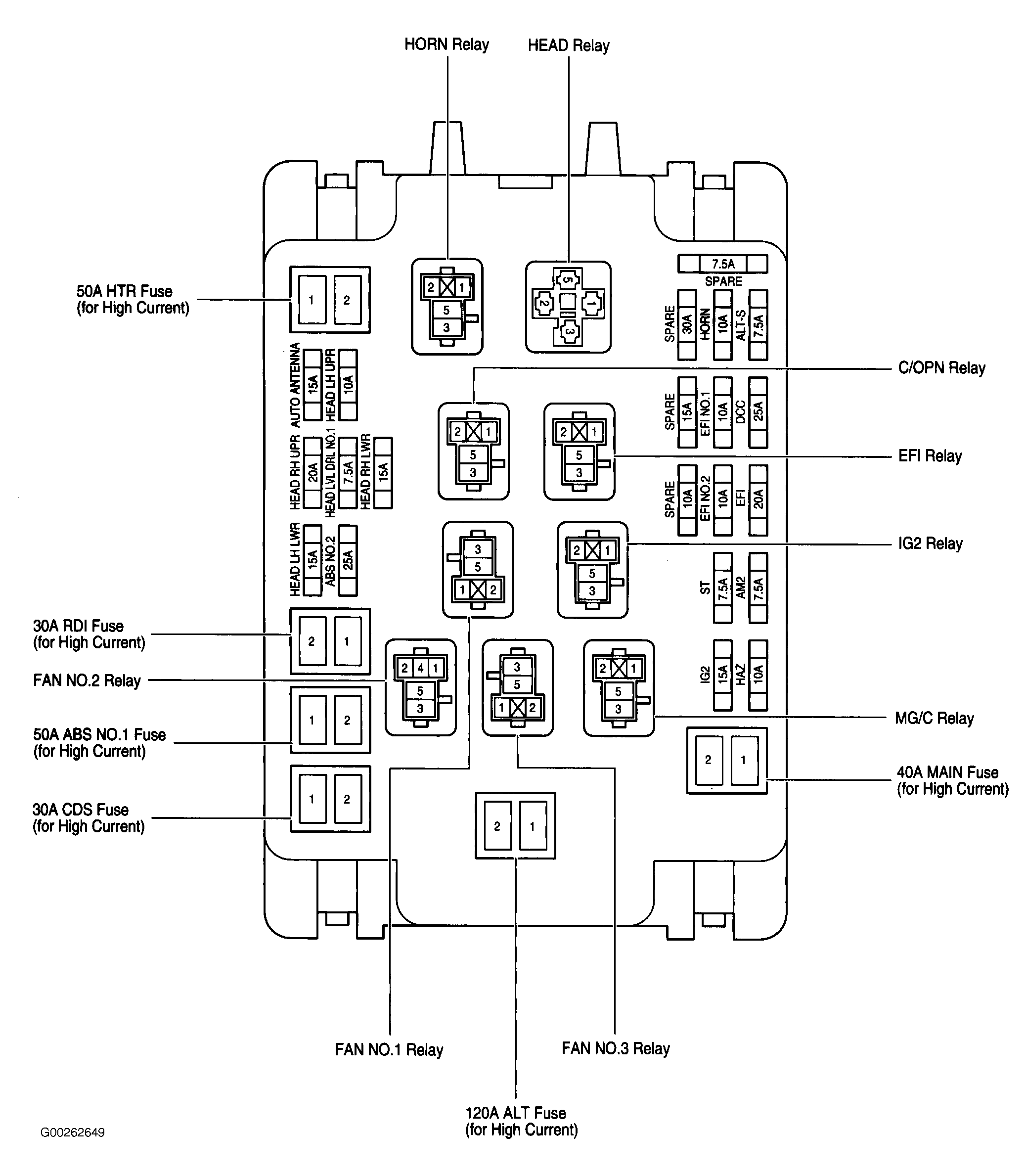

Fig 16: Engine Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fan No.2 Relay
Horn Relay
Head Relay
C/OPN Relay
EFI Relay
IG2 Relay
MG/C Relay
Fan No.3 Relay
Fan No.1 Relay

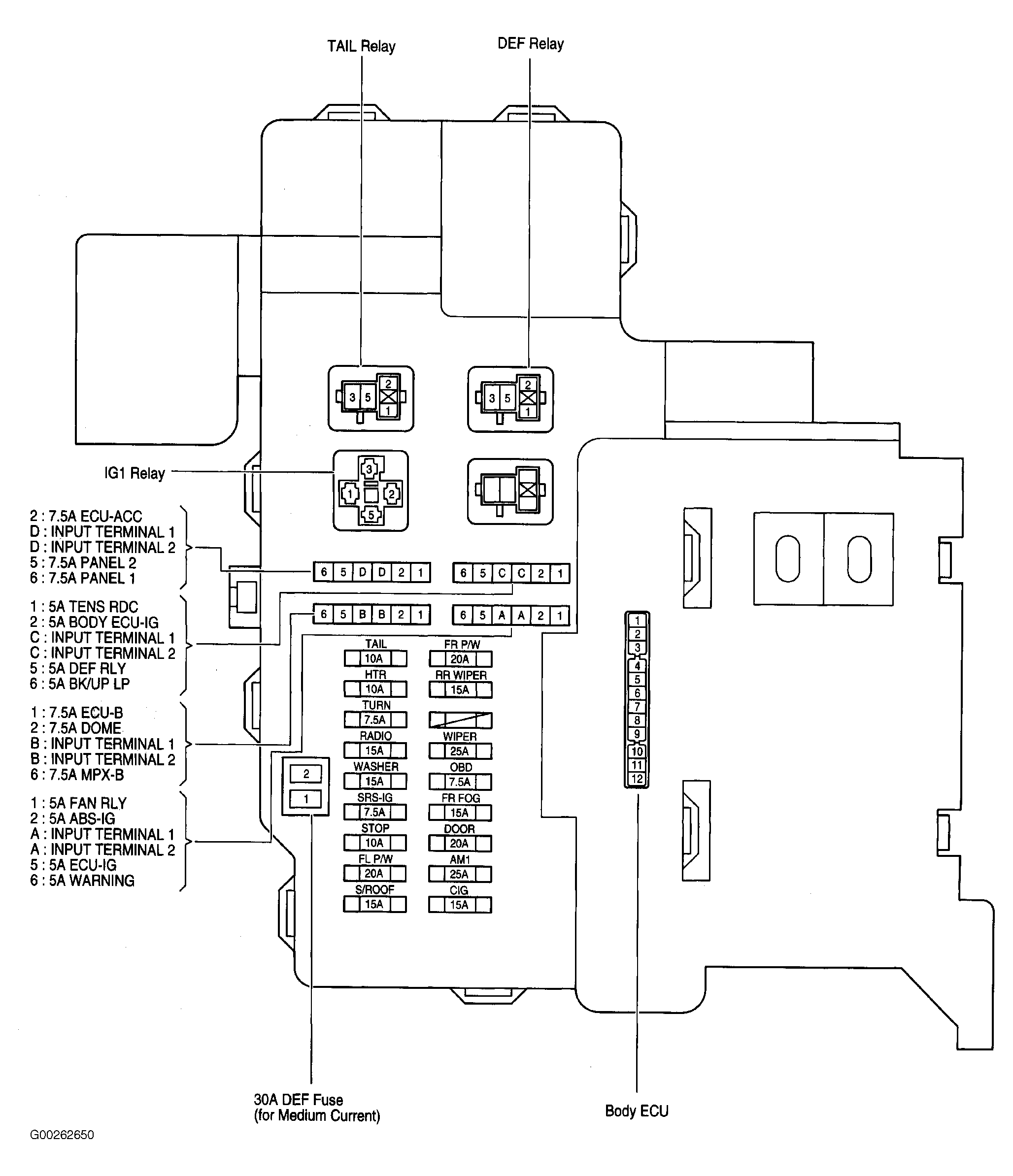

Fig 17: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENTAL PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 Relay
Tail Relay
DEF Relay

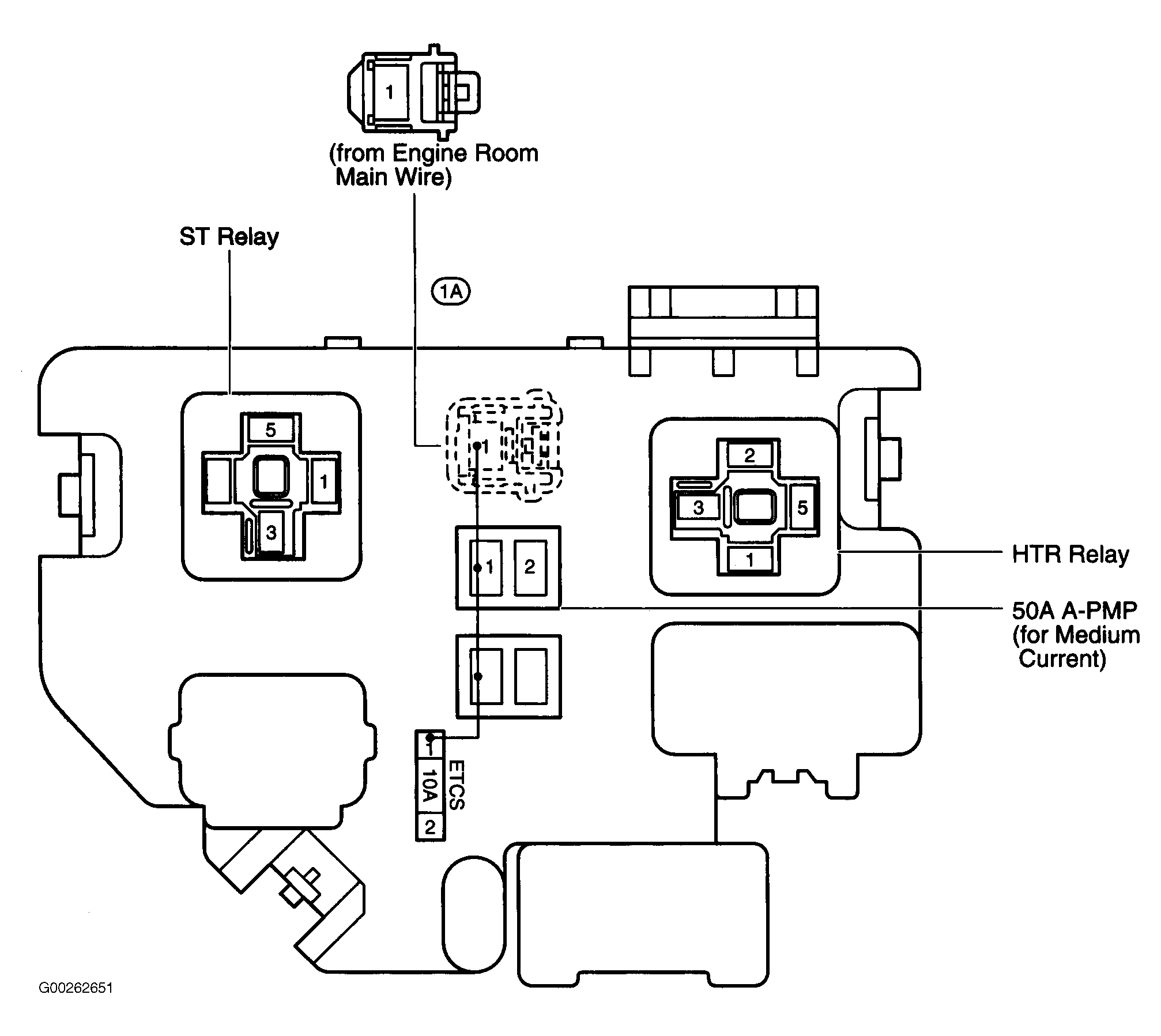

Fig 18: Engine Room R/B No. 1 & Engine Room J/B No. 1

ENGINE ROOM RELAY/JUNCTION BLOCK NO. 1 RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
HTR Relay

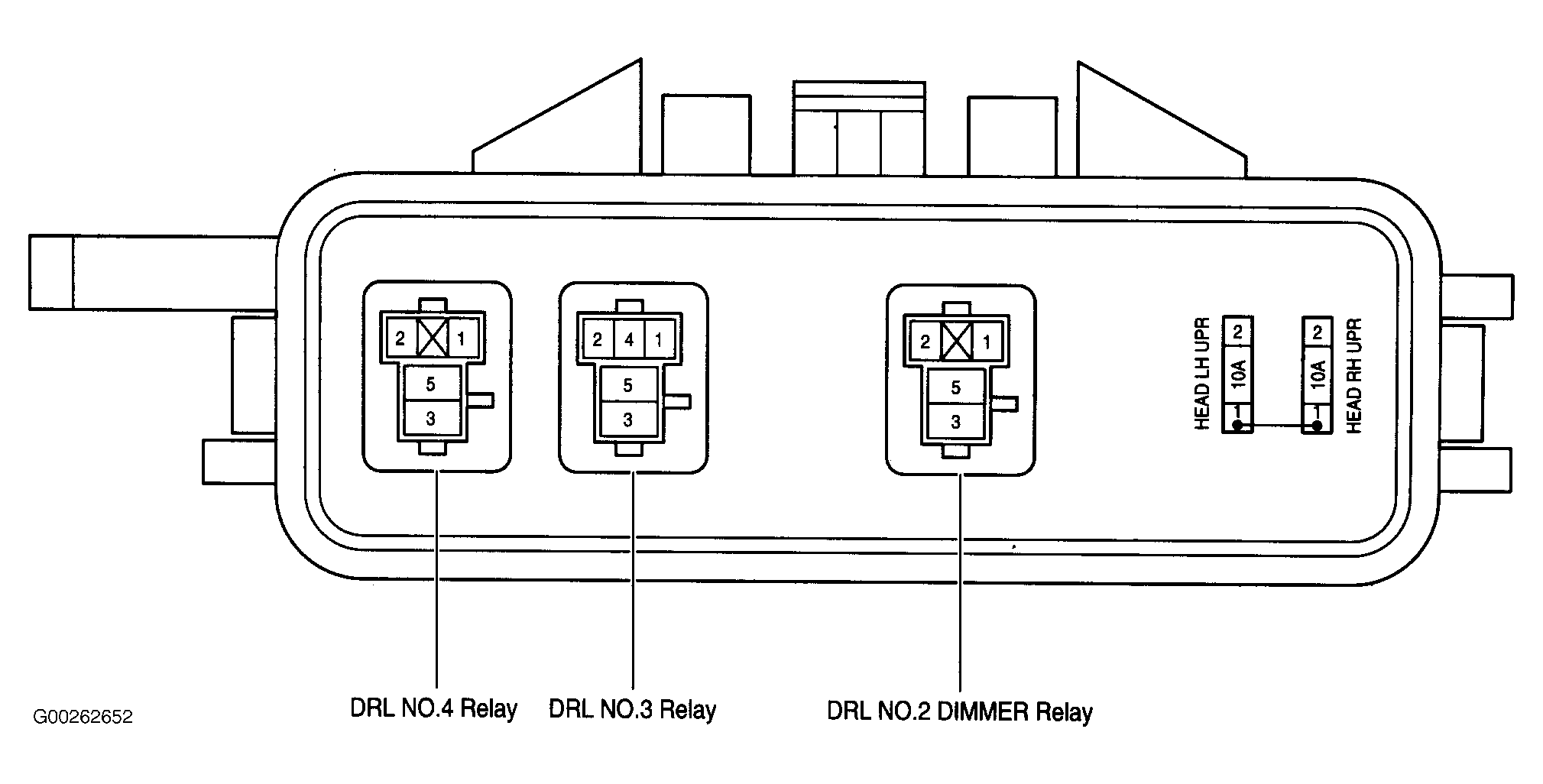

Fig 19: Engine Room R/B No. 2

ENGINE ROOM RELAY BLOCK NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.2 Dimmer Relay
DRL No.3 Relay
DRL No.4 Relay

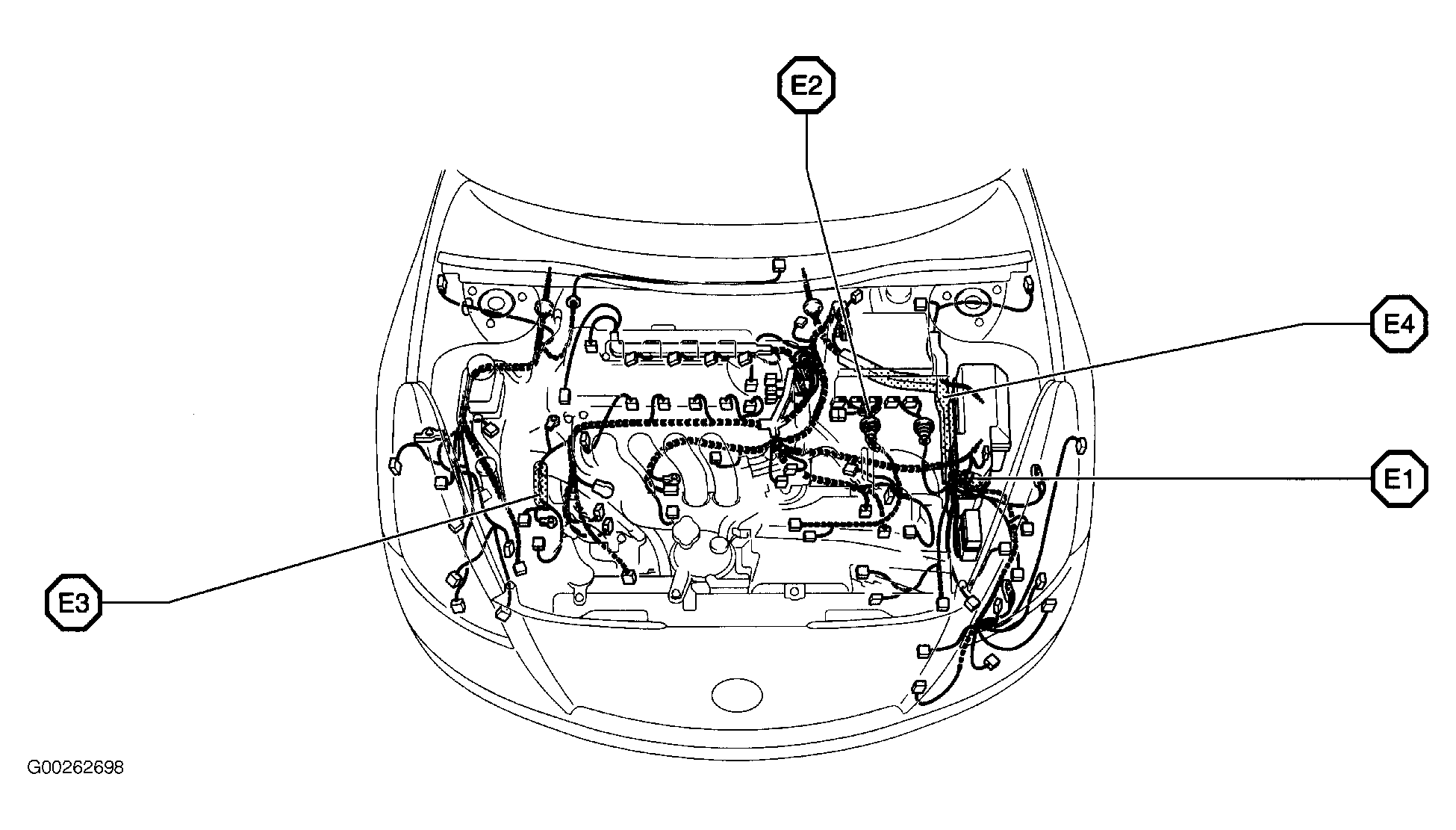

Fig 20: Engine Compartment (1.8L GT)

Fig 21: Engine Compartment (1.8L GT-S)

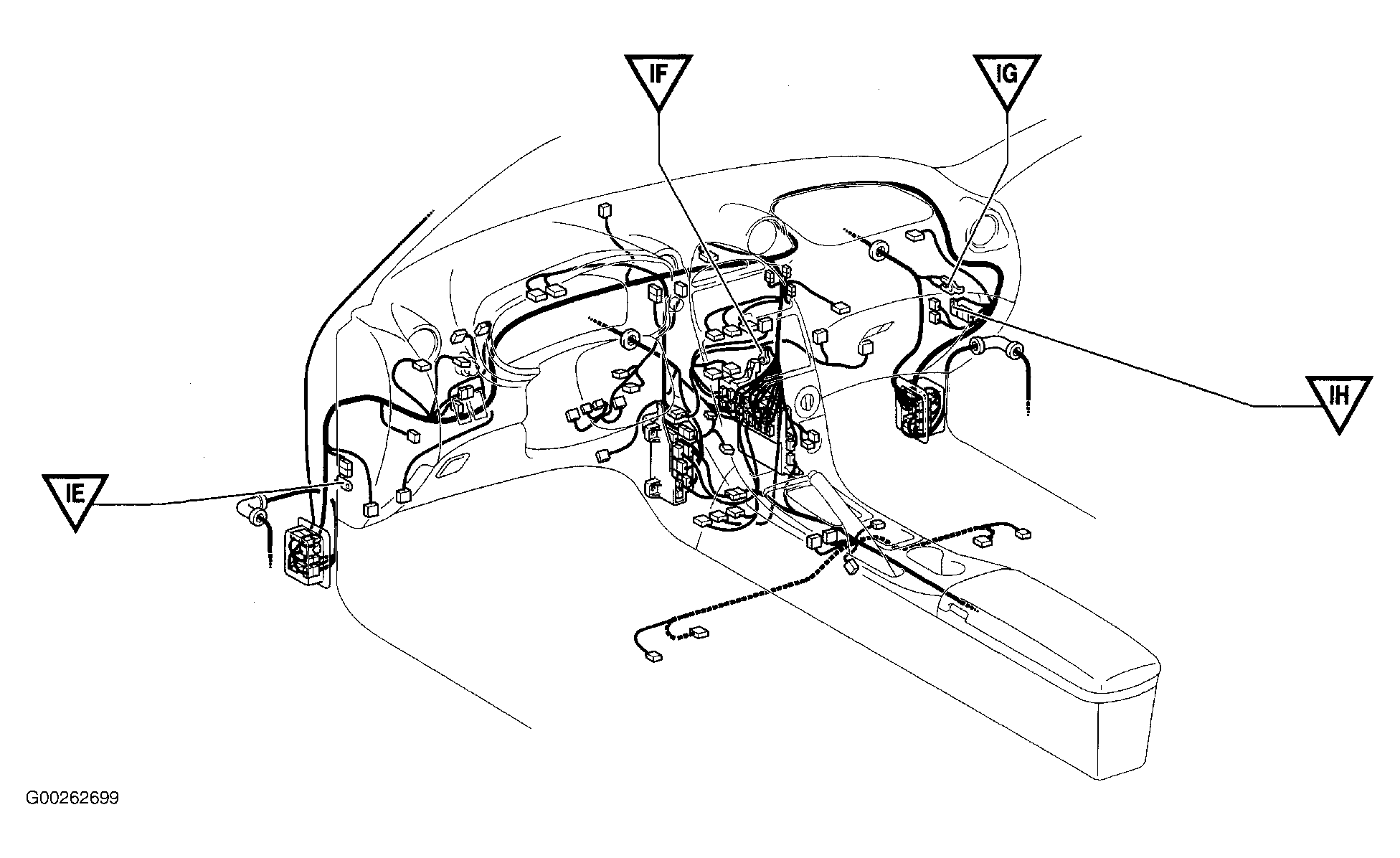

Fig 22: Dash

Fig 23: Dash

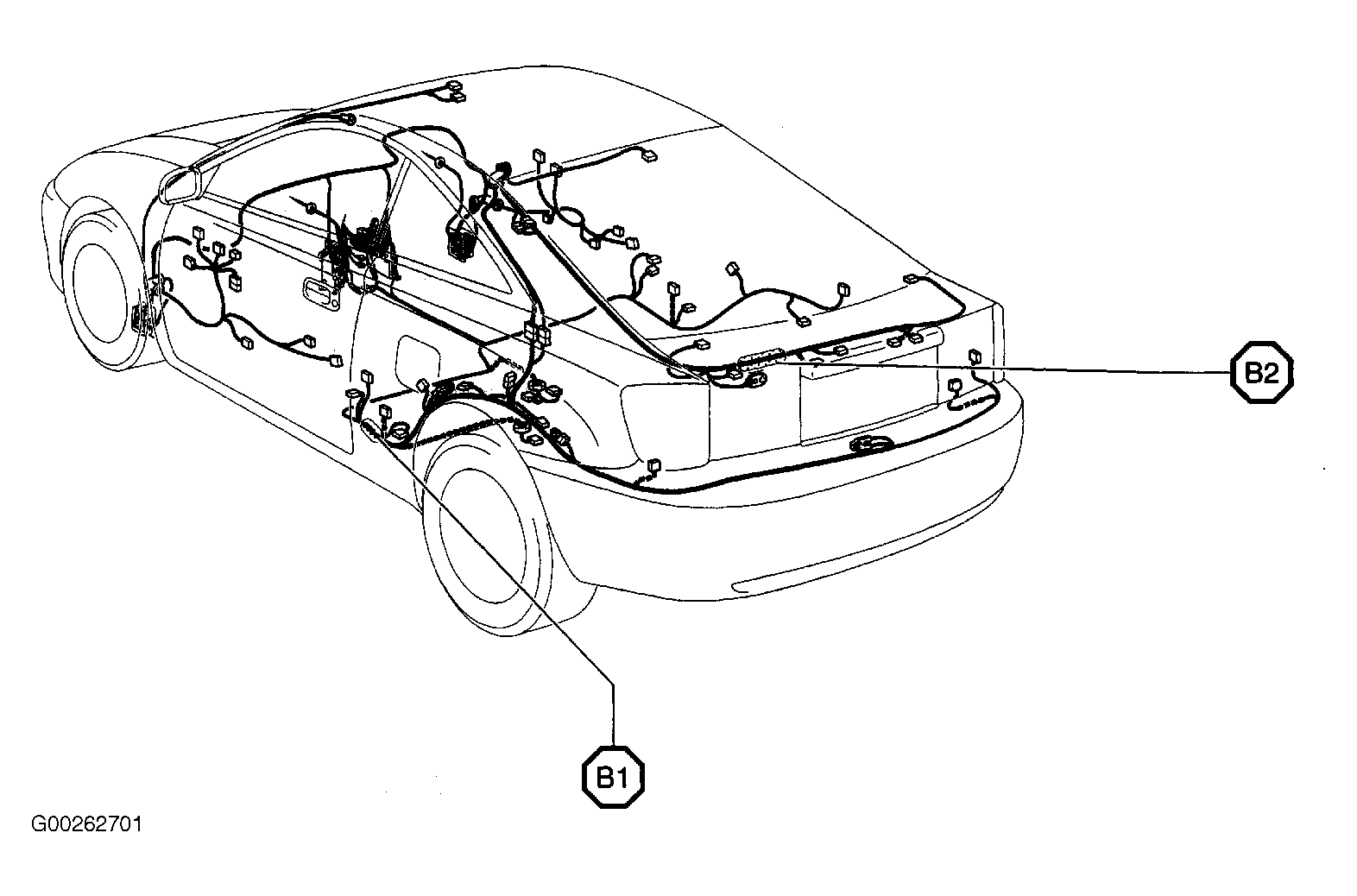

Fig 24: Vehicle Overview

Fig 25: Vehicle Overview
