Charging System (Service Specifications)
>>
Service Data
Service Data

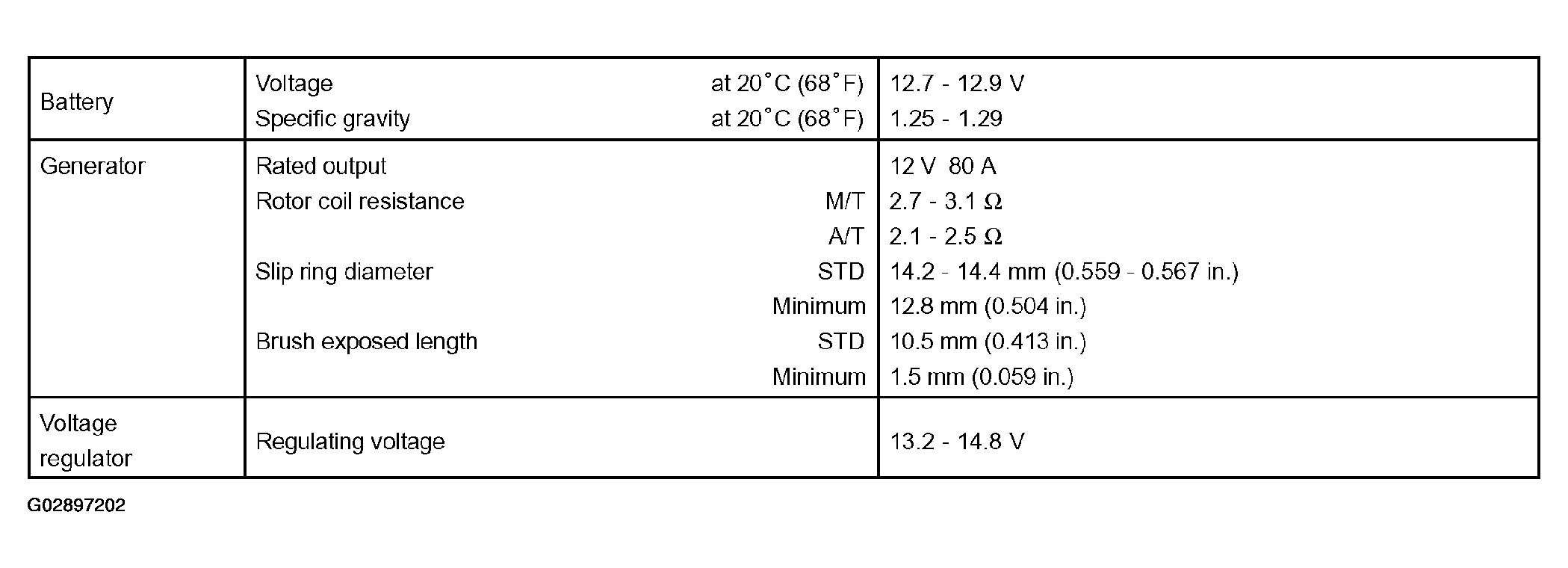

Fig 1: Charging Service Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
