Front Brake Speed Sensor: Removal

DISCONNECT SPEED SENSOR CONNECTOR
1. Remove the front wheel.
  1. Torque: 103 N.m (1,050 kgf.cm, 76 ft..lbf)
2. Remove the fender liner.
3. Disconnect the speed sensor connector and resin clip.

  Fig 1: Disconnecting Speed Sensor Connector And Resin Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR
1. Remove the 2 clamp bolts holding the sensor harness from the body and shock absorber.
  1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

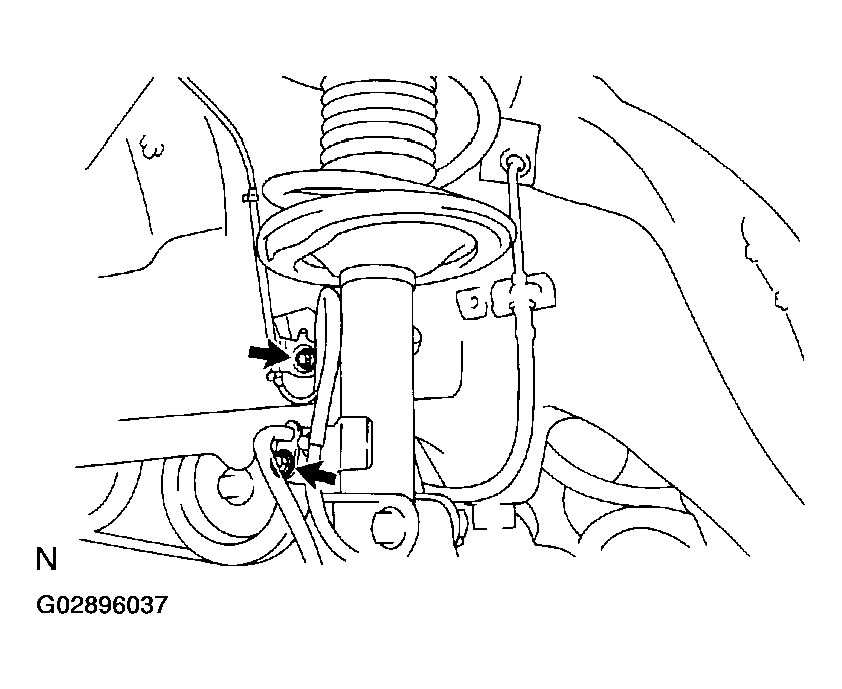

    Fig 2: Removing Clamp Bolts Holding Sensor Harness From Body And Shock Absorber
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the speed sensor installation bolt from the steering knuckle.
  1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

NOTE: At the time of installation, please refer to the following item.

There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
The sensor is installed flat against the knuckle when you tighten the bolt.

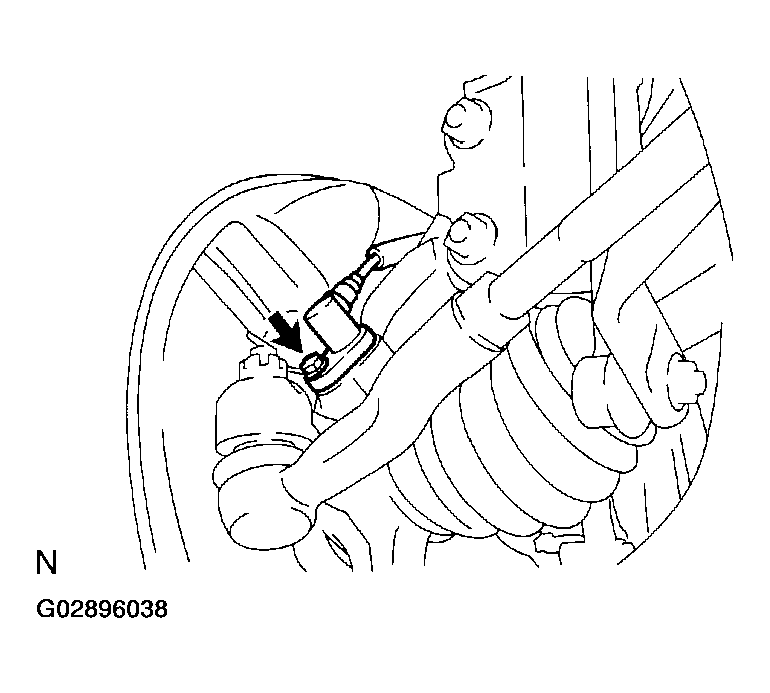

Fig 3: Removing Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
