Tilt Steering Column: Inspection

INSPECT STEERING LOCK OPERATION
Check that the steering lock mechanism operates properly.

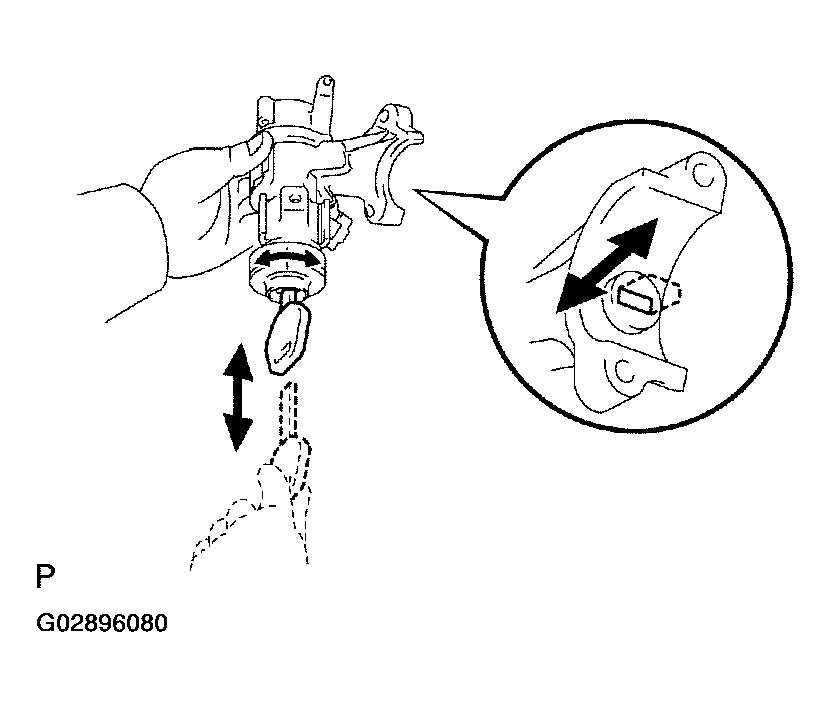

Fig 1: Checking Steering Lock Mechanism
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IF NECESSARY, REPLACE KEY CYLINDER
1. Place the ignition key at the ACC position.
2. Push down the stop pin with a screwdriver, and pull out the cylinder.
3. Install a new cylinder.
HINT:

Make sure the key is at the ACC position.
INSPECT IGNITION SWITCH (See ON-VEHICLE INSPECTION )
IF NECESSARY, REPLACE IGNITION SWITCH

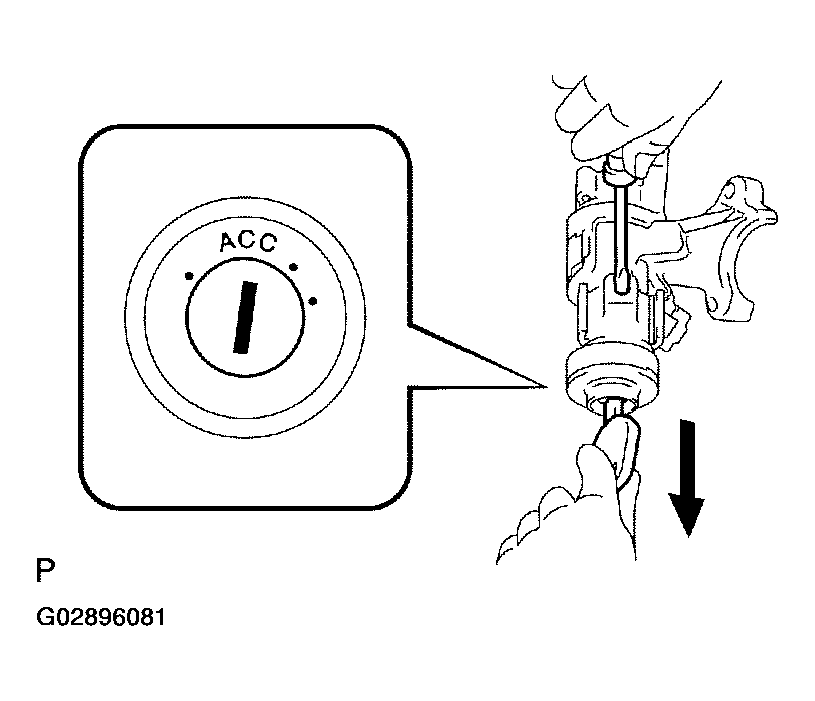

Fig 2: Placing Ignition Key At ACC Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and ignition switch from the column upper bracket.
2. Install a new ignition switch with the 2 screws.
INSPECT KEY UNLOCK WARNING SWITCH (See ON-VEHICLE INSPECTION )
IF NECESSARY, REPLACE KEY UNLOCK WARNING SWITCH
1. Slide the key unlock warning switch out of the column upper bracket.
2. Slide a new key unlock warning switch in the column upper bracket.
INSPECT BEARING
Check the bearing rotation condition and check for abnormal noise.

If the bearing is worn or damaged, replace the column tube.

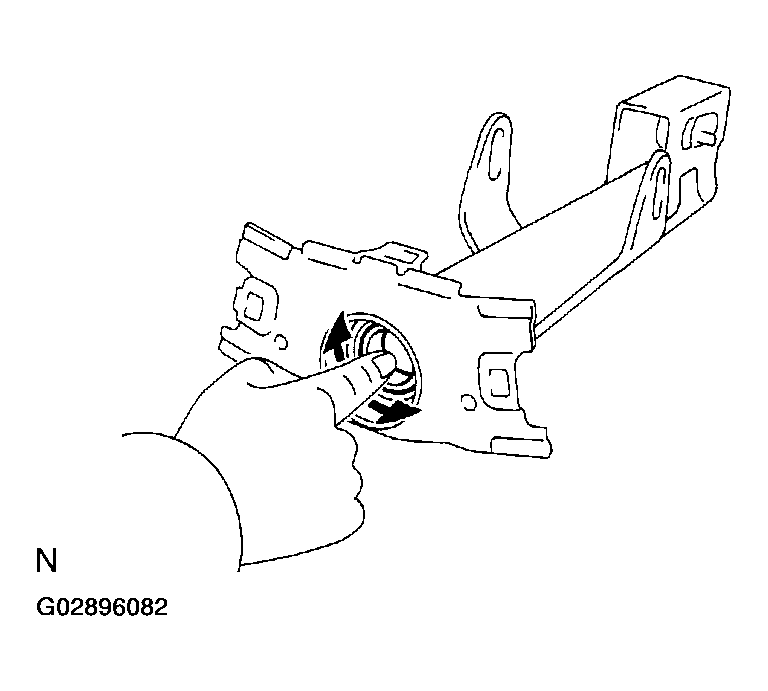

Fig 3: Checking Bearing Rotation Condition
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
