Tilt Steering Column: Disassembly

  1. REMOVE COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
    1. Using a centering punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3-4 mm (0.12-0.16 in.) drill, drill into the 2 bolts.
    3. Using a screw extractor, remove the 2 bolts, column upper bracket and column upper clamp.

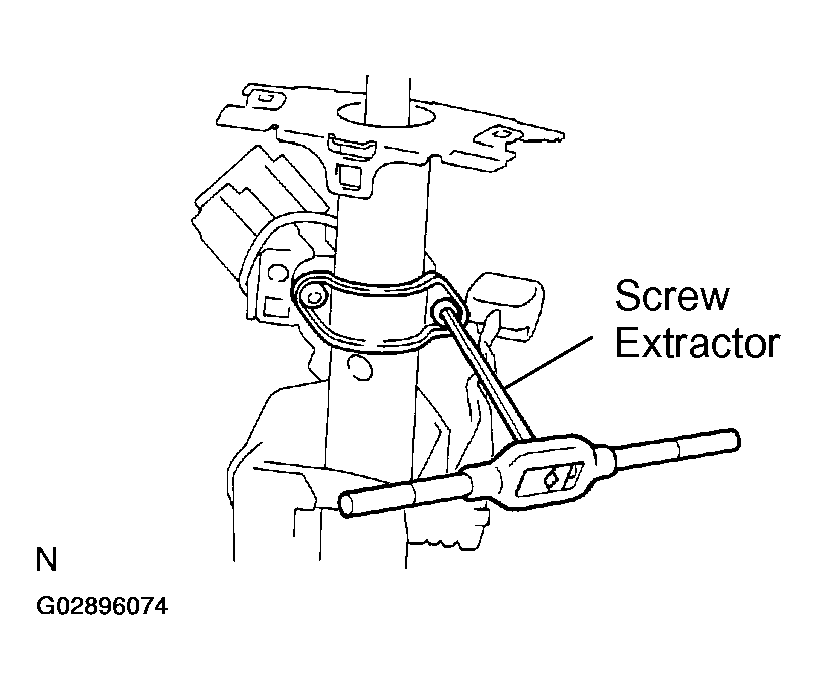

      Fig 1: Removing Column Upper Bracket And Column Upper Clamp
      G02896074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TILT STEERING SUPPORT

    Remove the bolt and tilt steering support.

  3. REMOVE BRACKET SPACER AND 2 NO. 1 SUPPORT COLLARS
    1. Using an extension bar and a hammer, tap out the bracket spacer.

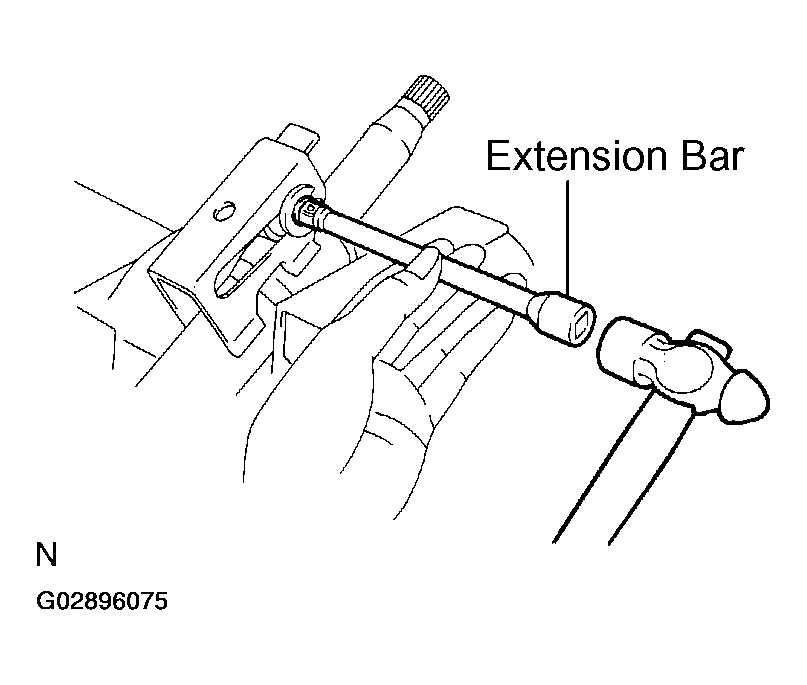

      Fig 2: Removing Bracket Spacer Using An Extension Bar And Hammer
      G02896075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, remove the 2 No. 1 support collars.
  4. REMOVE TILT LEVER AND BREAK AWAY BRACKET
    1. Remove the tilt spring.

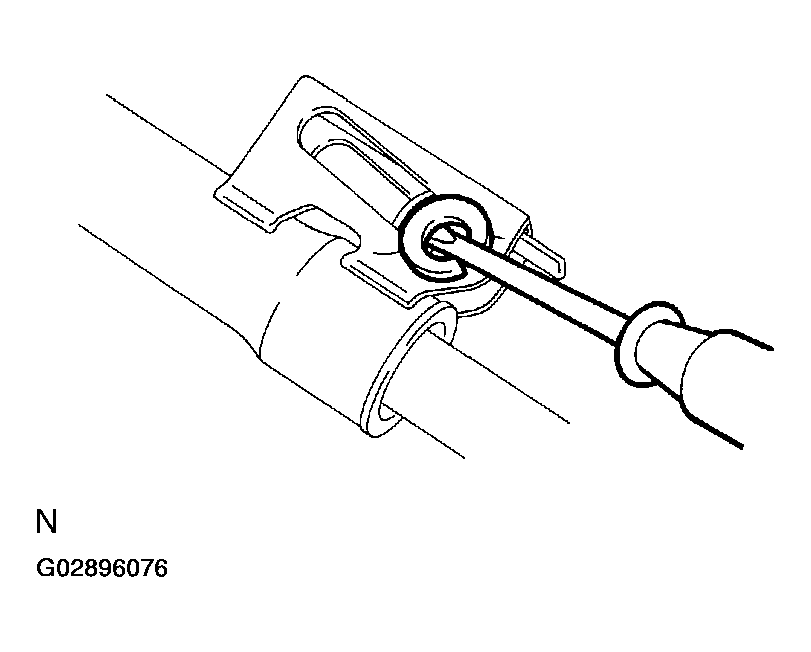

      Fig 3: Removing Tilt Spring
      G02896076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 tilt lever lock bolt and No. 1 support reinforce.

      HINT:

      This bolt is left-handed one.

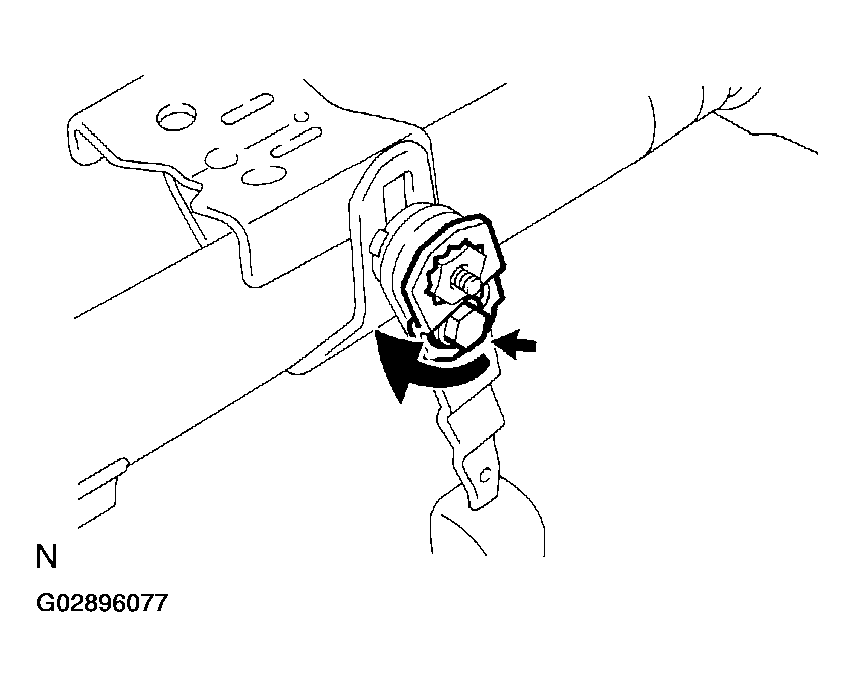

      Fig 4: Removing No. 2 Tilt Lever Lock Bolt And No. 1 Support Reinforce
      G02896077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the adjusting nut, tilt lever, stopper, tilt lever lock bolt and break away bracket.

      HINT:

      This nut is left-handed one.

    4. Remove the No. 2 support collar from the break away bracket.

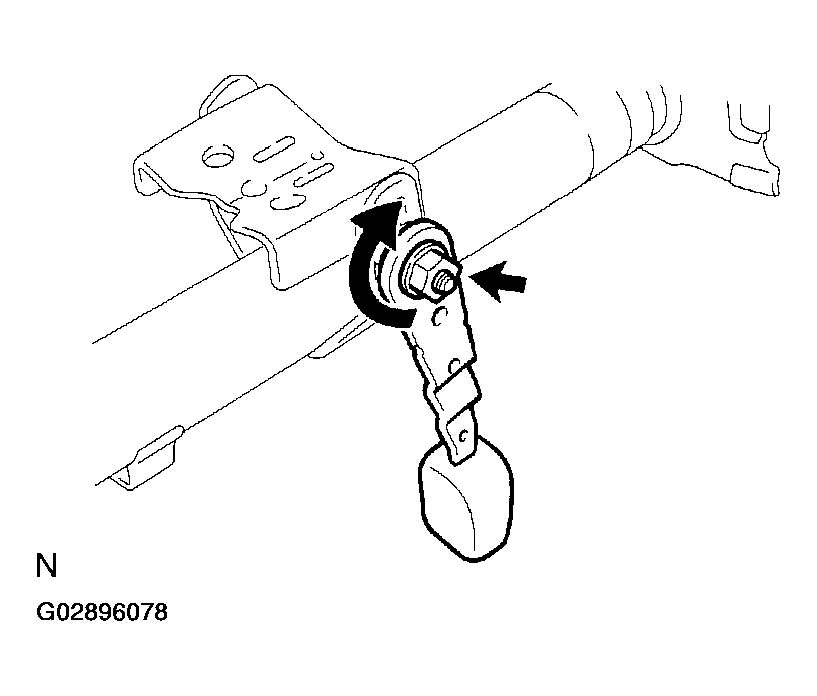

      Fig 5: Removing Adjusting Nut, Tilt Lever, Stopper, Tilt Lever Lock Bolt And Break Away Bracket
      G02896078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE MAIN SHAFT BUSHING

    Using a screwdriver and hammer, tap out the main shaft bushing.

  6. REMOVE MAIN SHAFT ASSEMBLY
    1. Using a snap ring expander, remove the snap ring on the upper side.
    2. Remove the main shaft assembly.
    3. Using a snap ring expander, remove the snap ring on the lower side.

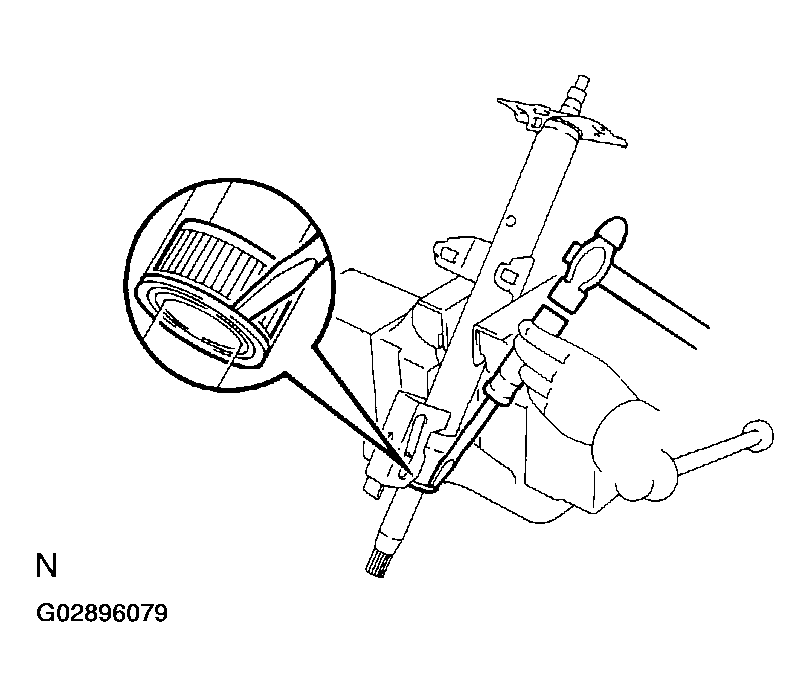

      Fig 6: Removing Main Shaft Bushing
      G02896079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
