Power Mirror Control System: Location

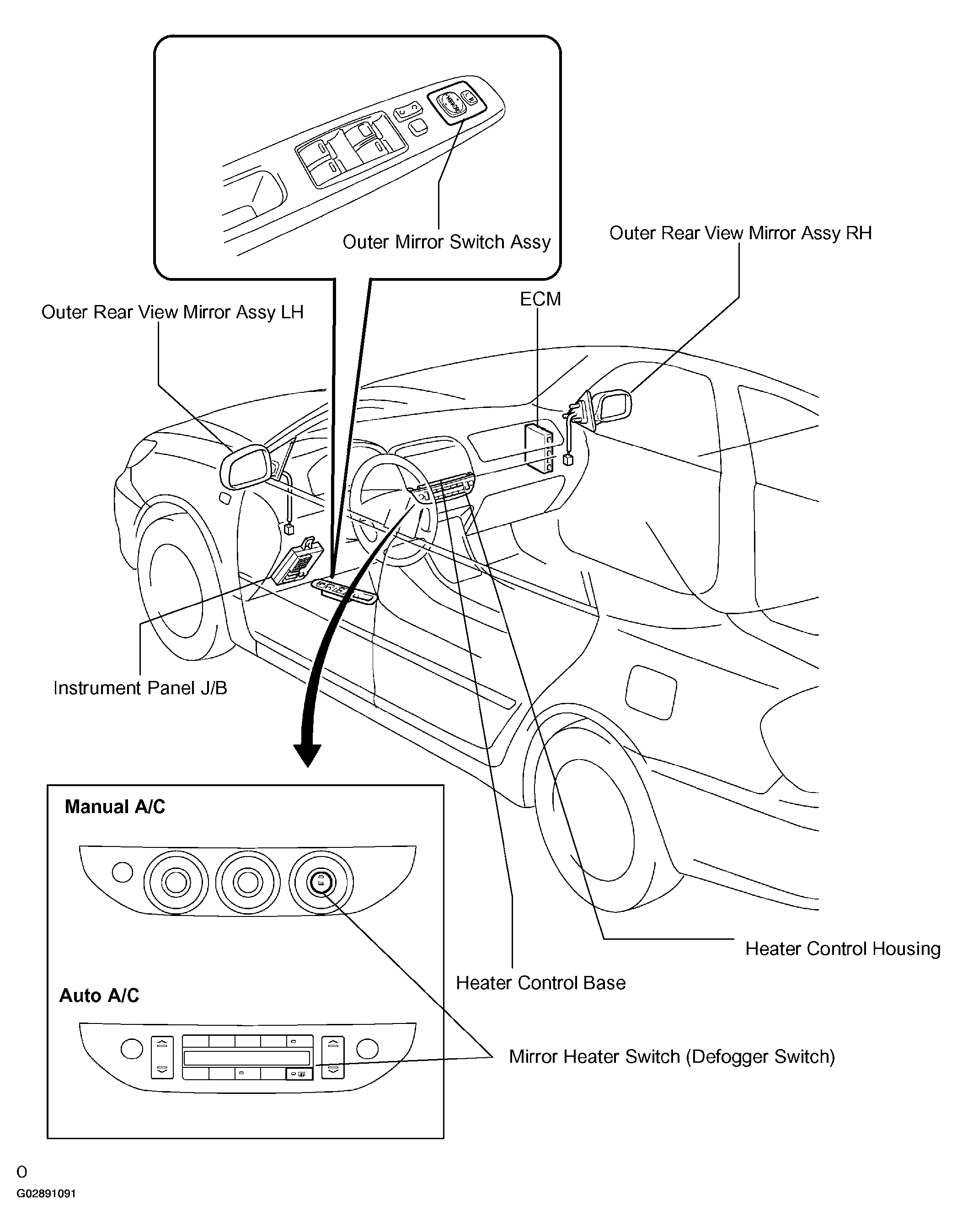

Fig 1: Locating Power Mirror Control System

G02891091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
