Rear Wheel Alignment: Adjustment

INSPECT TIRE (See INSPECTION )
MEASURE VEHICLE HEIGHT (See ADJUSTMENT )
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
INSPECT TOE-IN
Toe-in:

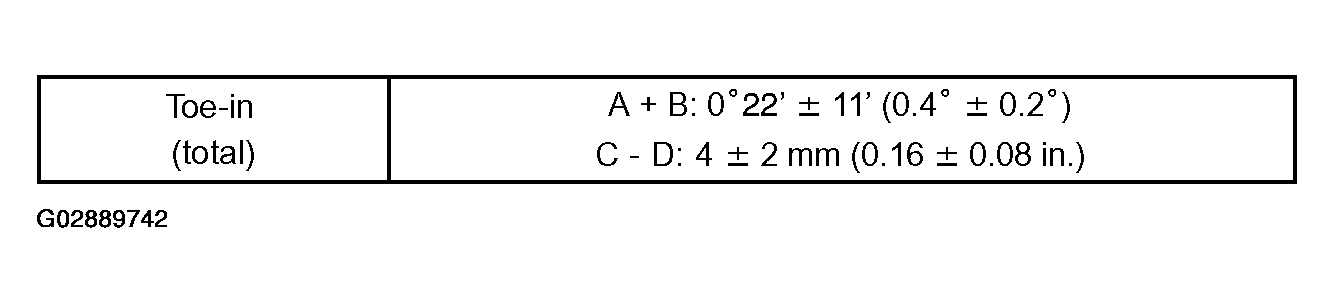

Fig 1: Toe-In Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified value, inspect and replace the suspension parts if necessary.

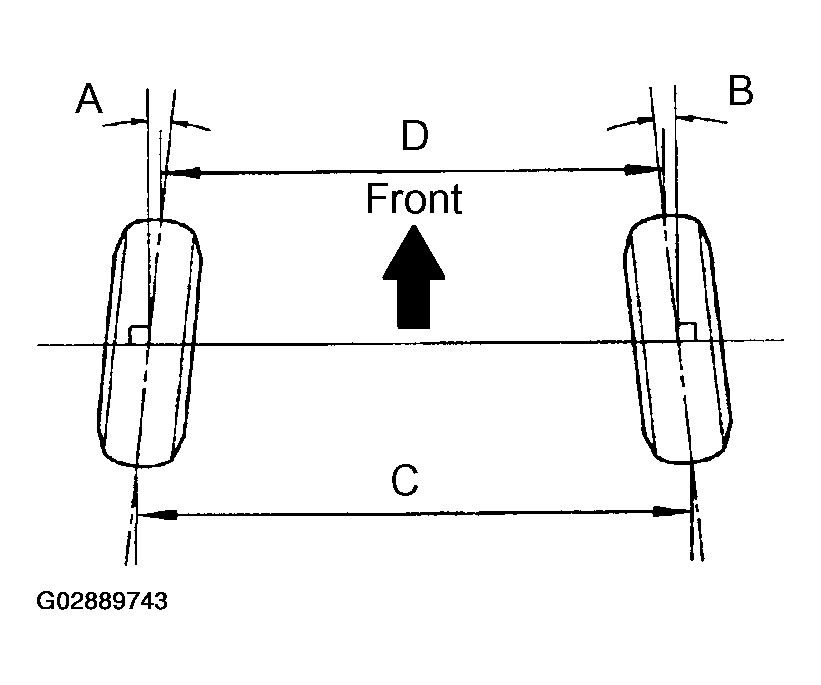

Fig 2: Identifying Toe-In Dimensions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST TOE-IN
1. Measure the lengths of the right and left No. 2 lower suspension arms.
  No. 2 lower suspension arm length difference: 1.0 mm (0.039 in.) or less

  If the left-right difference is larger than 1.0 mm (0.039 in.), adjust it by following the procedures below.

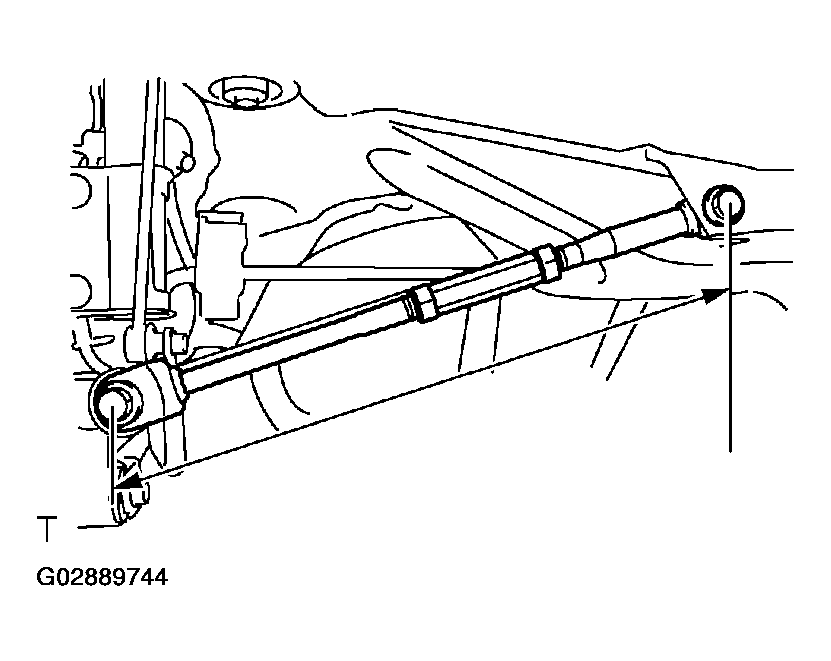

  Fig 3: Identifying Lengths Of Lower Suspension Arms
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the lock nuts.
3. Turn the right and left adjusting tube by an equal amount to adjust toe-in.
  HINT:
  - Try to adjust the toe-in to the center value.
  - One turn of the each adjusting tube will adjust the toe-in by approximately 67' (1°12', 10.8 mm, 0.425 in.).
4. Torque the lock nut.
  Torque: 56 N.m (570 kgf.cm, 41 ft.lbf)

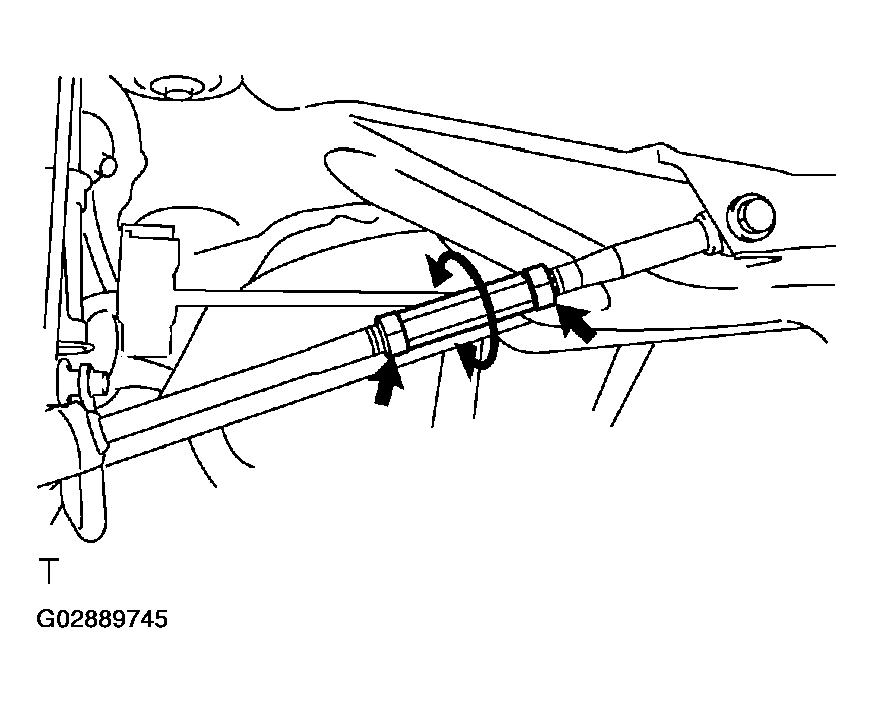

  Fig 4: Turning Adjusting Tube For Adjusting Toe-In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER

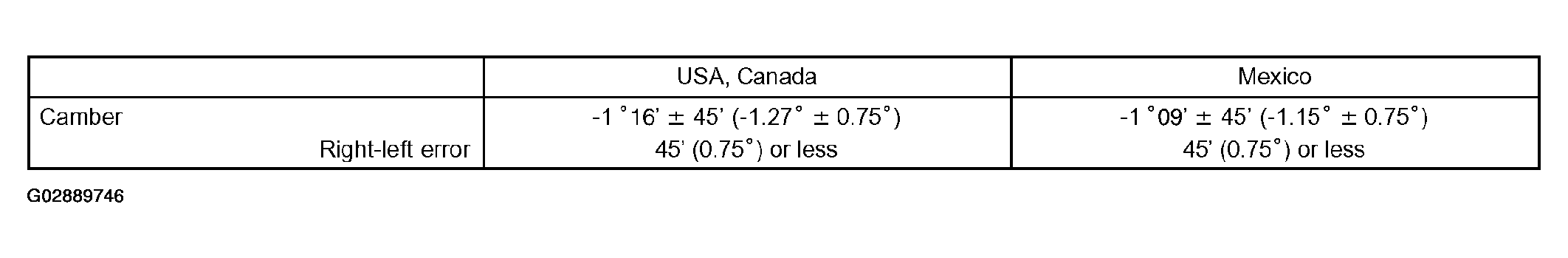

Fig 5: Camber Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Camber is not adjustable. If the measurement is not within the specification, inspect the suspension parts for damaged and/or worn-out parts and replace them if necessary.
