Camshaft Position Sensor: Replacement

HINT:

A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE AIR CLEANER ASSY (See  REPLACEMENT  )
2. REMOVE CAMSHAFT POSITION SENSOR
   1. Disconnect the sensor connector.
   2. Remove the bolt and sensor.

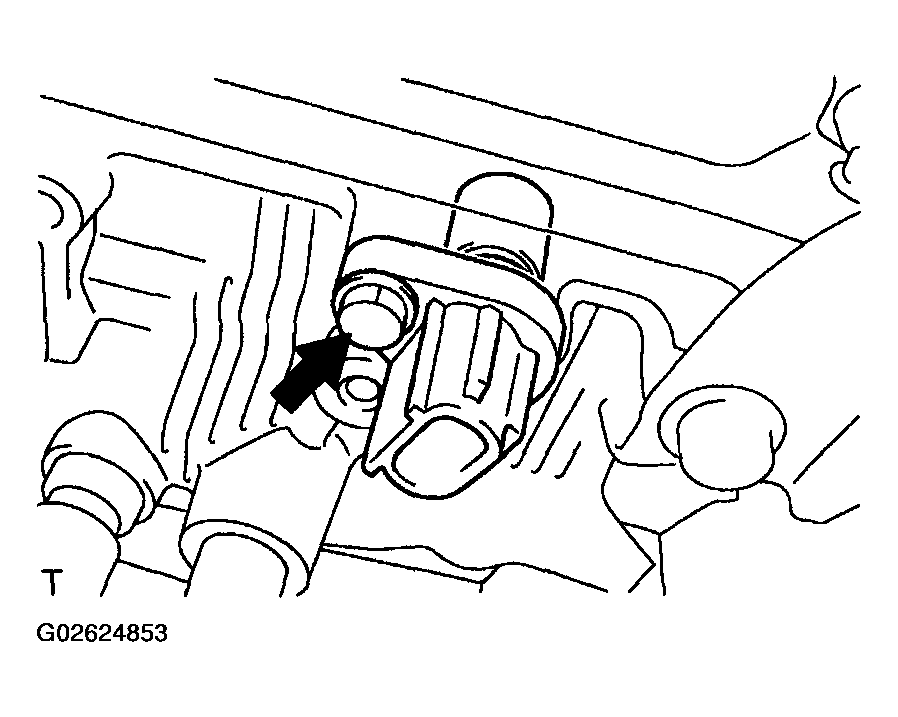

      Fig 1: Removing Camshaft Position Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL CAMSHAFT POSITION SENSOR
   1. Apply a light coat of engine oil to the O-ring on the sensor.
   2. Install the sensor with the bolt.

      Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

4. INSTALL AIR CLEANER ASSY (See  REPLACEMENT  )
5. CHECK CONNECTION OF VACUUM HOSE
