Home >> Toyota >> 2004 >> Camry XLE, 2.4 E >> Repair and Diagnosis >> Body & Frame >> Windows >> Rear Door >> Components

Rear Door: Components

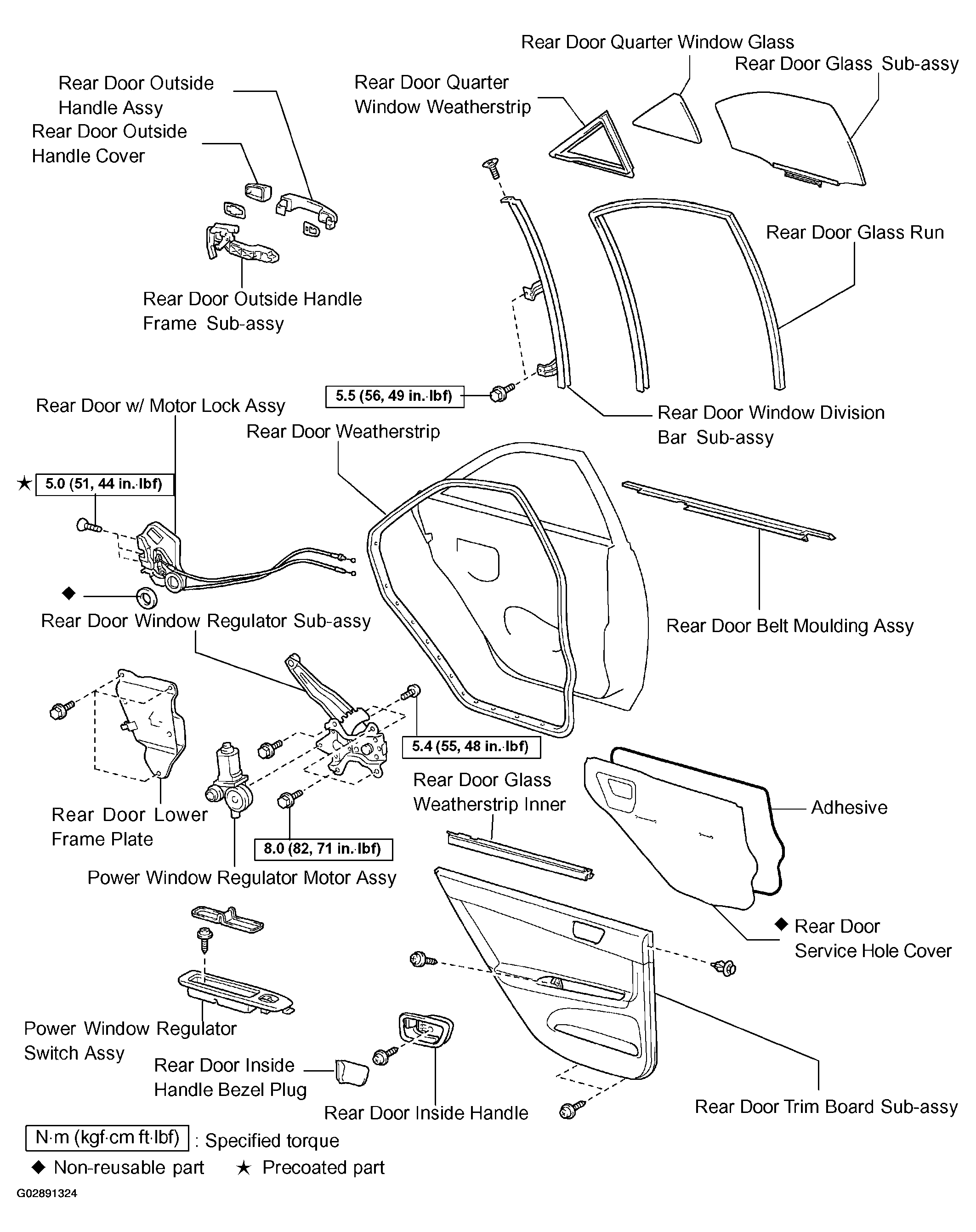

Fig 1: Exploded View Of Rear Door Components

G02891324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
