Power Mirror Control System: Inspection

INSPECT OUTER MIRROR SWITCH ASSY

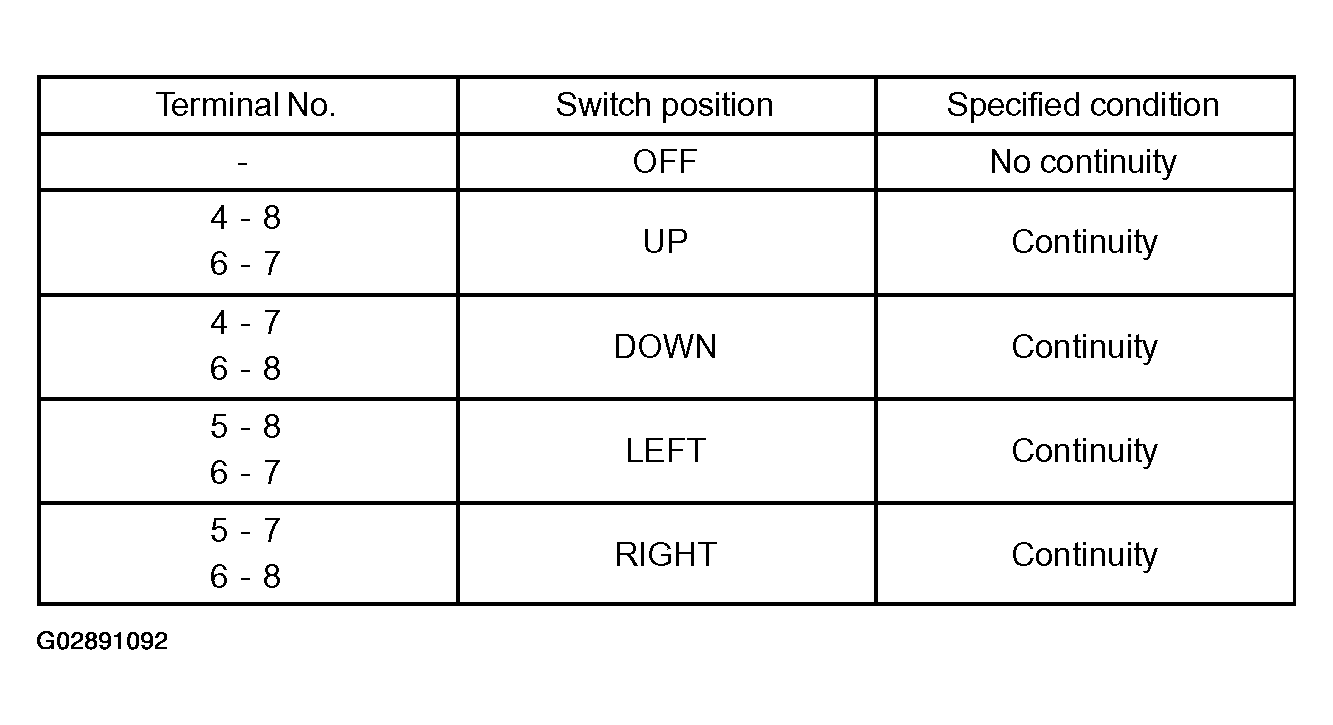

1. Inspect the mirror switch continuity.
  1. Left side for left/right adjustment switch:
    Inspect the left side mirror switch continuity.

    Standard:

    Fig 1: Inspecting Outer Mirror Switch Assy (1 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 2: Inspecting Outer Mirror Switch Assy (2 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
  2. Right side for left/right adjustment switch:
    Inspect the right side mirror switch continuity.

    Standard:

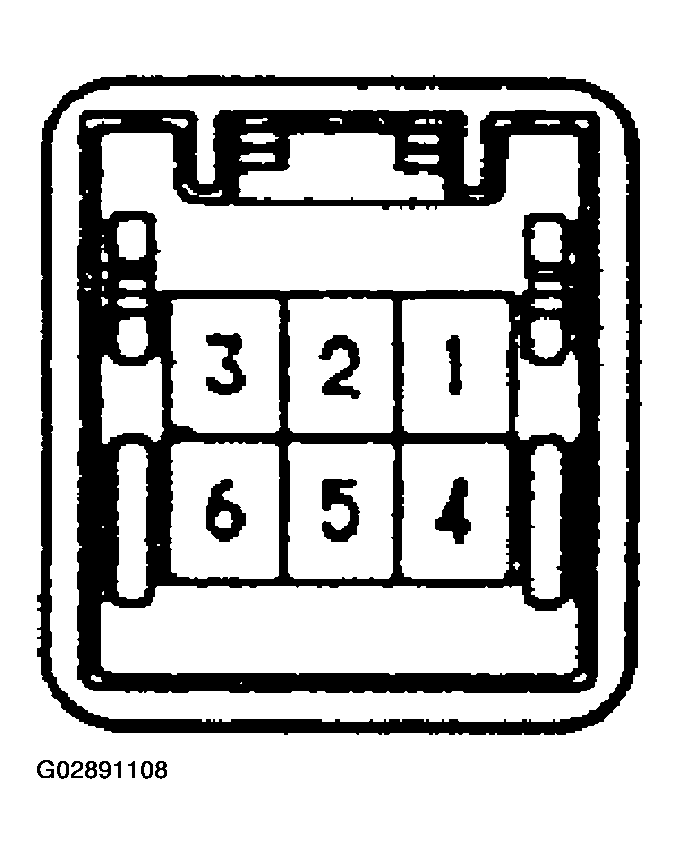

    Fig 3: Inspecting Right Side Mirror Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
INSPECT OUTER REAR VIEW MIRROR ASSY LH (W/O OUTER MIRROR HEATER)
1. Inspect the mirror motor operation.

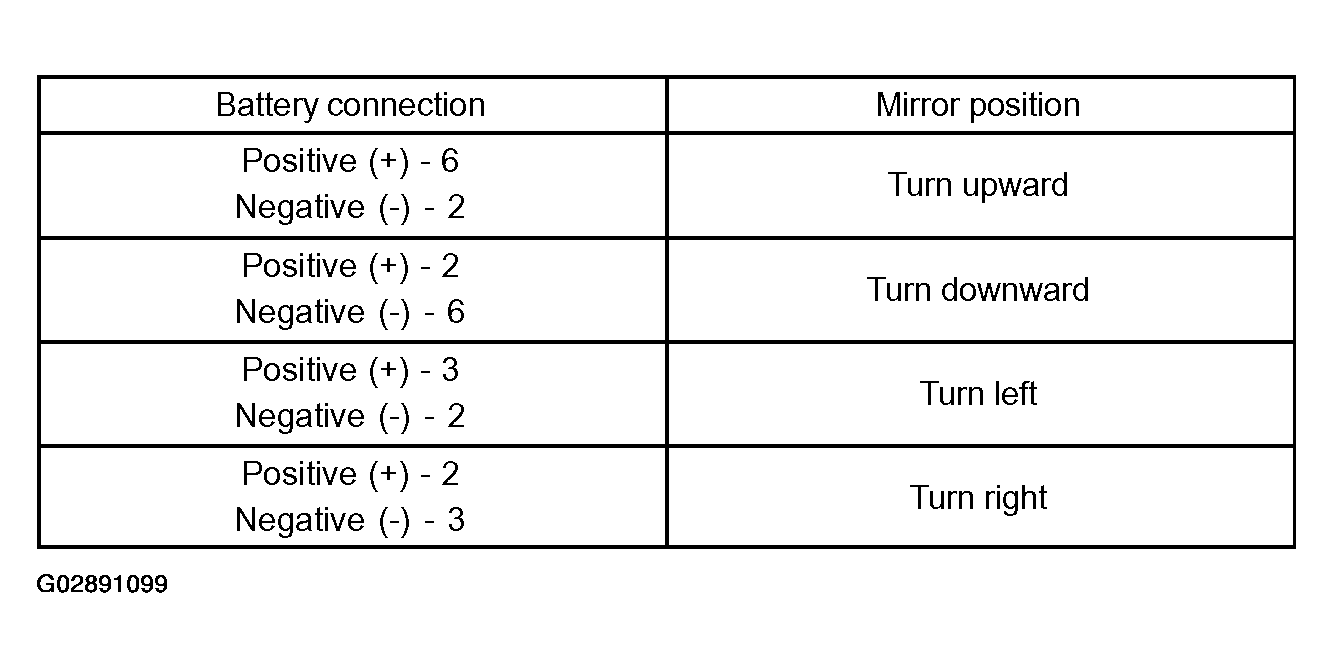

  Fig 4: Inspecting Outer Rear View Mirror Assy LH (W/O Outer Mirror Heater) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard (TMC Made):

  Fig 5: Inspecting Outer Rear View Mirror Assy LH (W/O Outer Mirror Heater) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard (TMMK Made):

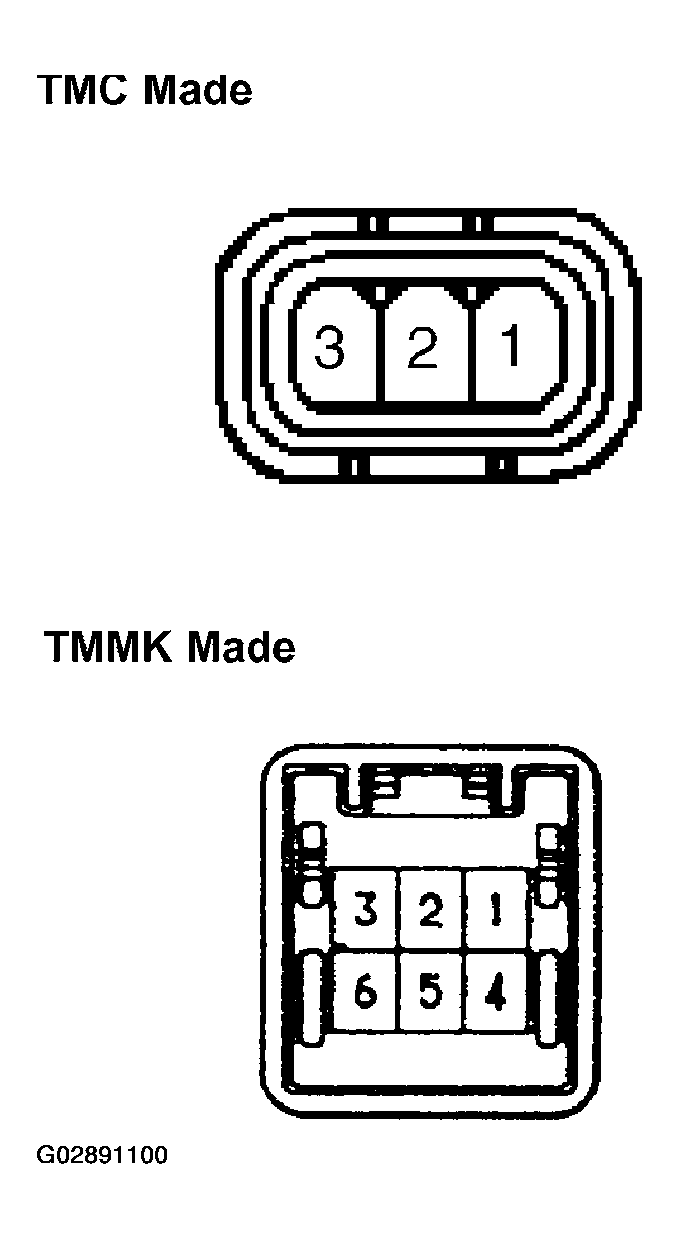

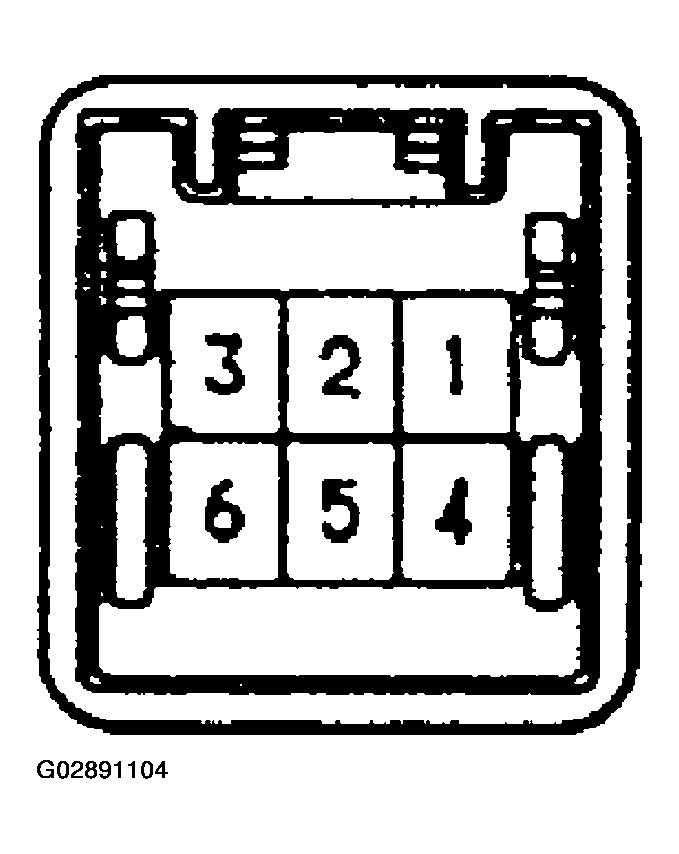

  Fig 6: identifying Outer Rear View Mirror Assy LH Connectors (W/O Outer Mirror Heater)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the continuity is not as specified, replace the outer rear view mirror assy LH.
INSPECT OUTER REAR VIEW MIRROR ASSY RH (W/O OUTER MIRROR HEATER)
1. Inspect the mirror motor operation.
  Standard (TMC Made):

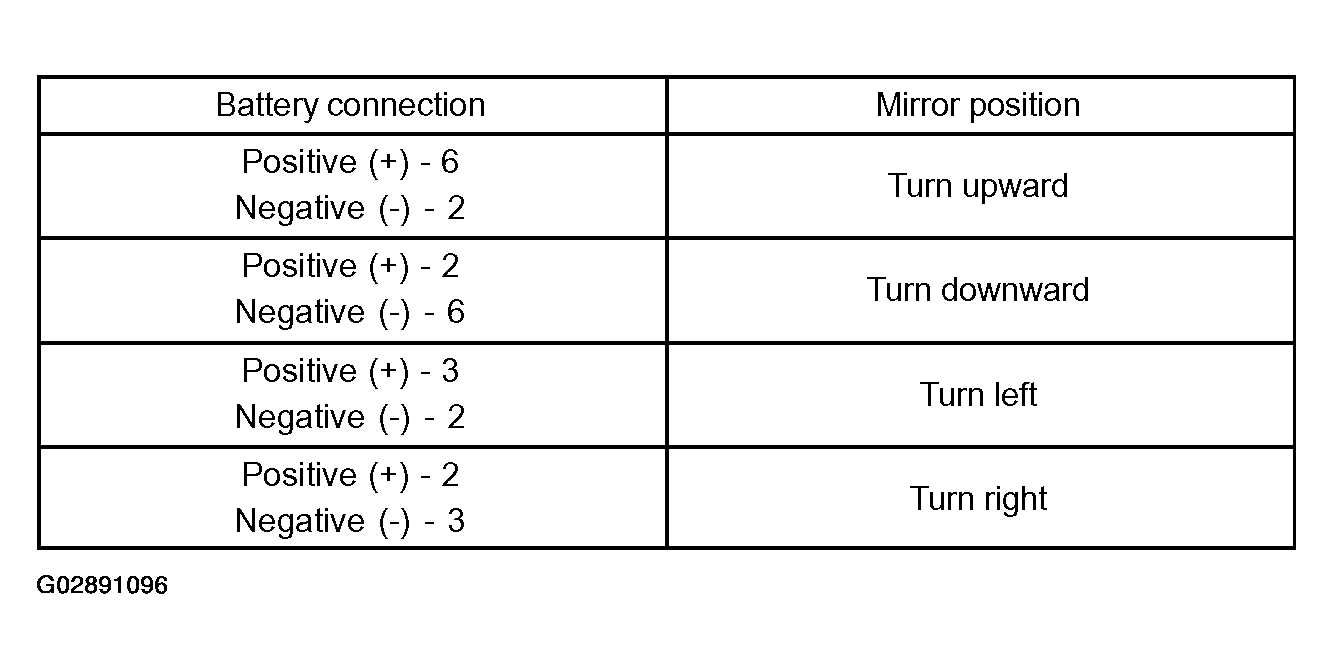

  Fig 7: Inspecting Outer Rear View Mirror RH (W/O Outer Mirror Heater) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard (TMMK Made):

  Fig 8: Inspecting Outer Rear View Mirror RH (W/O Outer Mirror Heater) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the continuity is not as specified, replace the outer rear view mirror assy RH.

  Fig 9: identifying Outer Rear View Mirror Assy RH Connectors (W/O Outer Mirror Heater)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT OUTER REAR VIEW MIRROR ASSY LH (W/ OUTER MIRROR HEATER, TMC MADE)
1. Inspect the mirror heater operation.
  Standard:

  Fig 10: Inspect Outer Rear View Mirror Assy LH (W/ Outer Mirror Heater, TMC Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 11: Inspect Outer Rear View Mirror Assy LH Connector (W/ Outer Mirror Heater, TMC Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the continuity is not as specified, replace the outer rear view mirror assy LH.
  1. Check the resistance between terminals 1 and 5 of the connector.
    Resistance: 4.0 - 5.4 Ω
  2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
INSPECT OUTER REAR VIEW MIRROR ASSY LH (W/ OUTER MIRROR HEATER, TMMK MADE)
1. Inspect the mirror motor operation.
  Standard:

  Fig 12: Inspecting Outer Rear View Mirror Assy LH (W/ Outer Mirror Heater, TMMK Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 13: Inspecting Outer Rear View Mirror Assy LH Connector (W/ Outer Mirror Heater, TMMK Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the continuity is not as specified, replace the outer rear view mirror assy LH.
2. Inspect the mirror heater operation.
  1. Check the resistance between terminals 1 and 4 of the connector.
    Resistance: 4.0 - 5.4 Ω
  2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
INSPECT OUTER REAR VIEW MIRROR ASSY RH (W/ OUTER MIRROR HEATER, TMC MADE)
1. Inspect the mirror motor operation.
  Standard:

  Fig 14: Inspecting Outer Rear View Mirror Assy RH (W/ Outer Mirror Heater, TMC Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 15: Inspecting Outer Rear View Mirror Assy RH Connector (W/ Outer Mirror Heater, TMC Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the continuity is not as specified, replace the outer rear view mirror assy RH.
2. Check the mirror heater operation.
  1. Check the resistance between terminals 1 and 5 of the connector.
    Resistance: 4.0 - 5.4 Ω
  2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
INSPECT OUTER REAR VIEW MIRROR ASSY RH (W/ OUTER MIRROR HEATER, TMMK MADE)
1. Inspect the mirror motor operation.
  Standard:

  Fig 16: Inspecting Outer Rear View Mirror Assy RH (W/ Outer Mirror Heater, TMMK Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 17: Inspecting Outer Rear View Mirror Assy RH Connector (W/ Outer Mirror Heater, TMMK Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the continuity is not as specified, replace the outer rear view mirror assy RH.
2. Check the mirror heater operation.
  1. Check the resistance between terminals 1 and 4 of the connector.
    Resistance: 4.0 - 5.4 Ω
  2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
