Camry Solara SLE, 2D Convertible
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (SFI) (3MZ-FE)
>>
System Diagram
System Diagram
The engine control system is controlled by the ECM based on signals from various sensors.

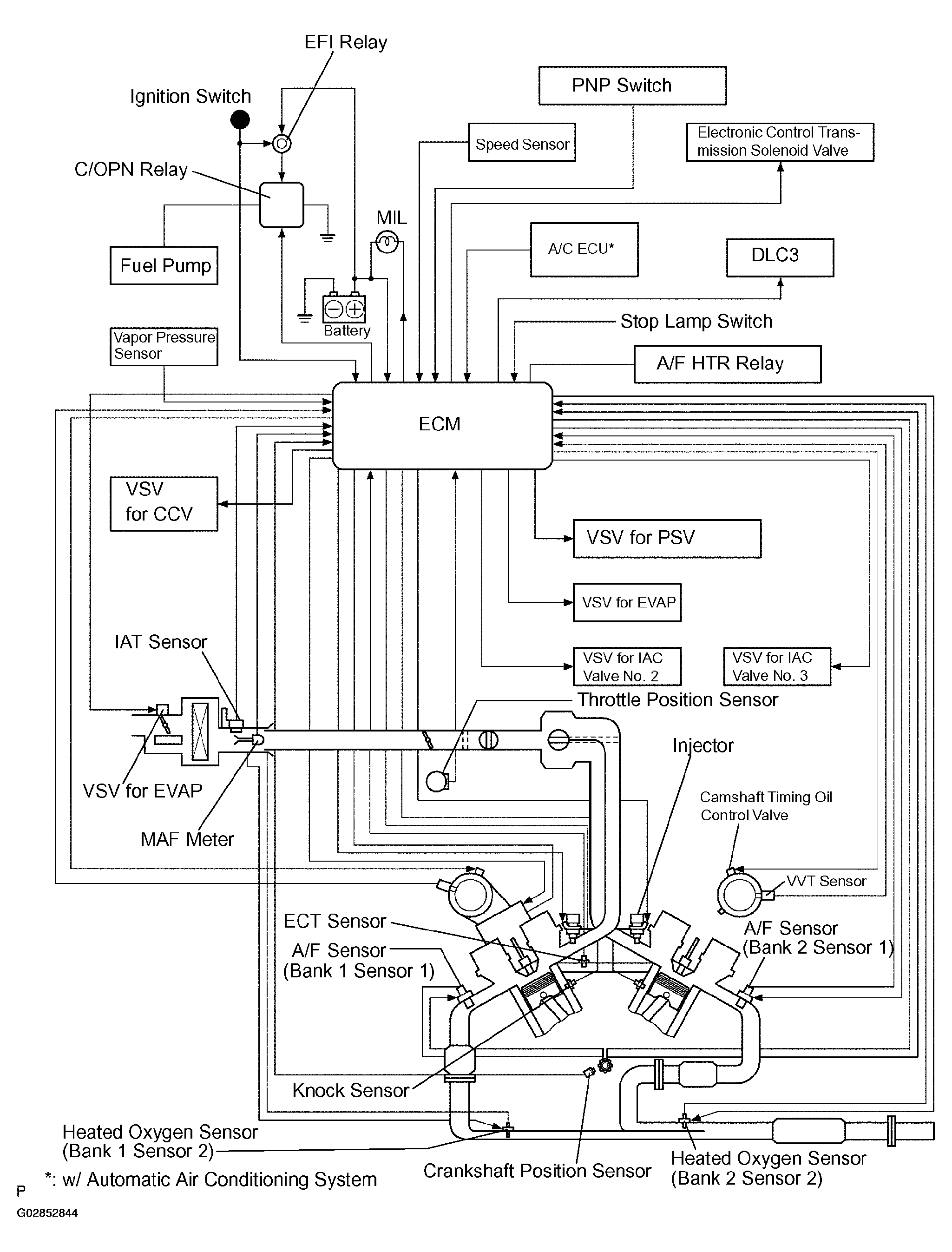

Fig 1: SFI System Diagram
