Crankshaft Position Sensor: Replacement

  1. REMOVE ENGINE UNDER COVER RH
    1. Remove the 5 screws, 3 clips and under cover.

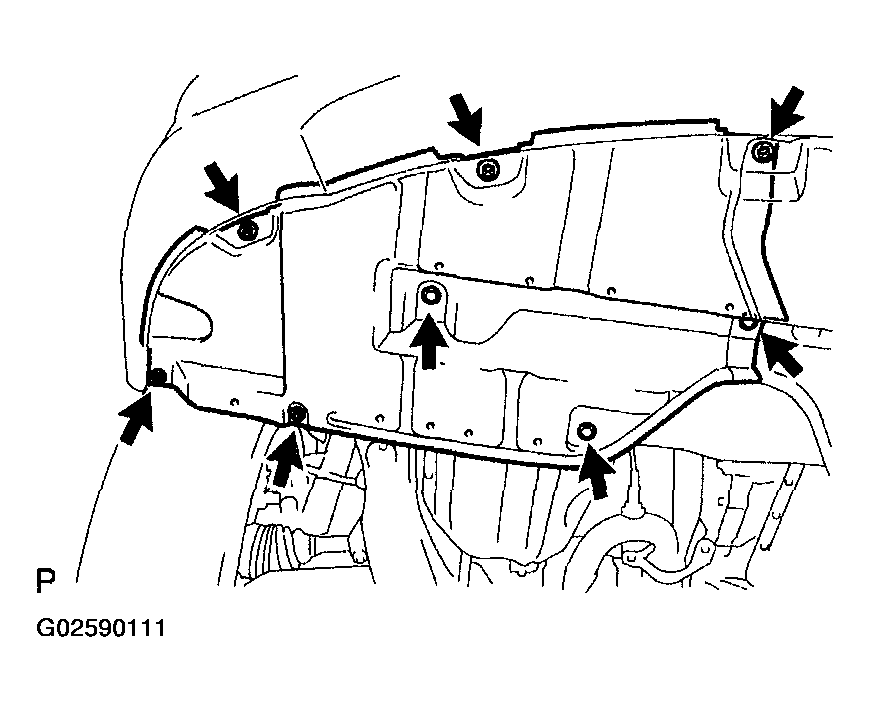

    Fig 1: Removing Screws, Clips & Under Cover
    G02590111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT FENDER APRON SEAL RH
    1. Remove the clip, 2 bolts and apron seal.

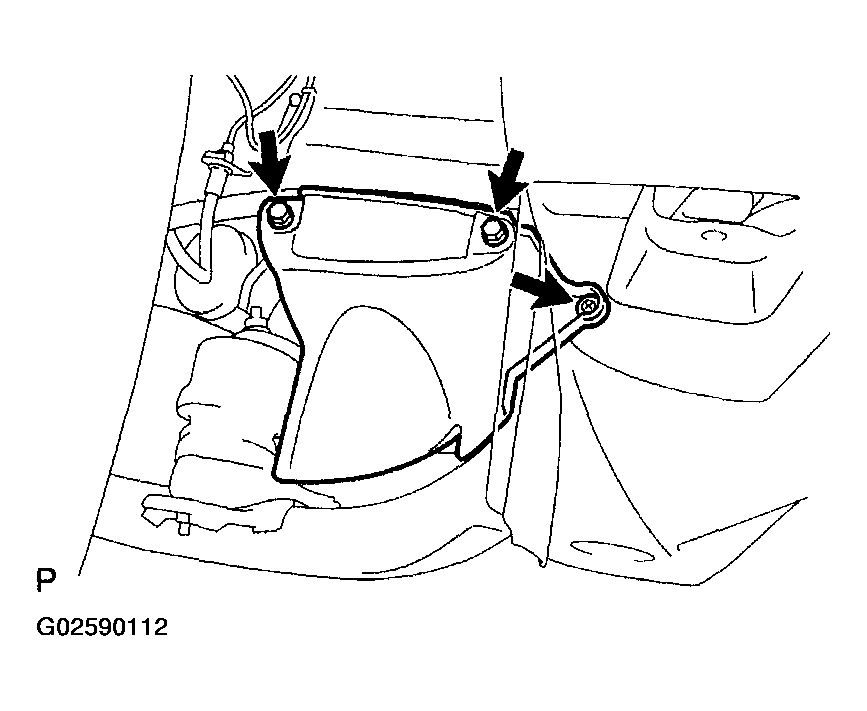

    Fig 2: Removing Clip, Bolts & Apron Seal
    G02590112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

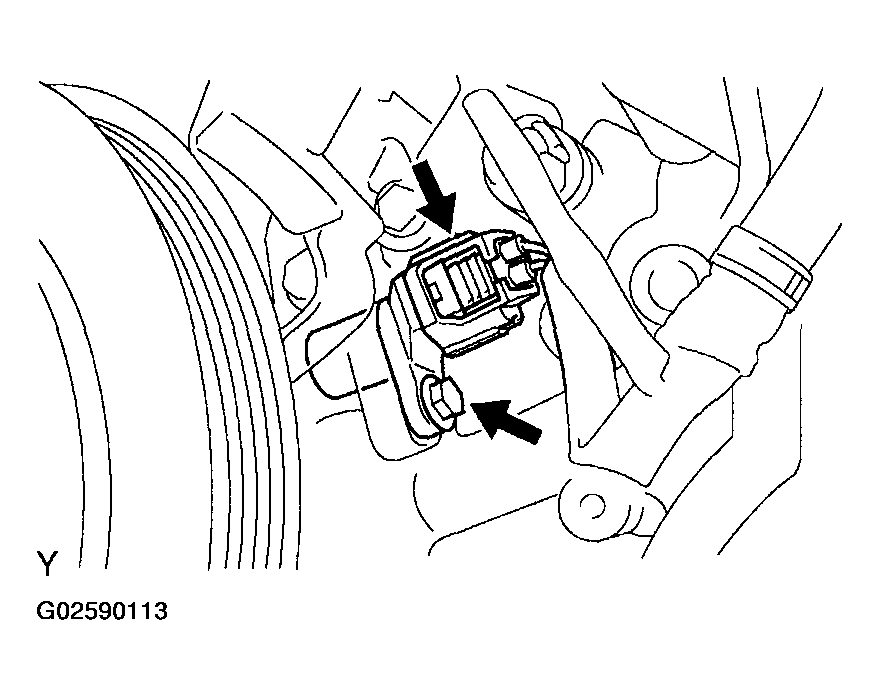

    Fig 3: Removing Crankshaft Position Sensor Bolt
    G02590113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CRANKSHAFT POSITION SENSOR

    Torque:  8.0 N.m (82 kgf.cm, 71 in.lbf)

  5. INSTALL FRONT FENDER APRON SEAL RH
  6. INSTALL ENGINE UNDER COVER RH
