Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

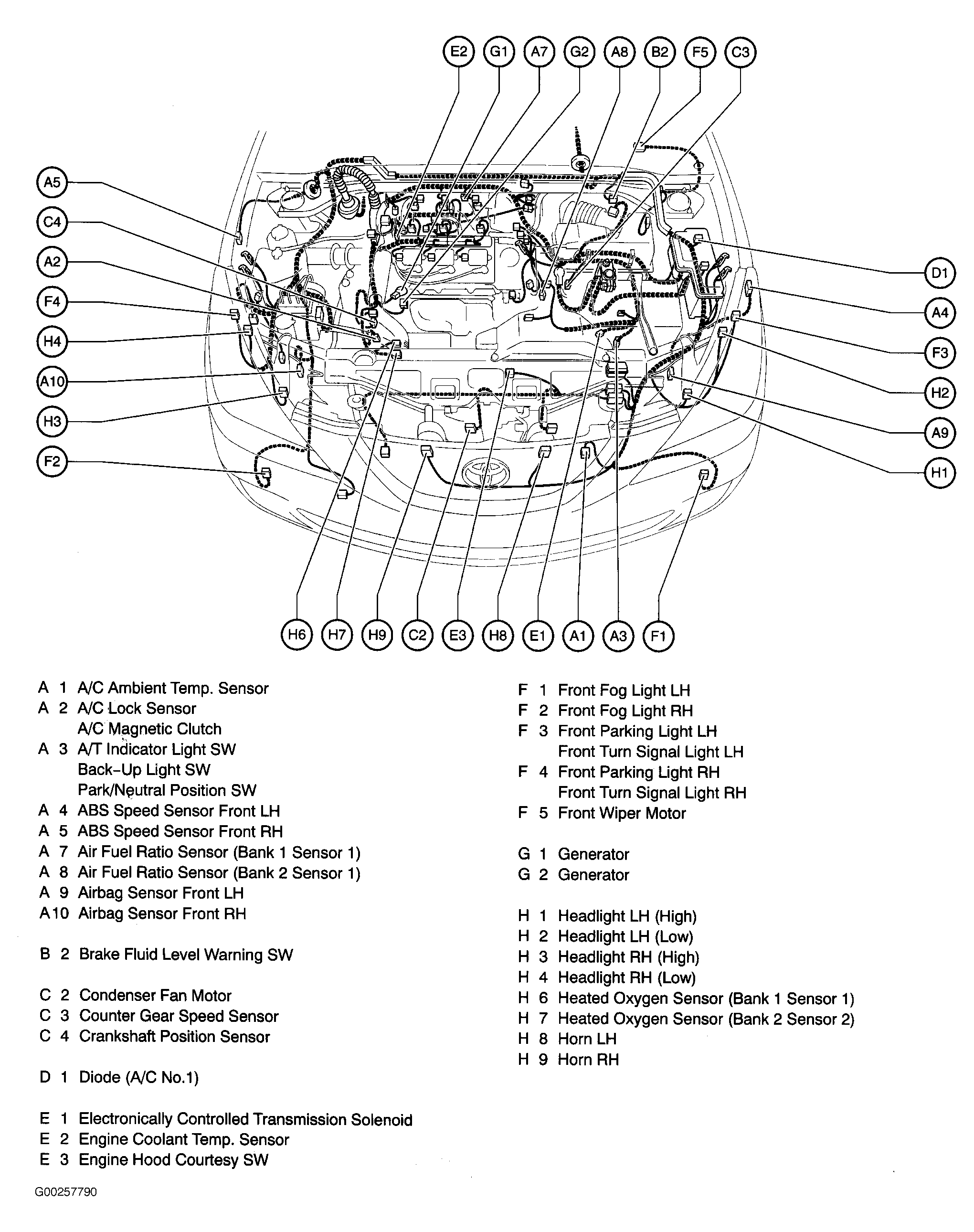

Fig 1: Engine Compartment (3.3L)
G00257790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

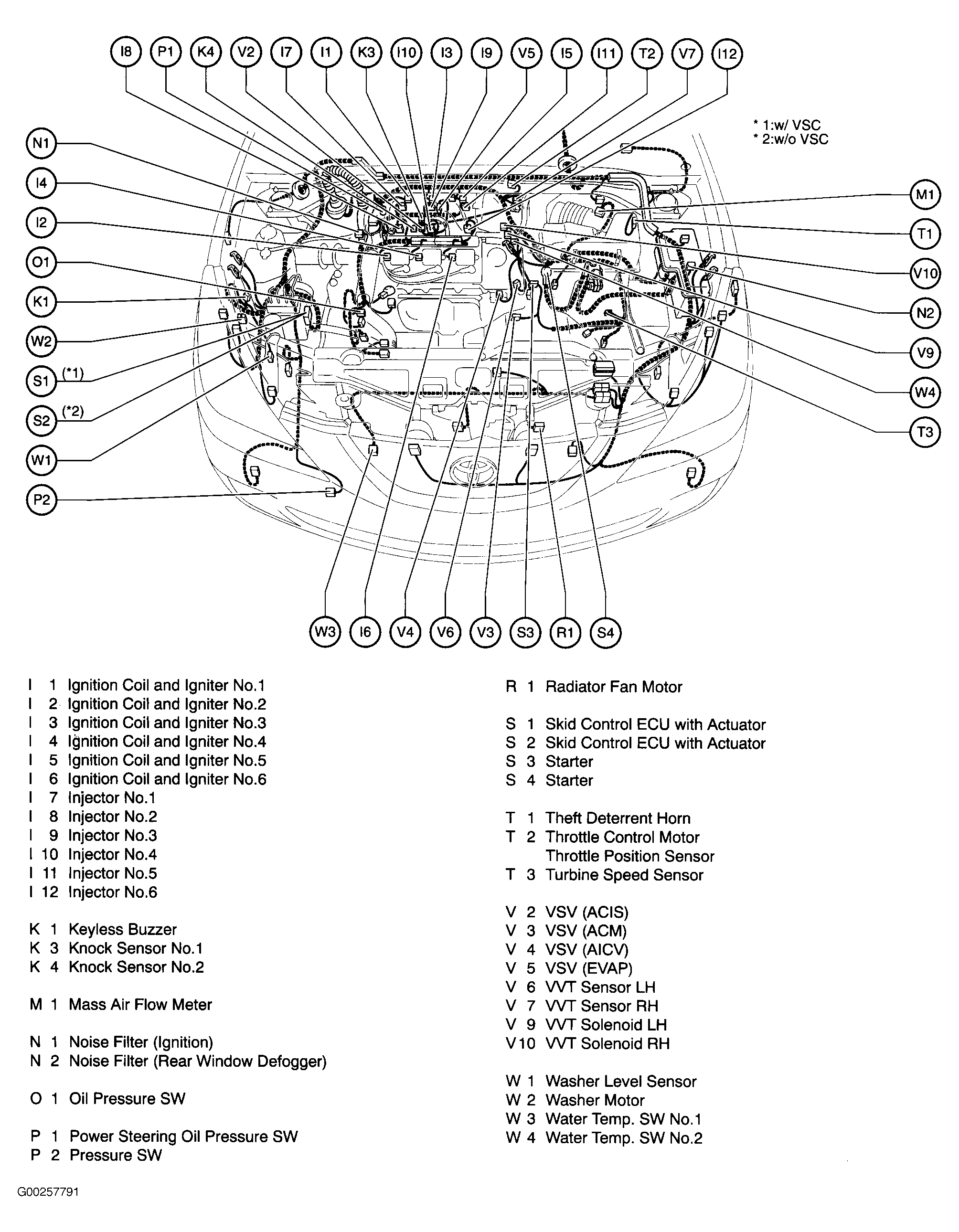

Fig 2: Engine Compartment (3.3L)
G00257791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

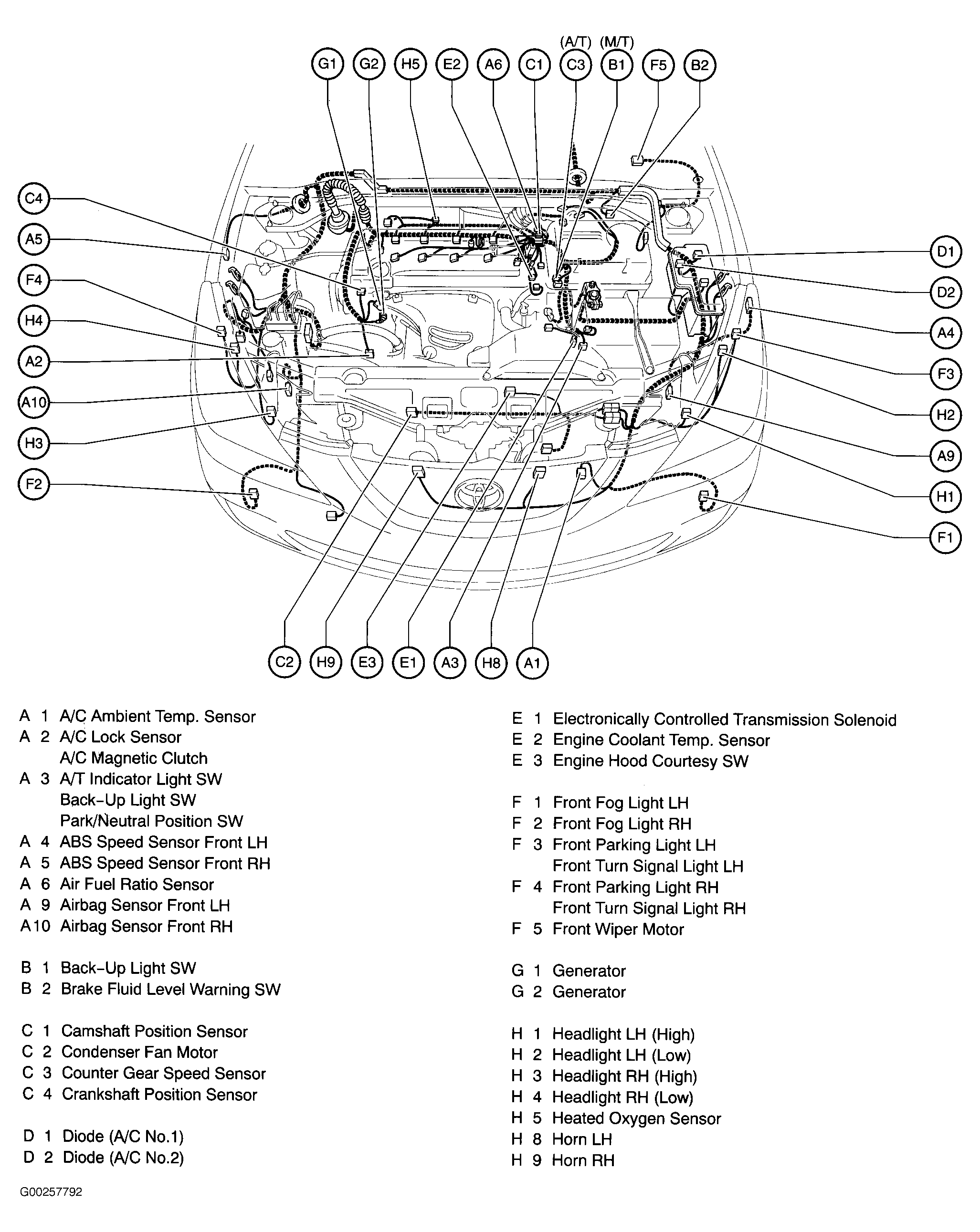

Fig 3: Engine Compartment (2.4L)
G00257792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

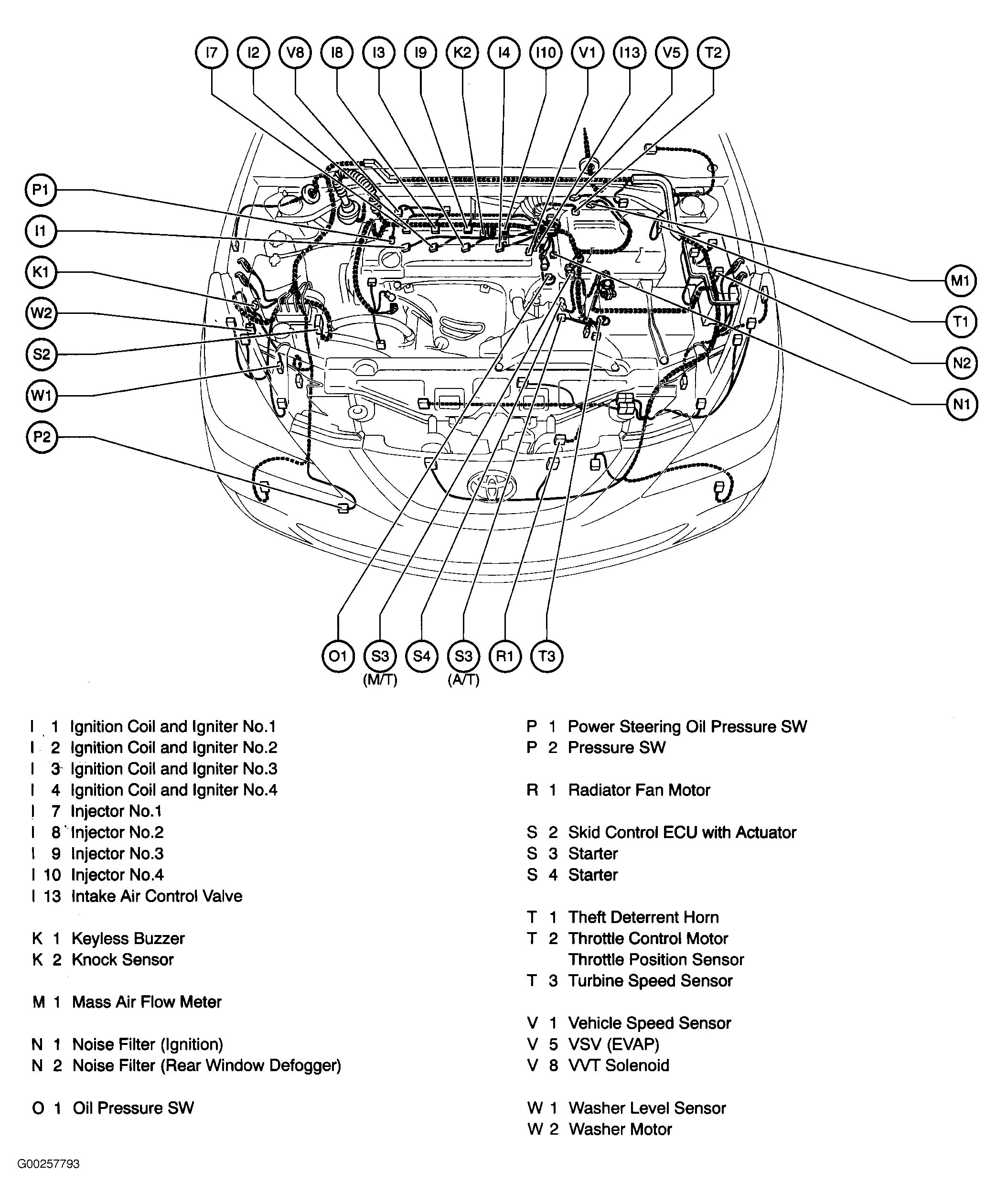

Fig 4: Engine Compartment (2.4L)
G00257793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

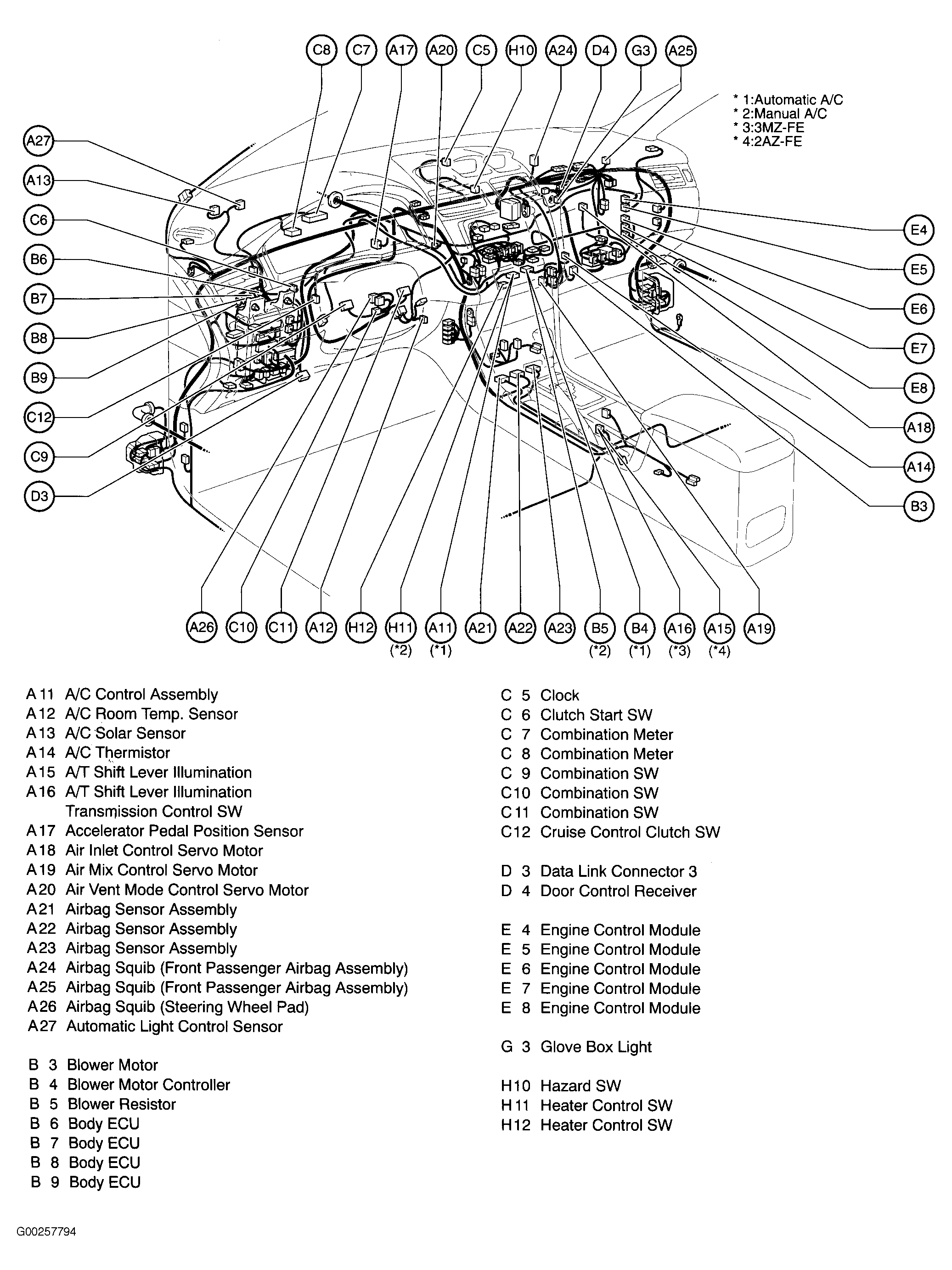

Fig 5: Dash & Center Console
G00257794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

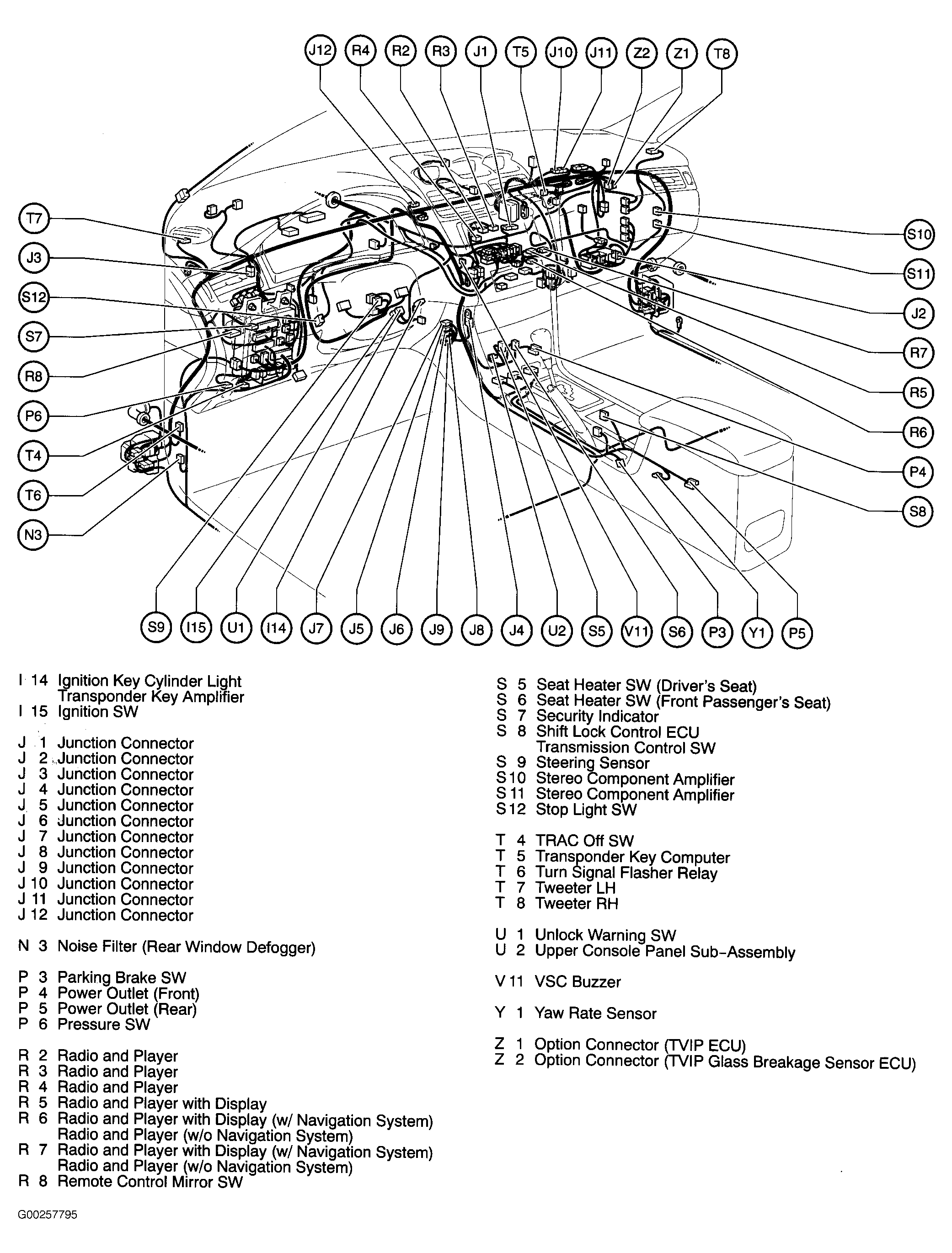

Fig 6: Dash & Center Console
G00257795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

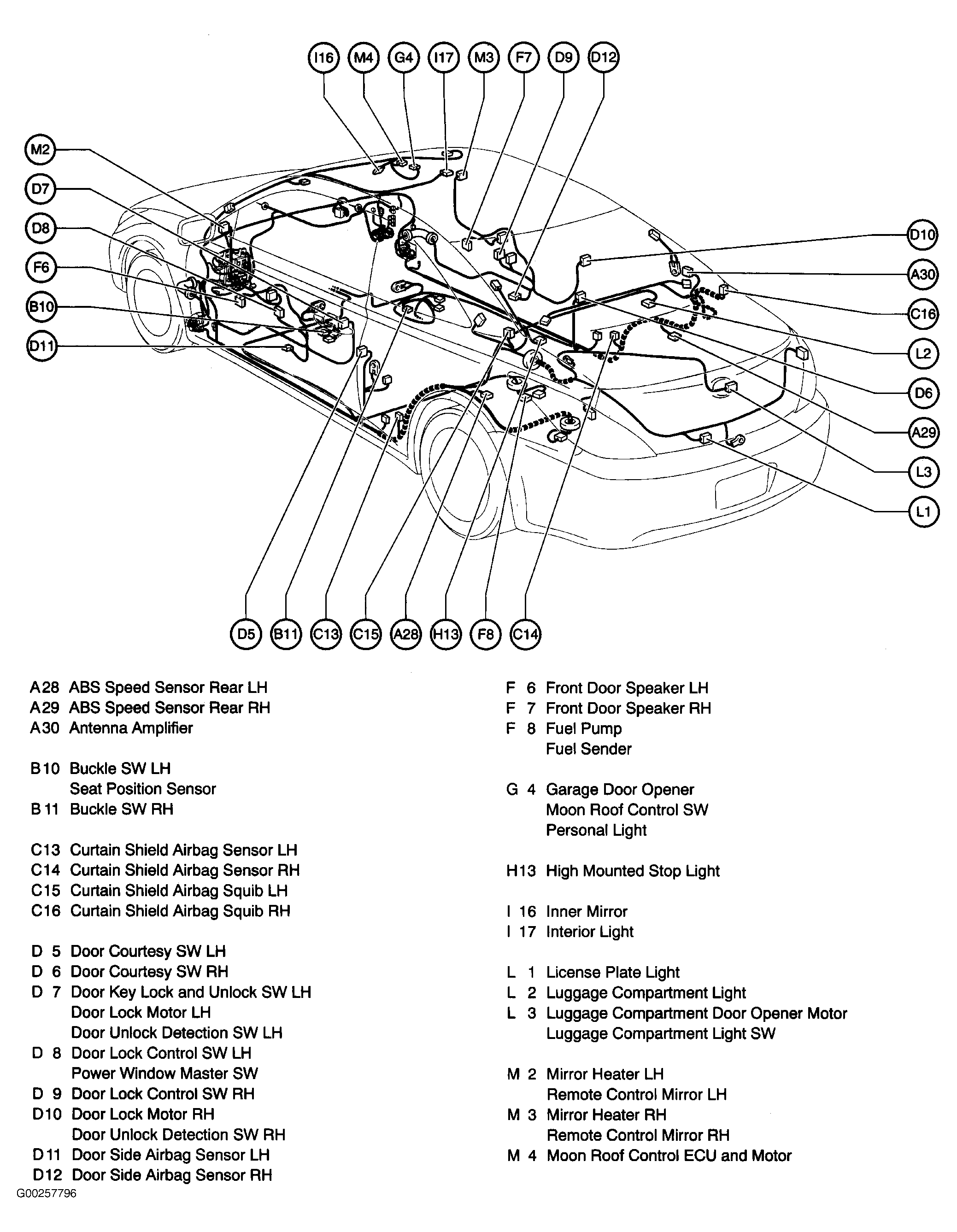

Fig 7: Vehicle Overview
G00257796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

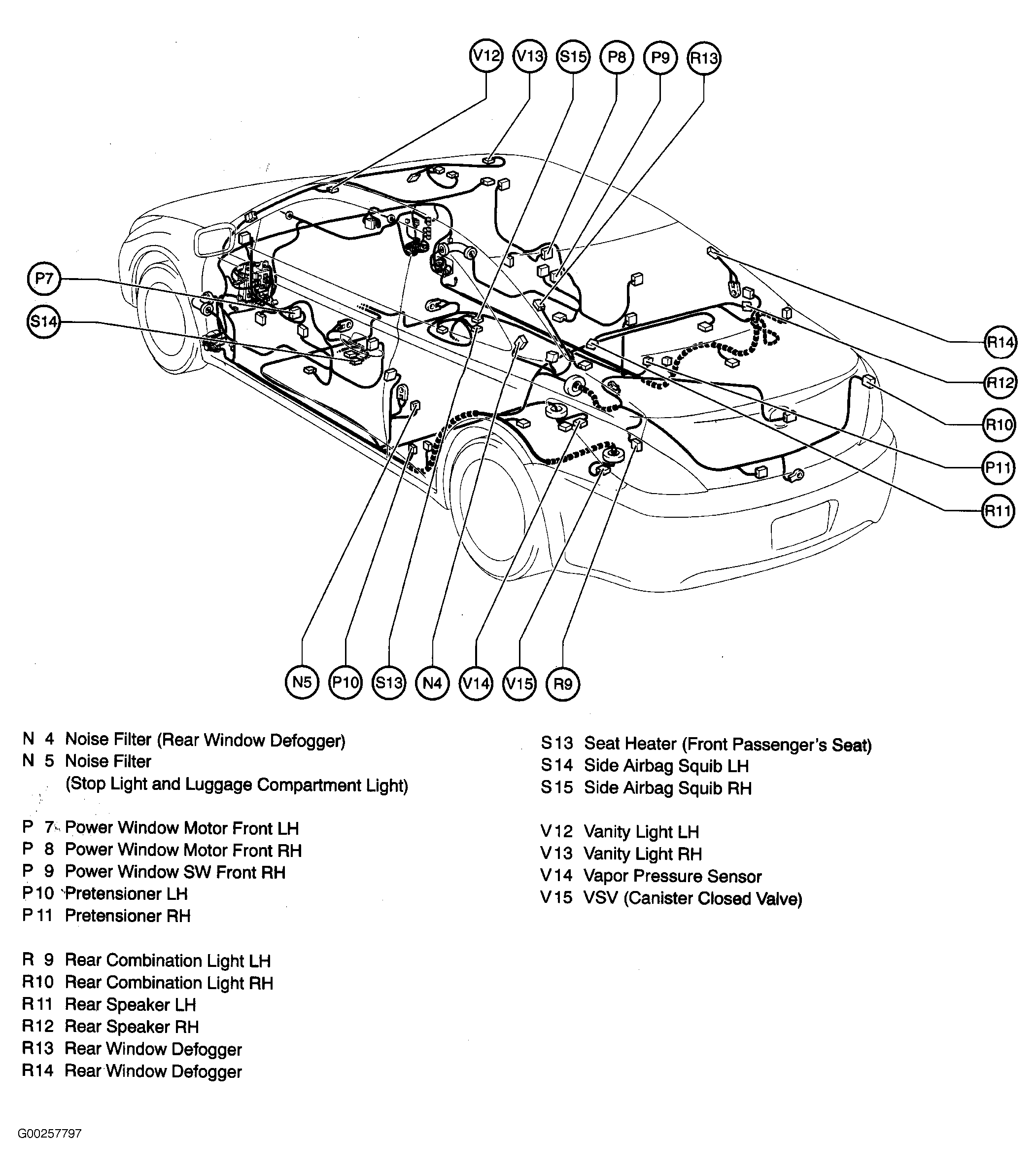

Fig 8: Vehicle Overview
G00257797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

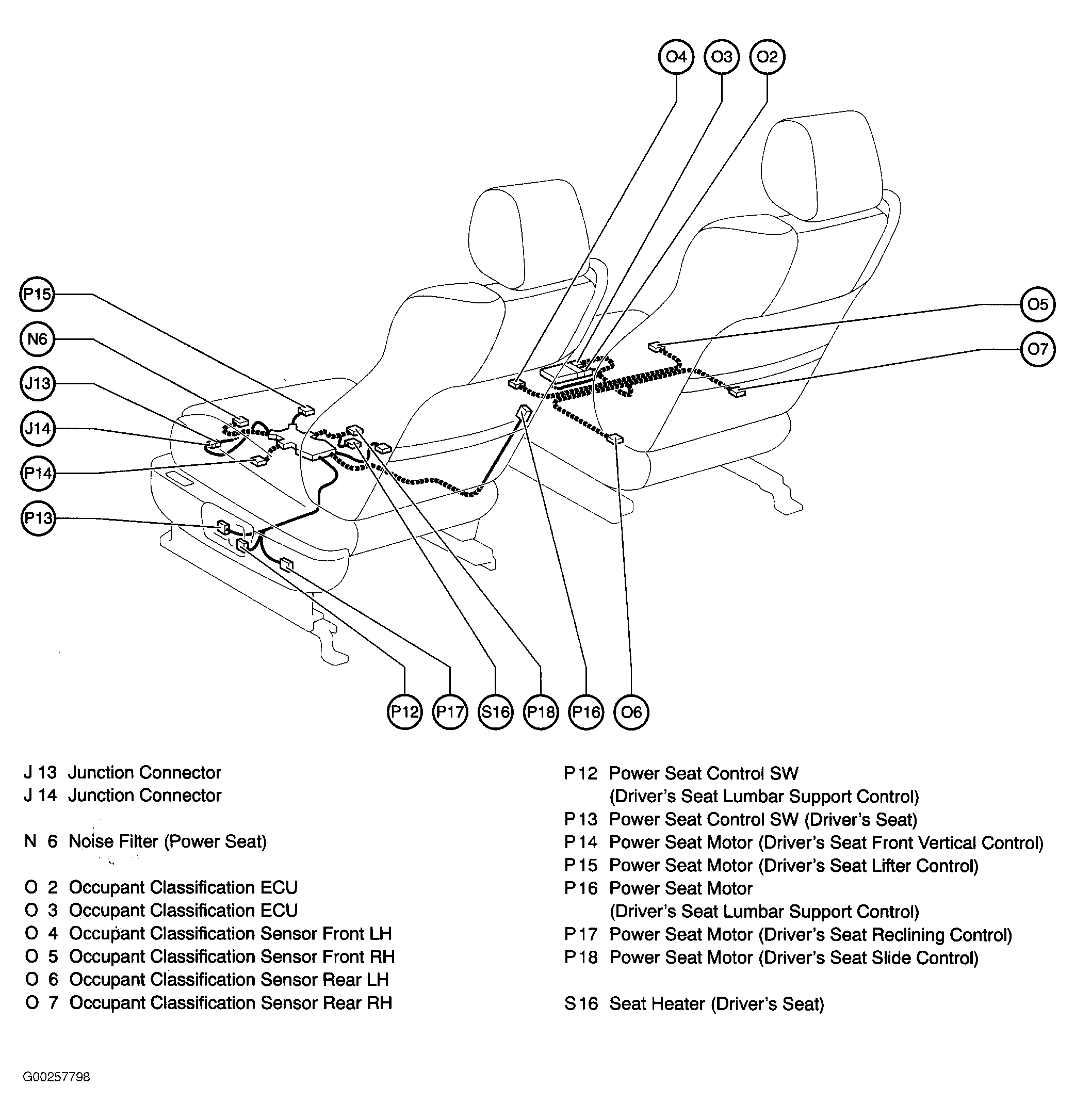

Fig 9: Front Seats
G00257798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

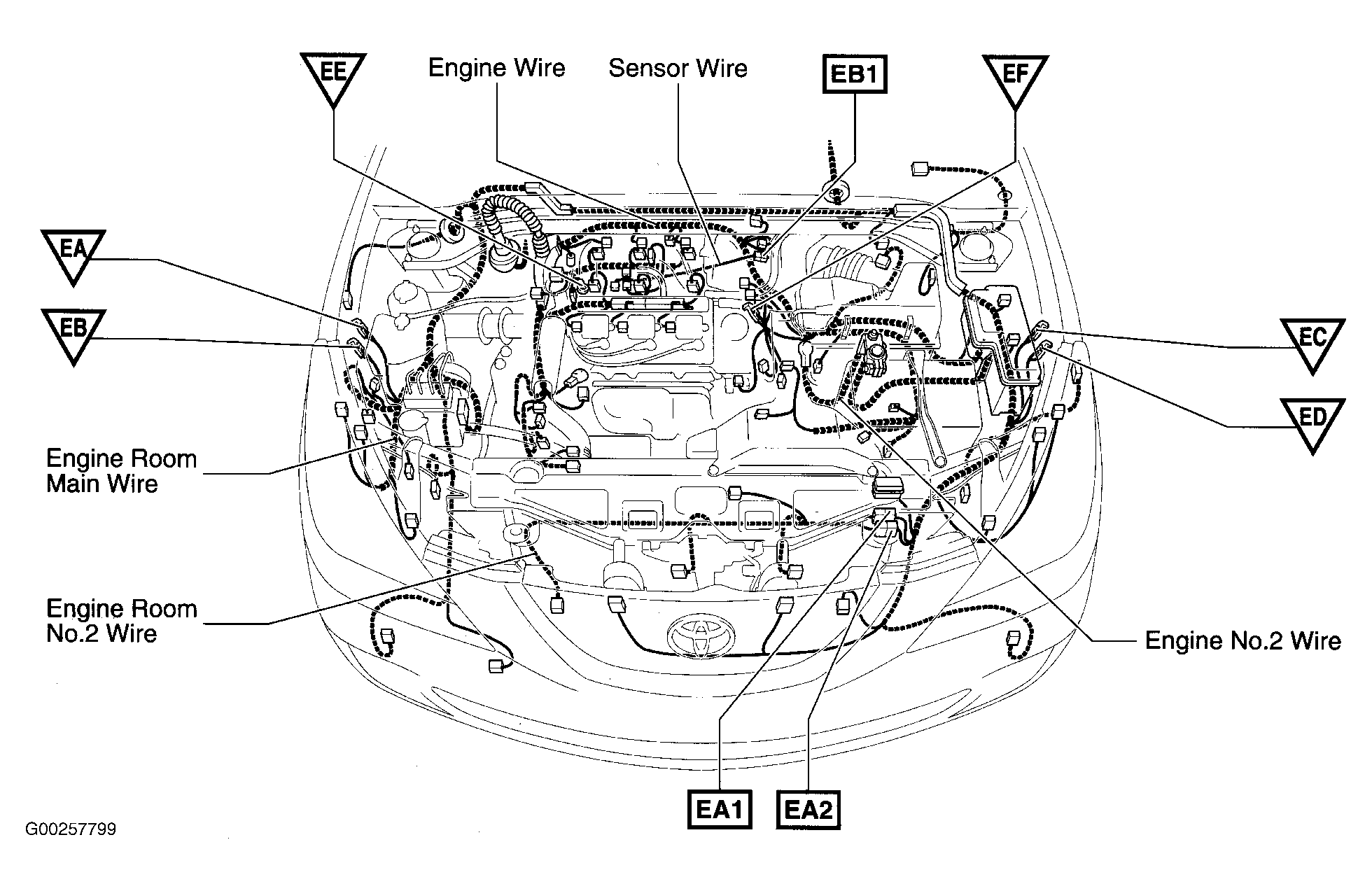

Fig 10: Engine Compartment Grounds (3.3L)
G00257799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

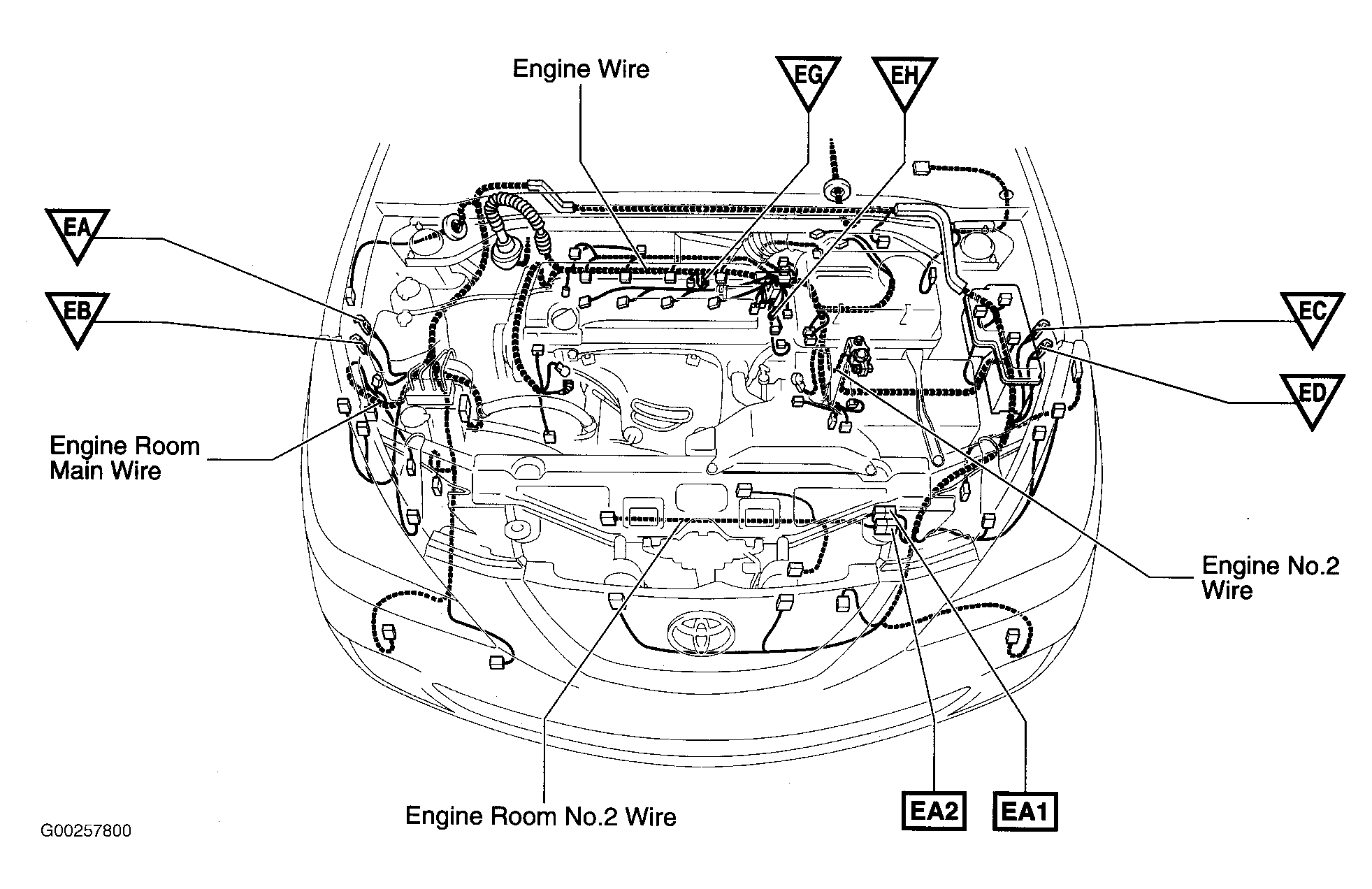

Fig 11: Engine Compartment Grounds (2.4L)
G00257800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

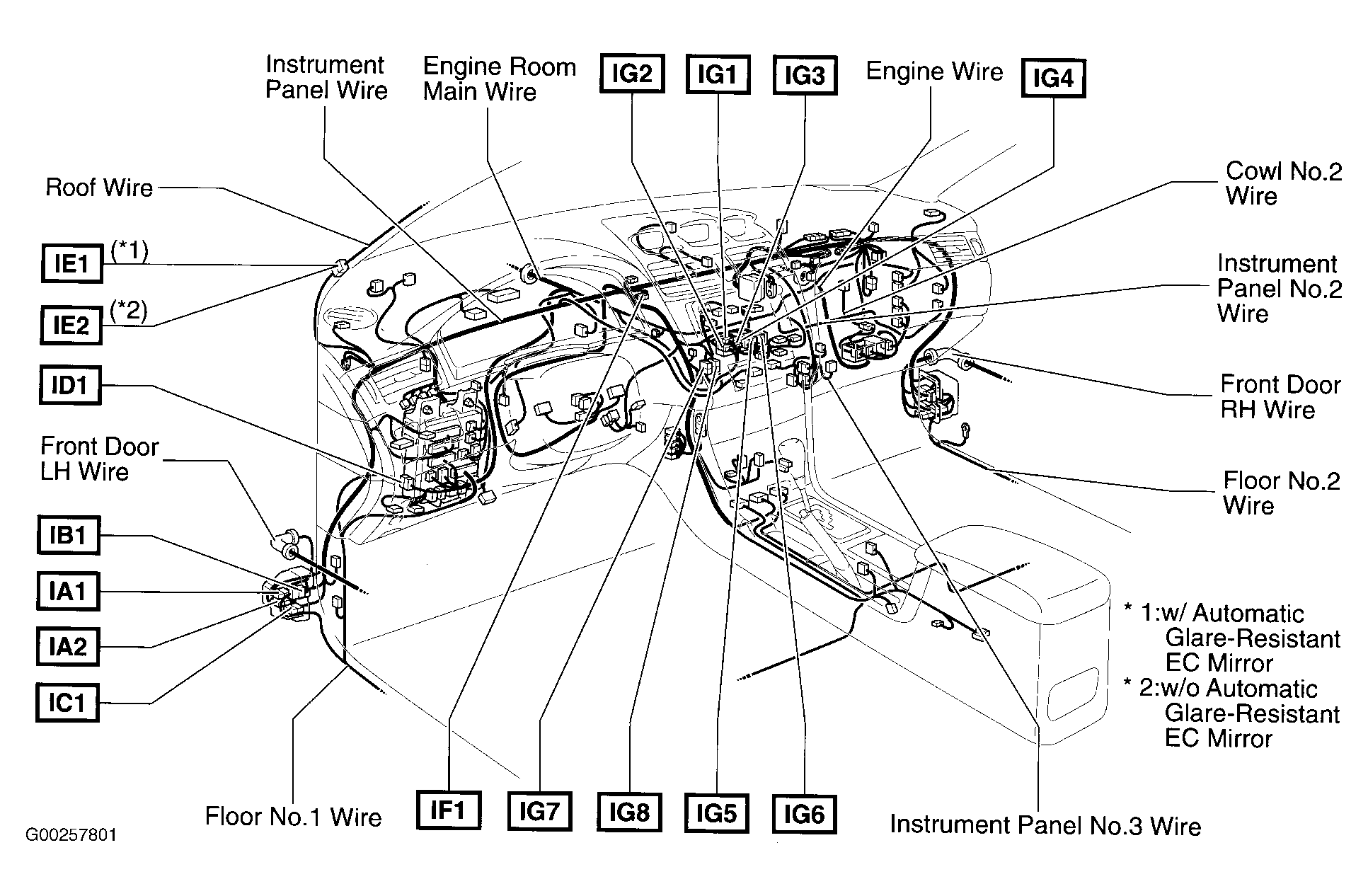

Fig 12: Dash & Center Console
G00257801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

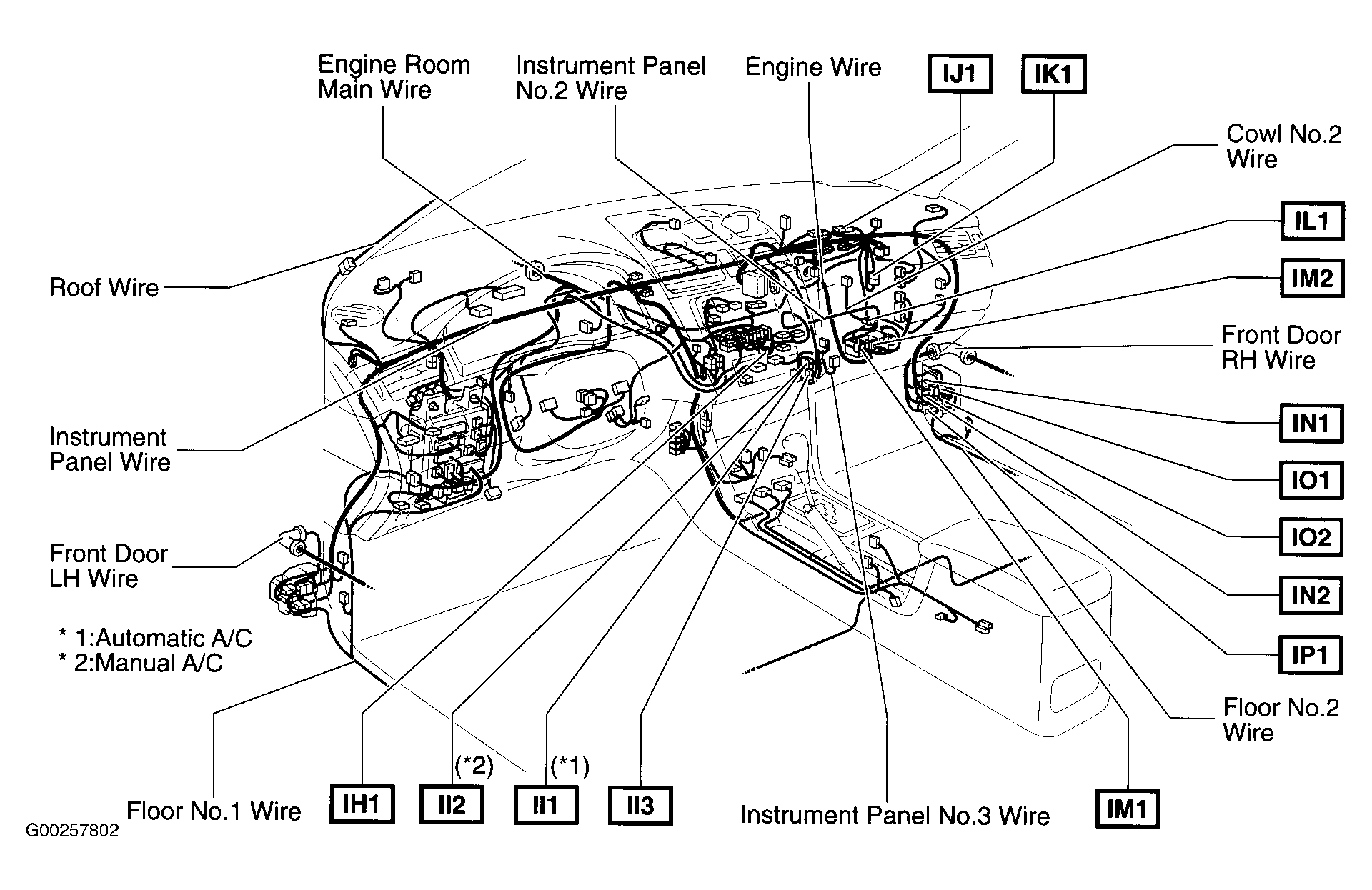

Fig 13: Dash & Center Console
G00257802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

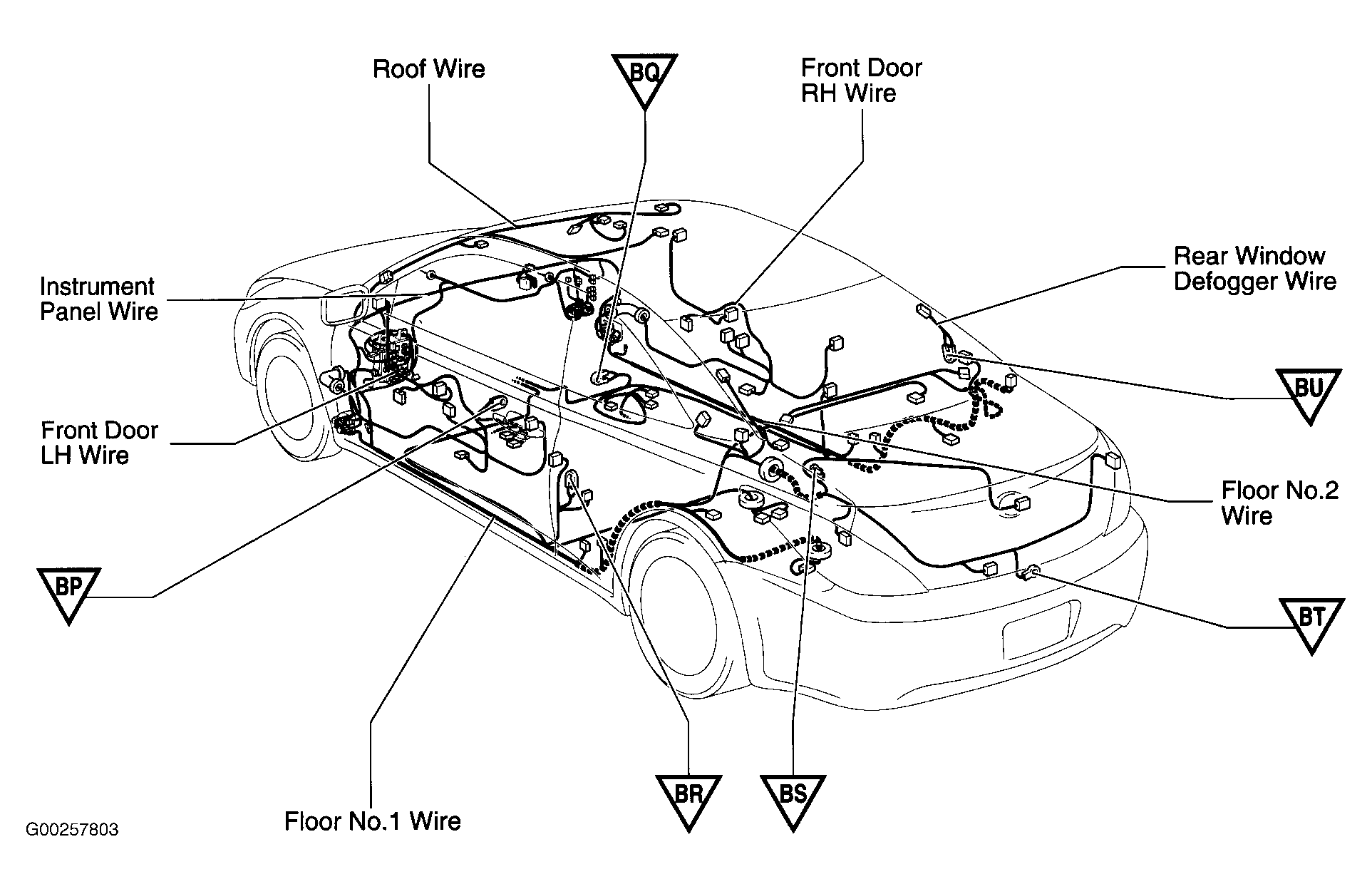

Fig 14: Vehicle Overview
G00257803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

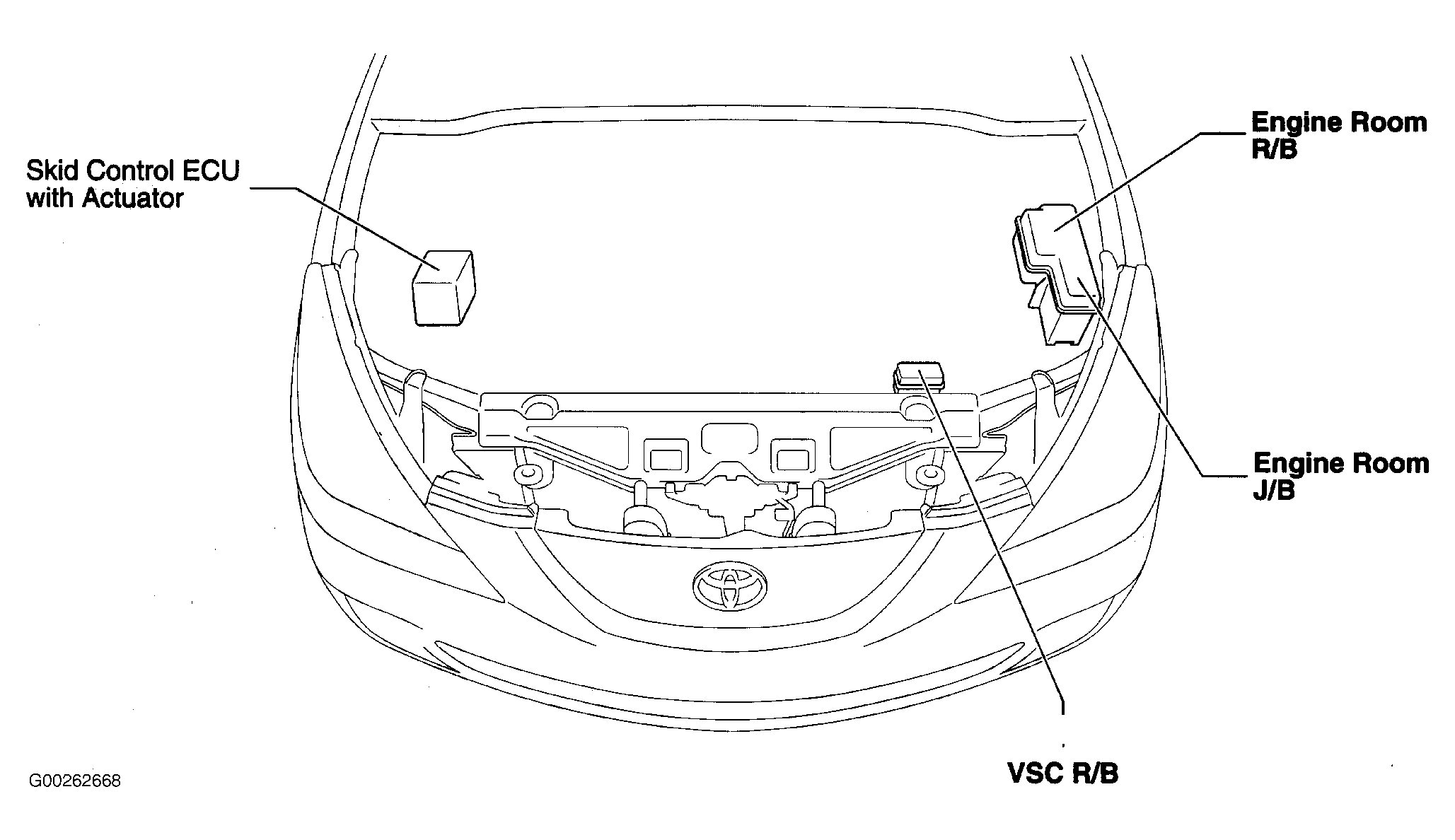

Fig 15: Engine Compartment
G00262668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

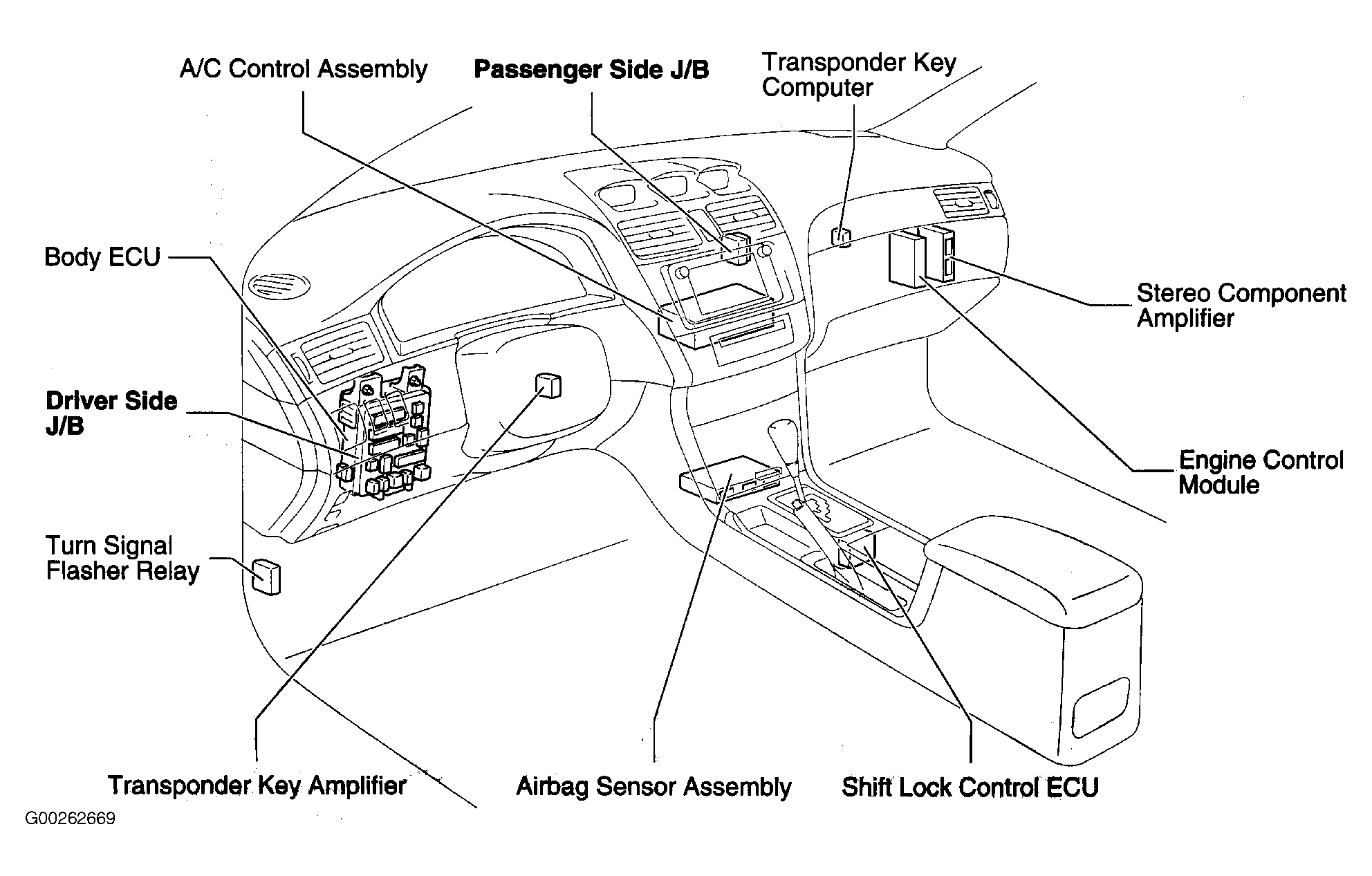

Fig 16: Dash & Center Console
G00262669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal Flasher Relay

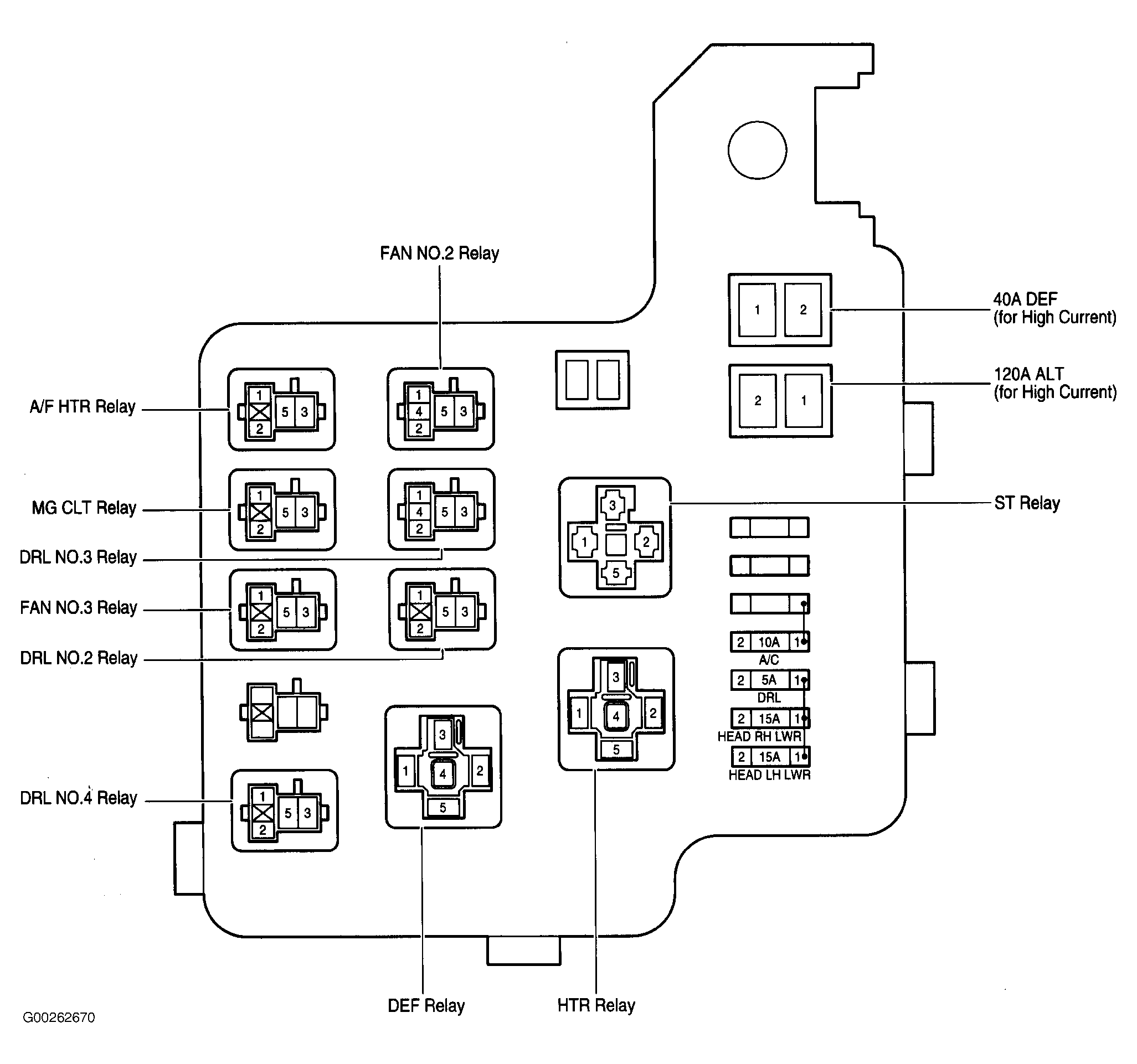

Fig 17: Engine Room R/B
G00262670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.4 Relay
DRL No.2 Relay
Fan No.3 Relay
DRL No.3 Relay
MG CLT Relay
A/F HTR Relay
Fan No.2 Relay
ST Relay
HTR Relay
DEF Relay

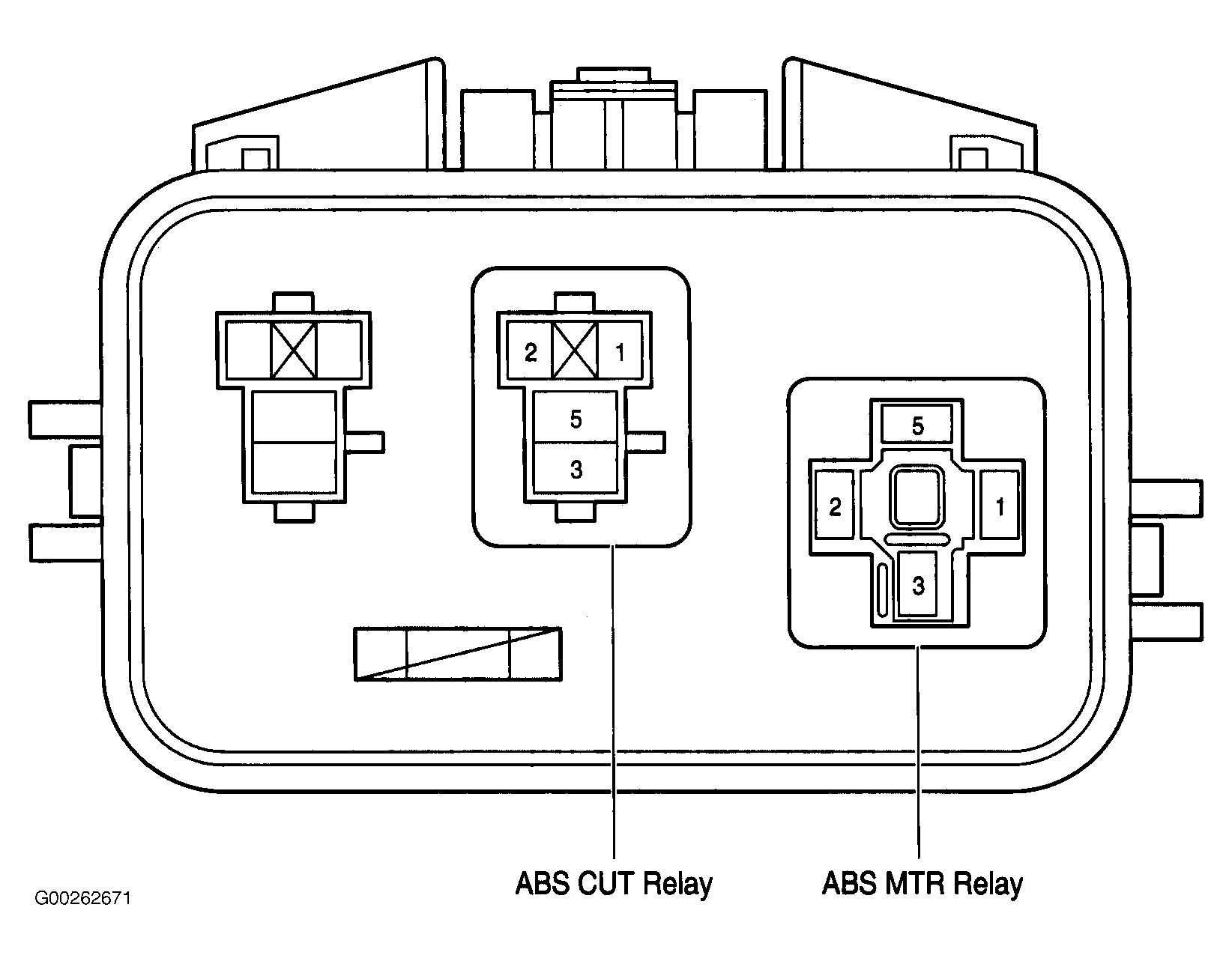

Fig 18: VSC R/B
G00262671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
VSC RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS CUT Relay

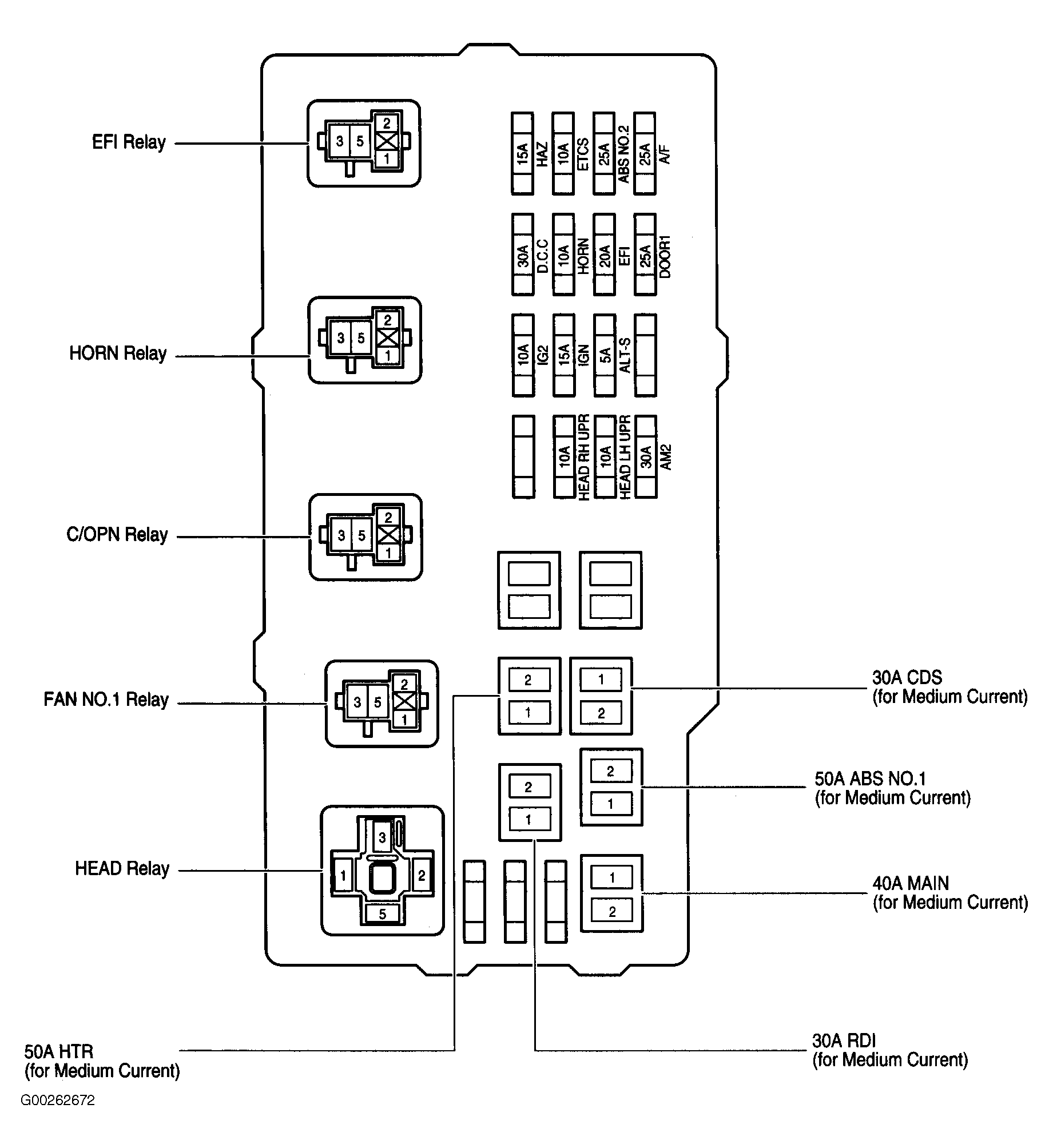

Fig 19: Engine Room J/B
G00262672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head Relay
Fan No.1 Relay
C/OPN Relay
Horn Relay
EFI Relay

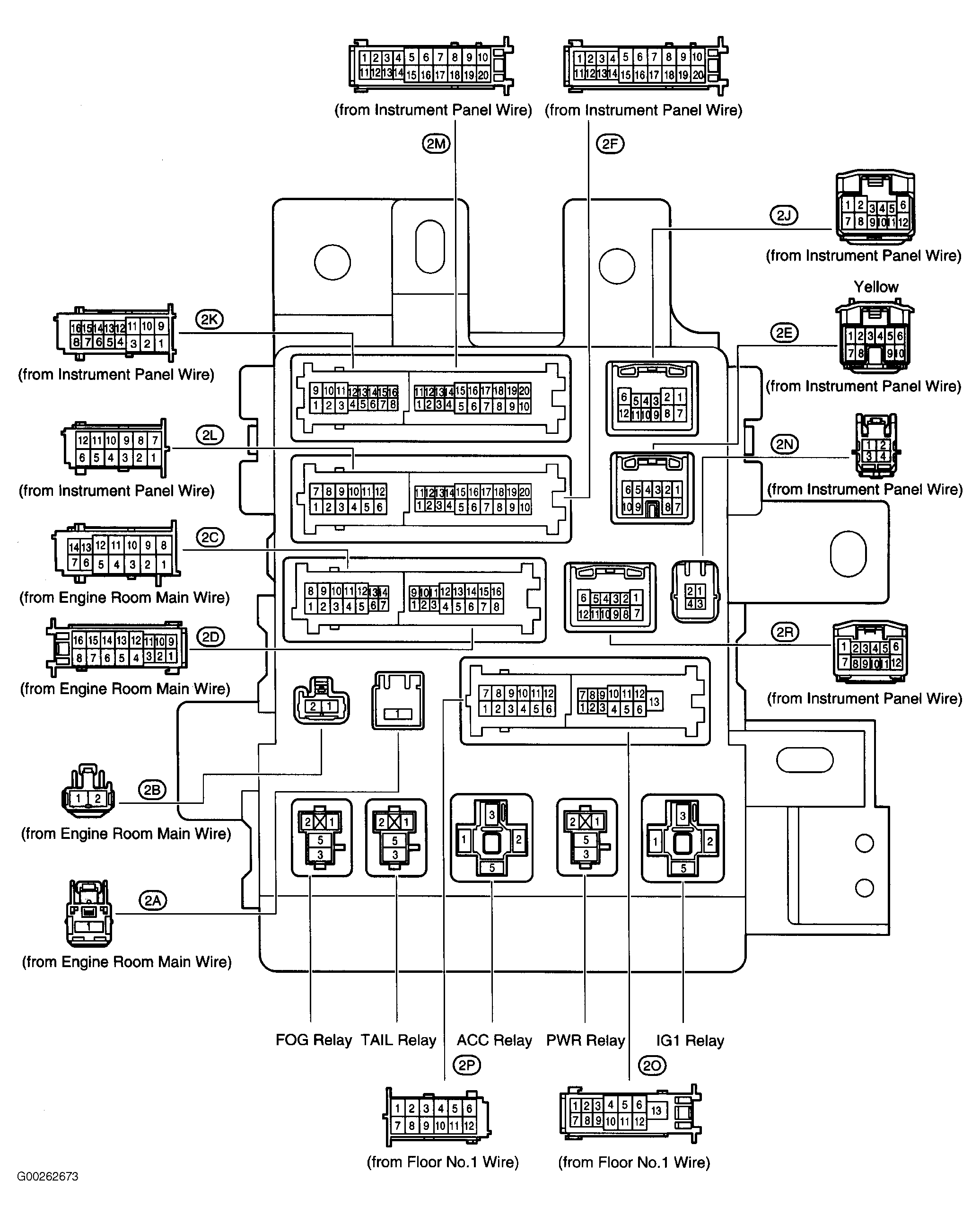

Fig 20: Driver Side J/B
G00262673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 Relay
PWR Relay
ACC Relay
Tail Relay
Fog Relay

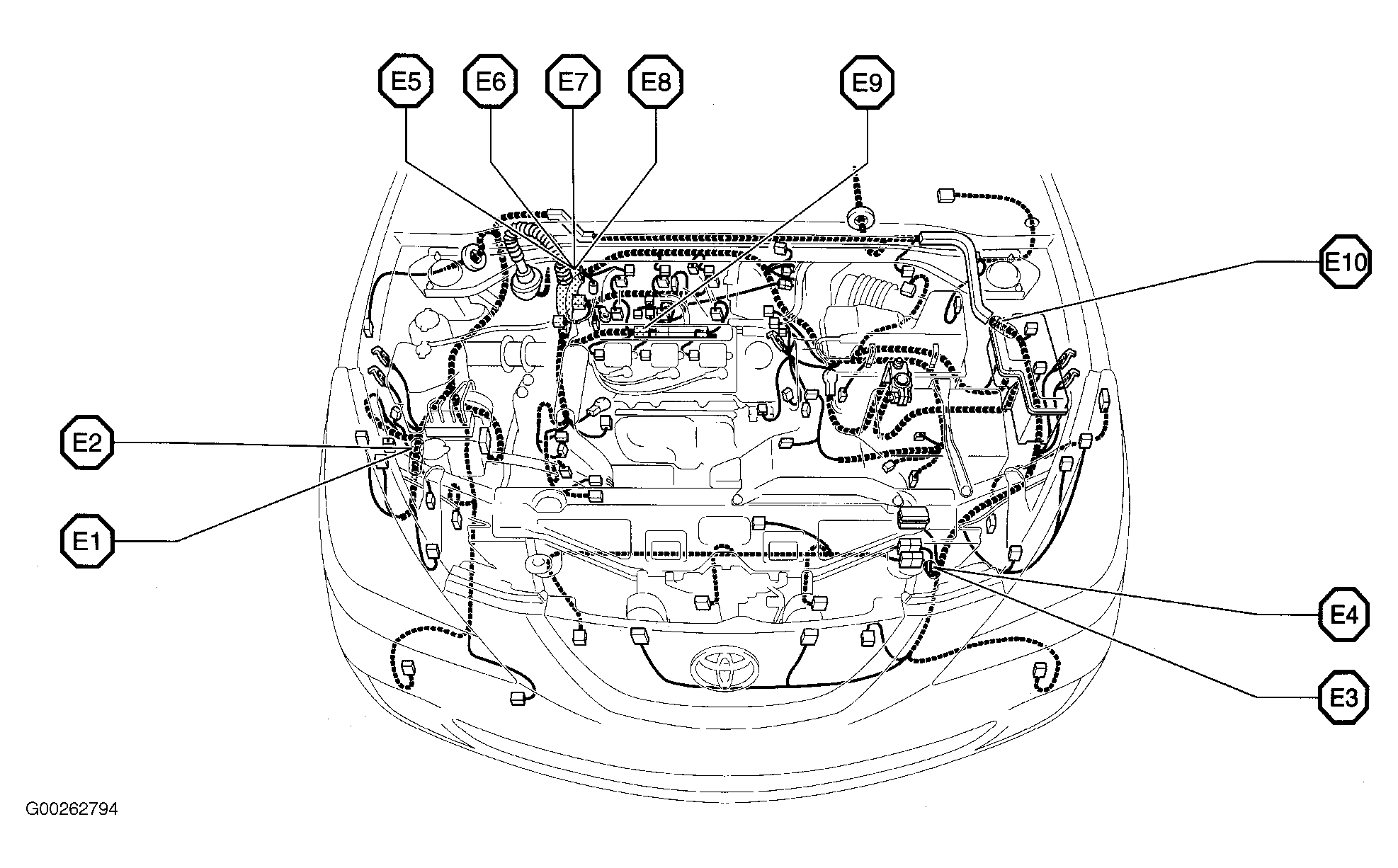

Fig 21: Engine Compartment (3.3L)
G00262794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

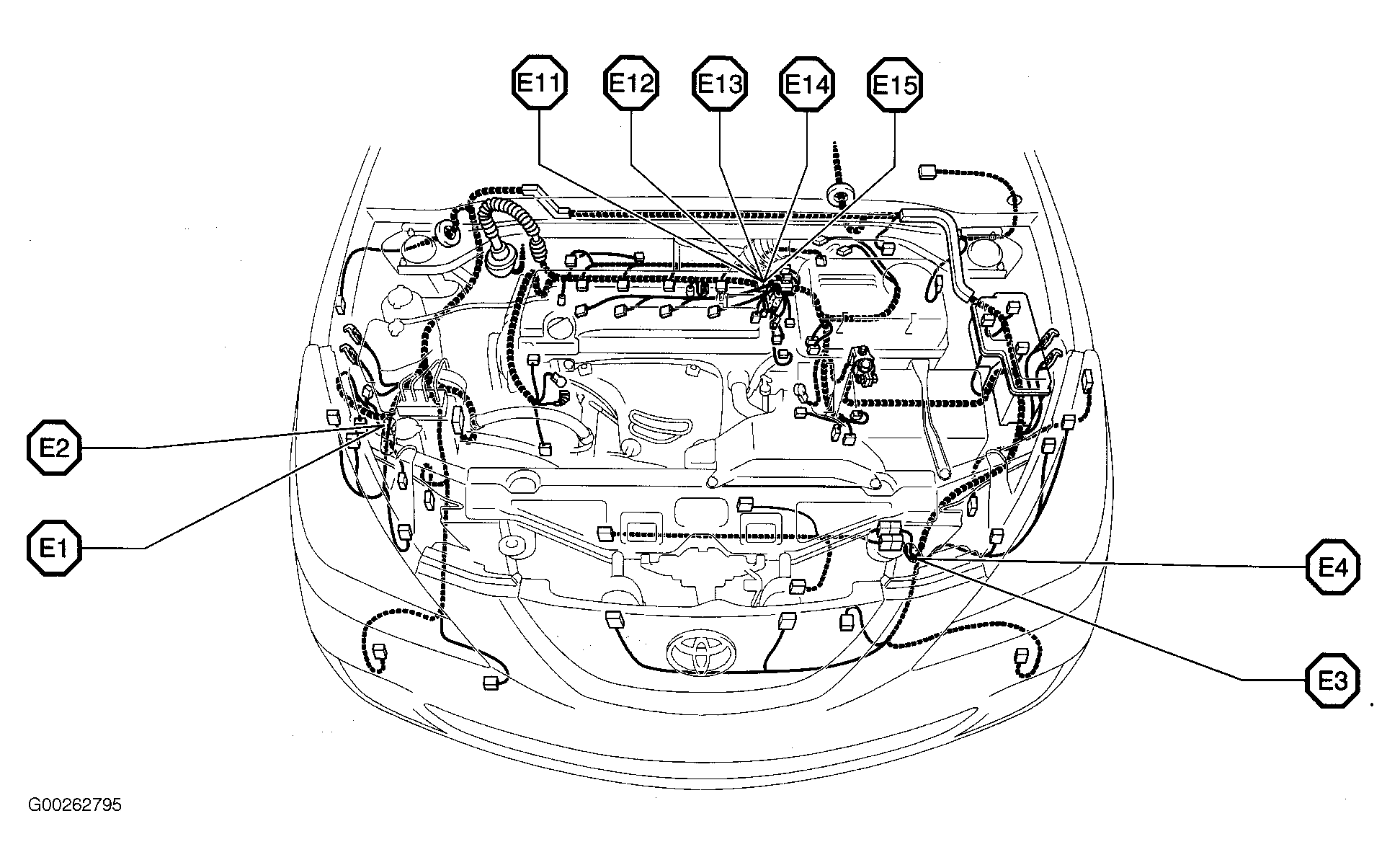

Fig 22: Engine Compartment (2.4L)
G00262795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

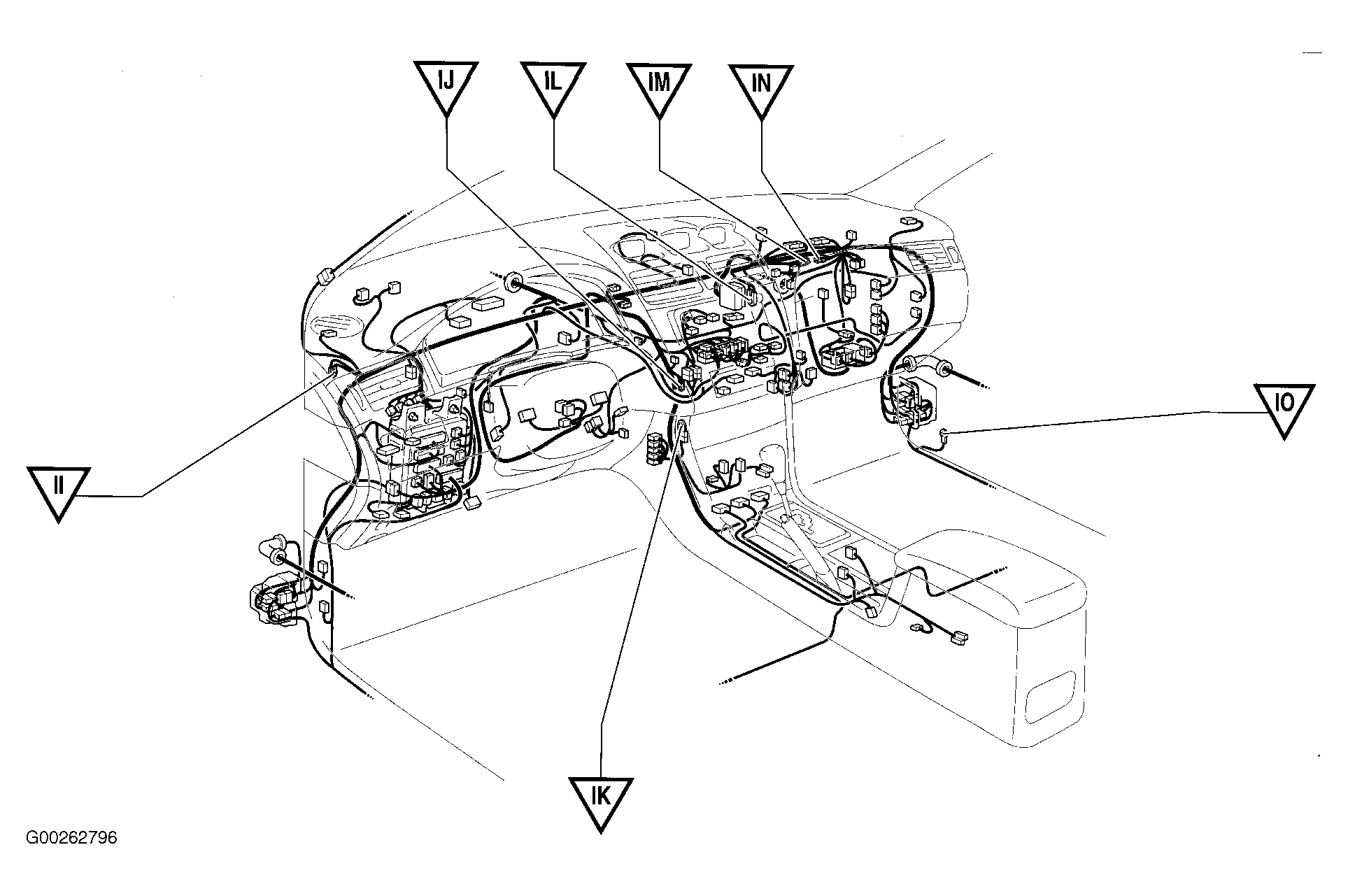

Fig 23: Dash & Center Console
G00262796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

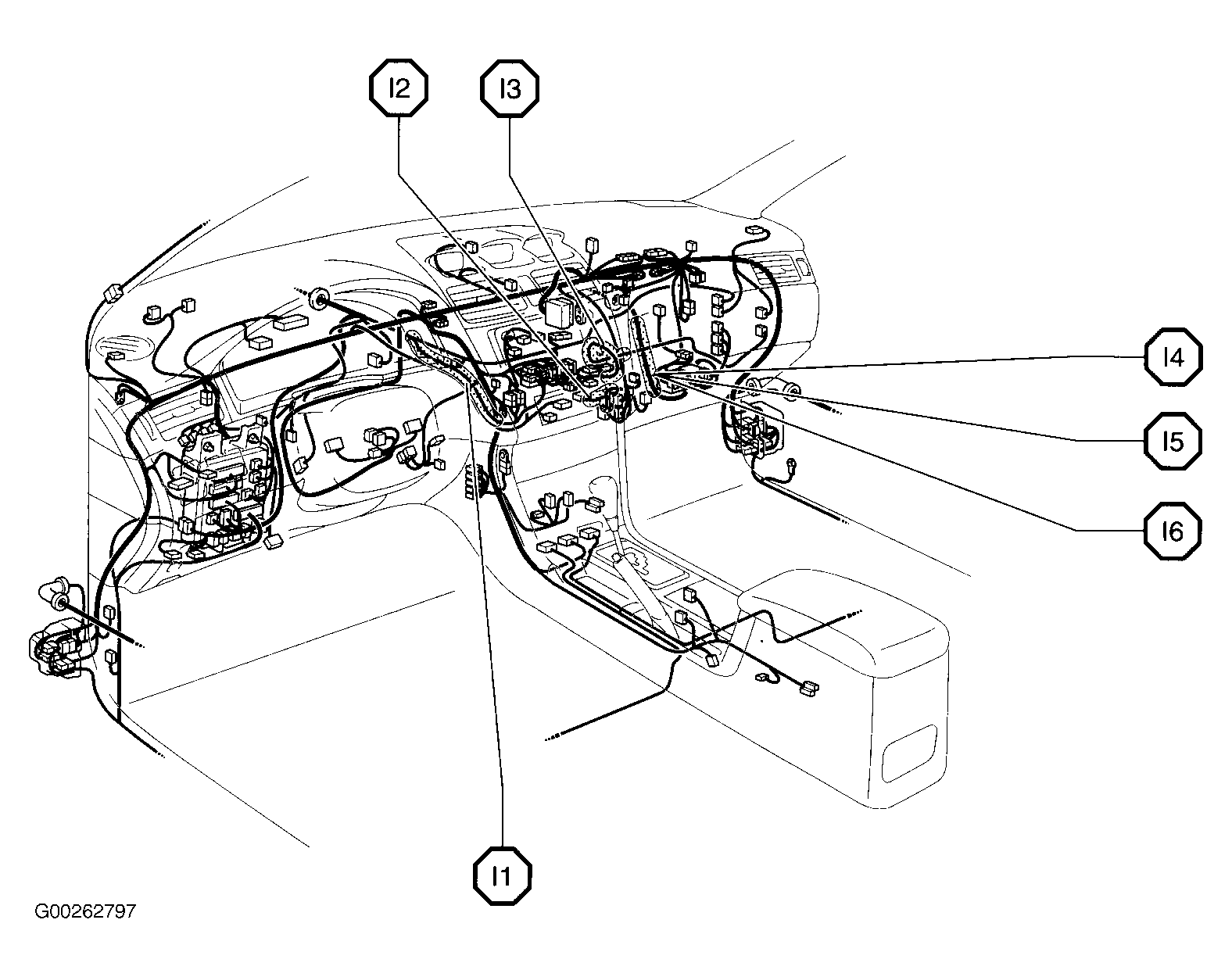

Fig 24: Dash & Center Console
G00262797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

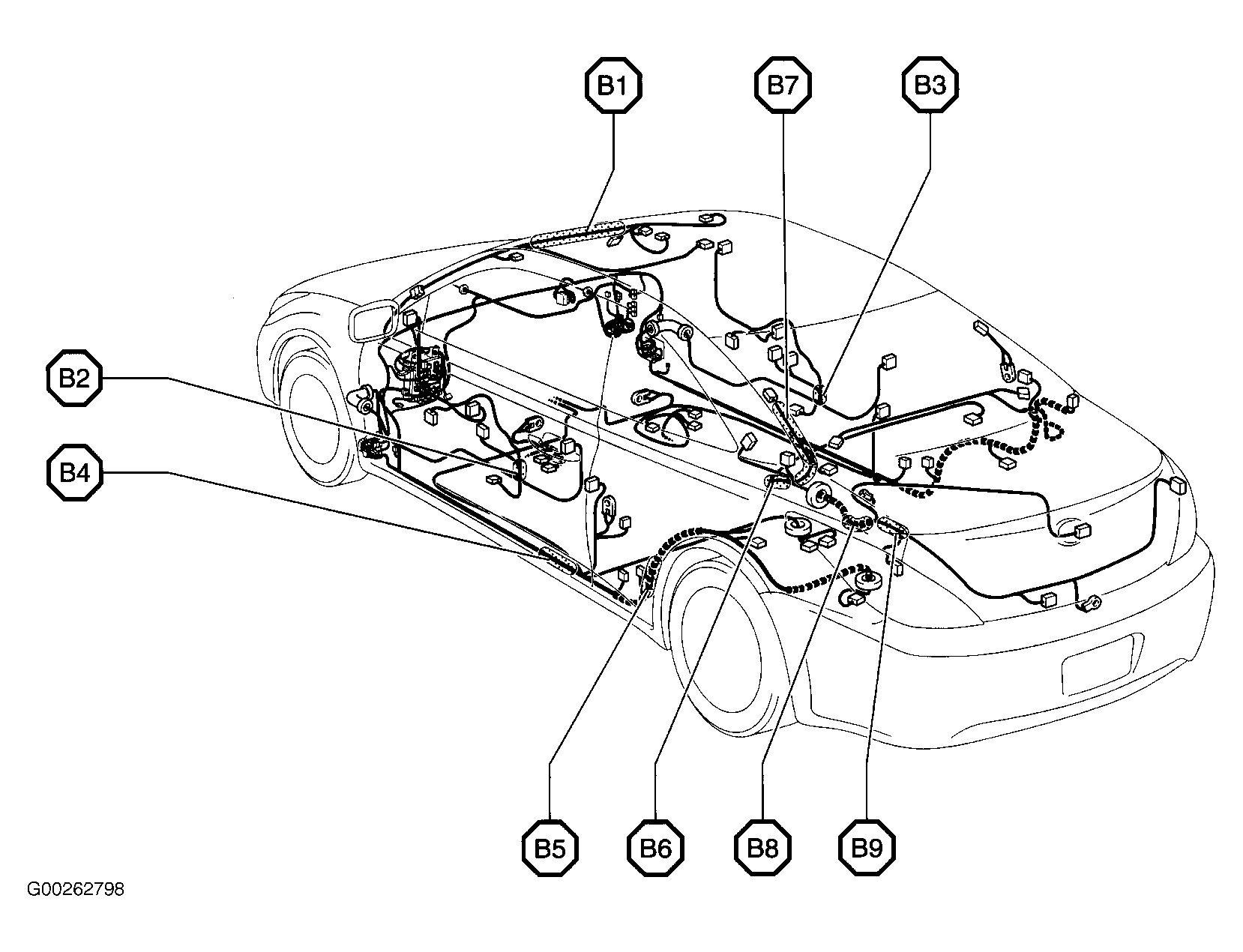

Fig 25: Vehicle Overview
G00262798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
