Quarter Window Assembly: Components

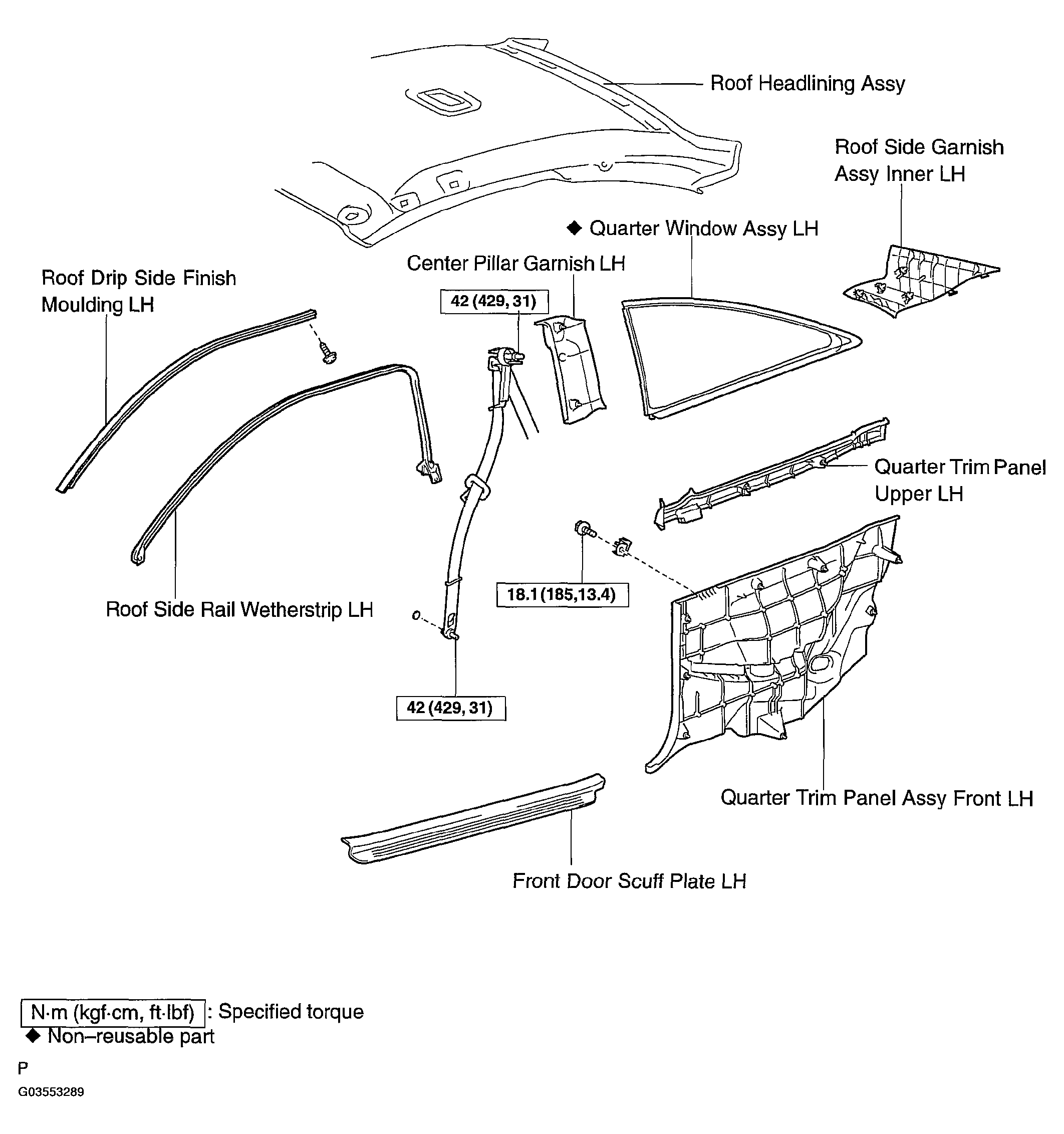

Fig 1: Exploded View Of Quarter Window Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
