Power Window Control System: Location

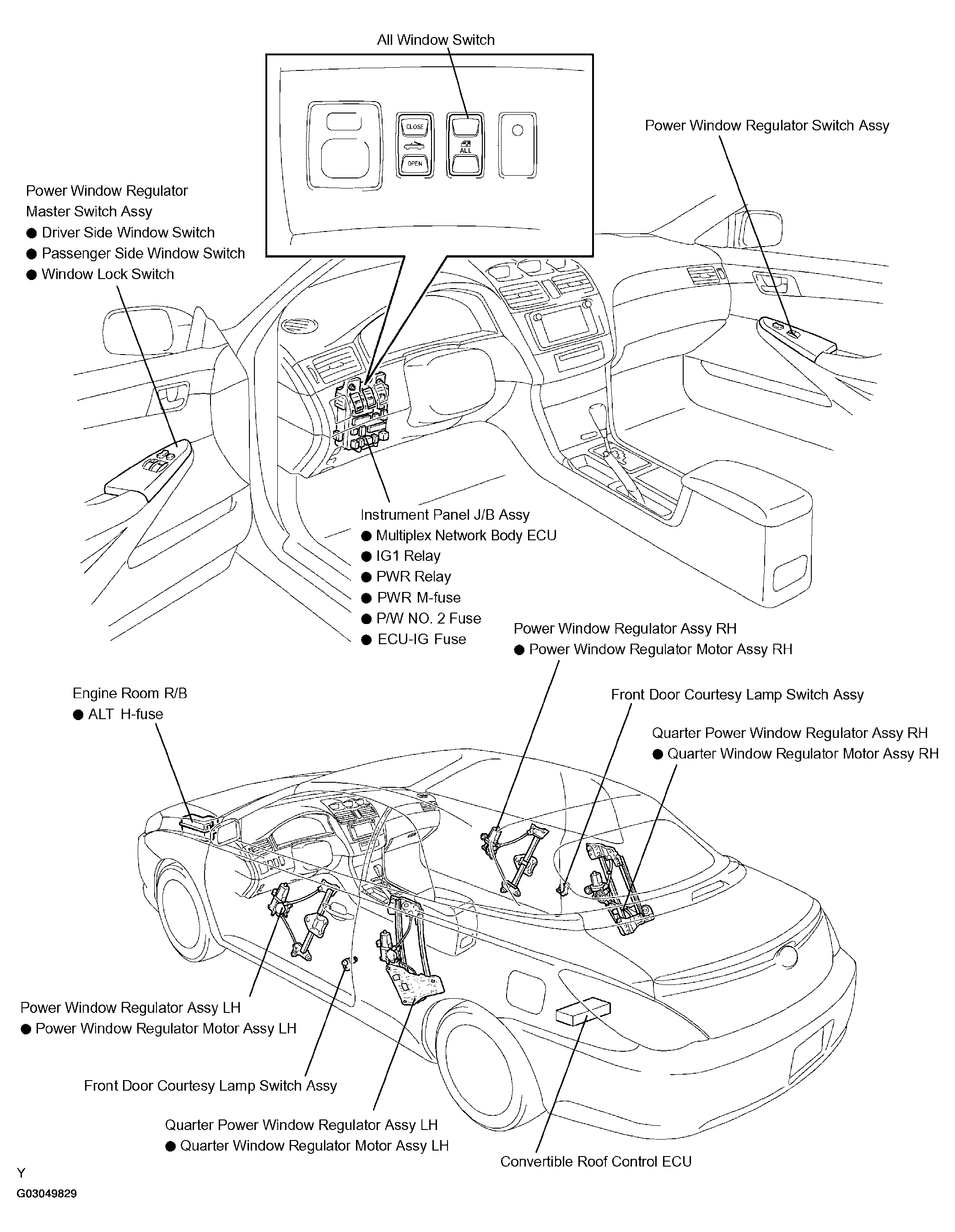

Fig 1: Locating Power Window Control System Components

G03049829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
