Ignition Switch/Starter Switch Assembly: Replacement

  1. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
    Fig 1: Removing Instrument Panel Sub-Assy Upper
    G02891382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE IGNITION OR STARTER SWITCH ASSY

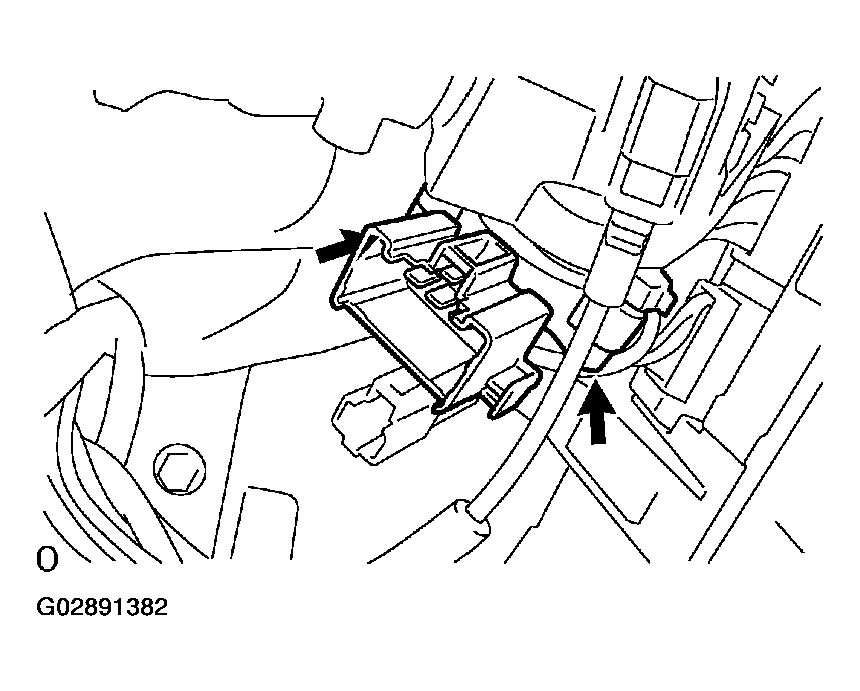

    1. Disconnect the ignition switch connector and unlock warning switch connector.
    2. Remove the clamp.
    3. Remove the 2 screws and ignition switch.
