Power Steering Gear: Components

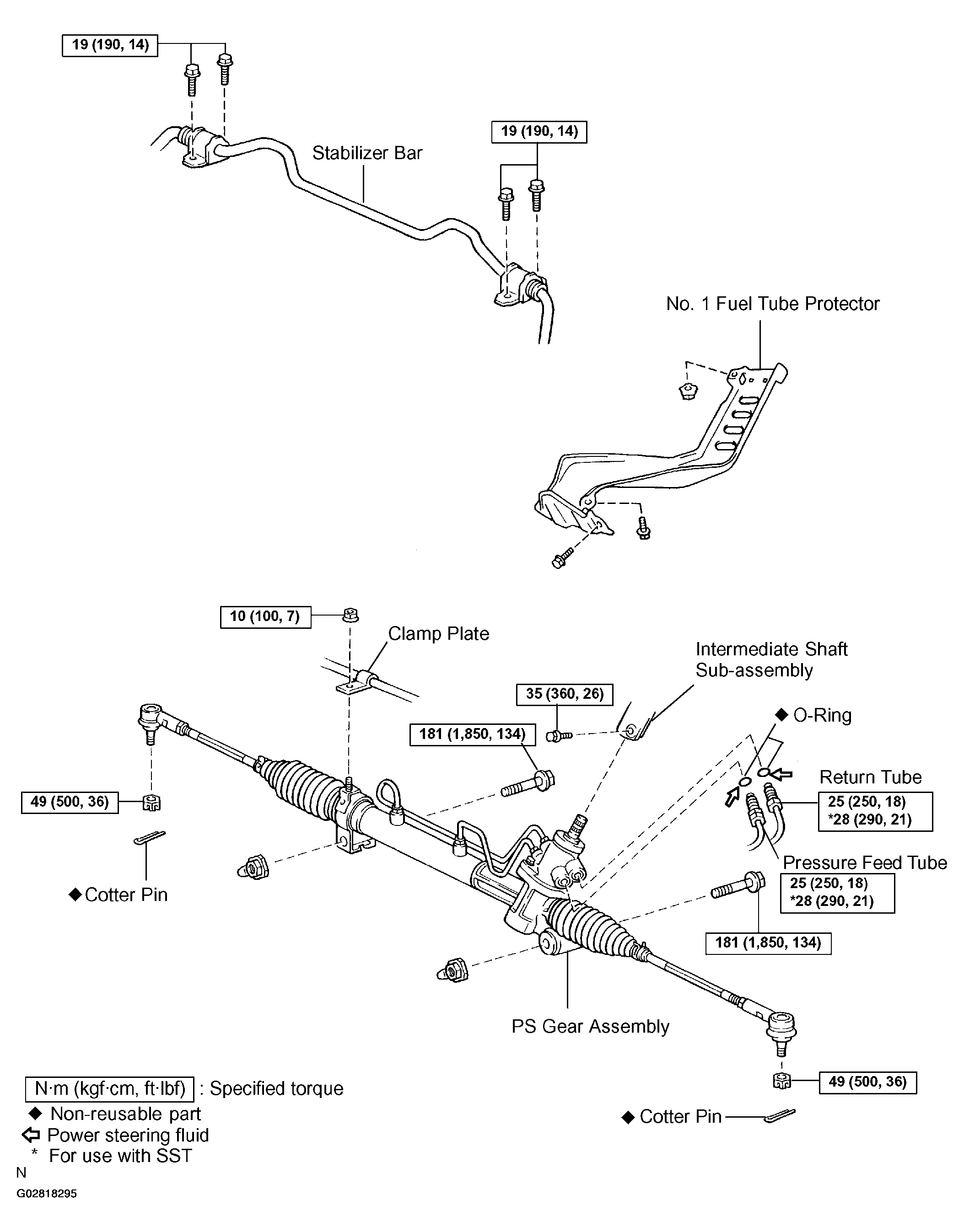

Fig 1: Identifying Power Steering Gear Removal Components
G02818295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

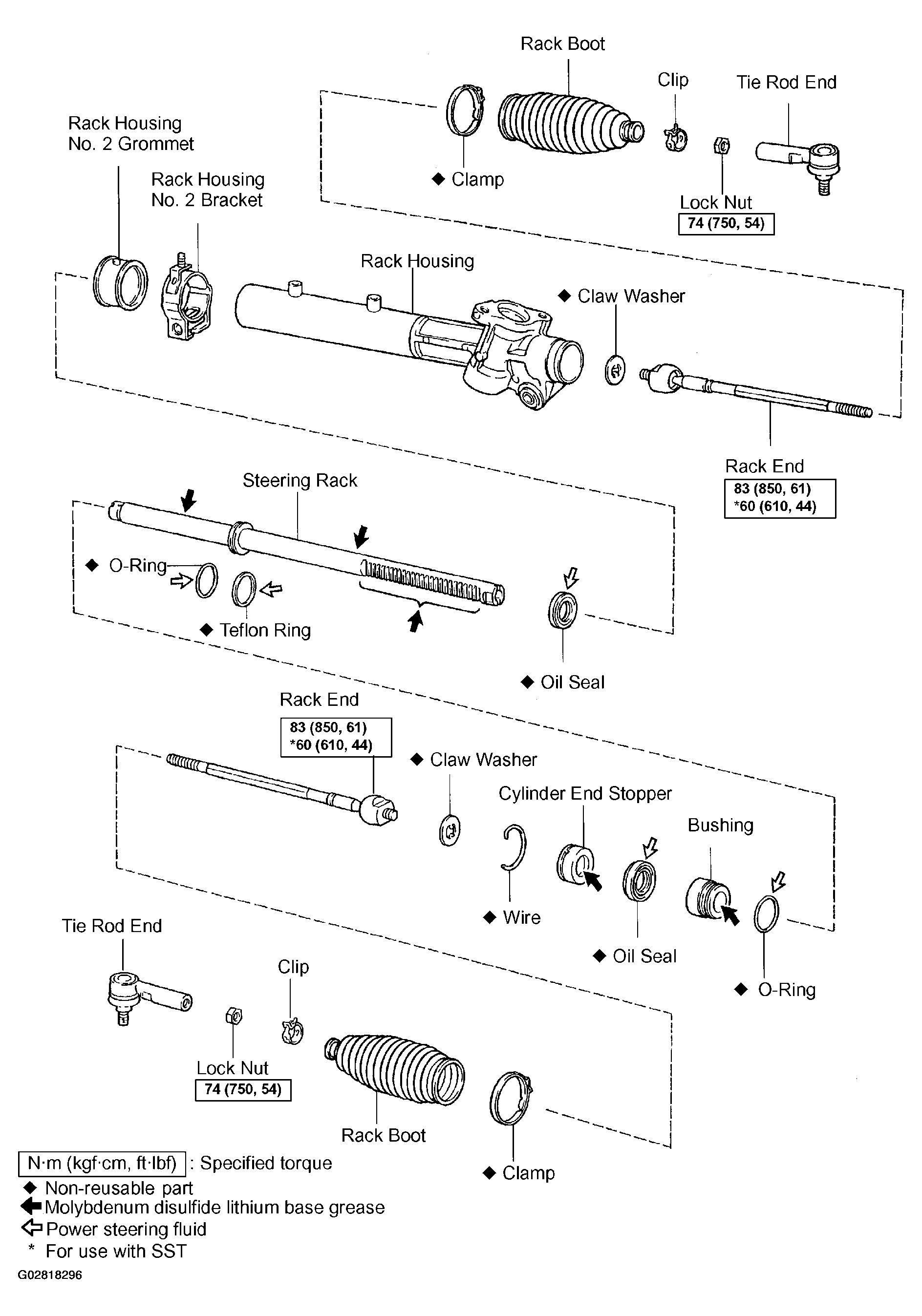

Fig 2: Exploded View Of Power Steering Gear (1 Of 2)
G02818296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

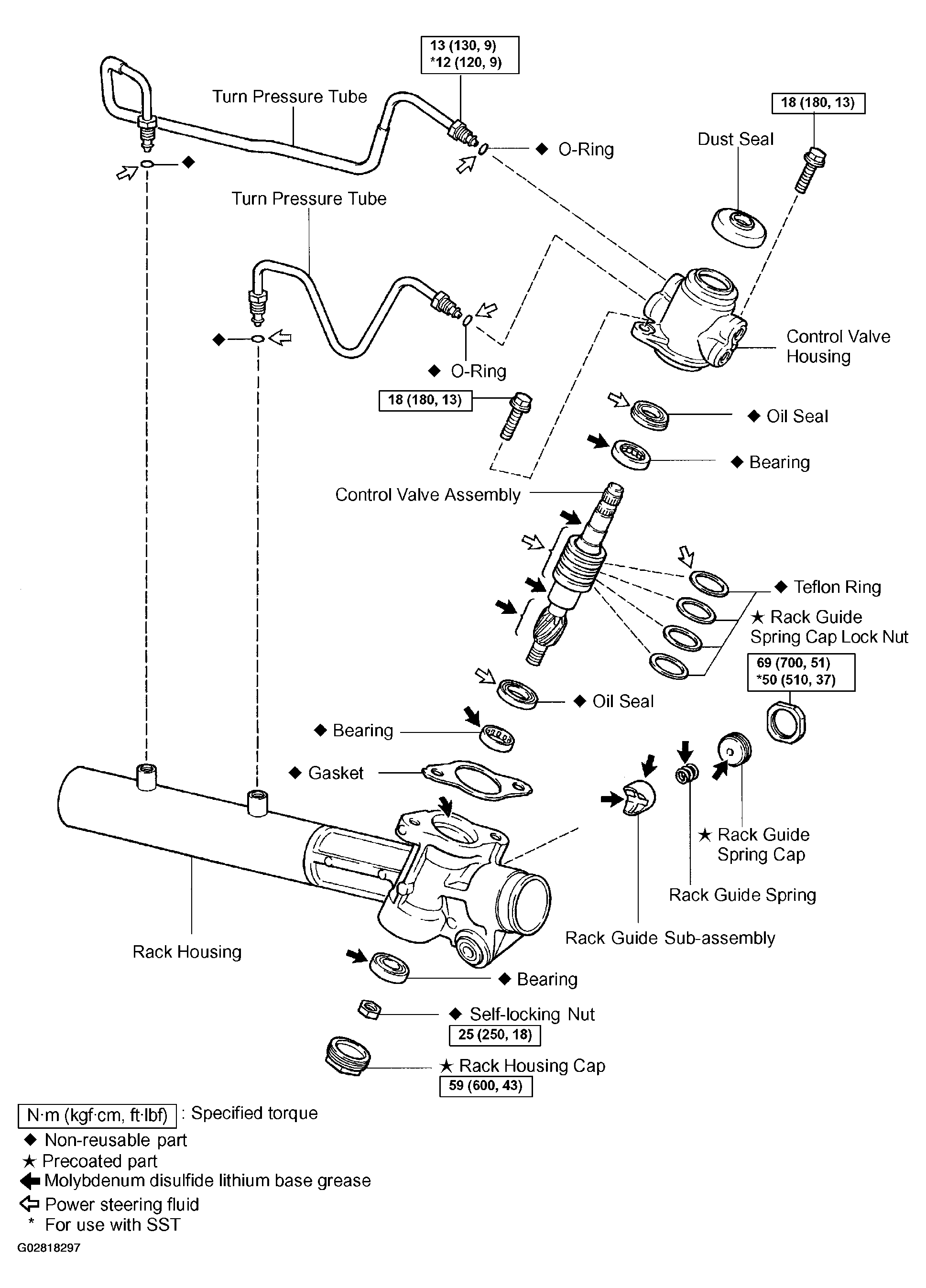

Fig 3: Exploded View Of Power Steering Gear (2 Of 2)
G02818297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
