Parts Location

WARNING: This page is about a different car, the 2003 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

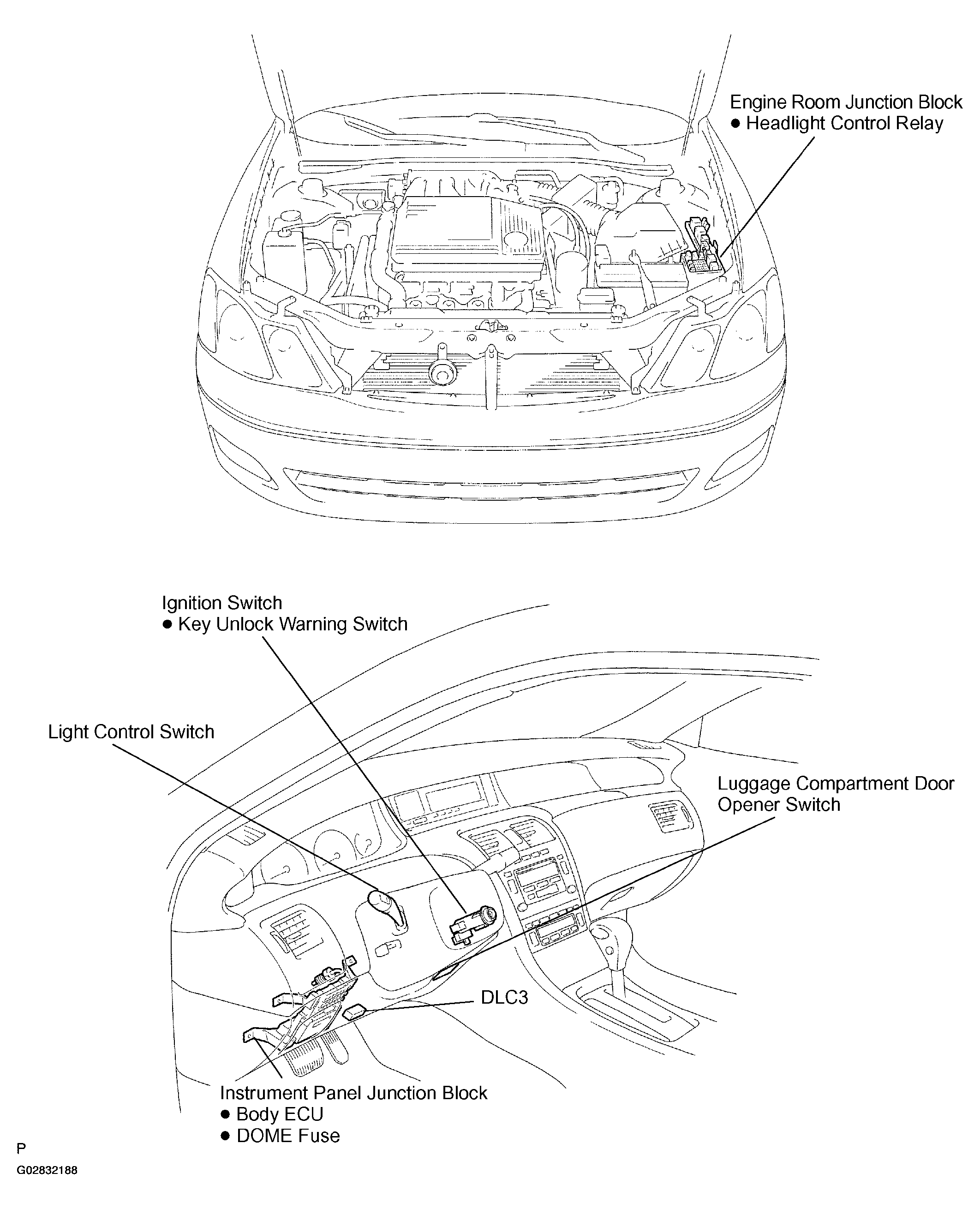

Fig 1: Locating Body Control System Components (1 Of 2)
G02832188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

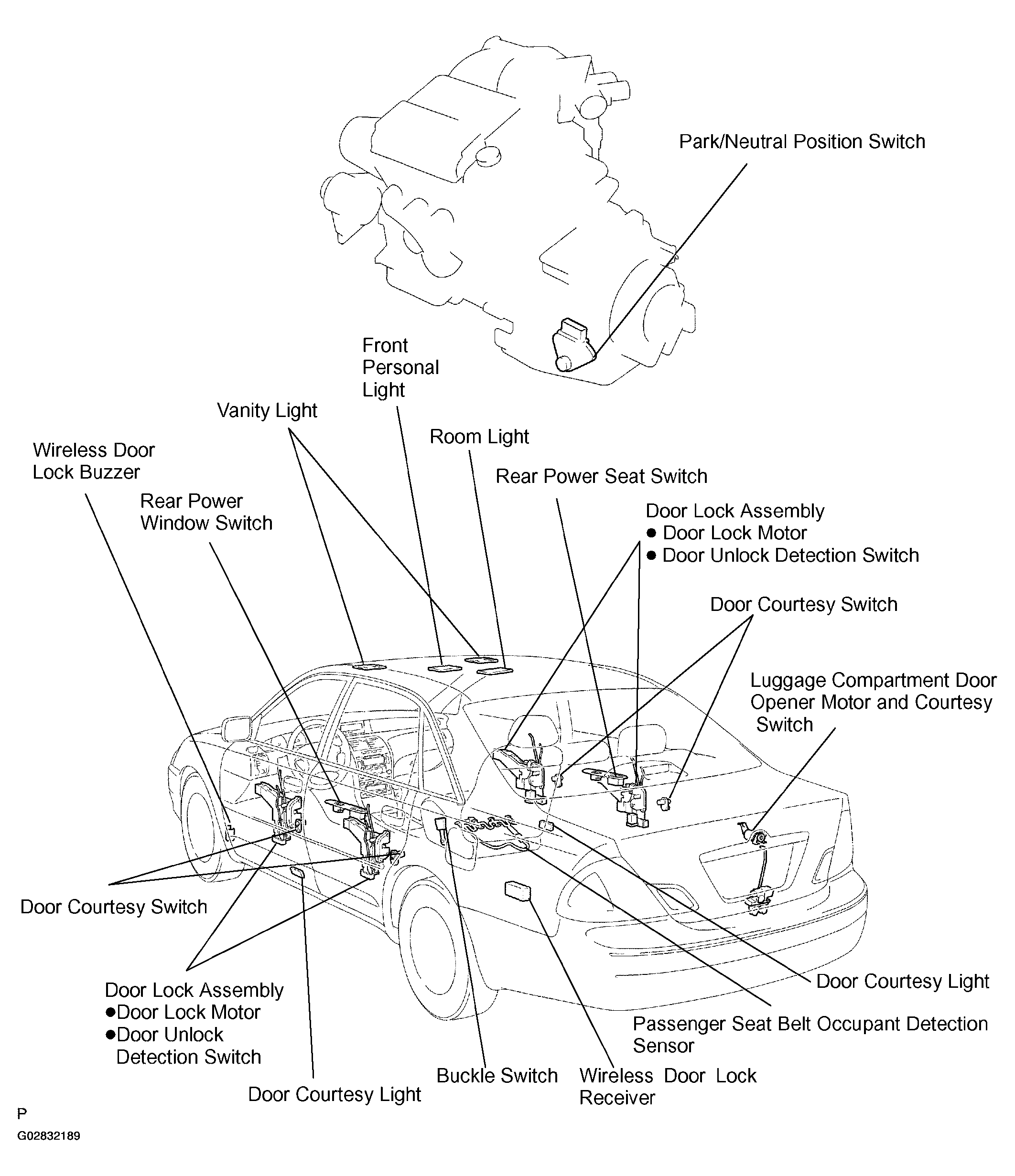

Fig 2: Locating Body Control System Components (2 Of 2)
G02832189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
