Parts Layout And Schematic Drawing: Location

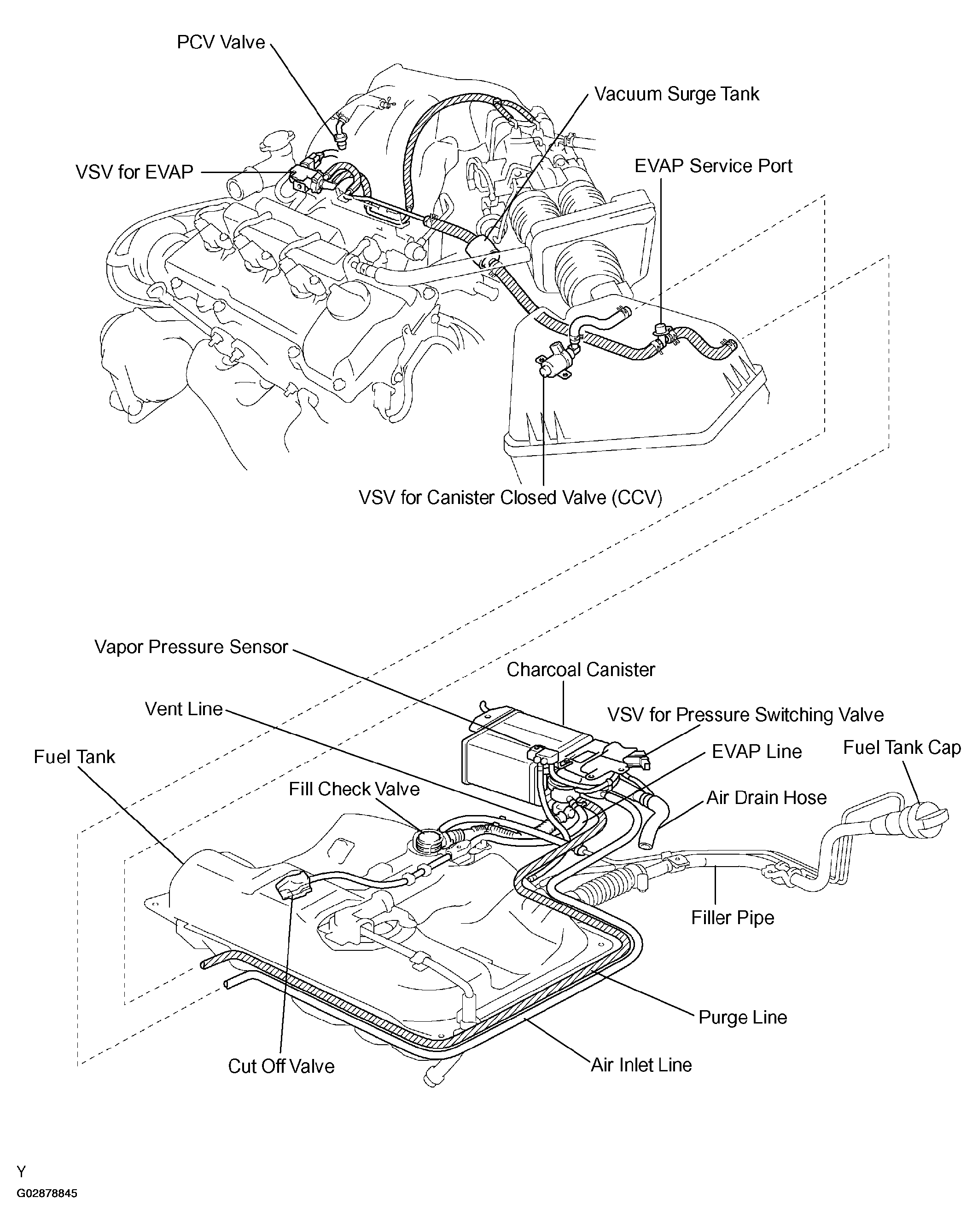

Fig 1: Identifying Emission Control System Parts Locations

G02878845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
