Power Seat Control System (W/O Driving Position Memory: Location

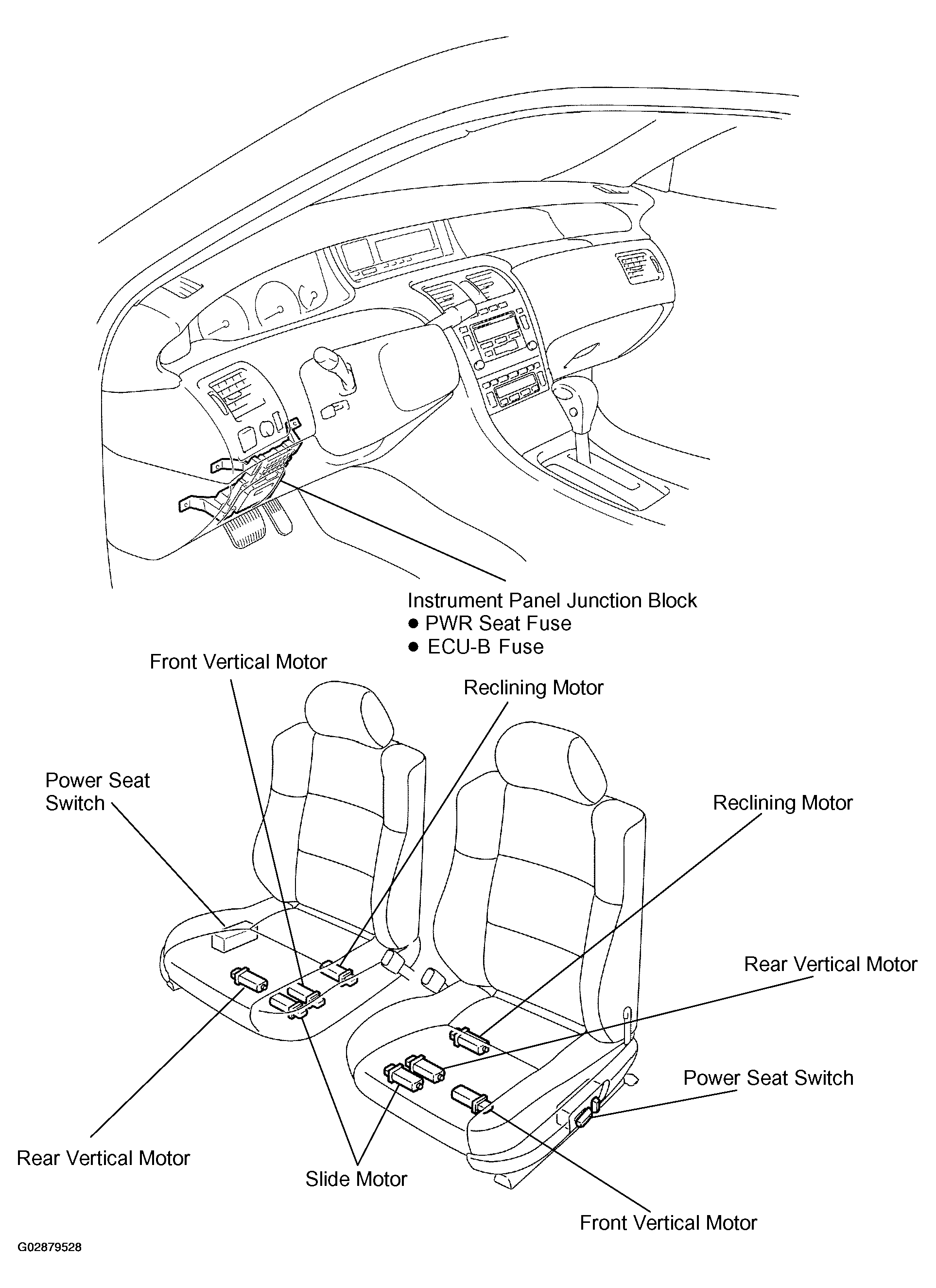

Fig 1: Locating Components

G02879528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
