Outside Rearview Mirror: Removal

REMOVE INSIDE HANDLE BEZEL
1. Using a screwdriver, remove the cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the screw.
3. Using a screwdriver, remove the inside handle bezel as shown in Fig 1 .
HINT:

Tape the screwdriver tip before use.
REMOVE COURTESY LIGHT

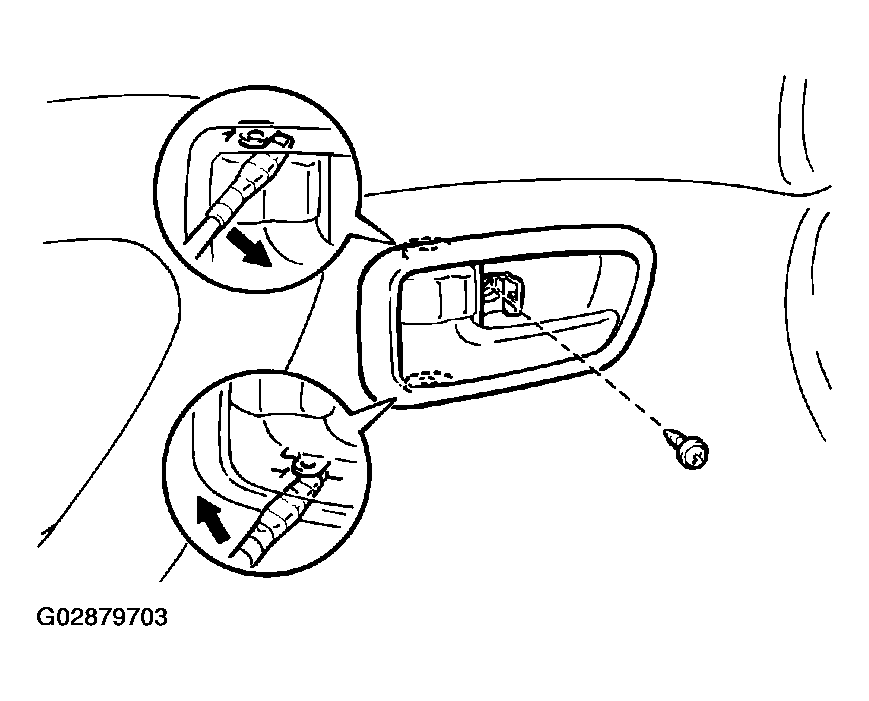

Fig 1: Removing Inside Handle Bezel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UPPER ARMREST BASE PANEL WITH POWER WINDOW SWITCH
1. Using a screwdriver, remove the upper armrest base panel with power window switch.
  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the connector.

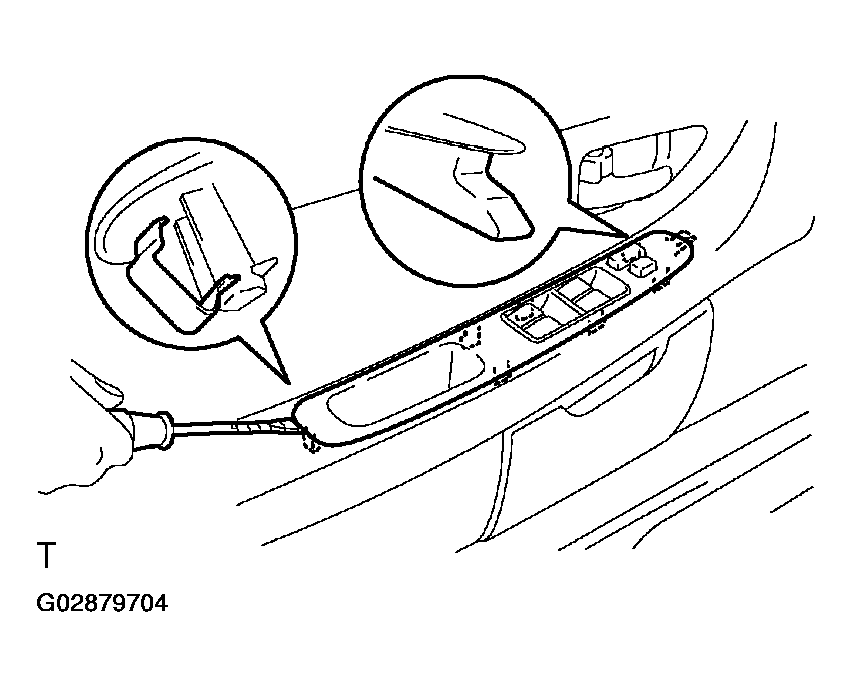

Fig 2: Removing Upper Armrest Base Panel With Power Window Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR TRIM
1. Using a screwdriver, remove the 2 caps.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 6 screws and clip.
3. Pull the trim upward to remove it.

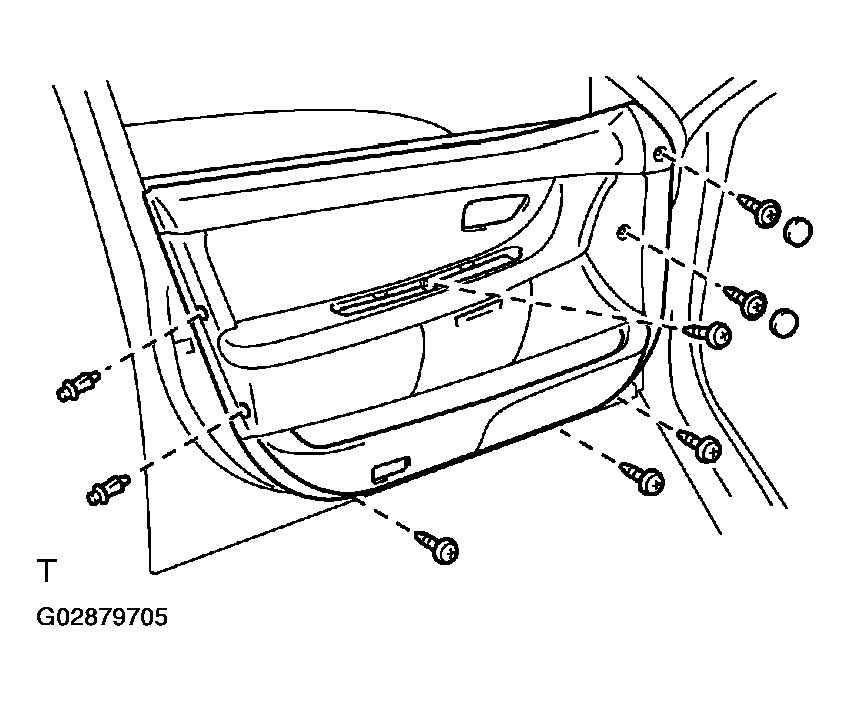

Fig 3: Removing Door Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER FRAME BRACKET GARNISH
Using a screwdriver, remove the lower frame bracket as shown in Fig 4 .

HINT:

Tape the screwdriver tip before use.
REMOVE OUTSIDE REAR VIEW MIRROR
1. Disconnect the connector.
2. Remove the 3 nuts and outside rear view mirror.
  Torque: 7.8 N.m (80 kgf.cm, 69 ft.lbf)

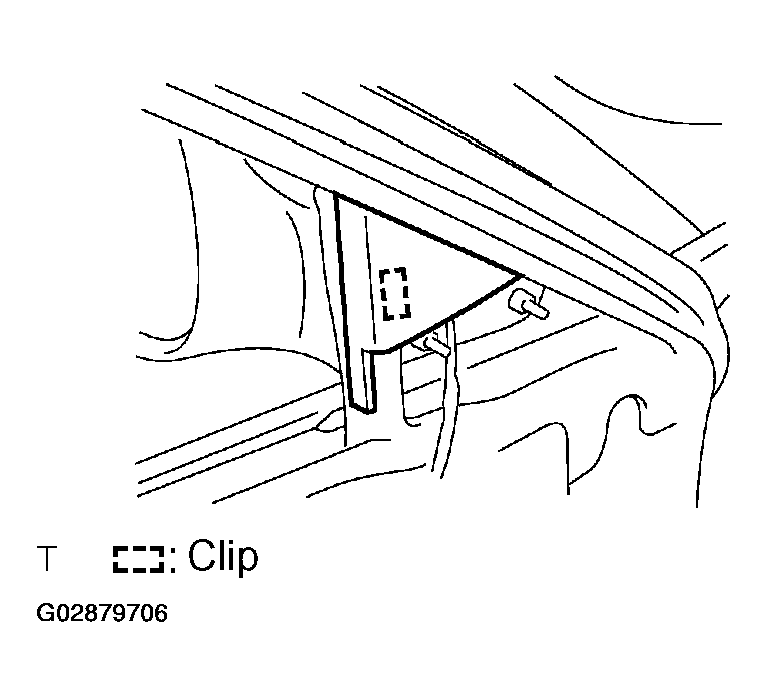

  Fig 4: Removing Lower Frame Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
