Outside Rearview Mirror: Components

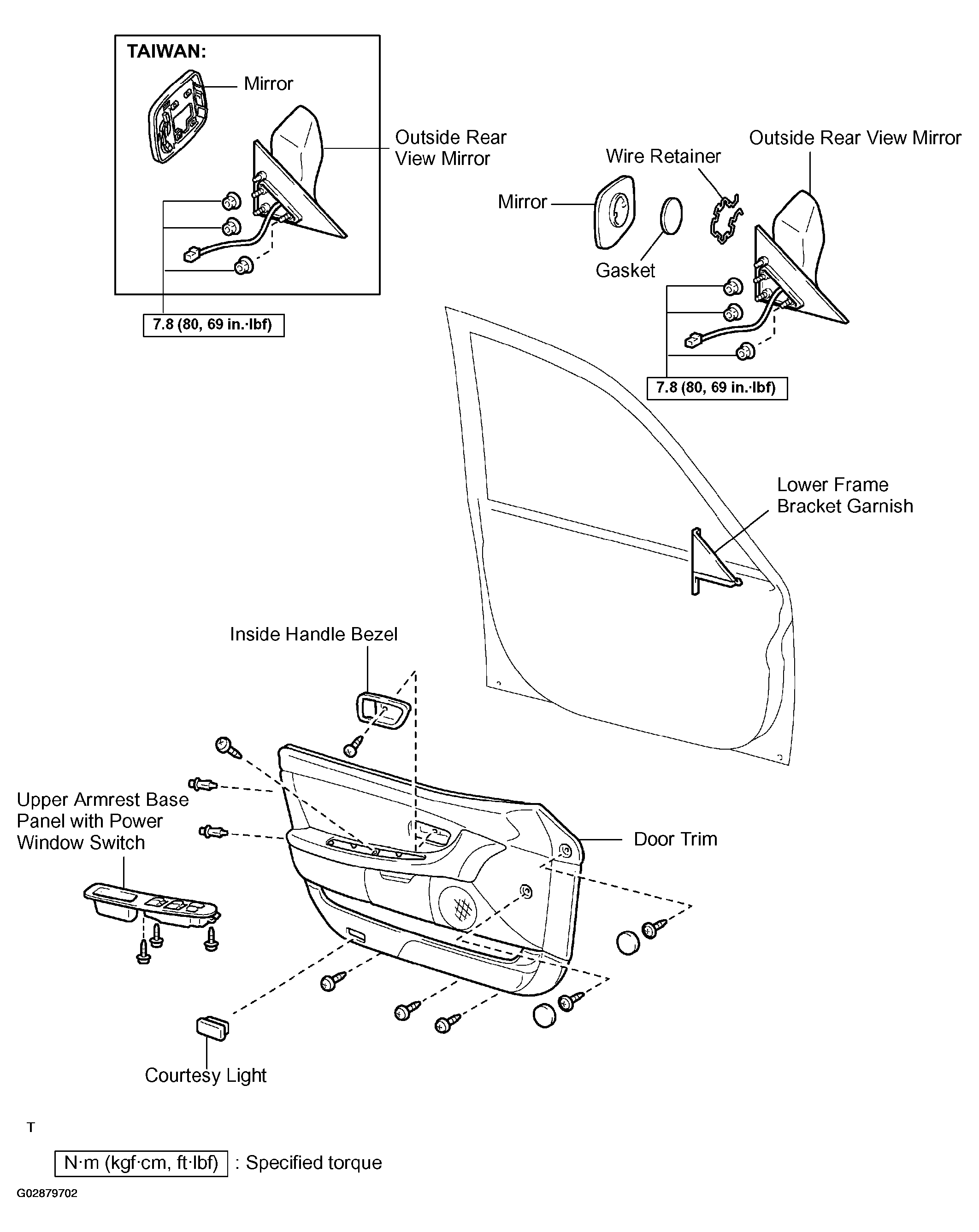

Fig 1: Identifying Outside Rear View Mirror Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
