Power Door Lock Control System: Location

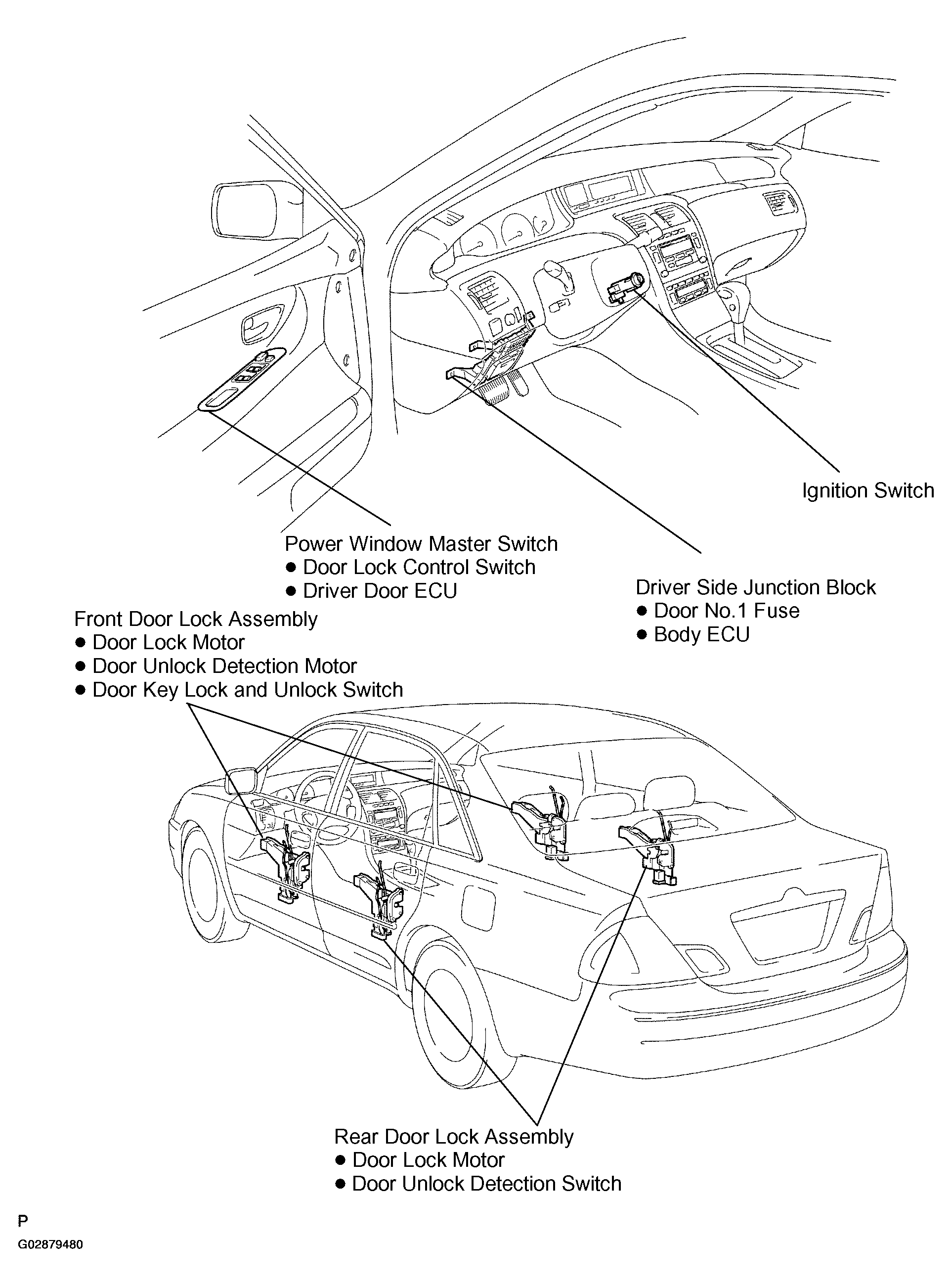

Fig 1: Locating Components

G02879480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
