Driver Door Control System - Diagnostics
>>
Problem Symptoms Table
>>
Power Door Lock Control System:
Power Door Lock Control System:

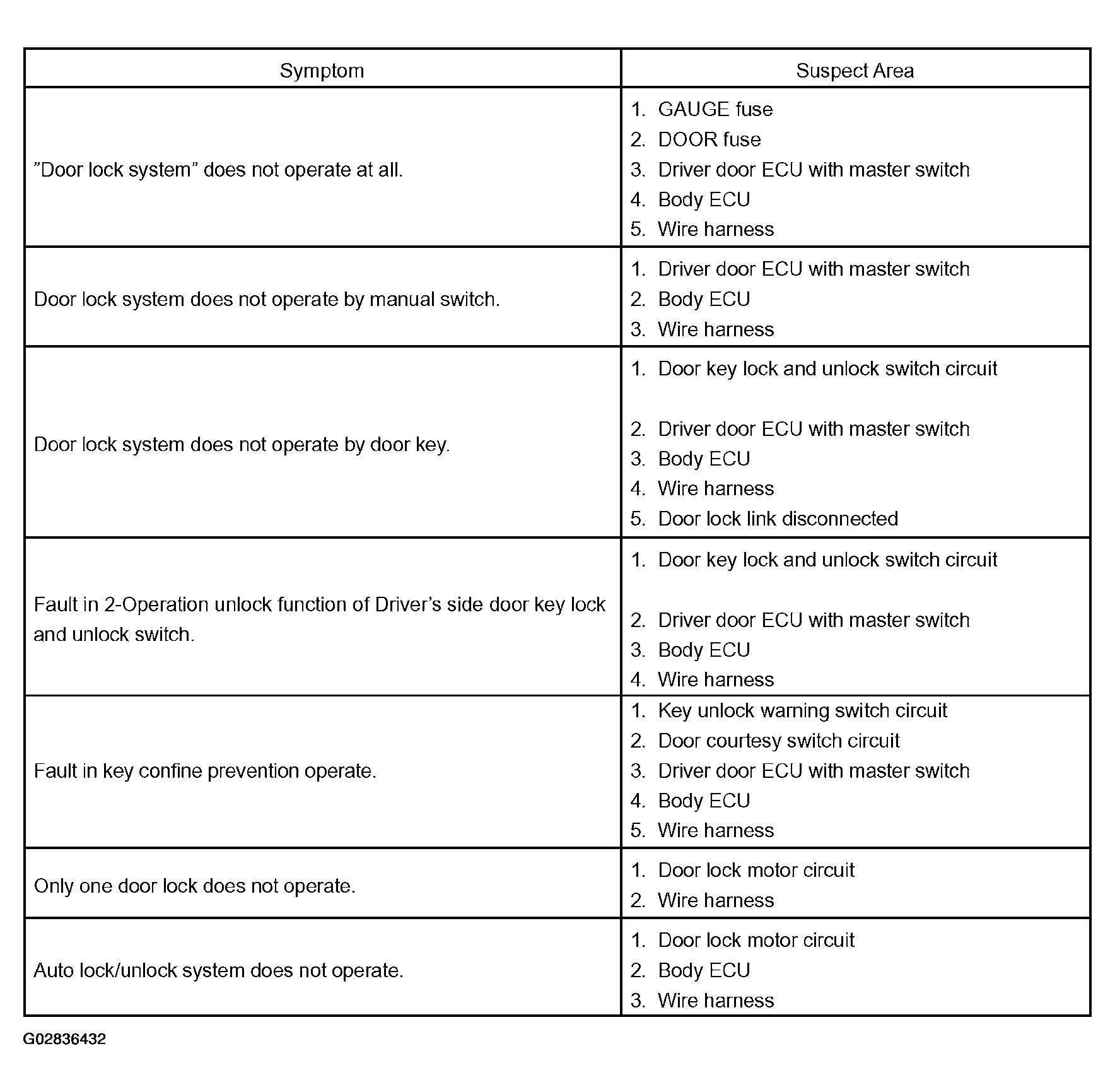

Fig 1: Power Door Lock Control System - Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
