Engine Mechanical
>>
Engine Exhaust Assembly
>>
Components
Engine Exhaust Assembly: Components

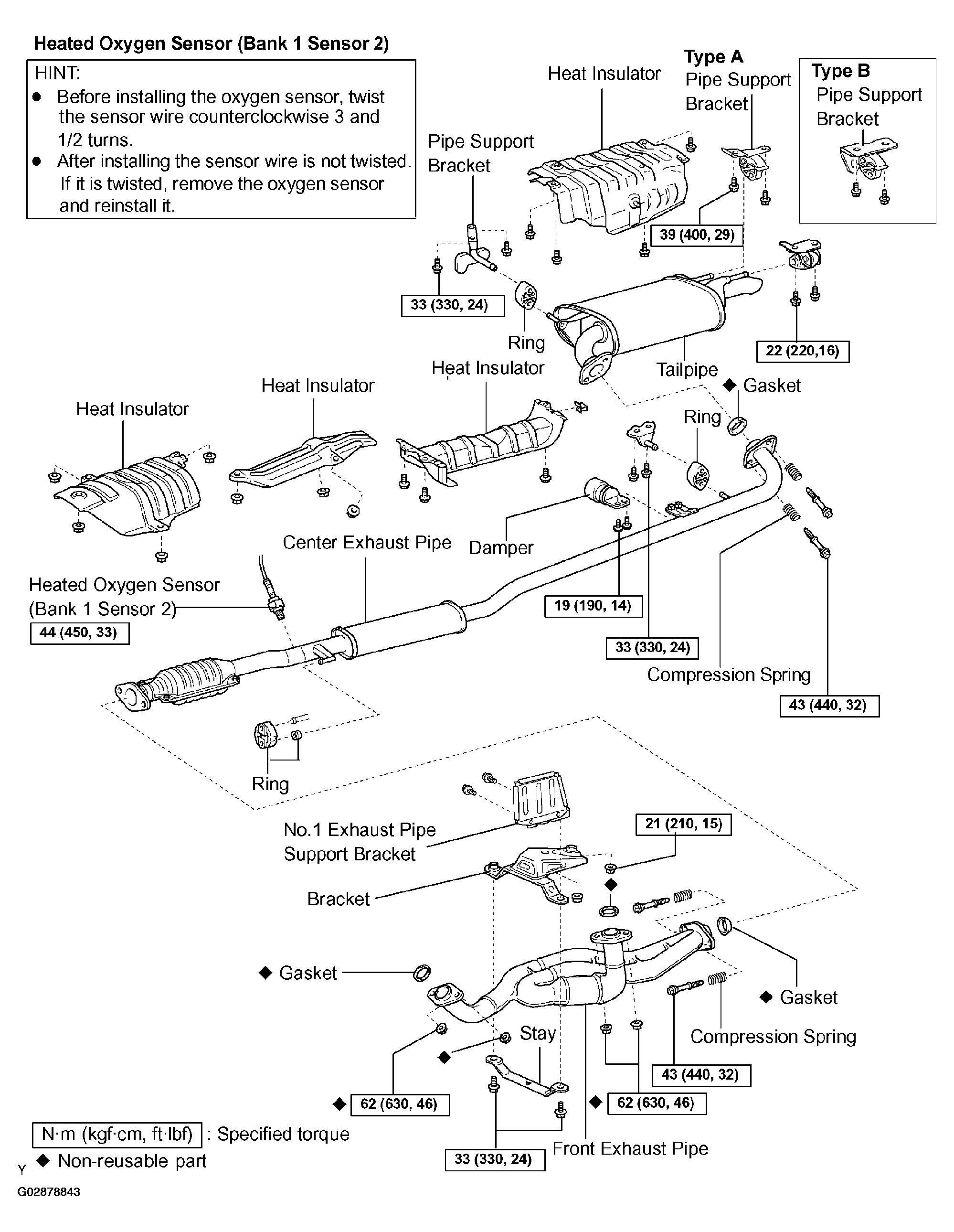

Fig 1: Exploded View Of Exhaust System Components And Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
