Home >> Toyota >> 2004 >> 4Runner SR5, 4.7 T, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass/Mirror >> Quarter Window ASSY RR LH >> Components

Quarter Window ASSY RR LH: Components

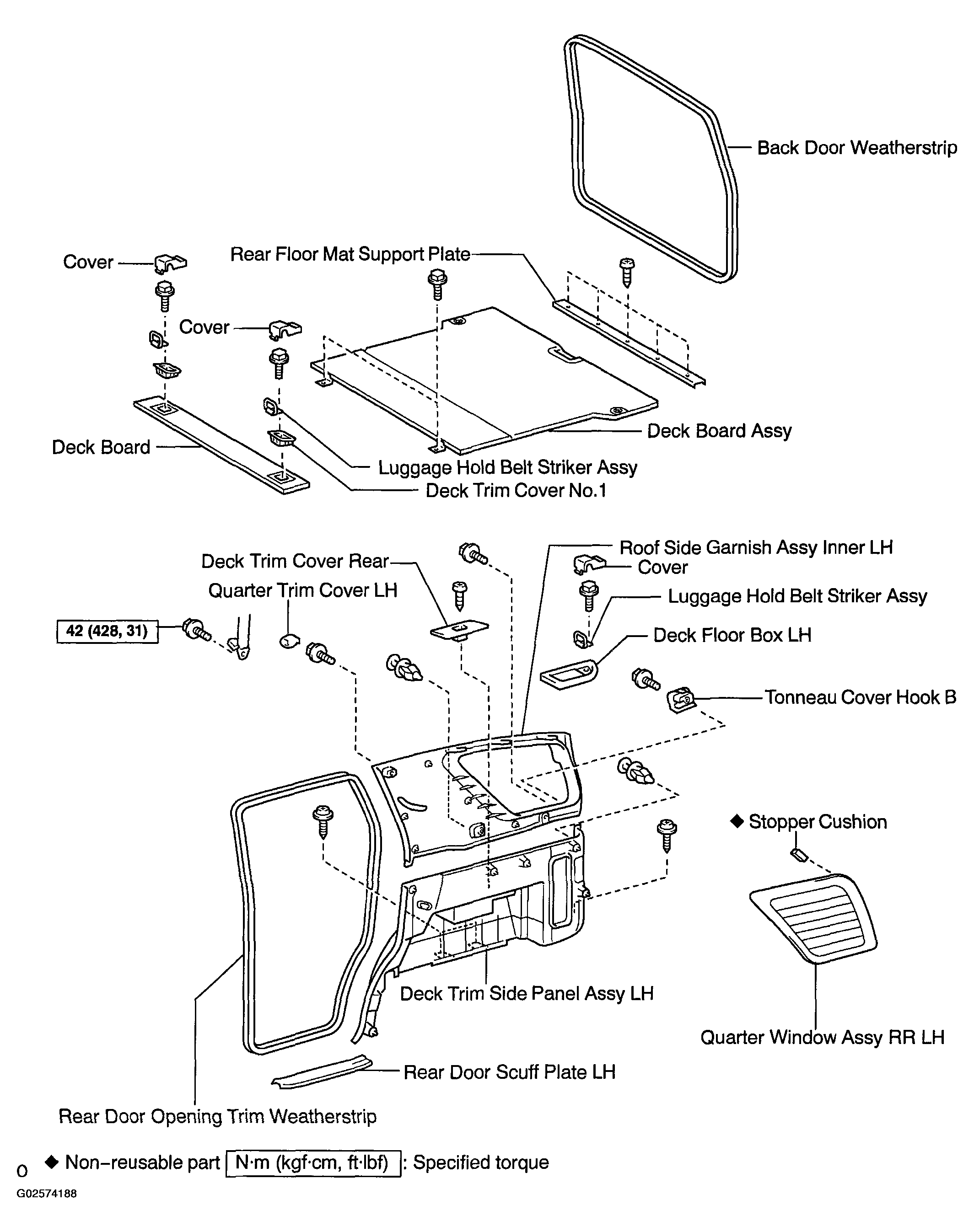

Fig 1: Identifying Quarter Window Assy RR LH Components

G02574188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
