Key Inter Lock Solenoid: Inspection

1. Disconnect the solenoid connector.
2. Connect KLS+ (4) terminal to the batteries' positive (+) terminal, and KLS- (3) terminal to the battery negative (-) terminal, and apply about 12V between KLS+ - KLS- terminals.

   Check that operation noise can be heard from the solenoid.

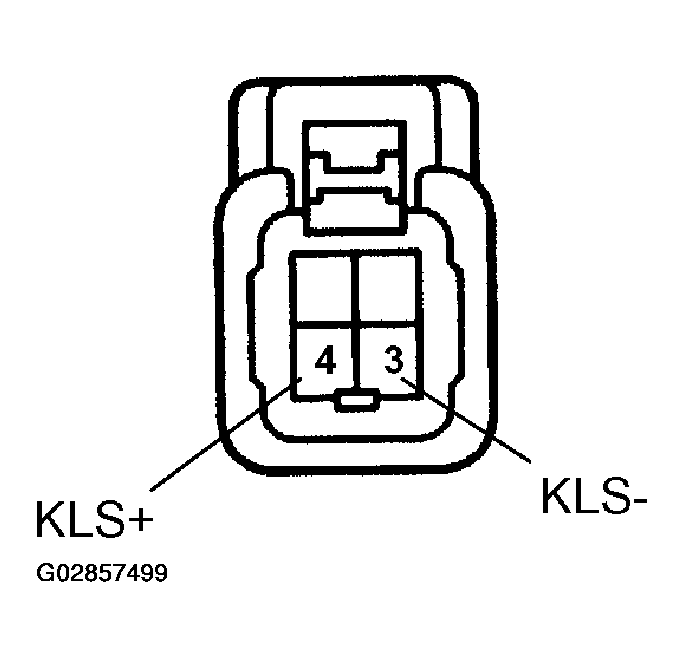

   Fig 1: Identifying Key Interlock Solenoid Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the solenoid does not operate, replace the solenoid.
