Terminals Of ECM

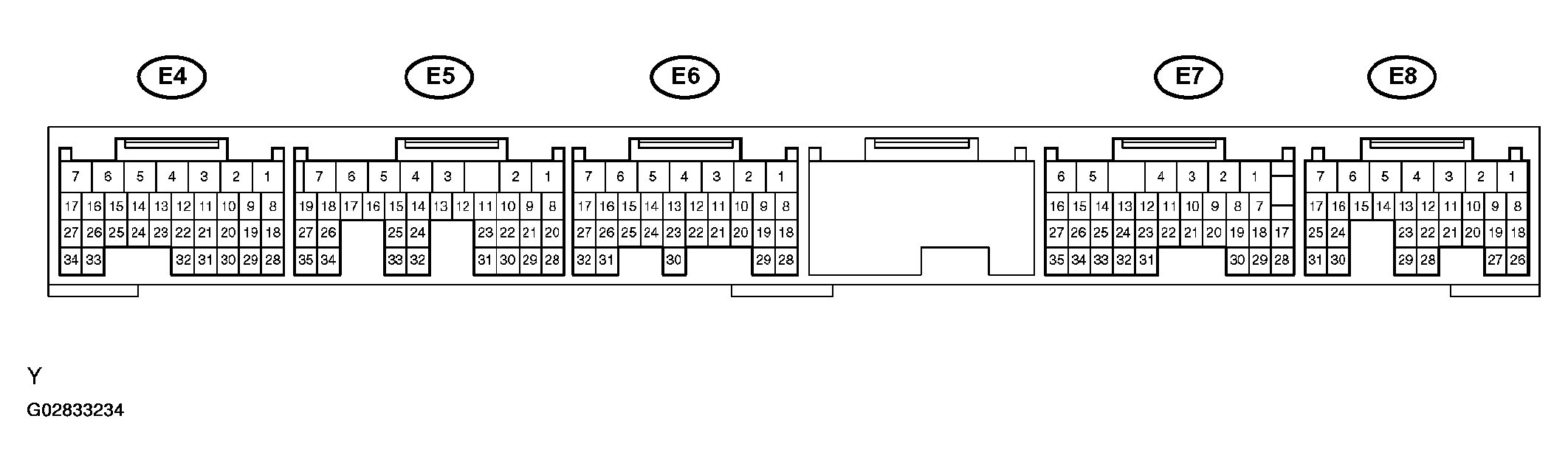

Fig 1: Identifying terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition". Next look under "Symbol (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specific Condition". Use the illustration above as a reference for the ECM terminals.

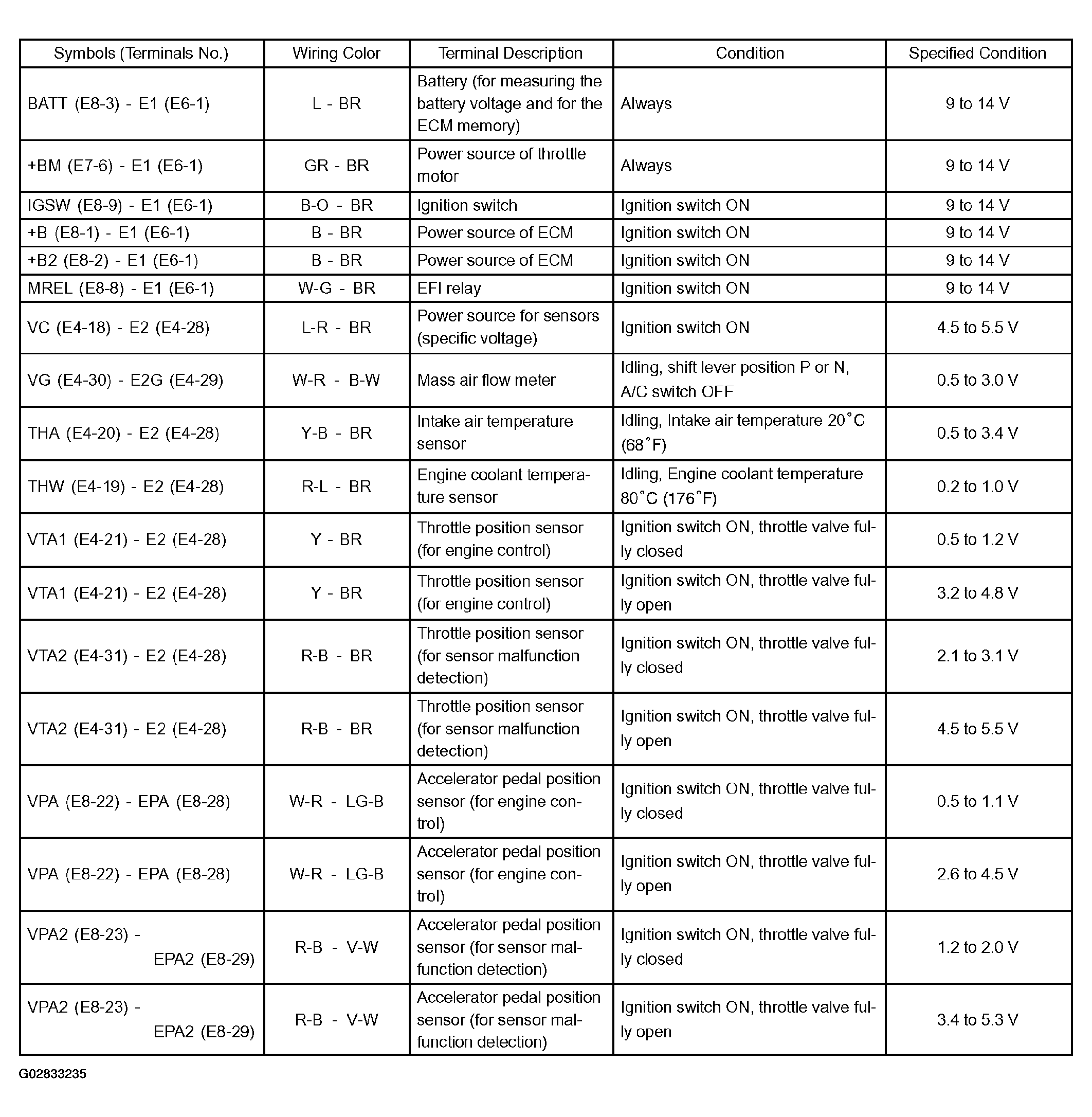

Fig 2: Identifying Reference Table For ECM terminals (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

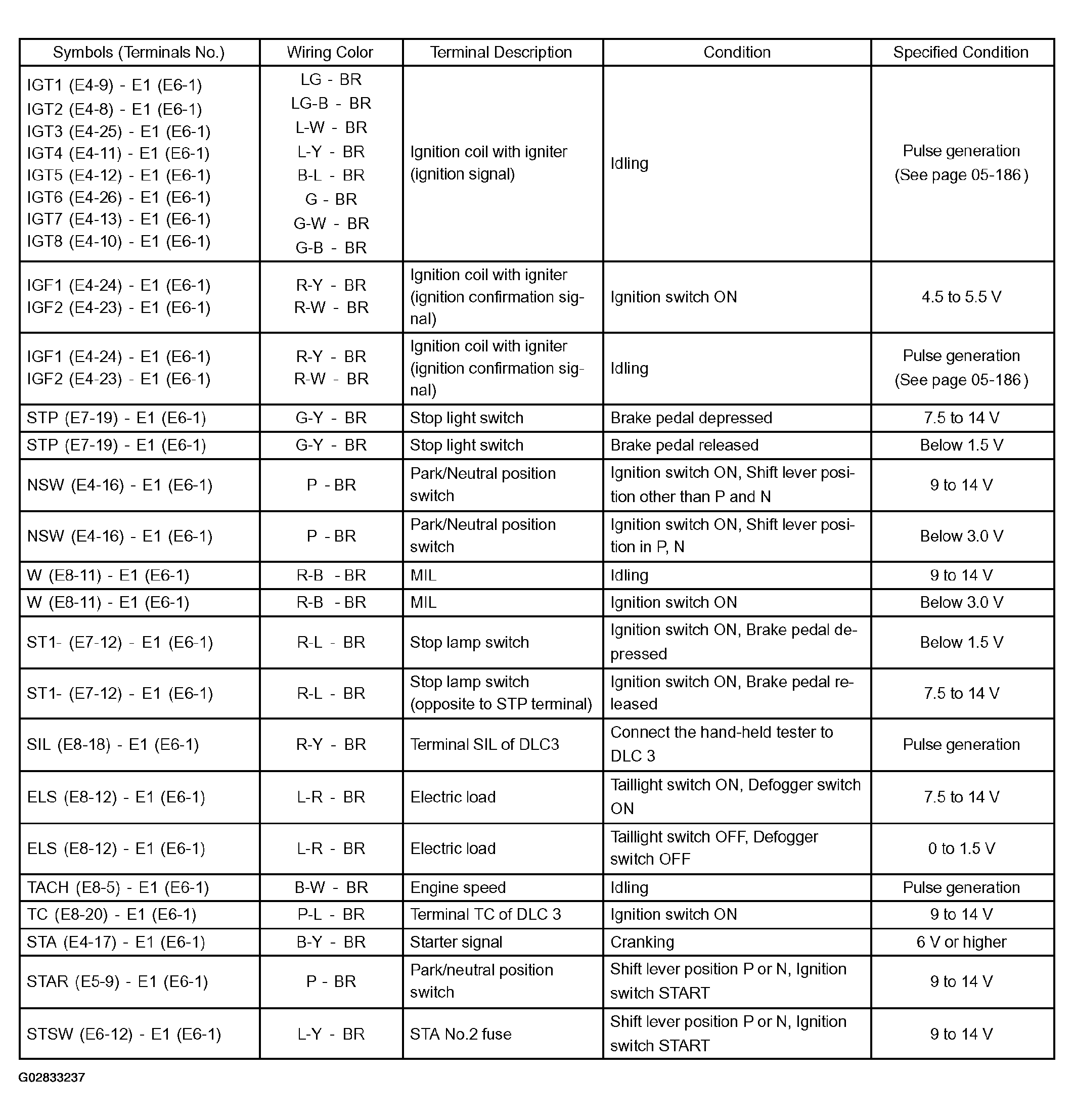

Fig 3: Identifying Reference Table For ECM terminals (2 Of 3)

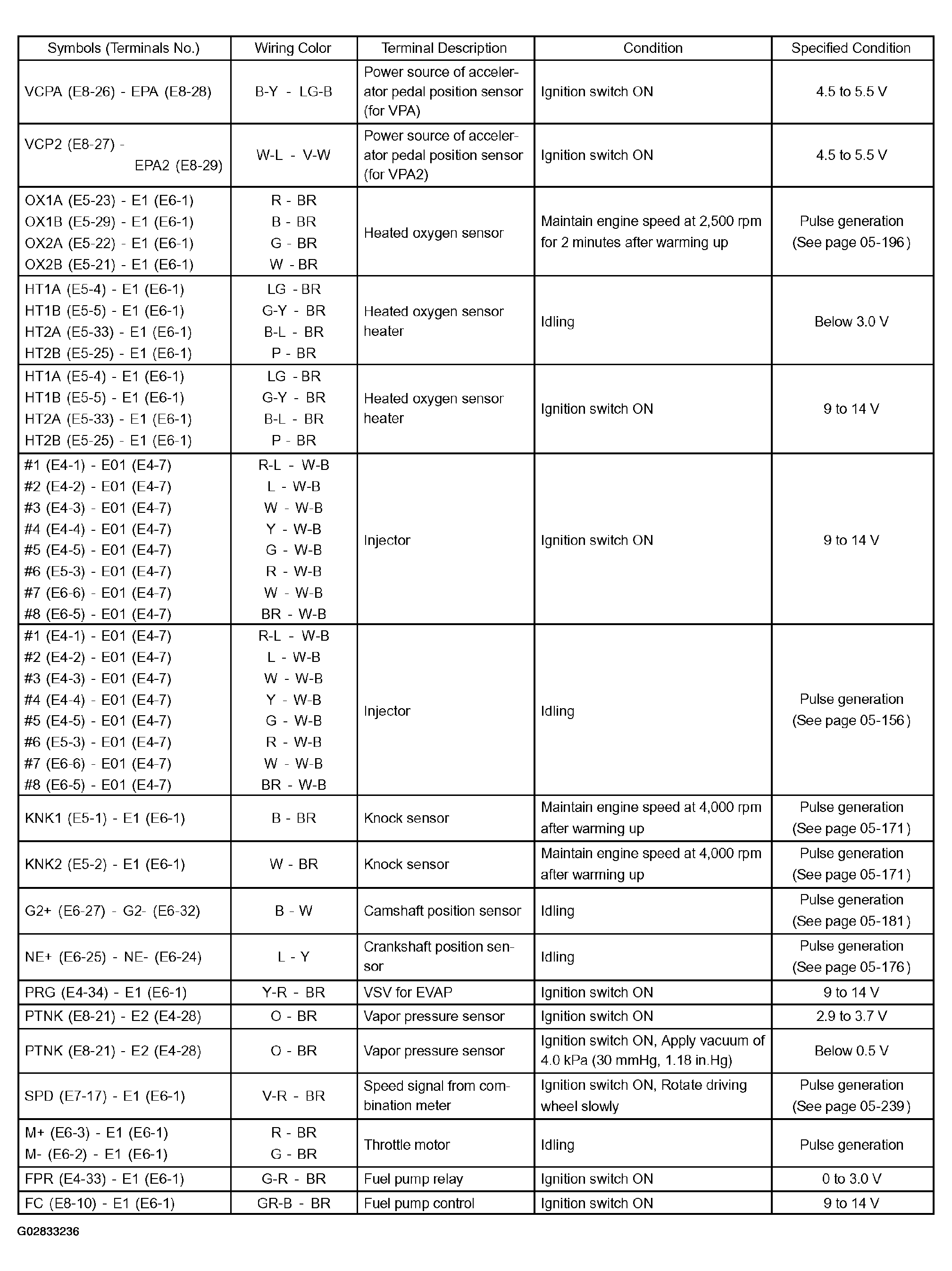

Fig 4: Identifying Reference Table For ECM terminals (3 Of 3)
