Engine Control System (SFI) (2UZ-FE) - Diagnostics
>>
Customer Problem Analysis Check
Customer Problem Analysis Check

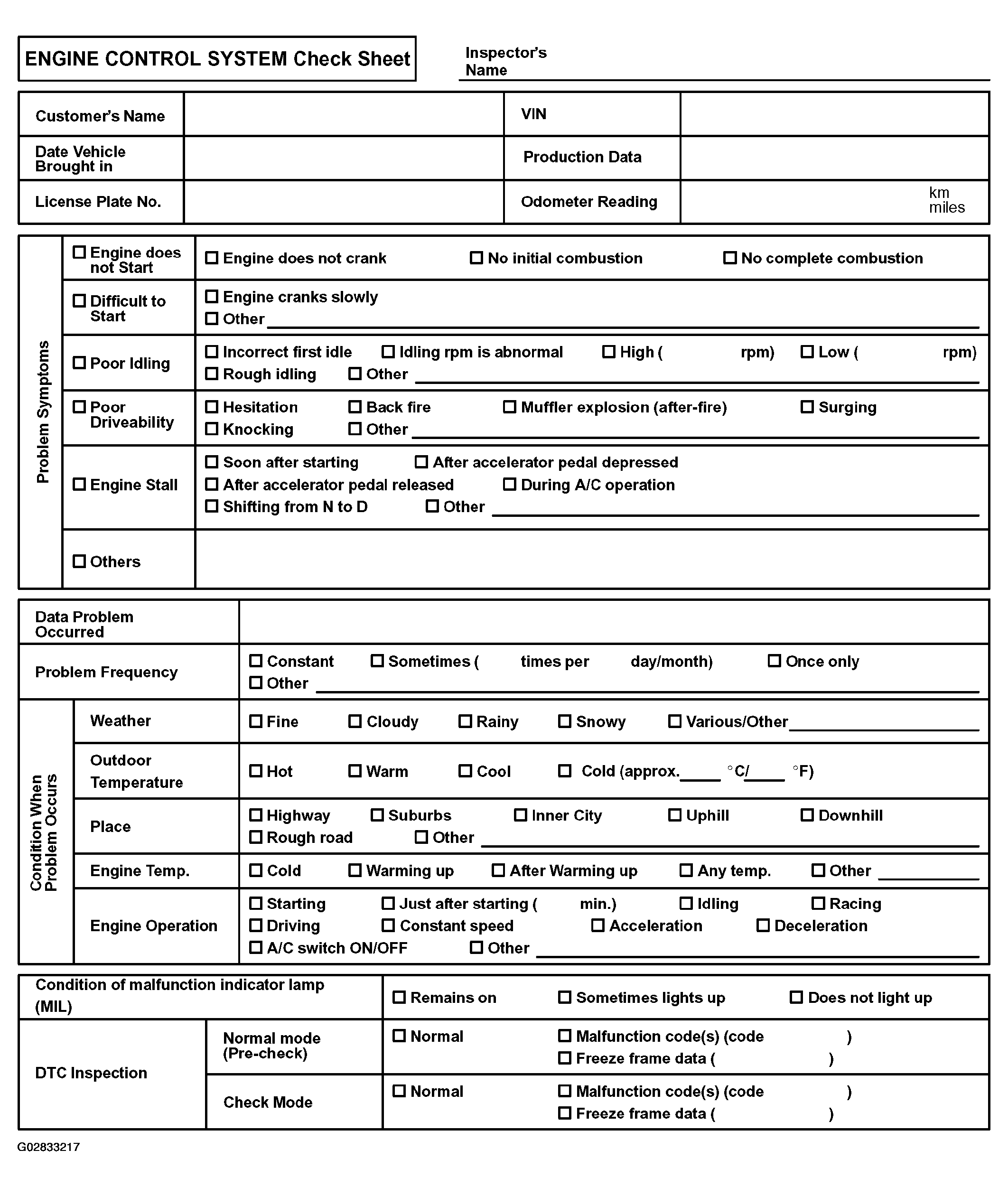

Fig 1: Identifying Engine Control System Check Sheet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
