Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

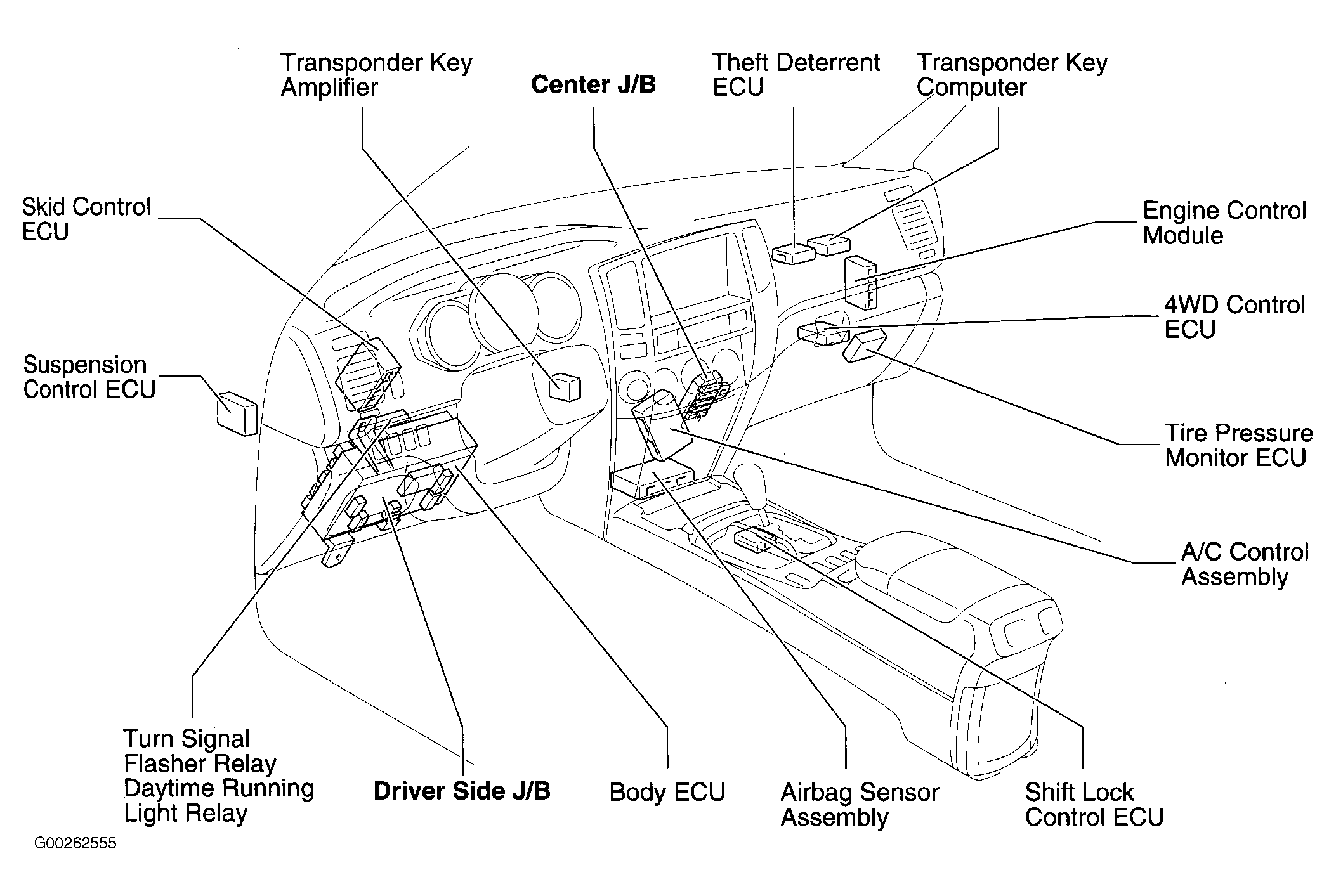

Center J/B Behind right center of dash. See Figure.
Driver Side J/B Behind lower left end of dash. See Figure.

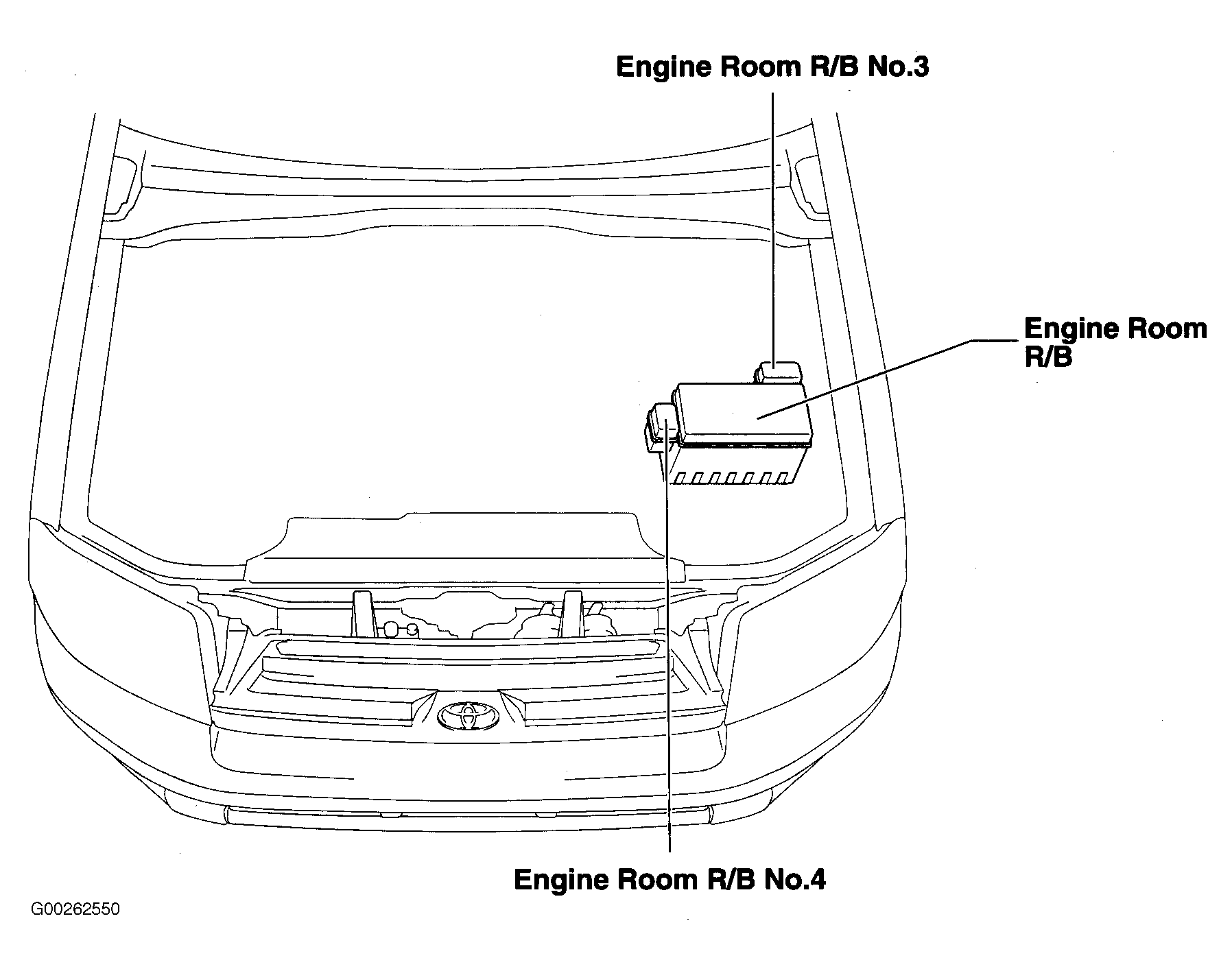

Engine Room R/B On left side of engine compartment. See Figure.
Engine Room R/B No. 3 On left side of engine compartment. See Figure.
Engine Room R/B No. 4 On left side of engine compartment. See Figure.
