Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

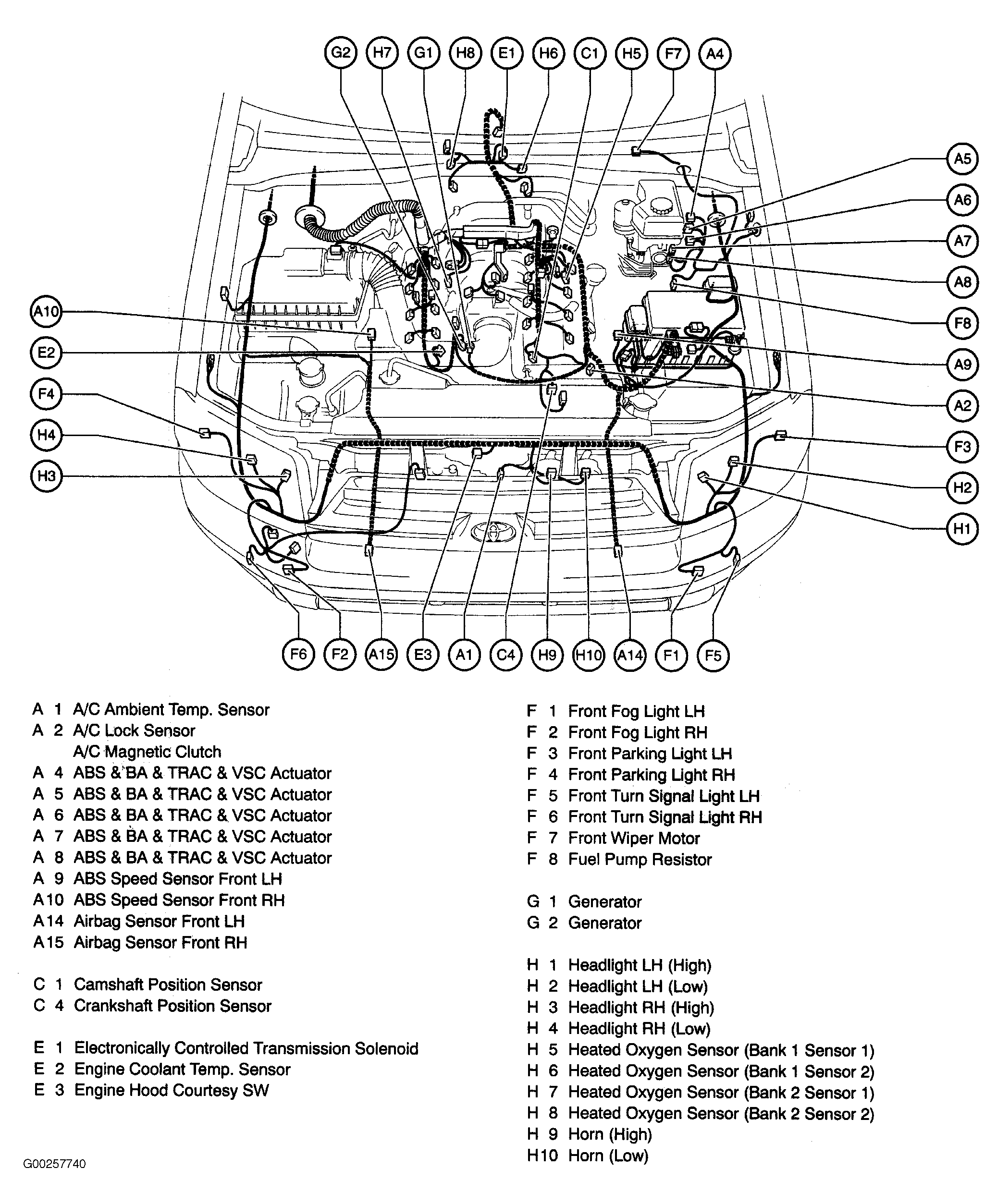

Fig 1: Engine Compartment (4.7L)

G00257740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

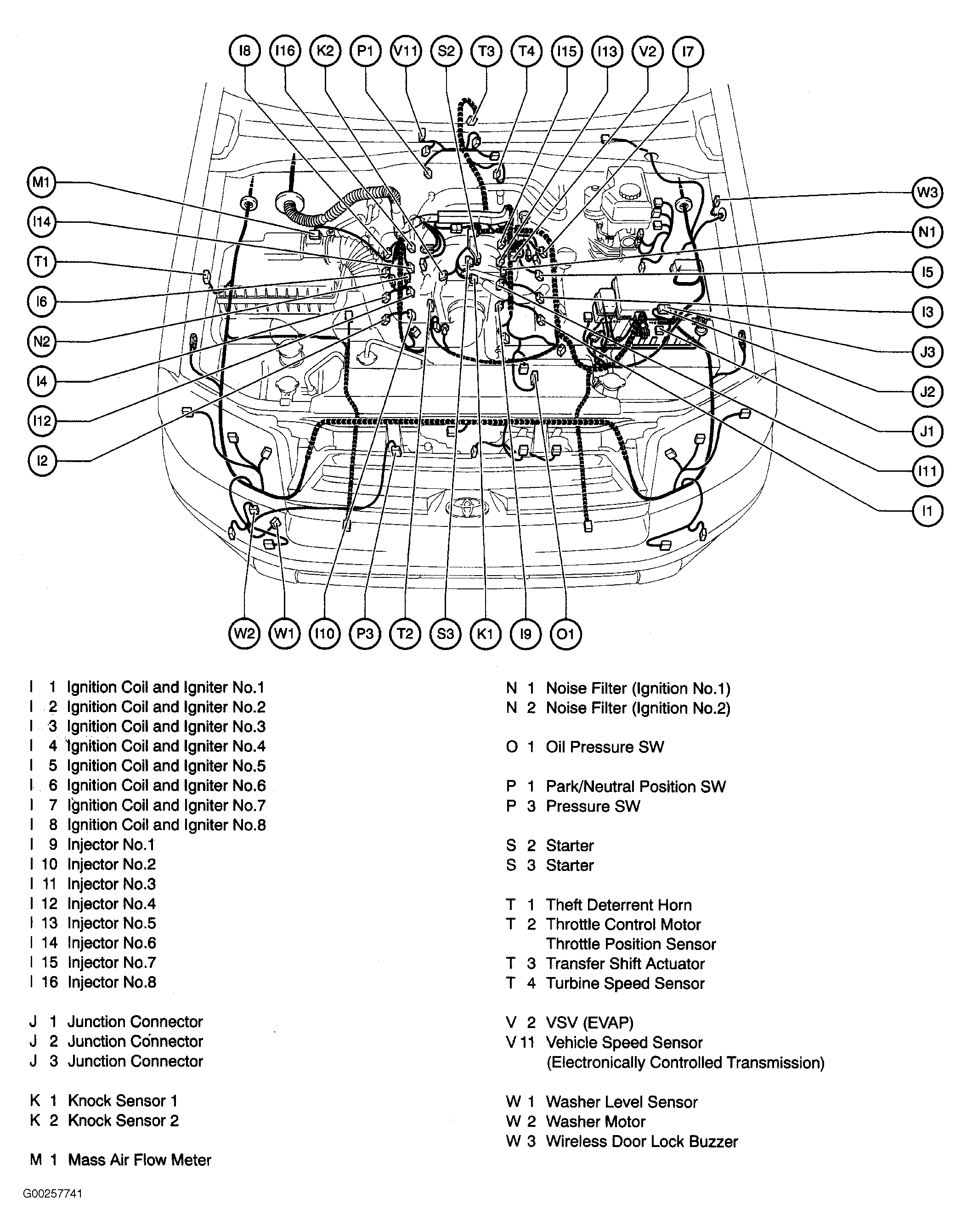

Fig 2: Engine Compartment (4.7L)

G00257741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

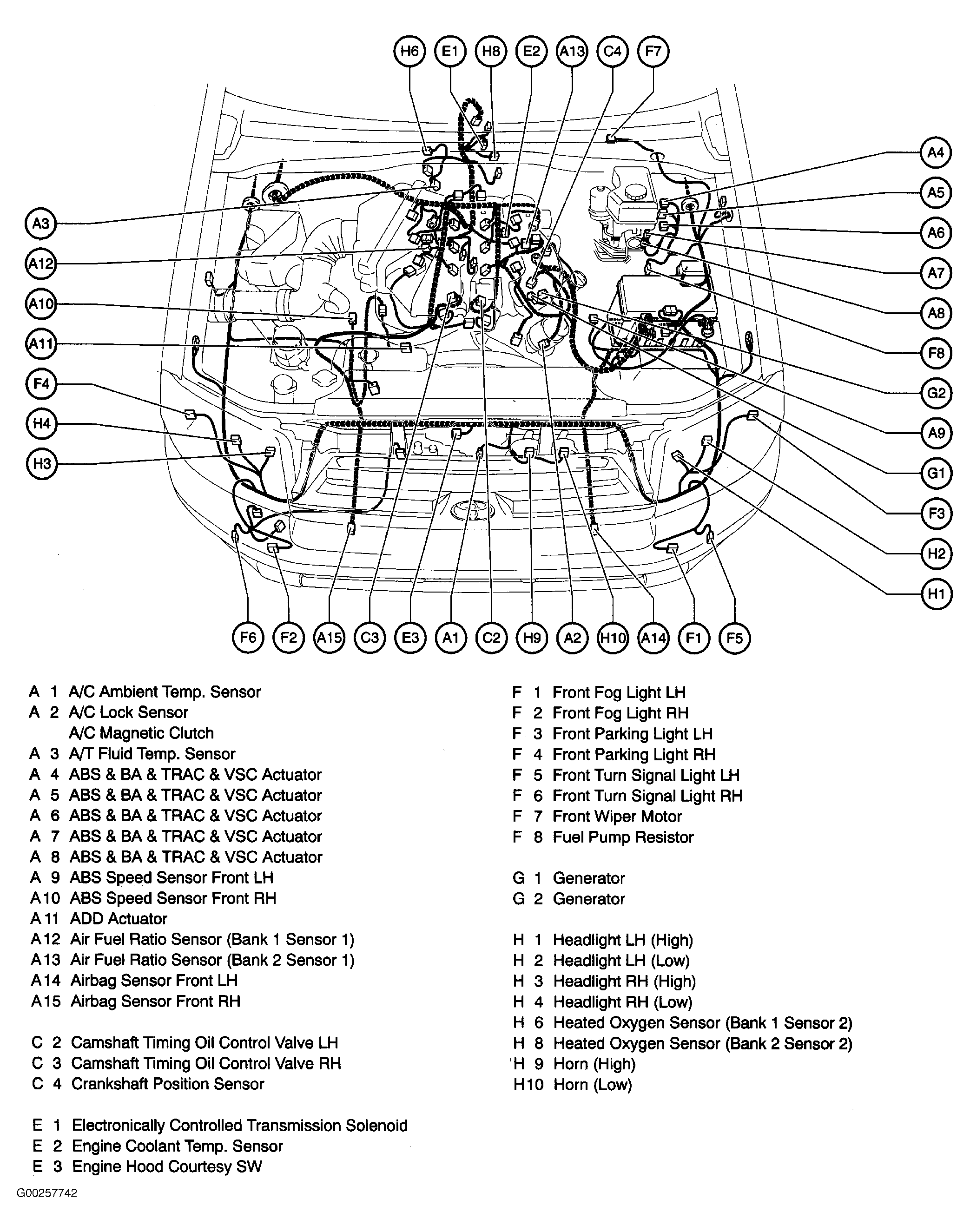

Fig 3: Engine Compartment (4.0L)

G00257742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

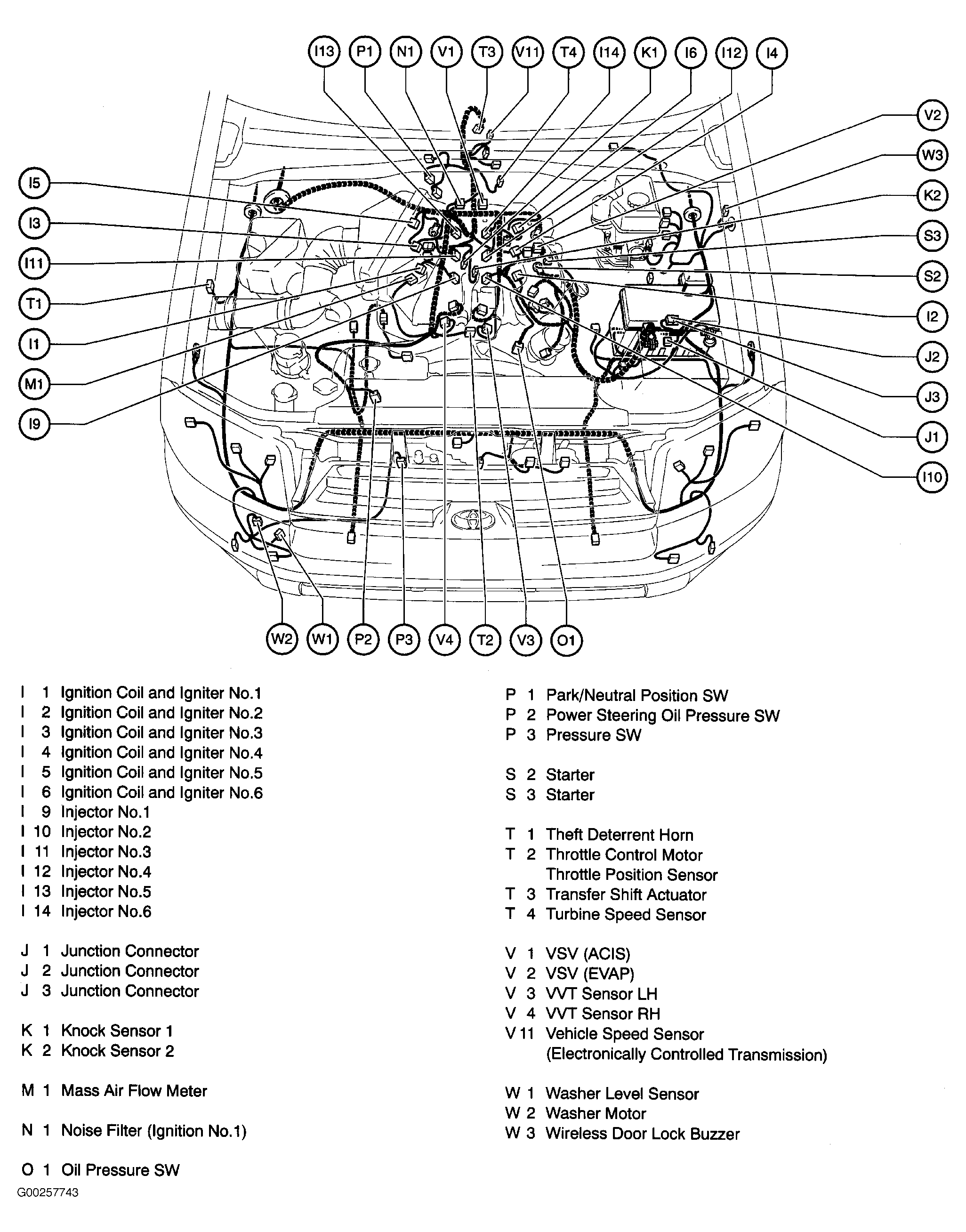

Fig 4: Engine Compartment (4.0L)

G00257743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

G00257744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

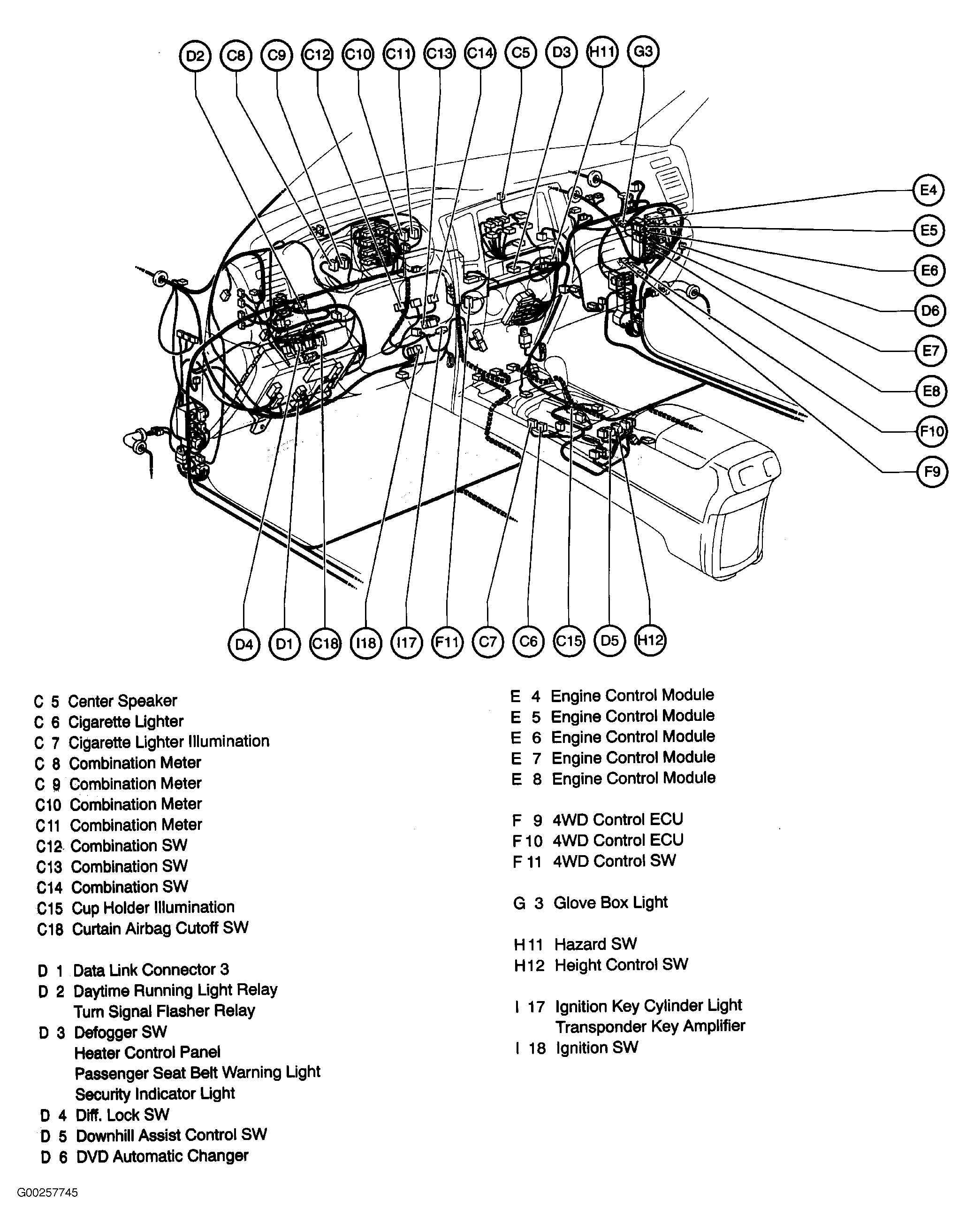

Fig 6: Dash

G00257745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

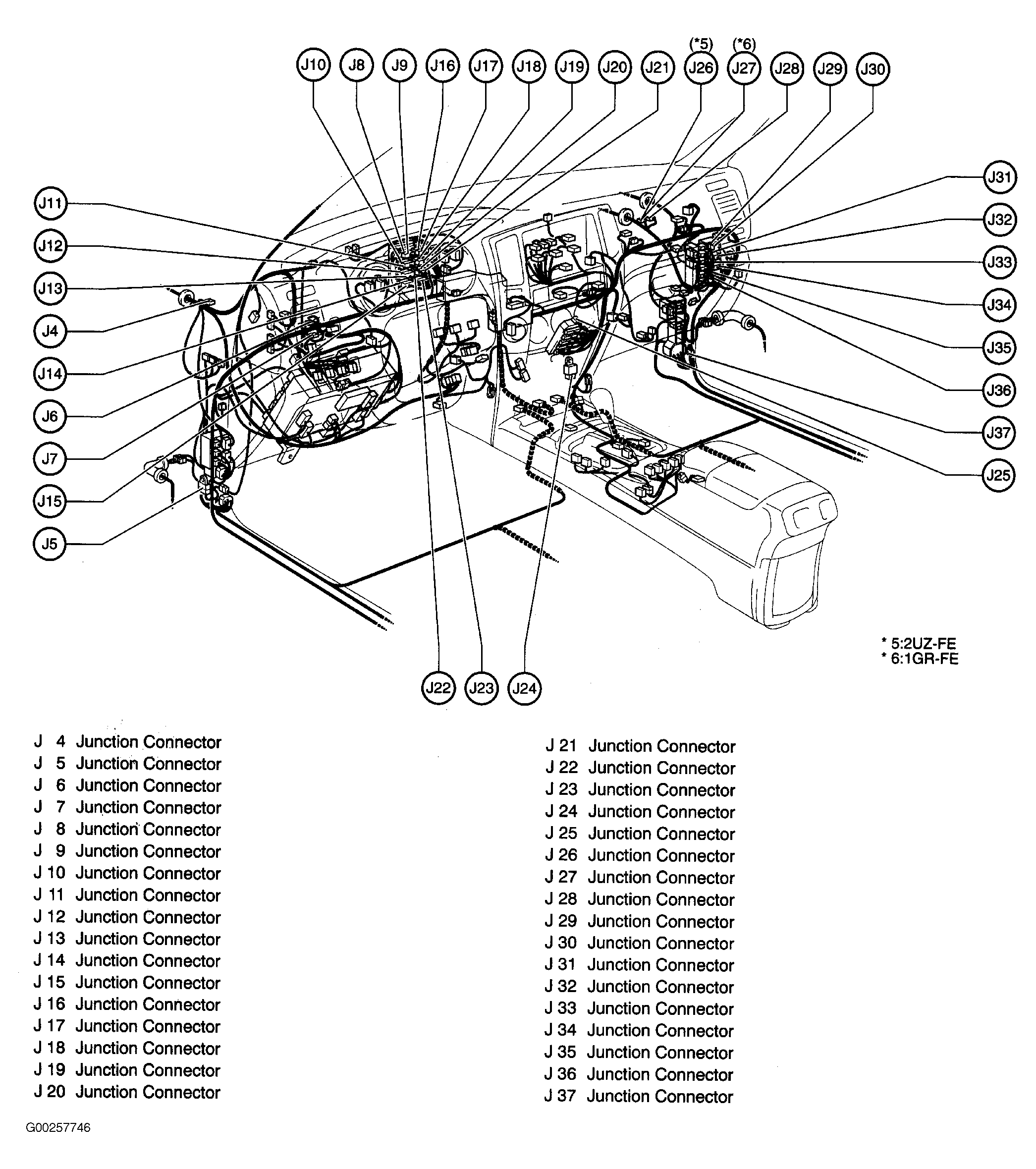

Fig 7: Dash

G00257746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Dash

G00257747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

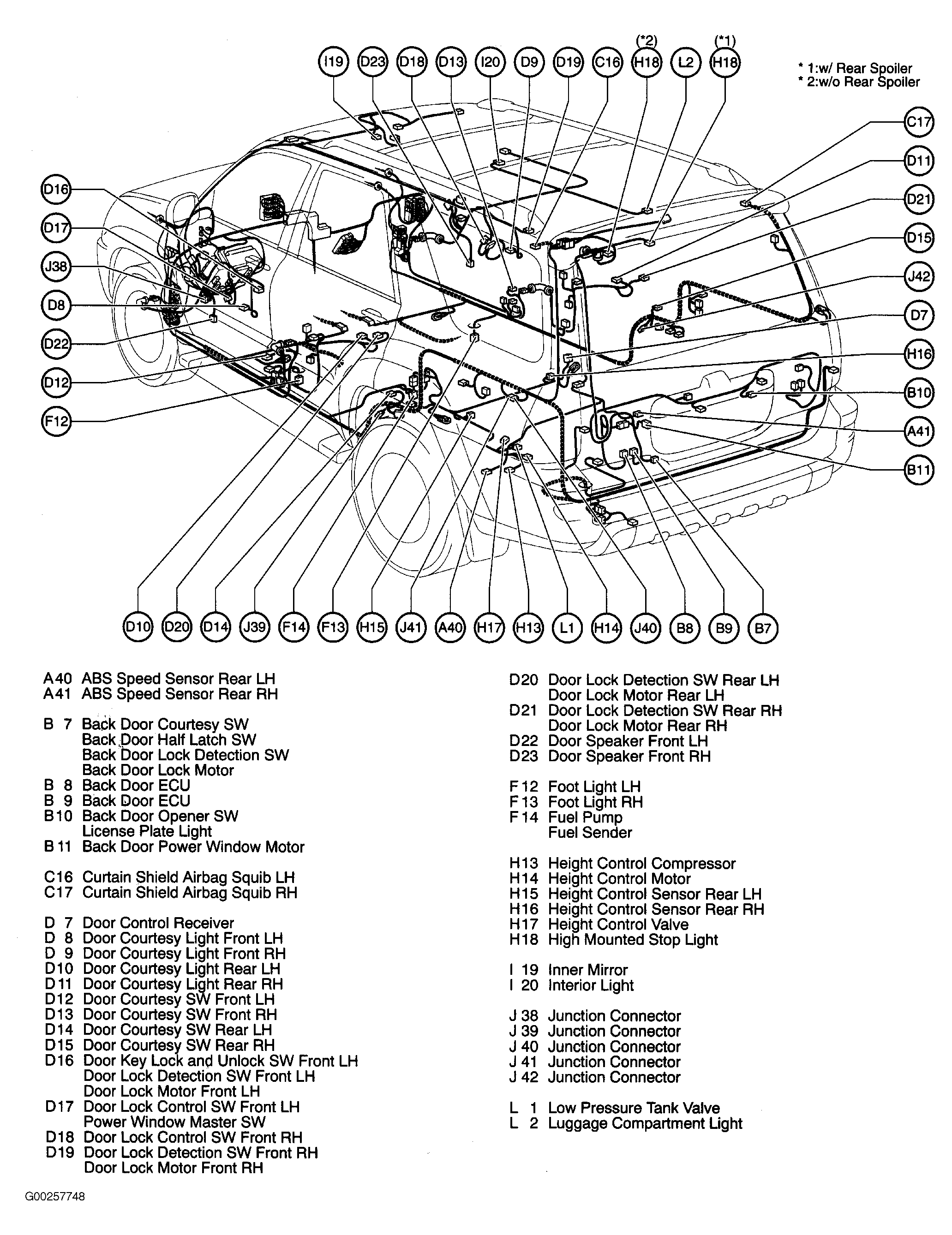

Fig 9: Vehicle Overview

G00257748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

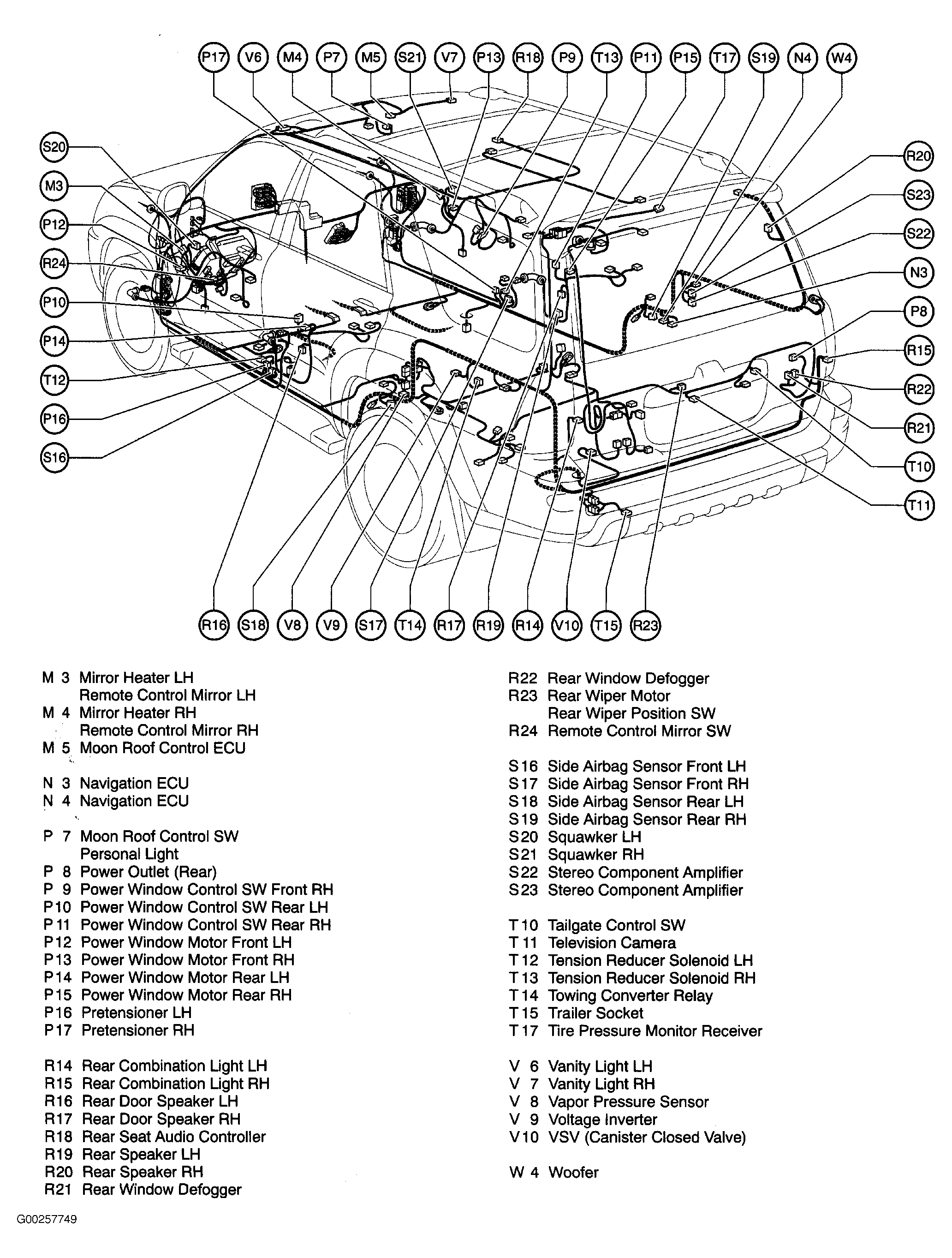

Fig 10: Vehicle Overview

G00257749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

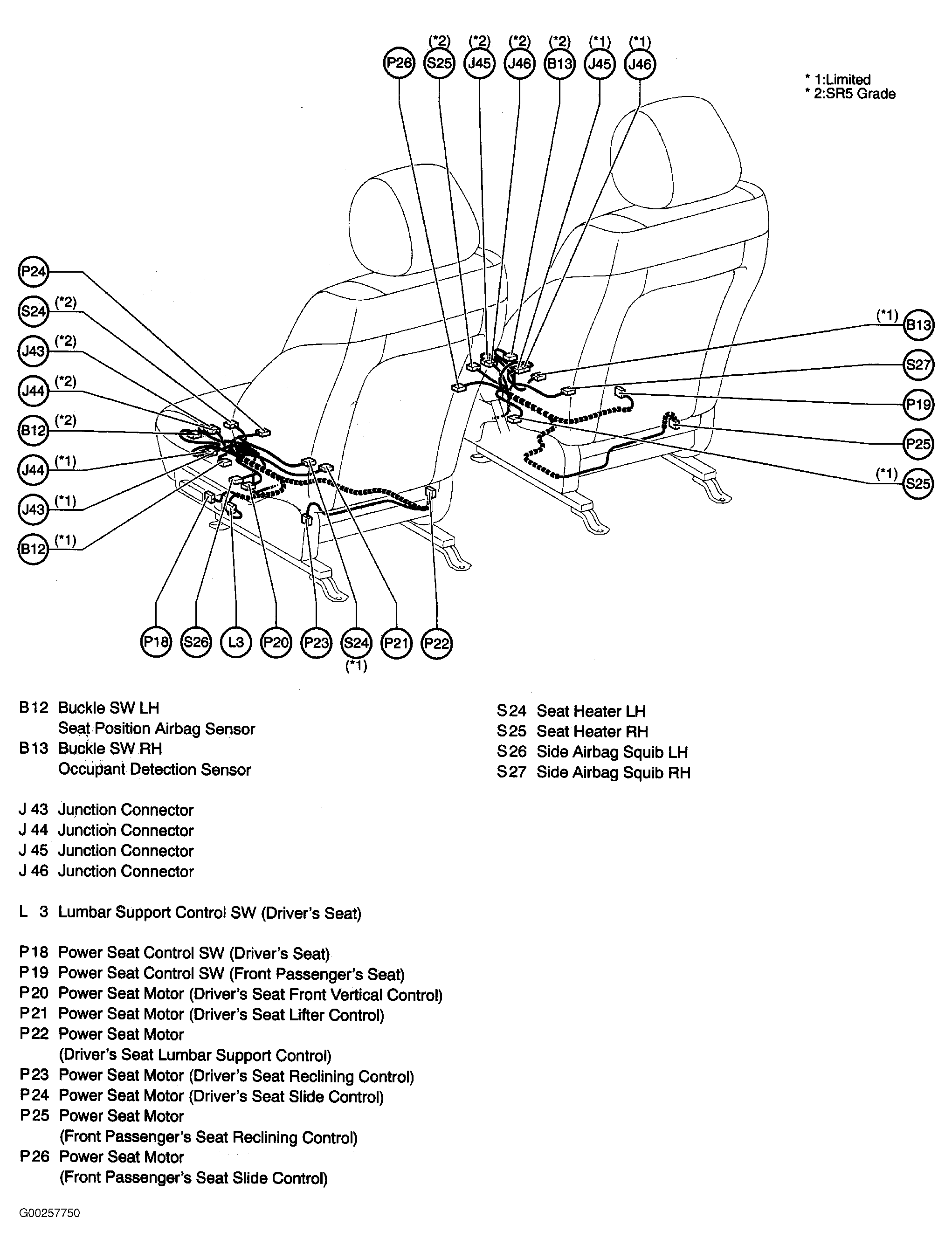

Fig 11: Front Seats

G00257750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

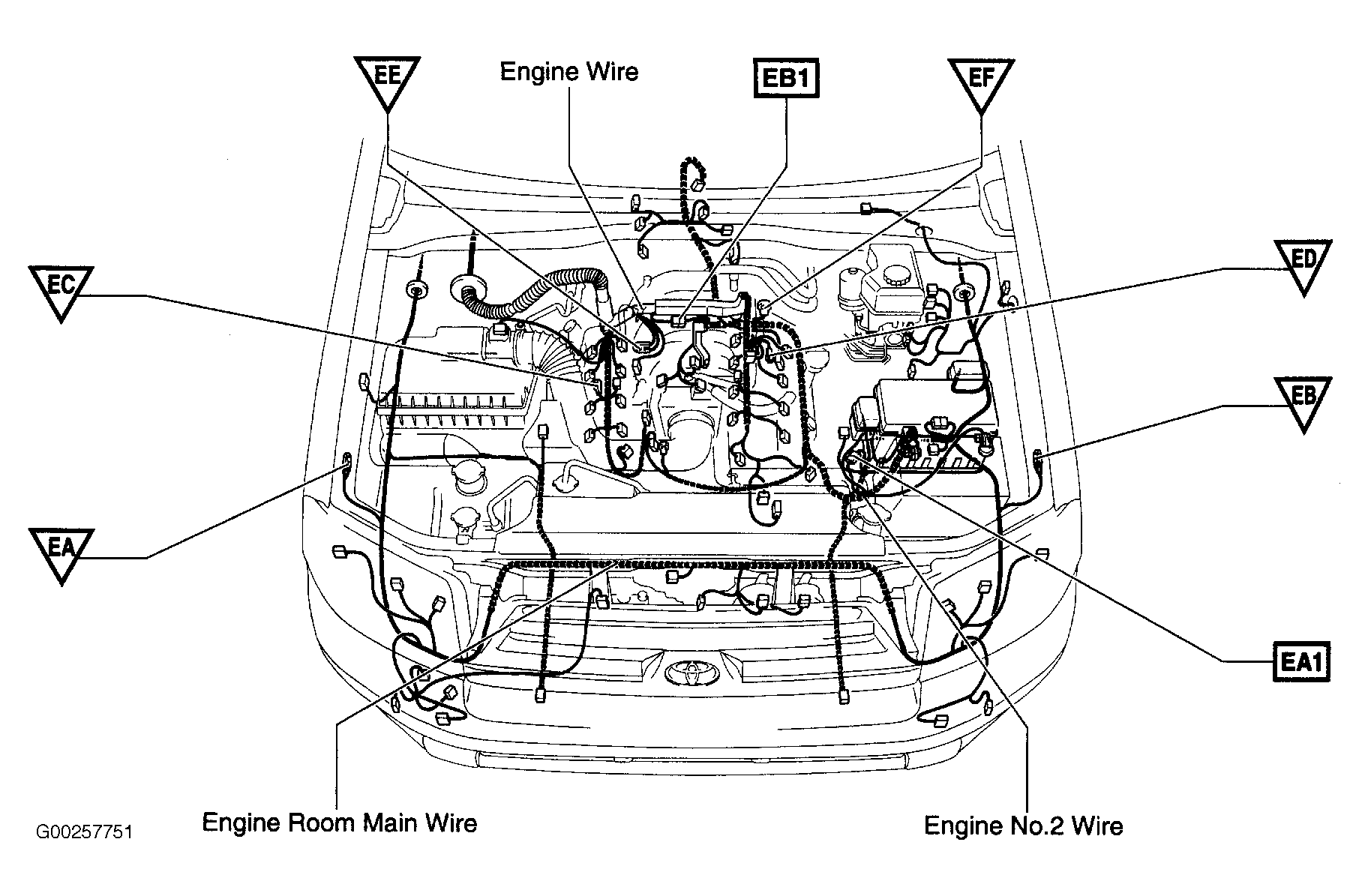

Fig 12: Engine Compartment (4.7L)

G00257751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

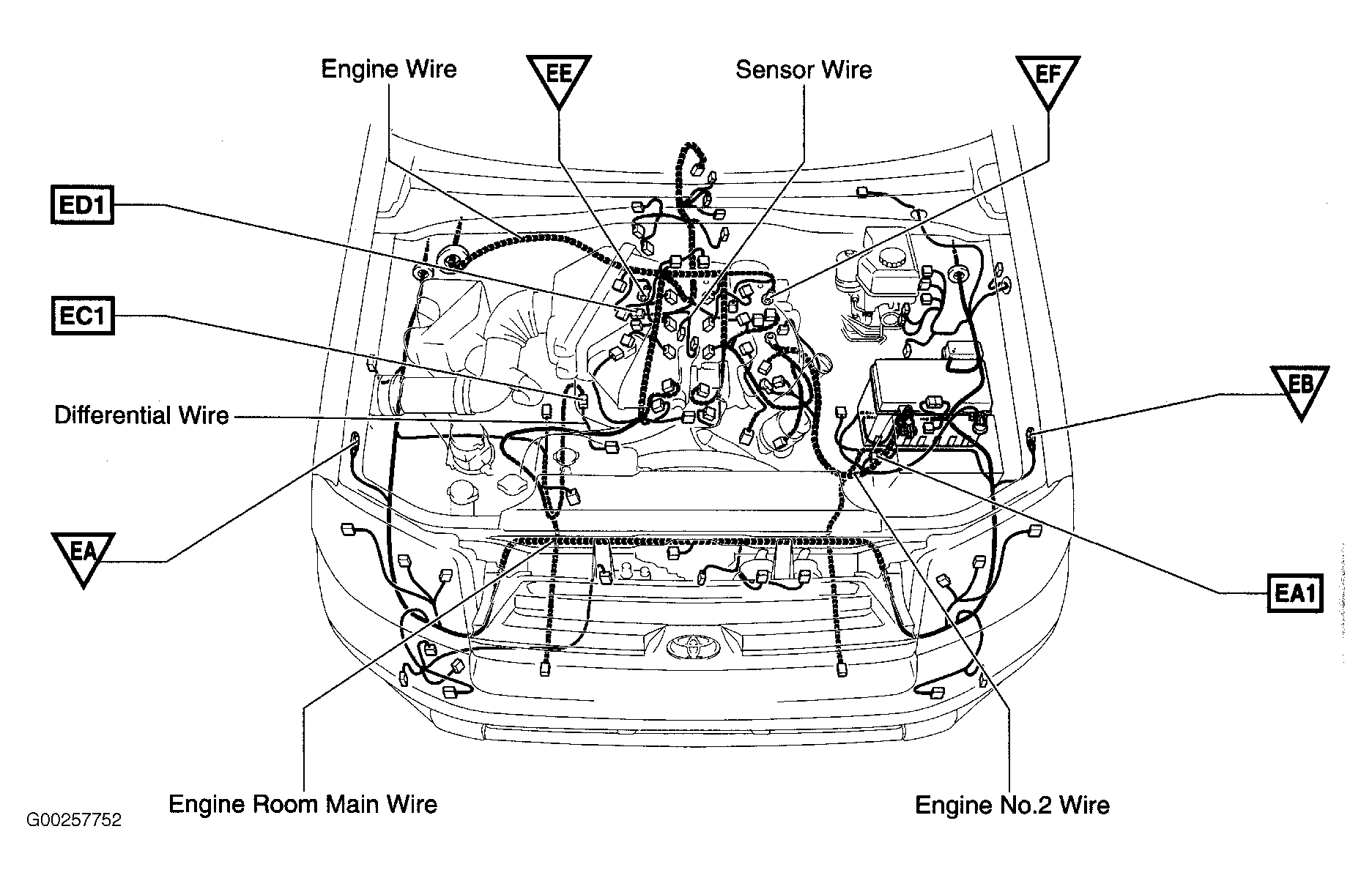

Fig 13: Engine Compartment (4.0L)

G00257752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

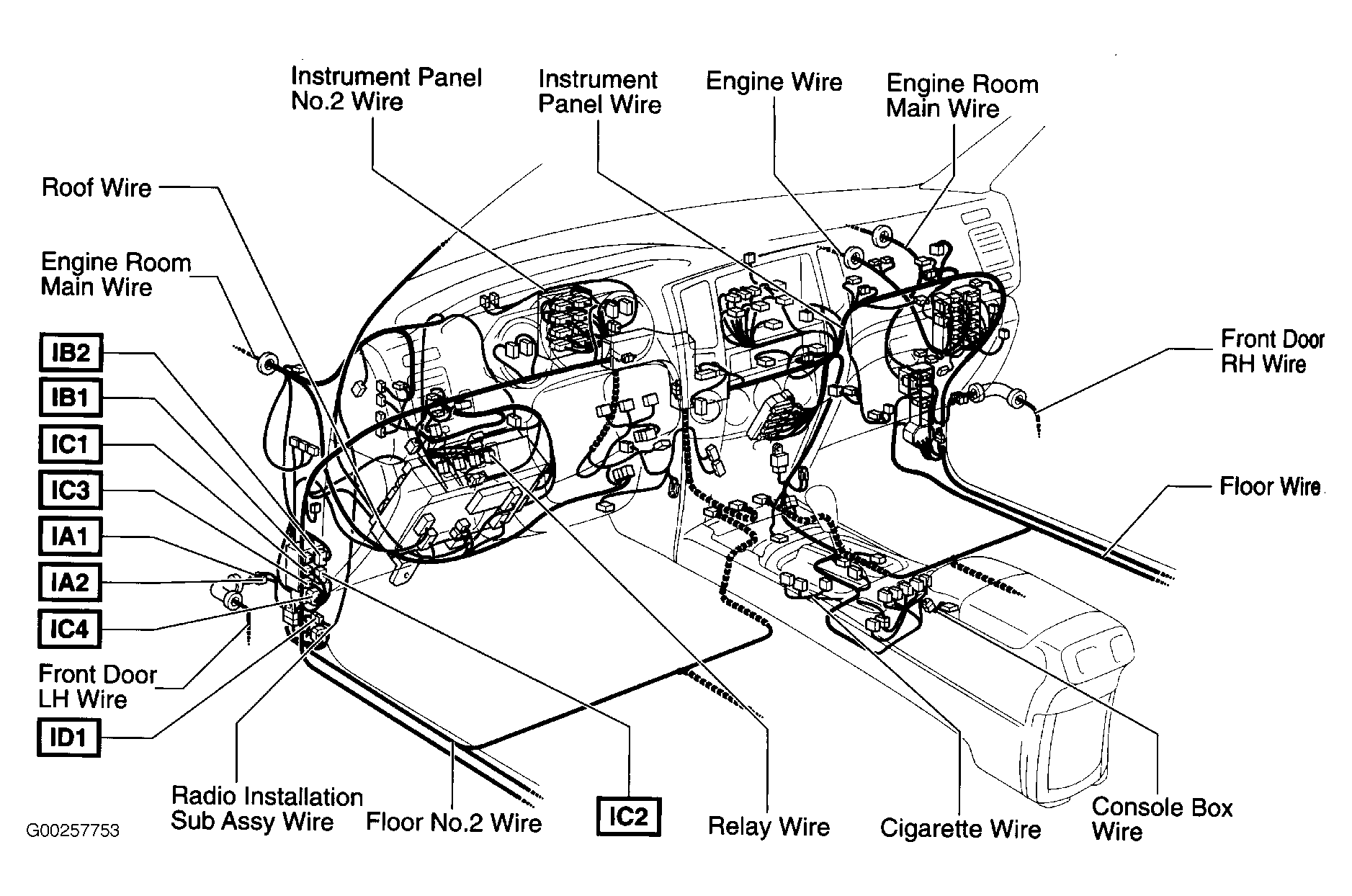

Fig 14: Dash

G00257753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

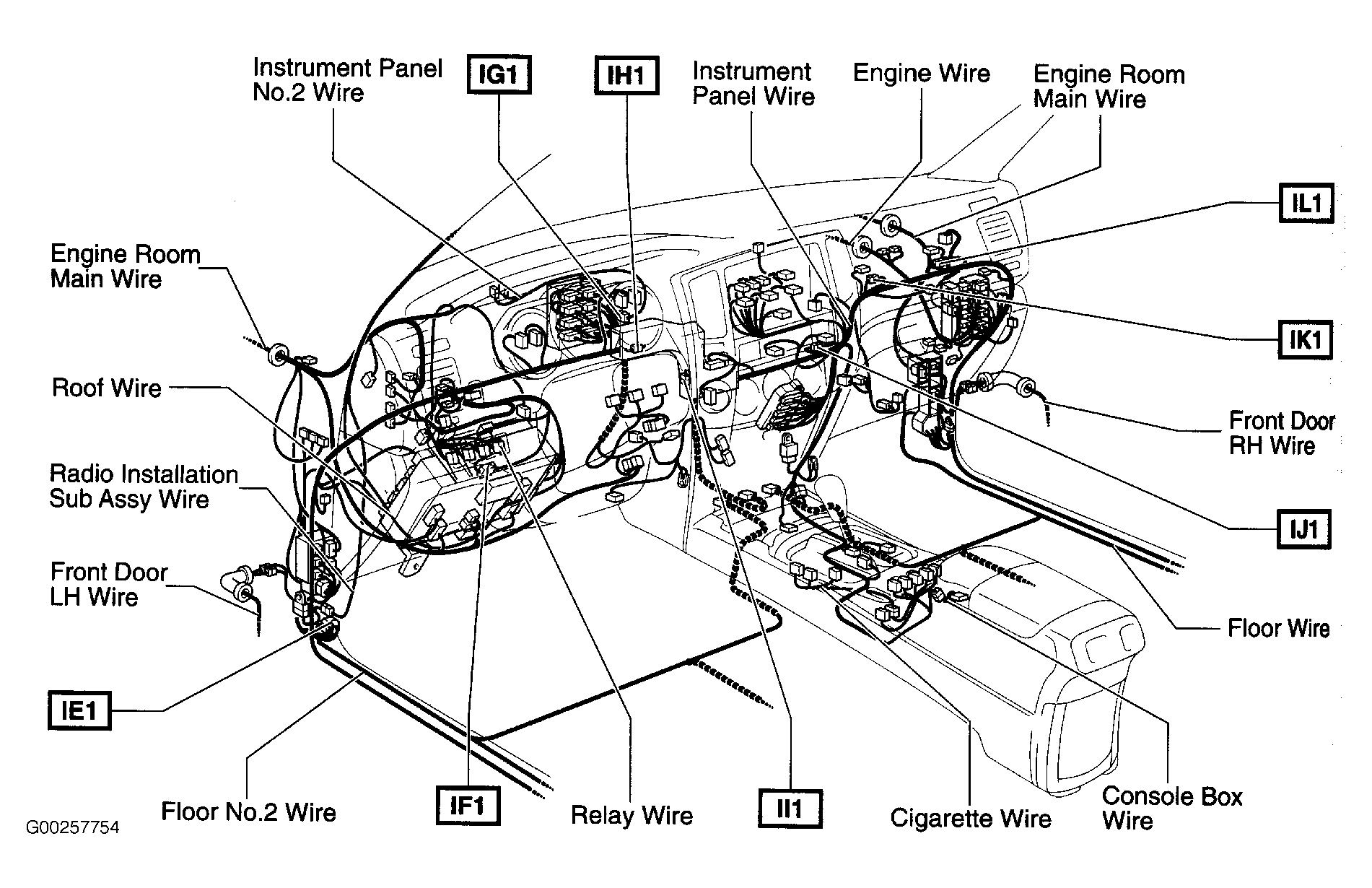

Fig 15: Dash

G00257754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

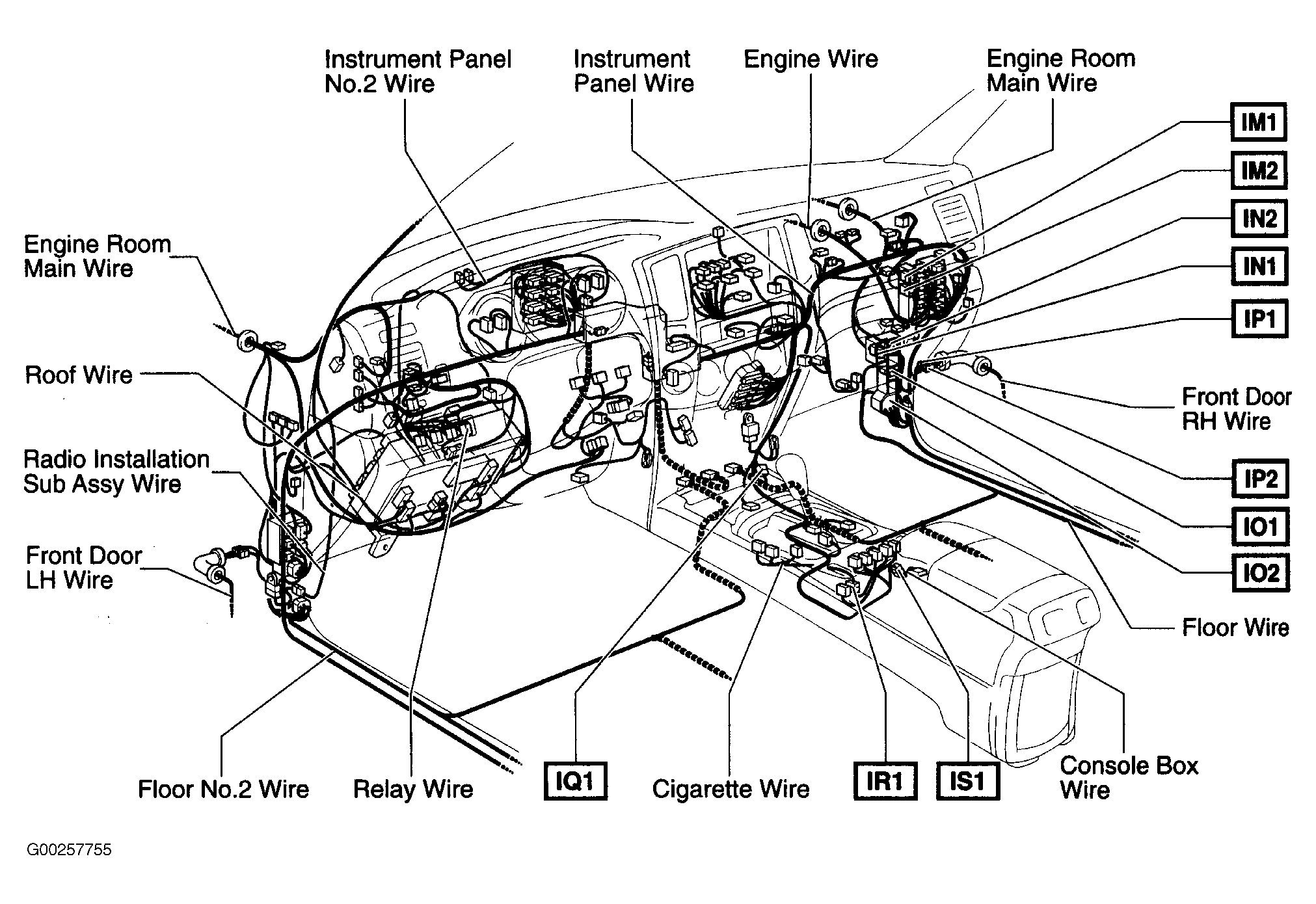

Fig 16: Dash

G00257755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

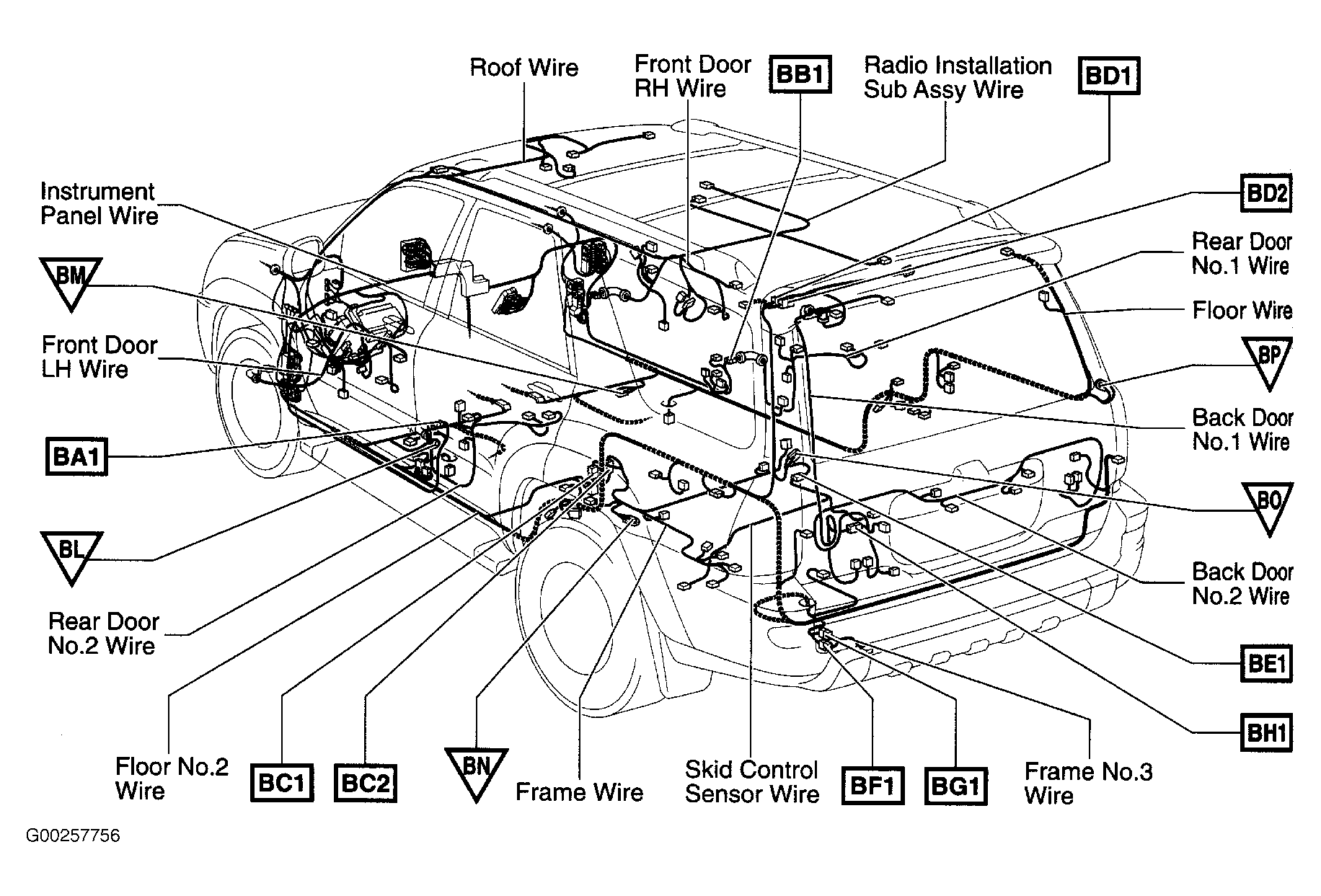

Fig 17: Vehicle Overview

G00257756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment

G00262550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview

G00262554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Dash

G00262555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

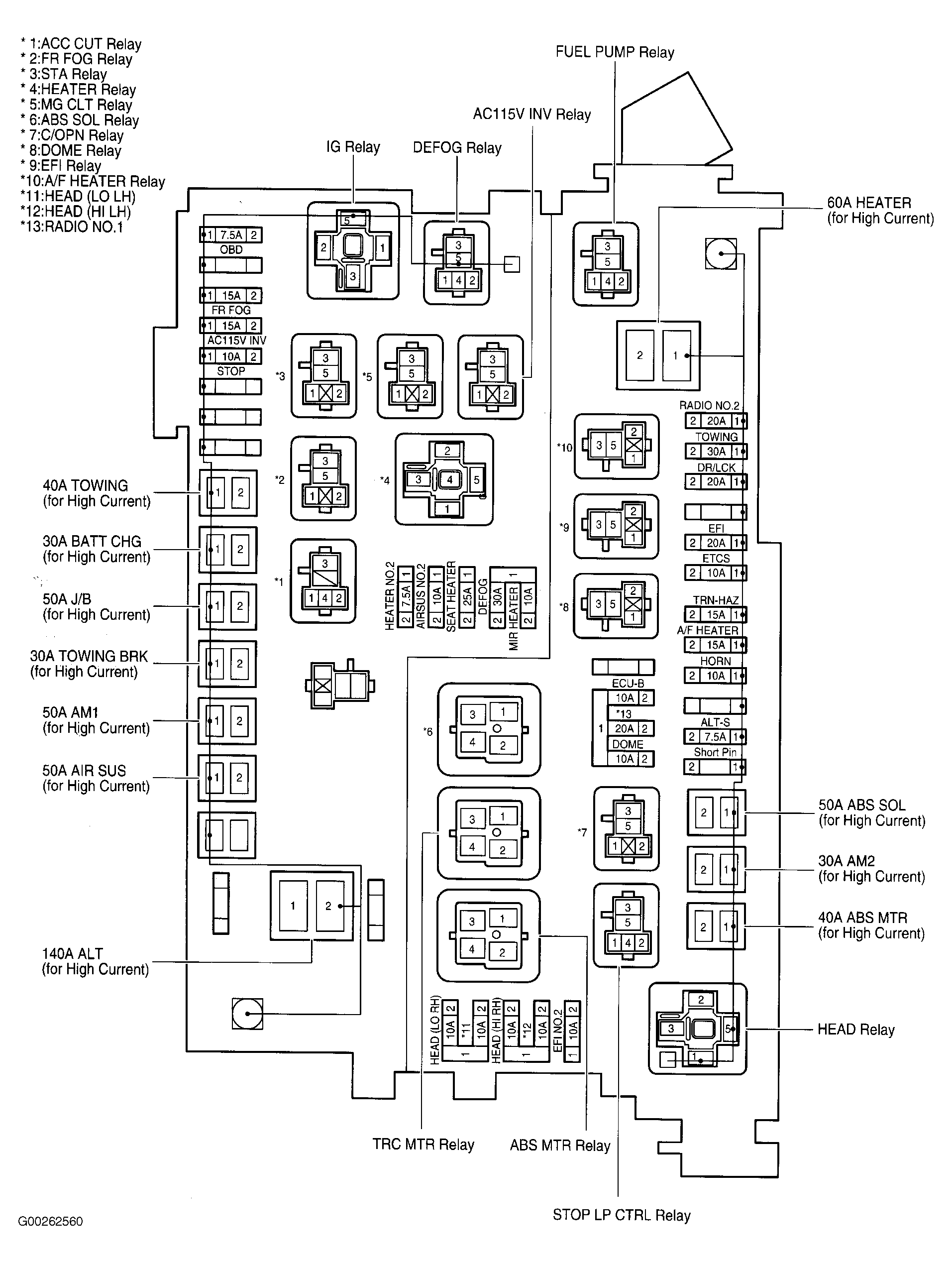

Fig 21: Engine Room R/B

G00262560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

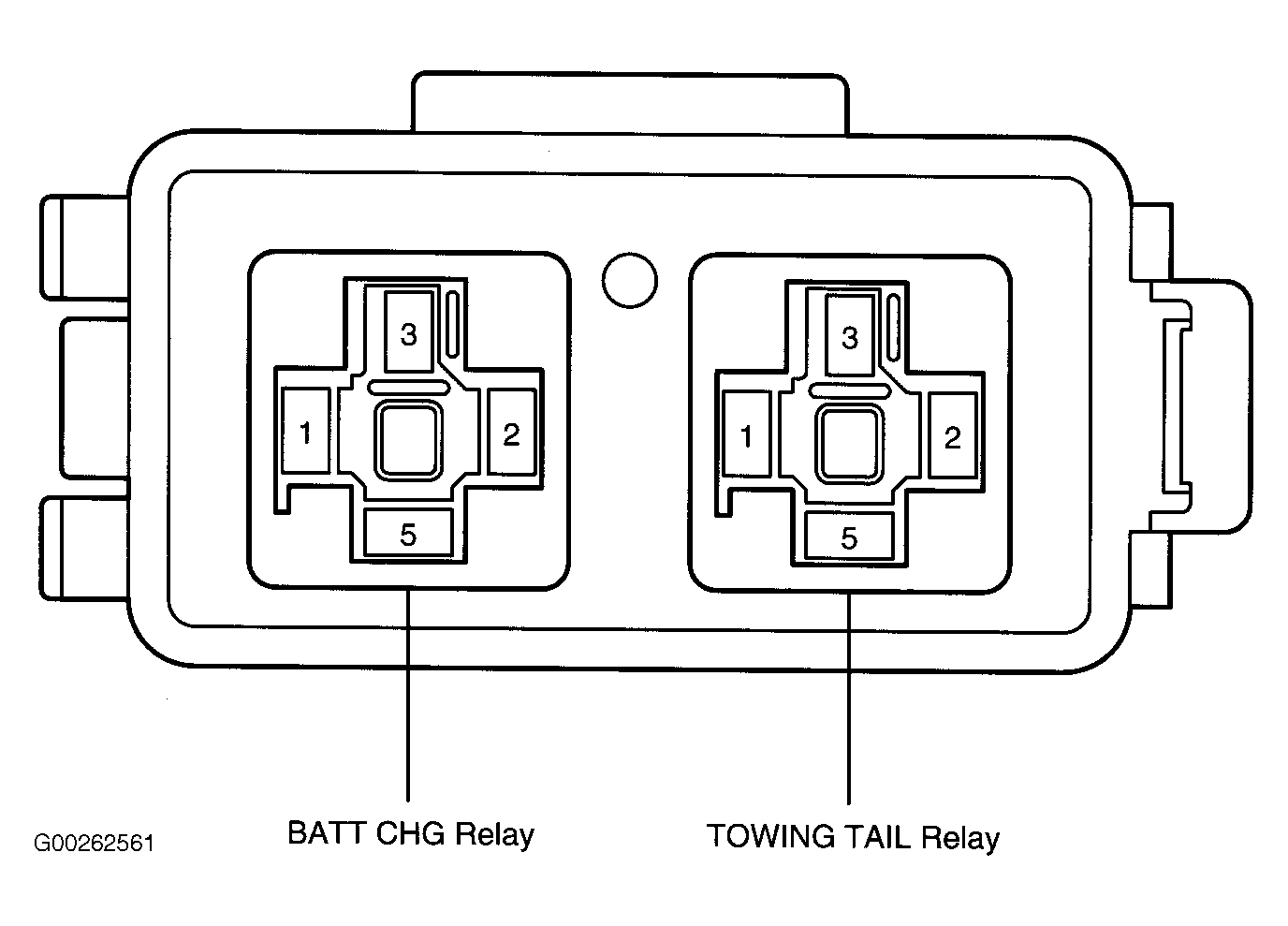

Fig 22: Engine Room R/B No. 3

G00262561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

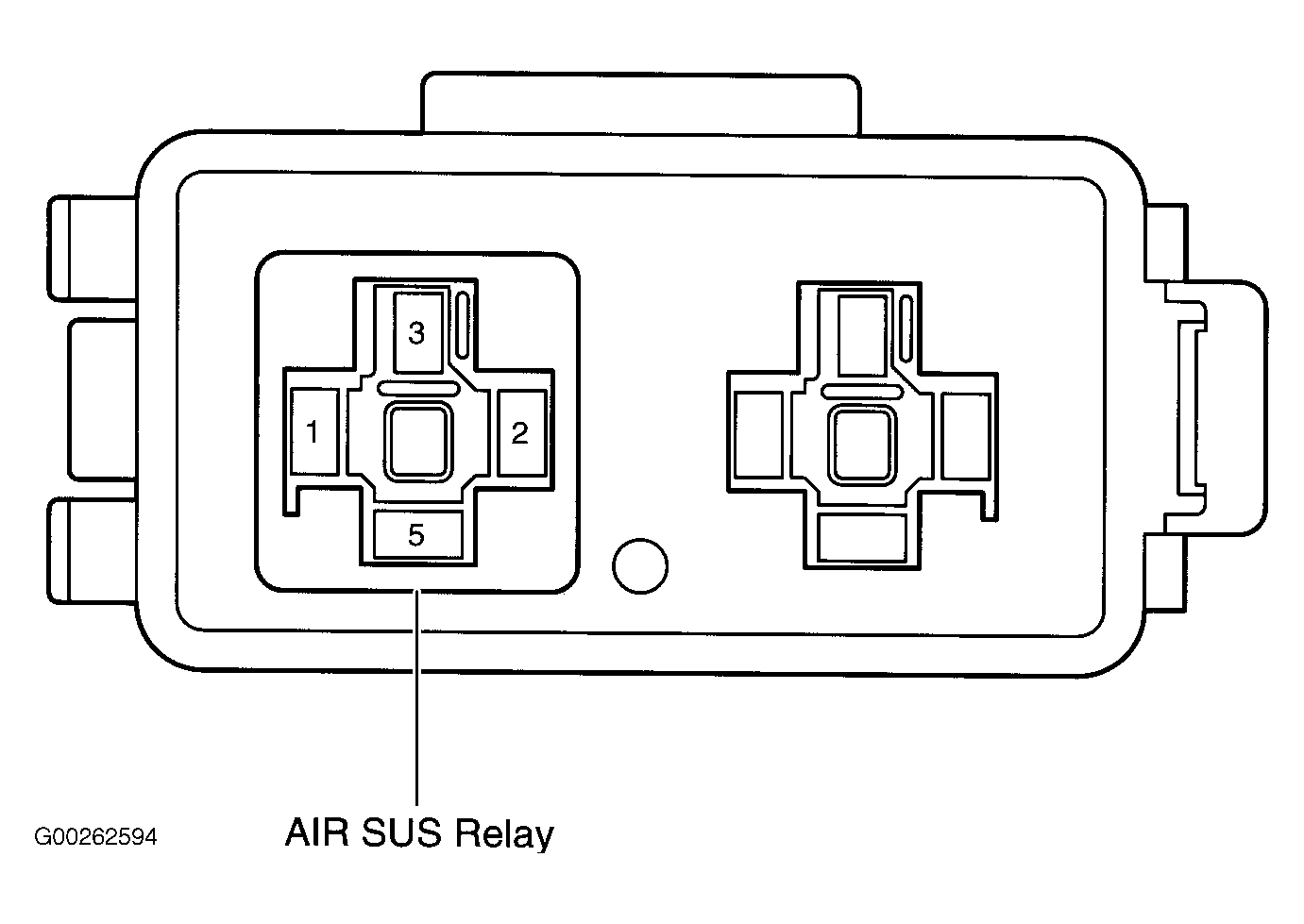

Fig 23: Engine Room R/B No. 4

G00262594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

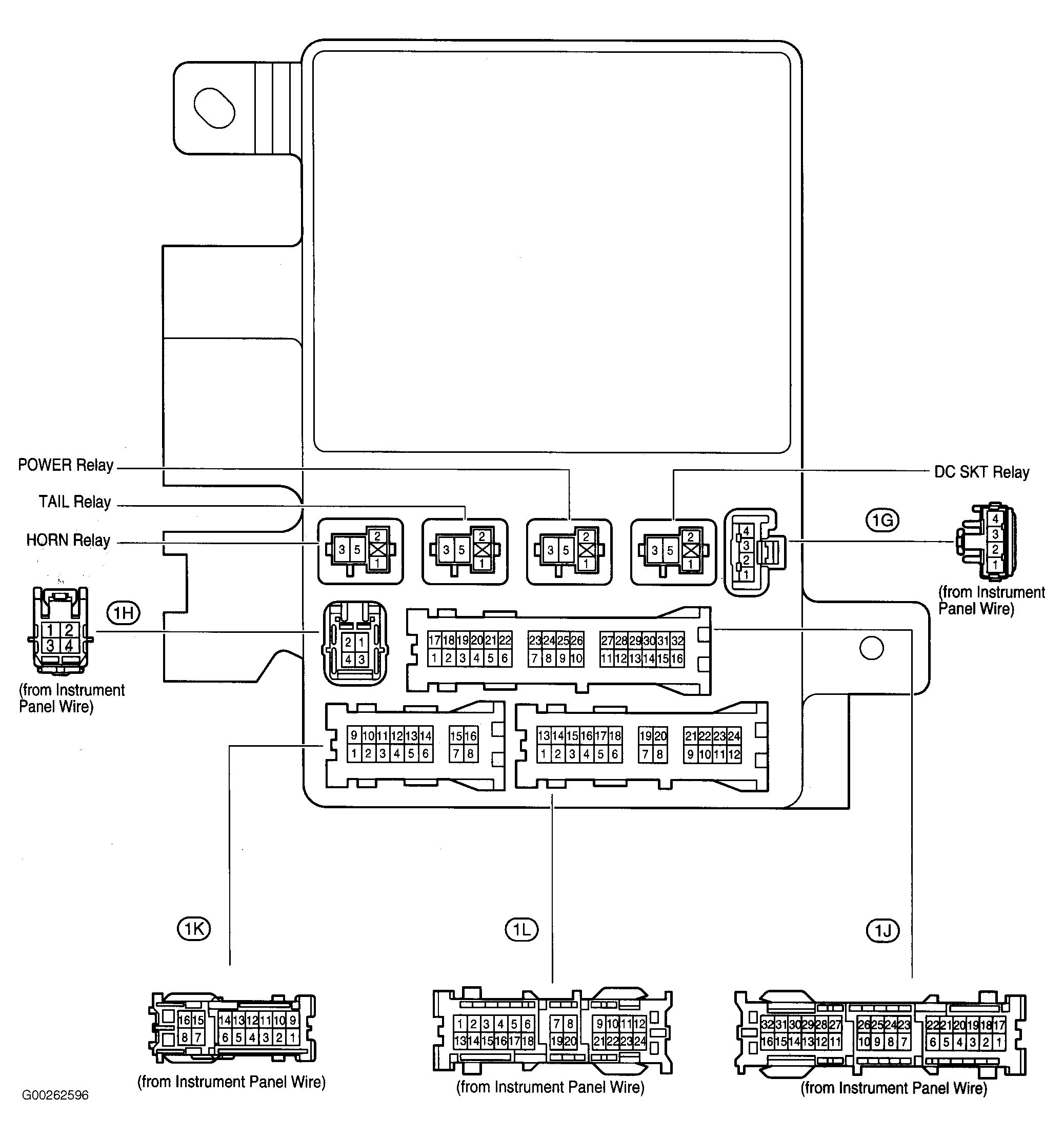

Fig 24: Driver Side J/B

G00262596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

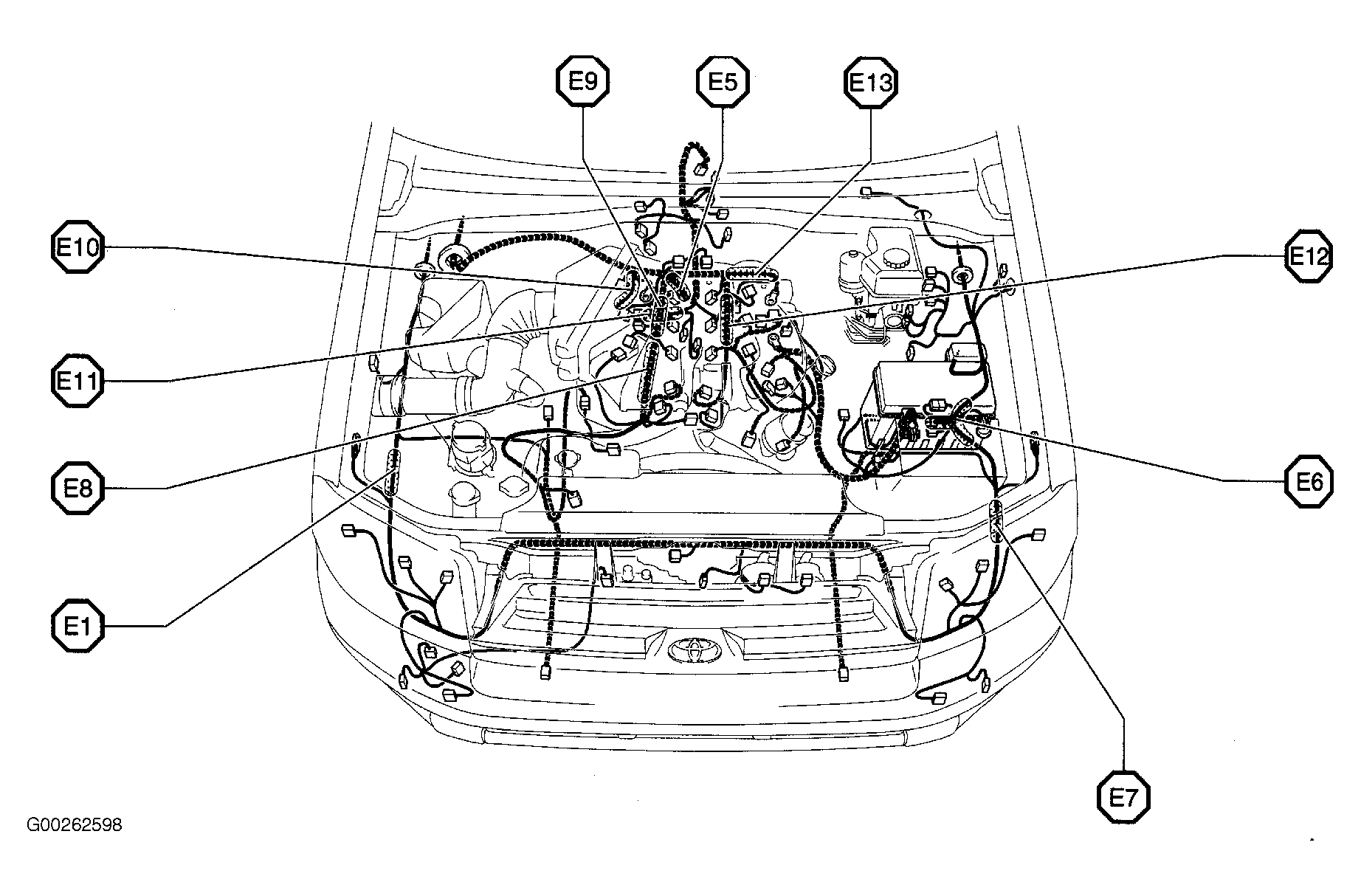

Fig 25: Engine Compartment (4.0L)

G00262598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

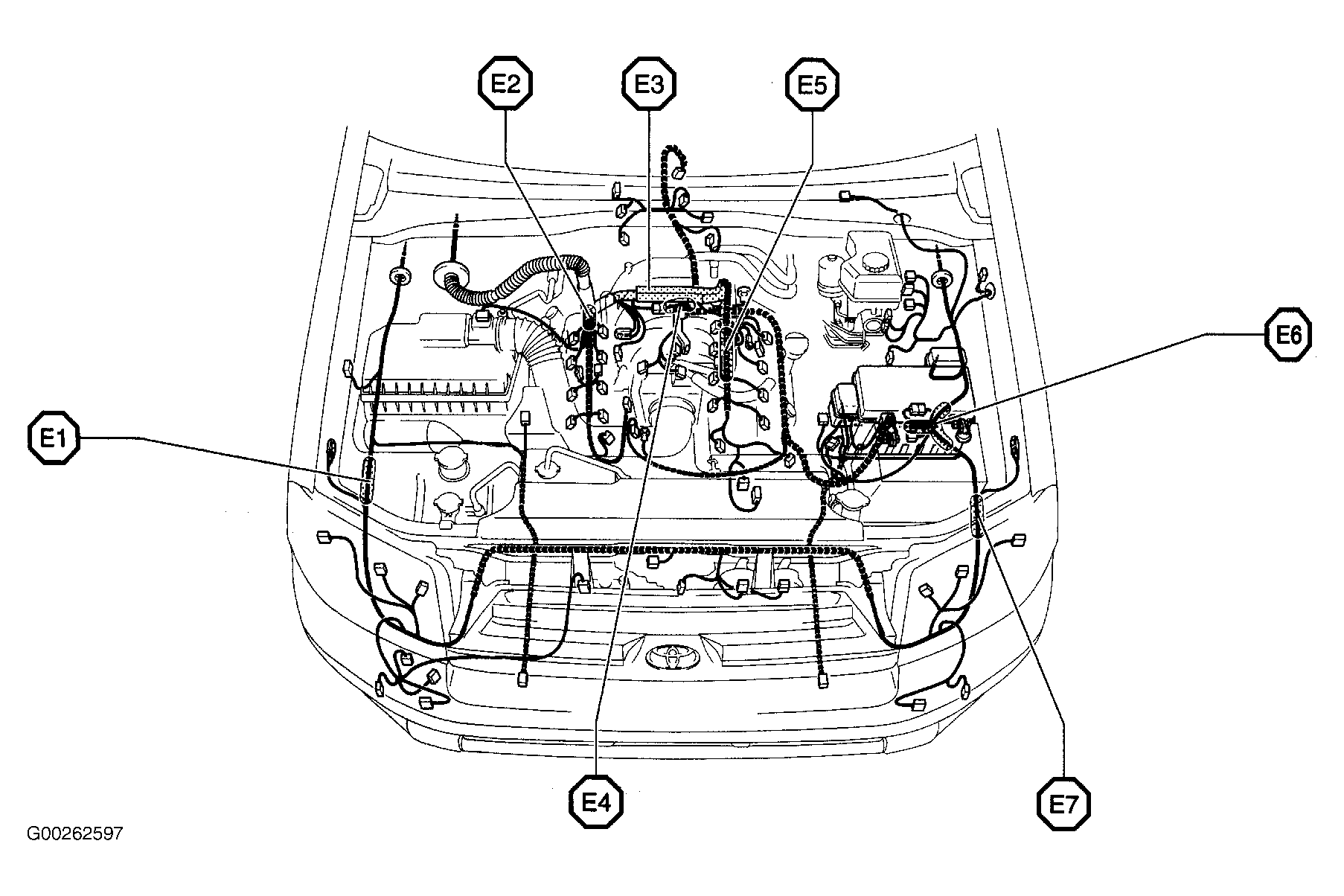

Fig 26: Engine Compartment (4.7L)

G00262597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

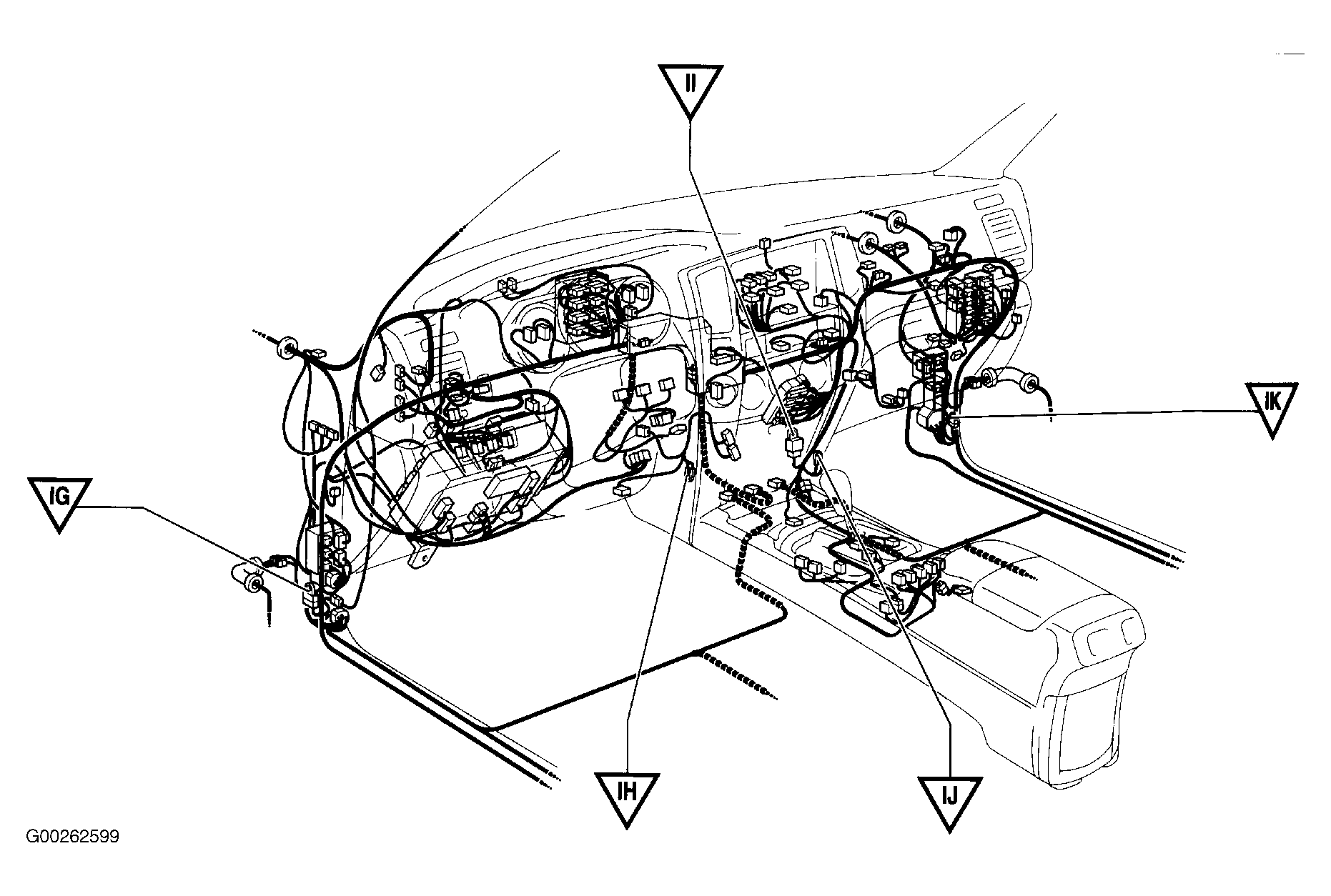

Fig 27: Dash

G00262599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

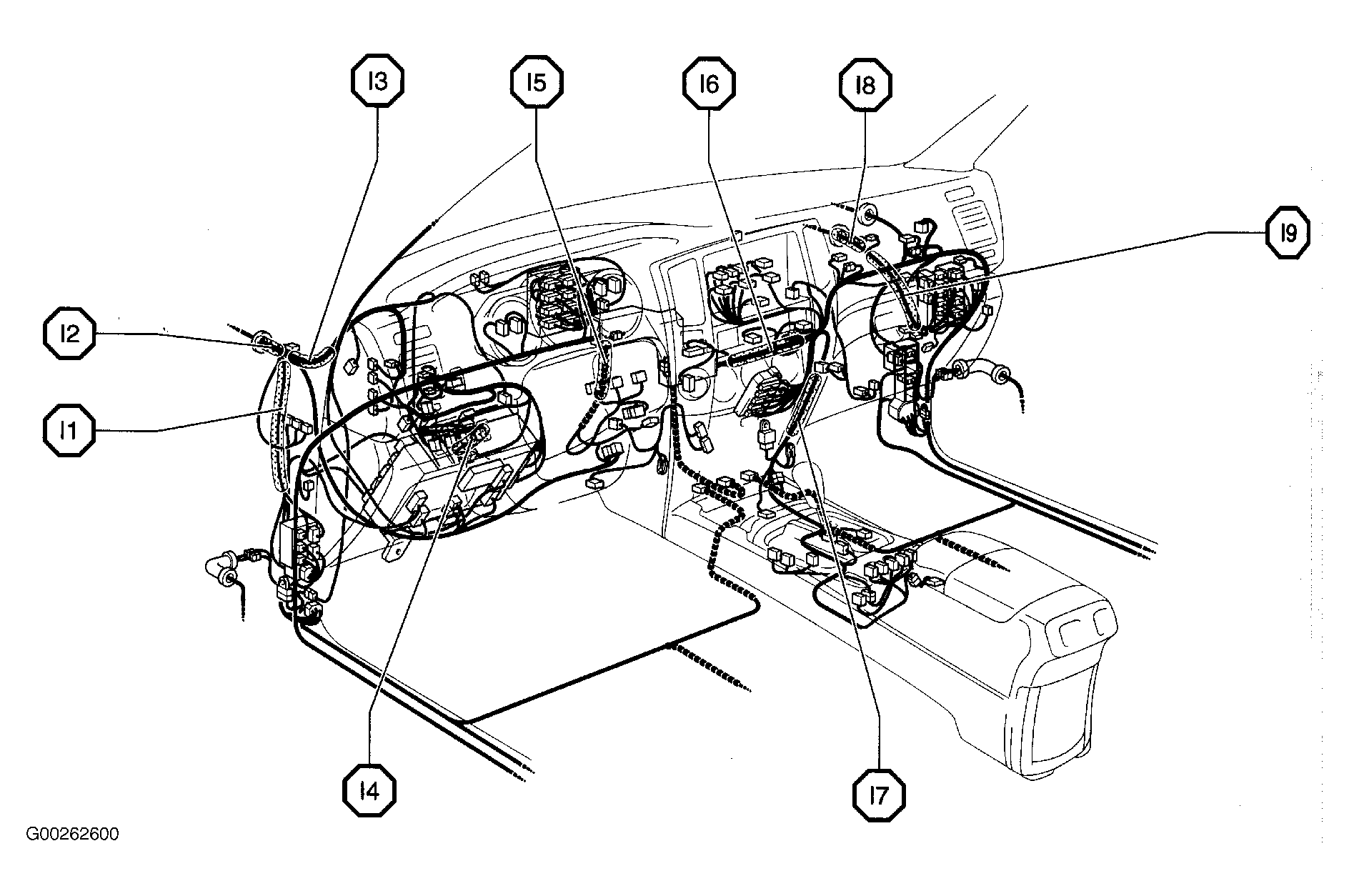

Fig 28: Dash

G00262600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

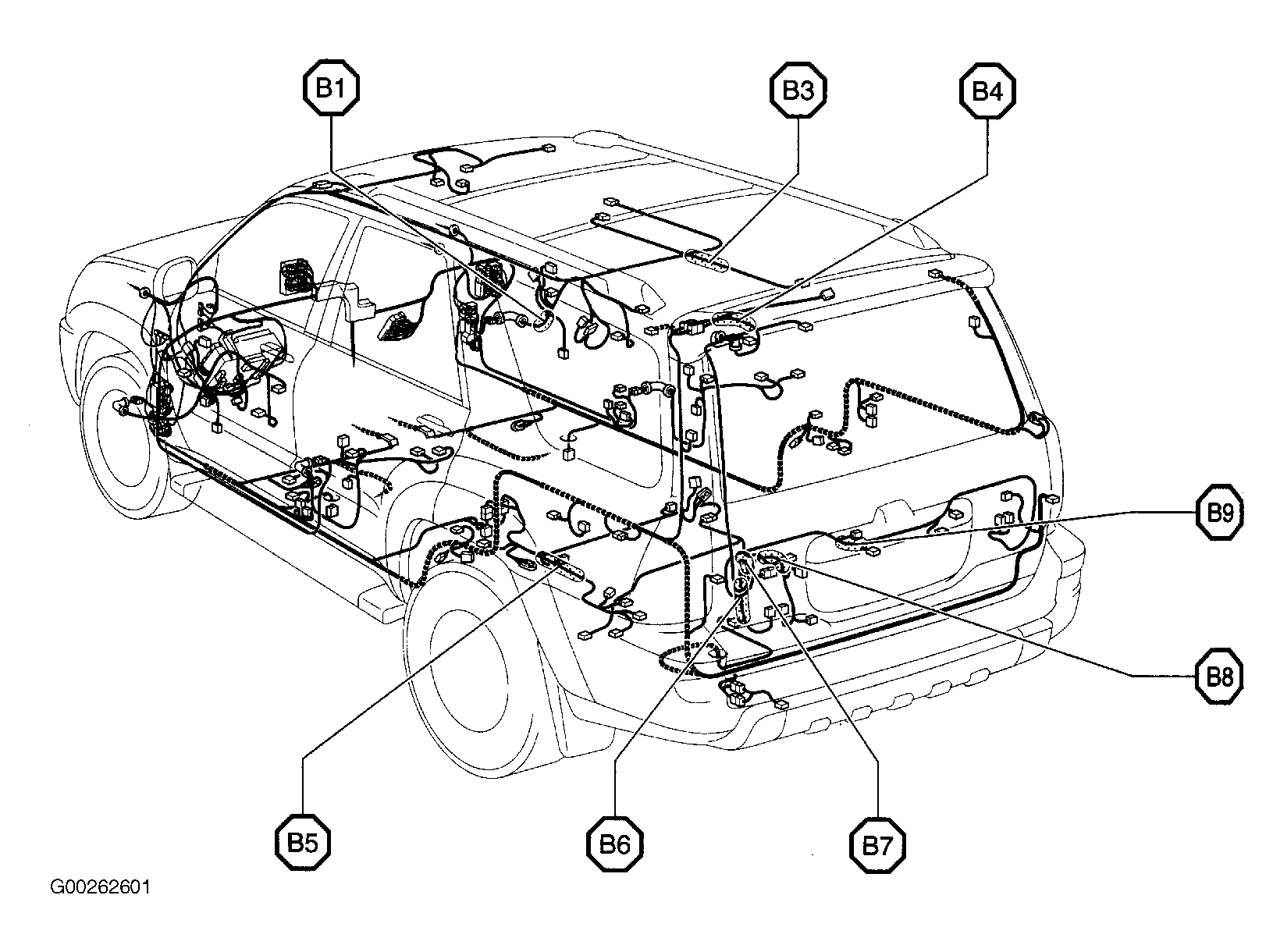

Fig 29: Vehicle Overview

G00262601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
