Steering Sensor: Replacement

  1. PRECAUTION (See  AIR BAG SAFETY PRECAUTIONS  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG SAFETY PRECAUTIONS  )
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING WHEEL COVER LOWER NO.3 (See  OVERHAUL  )
  5. REMOVE STEERING WHEEL COVER LOWER NO.2 (See  OVERHAUL  )
  6. REMOVE HORN BUTTON ASSY (See  OVERHAUL  )
  7. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  8. REMOVE STEERING COLUMN COVER UPR (See  OVERHAUL  )
  9. REMOVE SPIRAL CABLE SUB-ASSY (See  OVERHAUL  )
  10. REMOVE TURN SIGNAL SWITCH ASSY (See  OVERHAUL  )
  11. REMOVE STEERING SENSOR
    1. Remove the steering sensor connector.
      Fig 1: Removing Steering Sensor Connector
      G02857272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

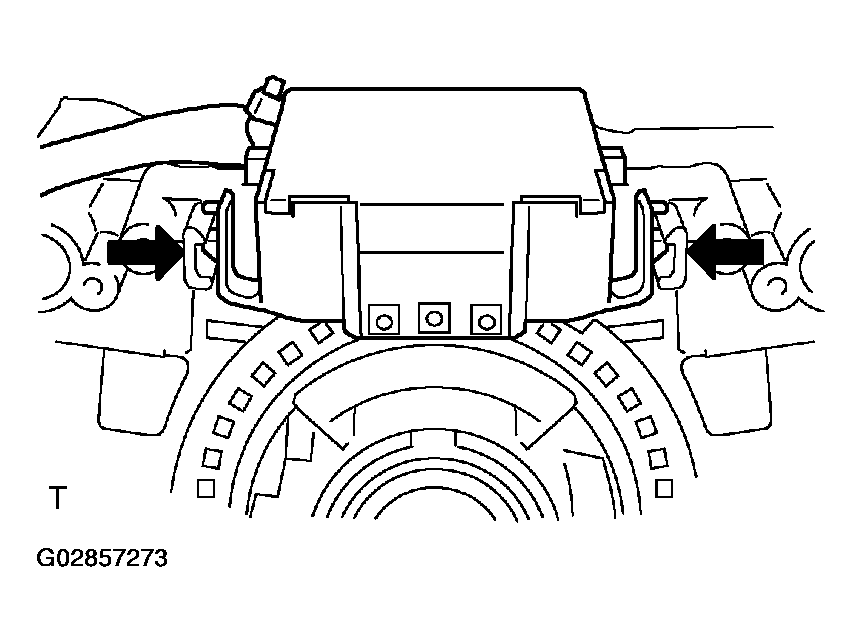

    2. Remove the 2 claws, then remove the steering sensor.
      Fig 2: Removing Steering Sensor
      G02857273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL STEERING SENSOR
    1. Install the steering sensor.
      Fig 3: Installing Steering Sensor
      G02857274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

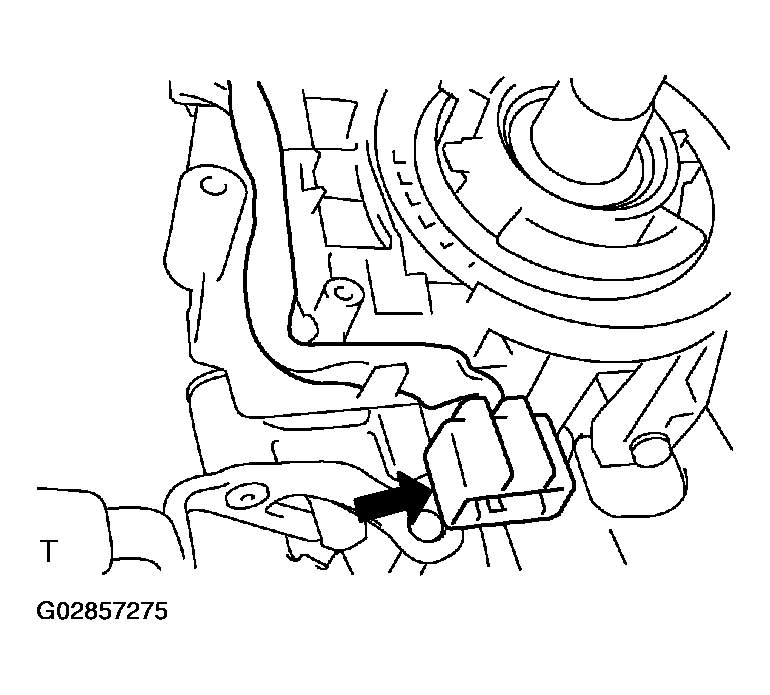

    2. Install the steering sensor connector.
      Fig 4: Installing Steering Sensor Connector
      G02857275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL TURN SIGNAL SWITCH ASSY (See  OVERHAUL  )
  14. INSPECT SPIRAL CABLE SUB-ASSY (See  OVERHAUL  )

    If the following condition is identified, replace the spiral cable sub-assy with a new one.

    Condition:

    Scratches or cracks on the connector

    Cracks, dents or chipping of the spiral cable sub-assy

  15. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  16. INSTALL SPIRAL CABLE SUB-ASSY (See  OVERHAUL  )
  17. INSTALL STEERING COLUMN COVER UPR (See  OVERHAUL  )
  18. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
  19. INSTALL HORN BUTTON ASSY (See  OVERHAUL  )
  20. INSTALL STEERING WHEEL COVER LOWER NO.2 (See  OVERHAUL  )
  21. INSTALL STEERING WHEEL COVER LOWER NO.3 (See  OVERHAUL  )
  22. INSPECT SRS WARNING LIGHT (See )
  23. PERFORM STEERING ANGLE SENSOR ZERO POINT CALIBRATION (See  PRE-CHECK  )
  24. CHECK VSC SENSOR SIGNAL (See  PRE-CHECK  )
