Specifications & Procedures: Notes

Automatic belt tension is used to provide proper tension on serpentine drive belt. For serpentine drive belt routing, see Figure and Figure .

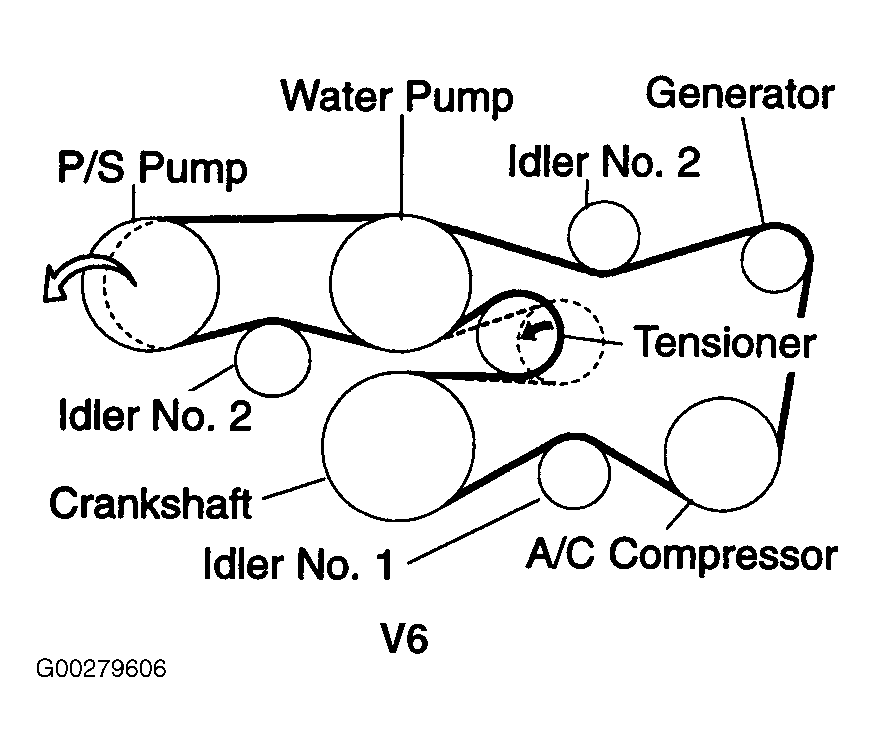

DRIVE BELT ROUTING
