4Runner 4.0L

For throttle body inspection procedure, see Fig 1 and Fig 2 . To check throttle control motor, see Fig 3. To inspect accelerator position sensor wiring, see ACCELERATOR PEDAL POSITION SENSOR  under ENGINE SENSORS & SWITCHES.

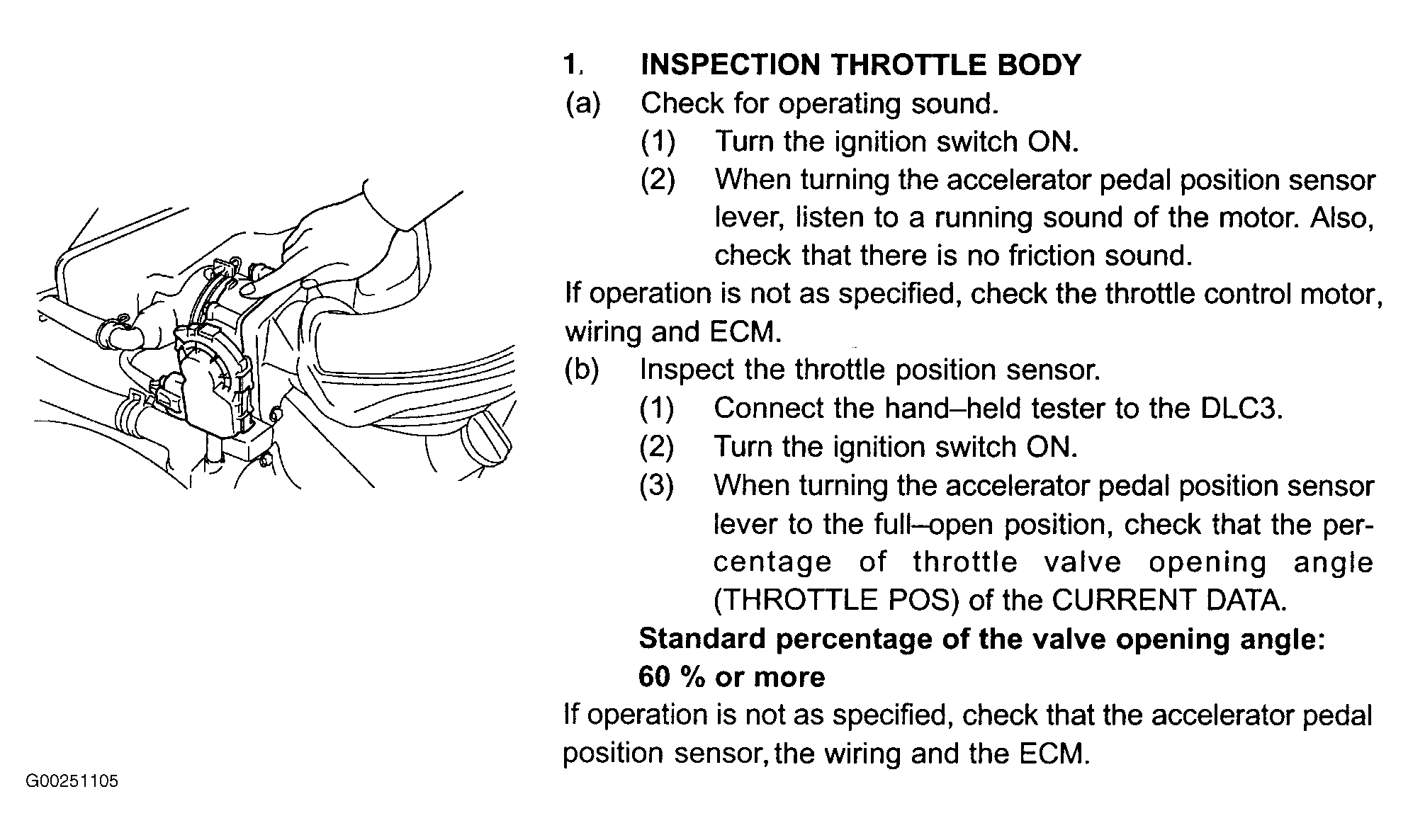

Fig 1: Inspecting Throttle Body - 1 of 2 (4Runner 4.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Inspecting Throttle Body - 2 of 2 (4Runner 4.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Inspecting Throttle Control Motor (4Runner 4.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
