Chapter 3: Off-Vehicle Repair

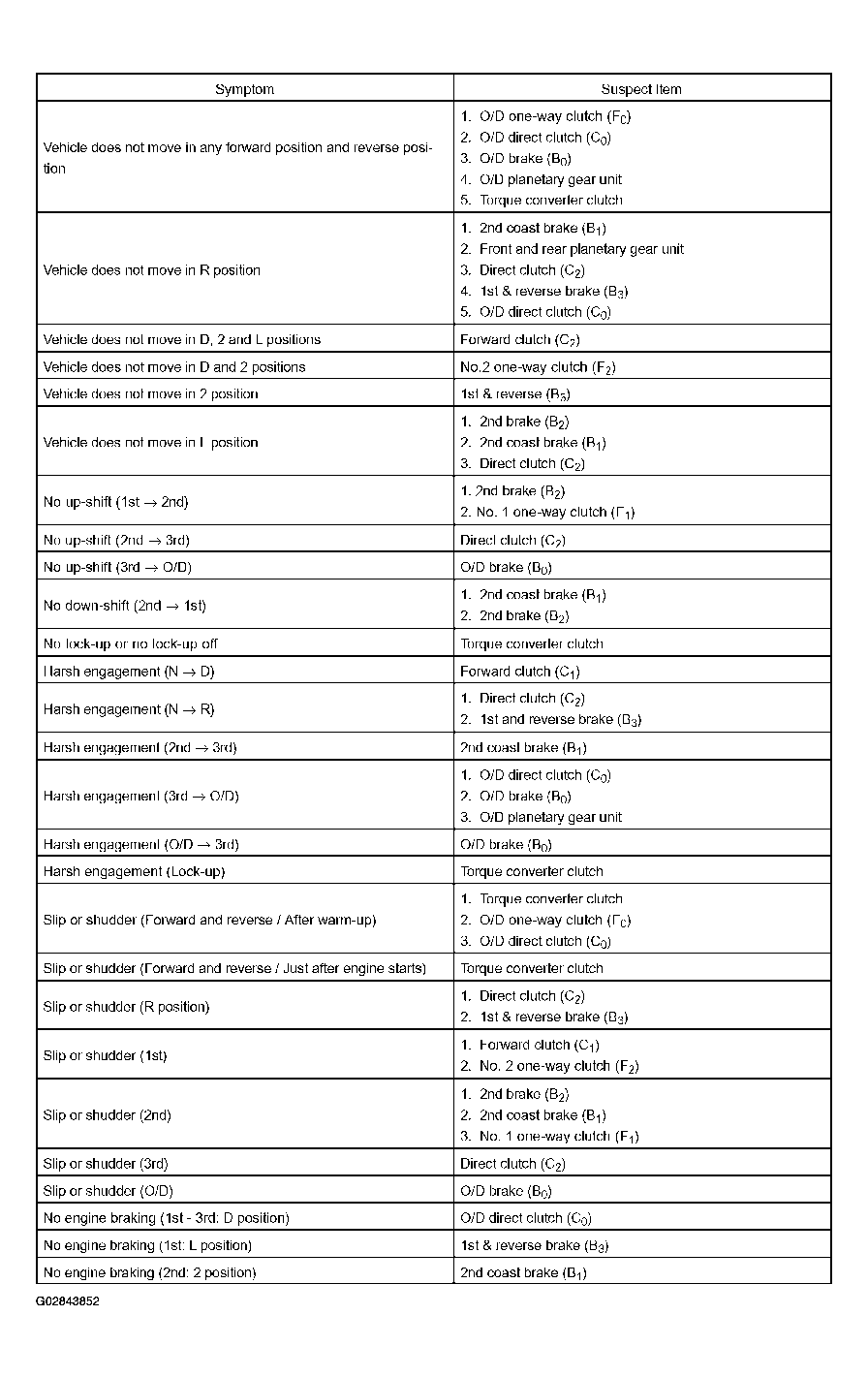

Fig 1: Off-Vehicle Repair - Problem Symptoms Chart (1 Of 2)
G02843852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Off-Vehicle Repair - Problem Symptoms Chart (2 Of 2)
G02843853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
