How To Proceed With Troubleshooting
How To Proceed With Troubleshooting

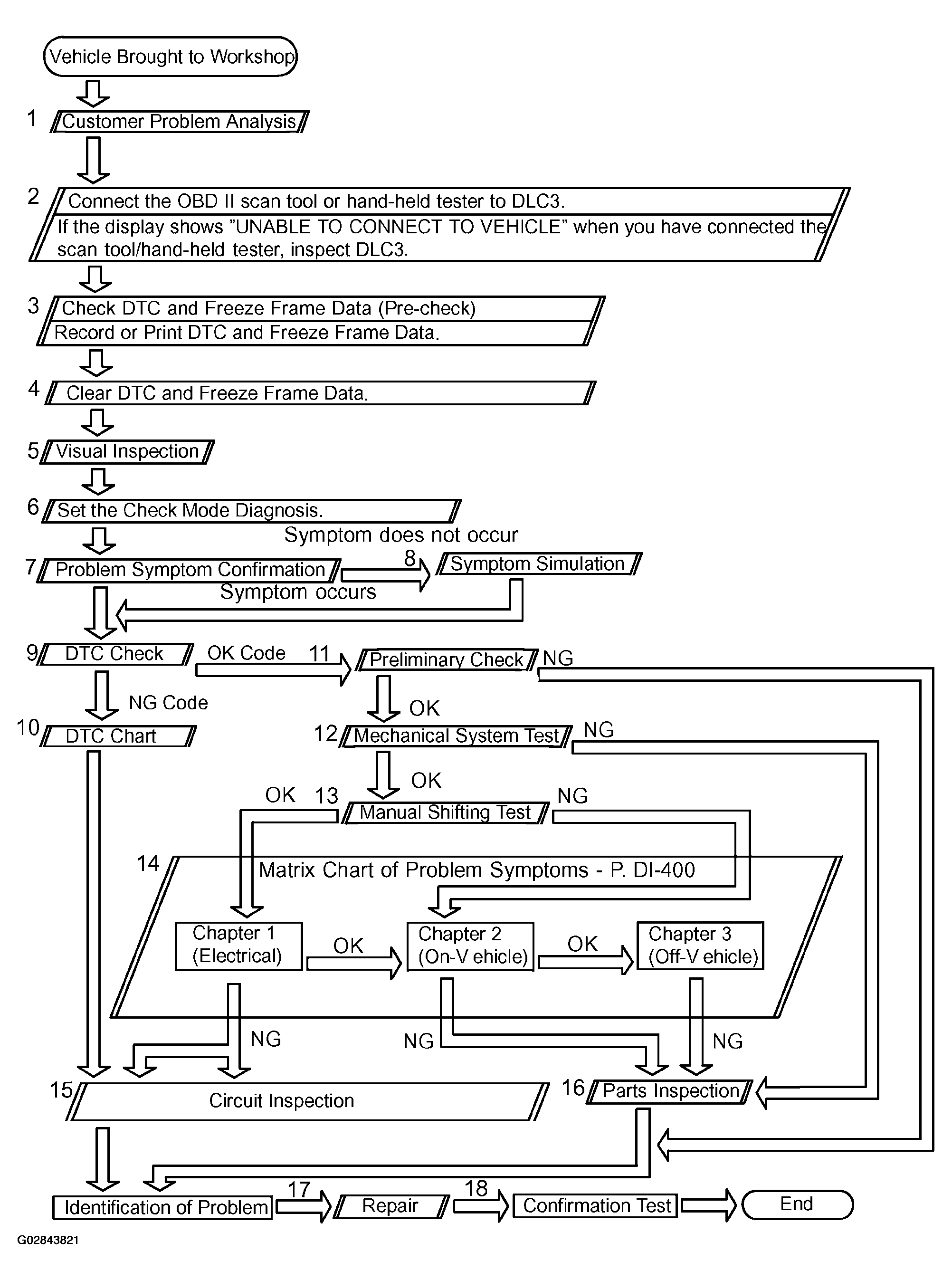

Fig 1: Automatic Transmission (A340E, A340F) Troubleshooting Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
