Home >> Toyota >> 2003 >> Tundra Base, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Combination Meter >> Location

Combination Meter: Location

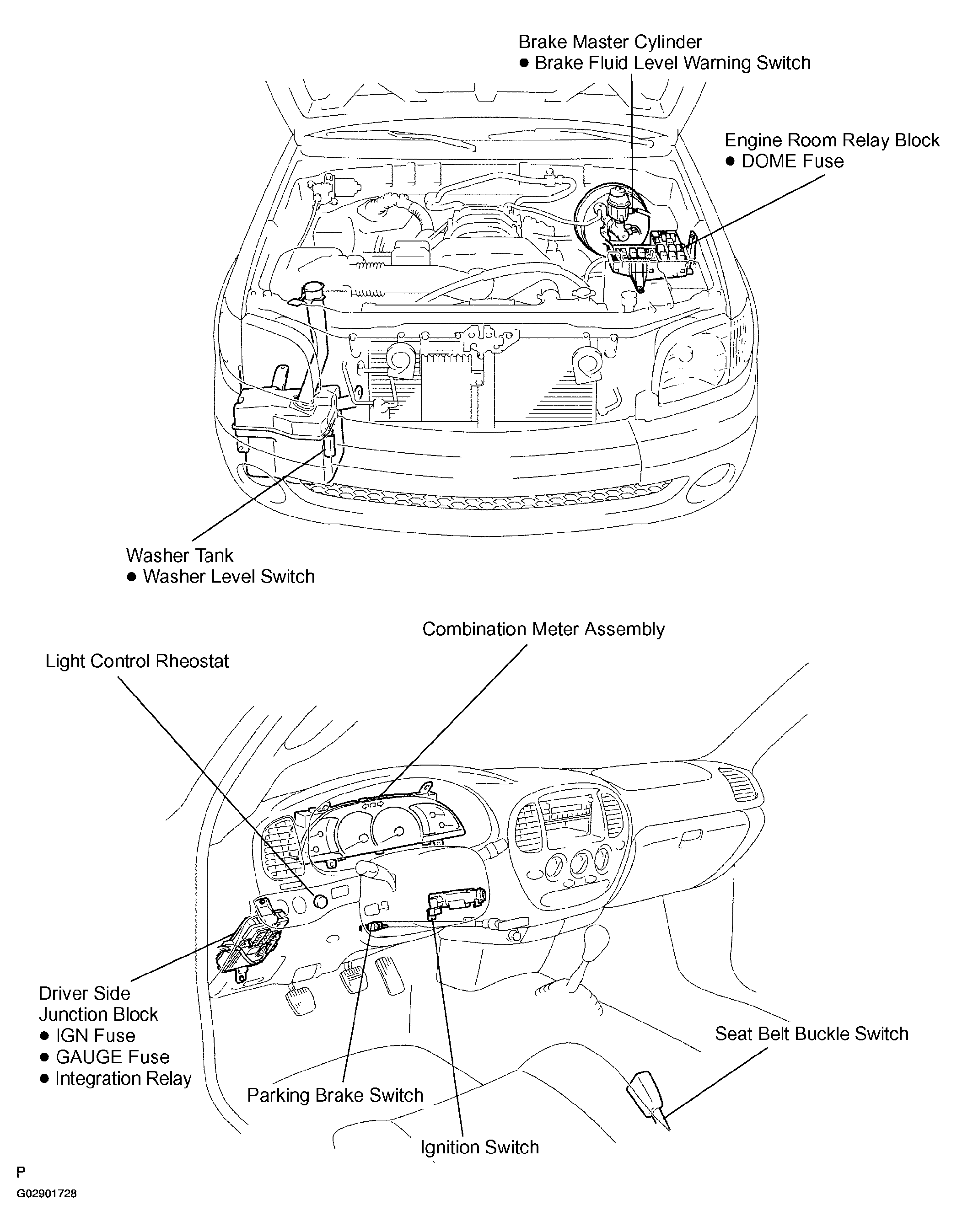

Fig 1: Identifying Combination Meter Components Location (1 Of 2)
G02901728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

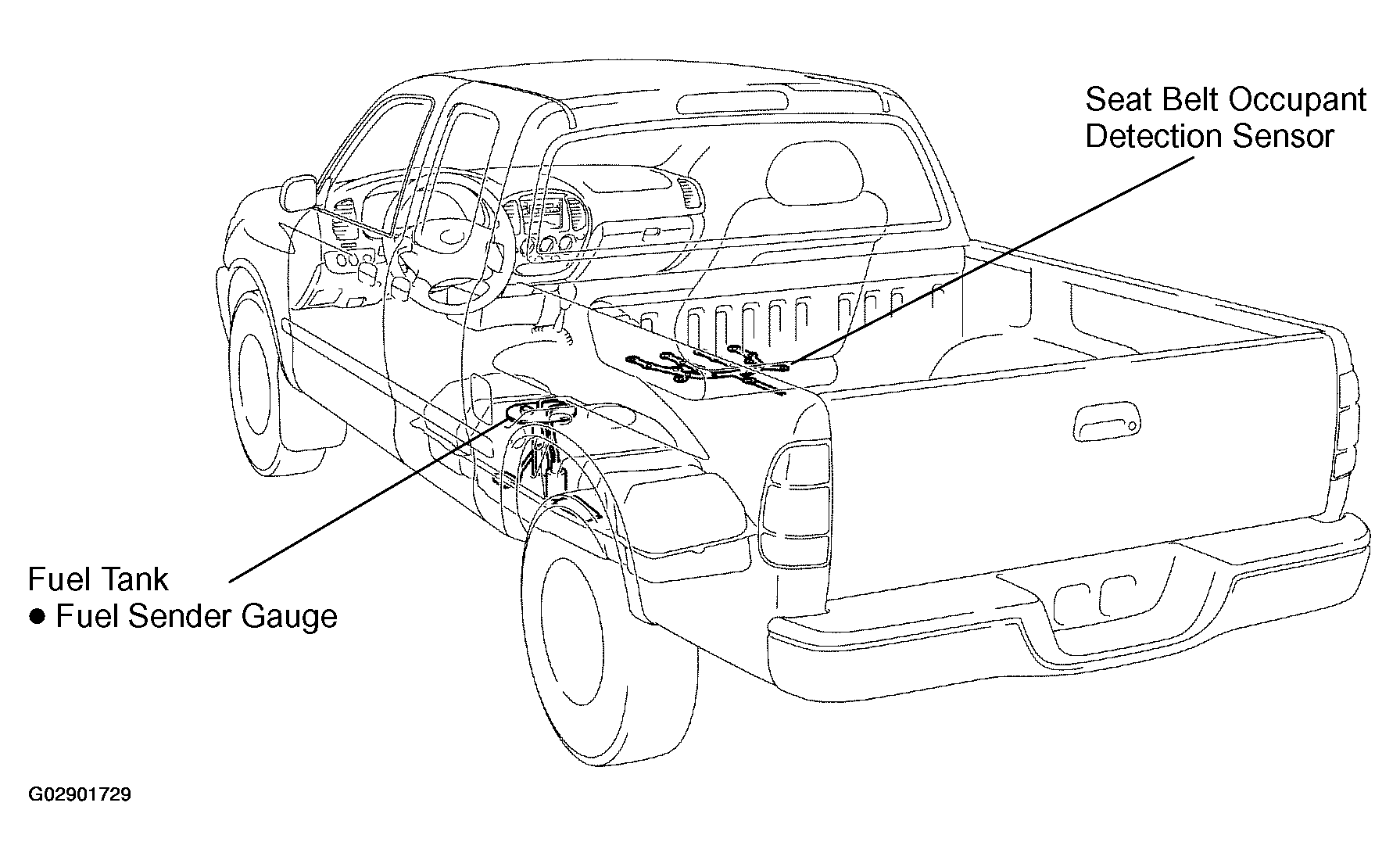

Fig 2: Identifying Combination Meter Components Location (2 Of 2)
G02901729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
