Toyota
>>
2003
>>
Tundra Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Combination Meter
>>
Circuit
Combination Meter: Circuit

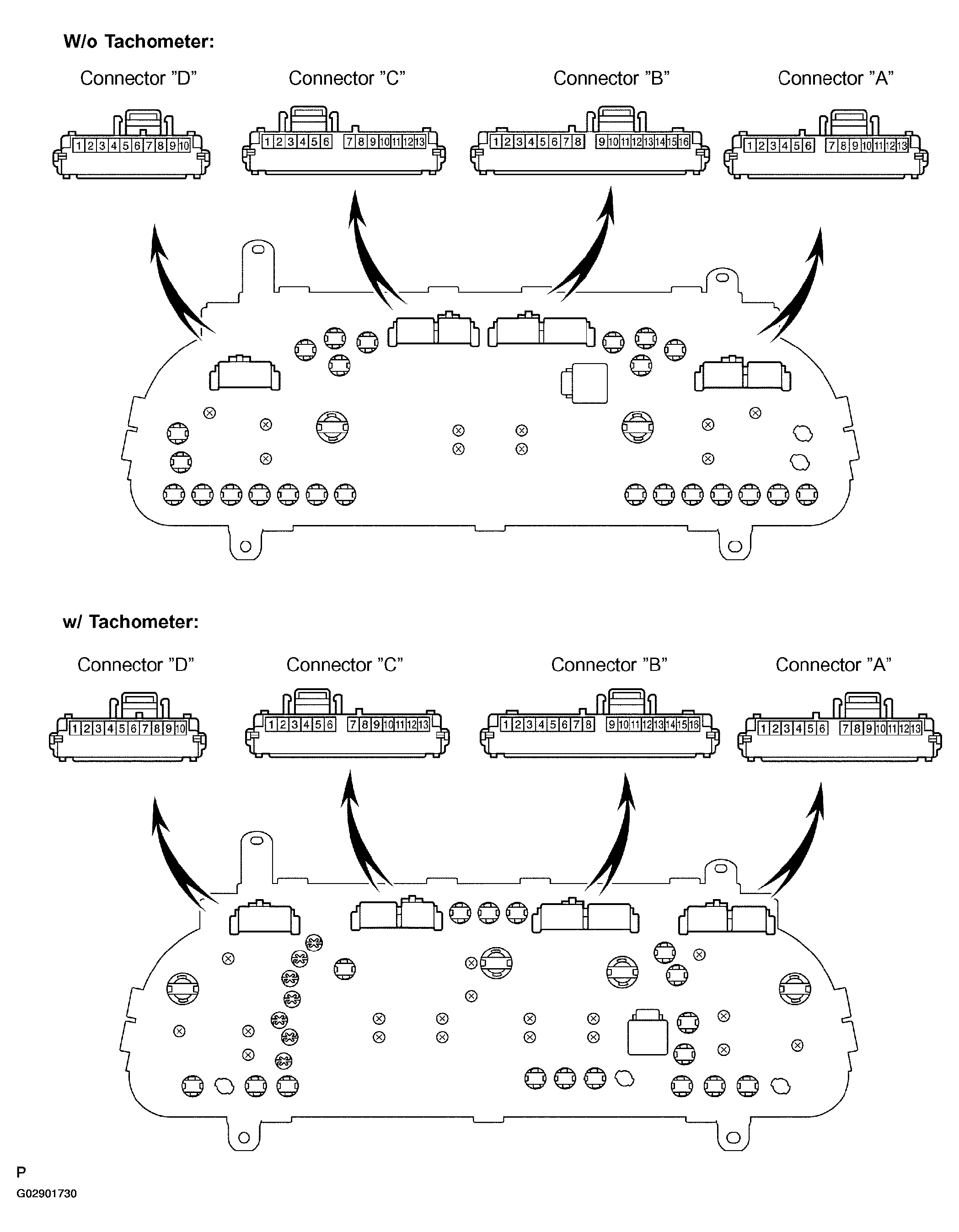

Fig 1: Identifying Combination Meter Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

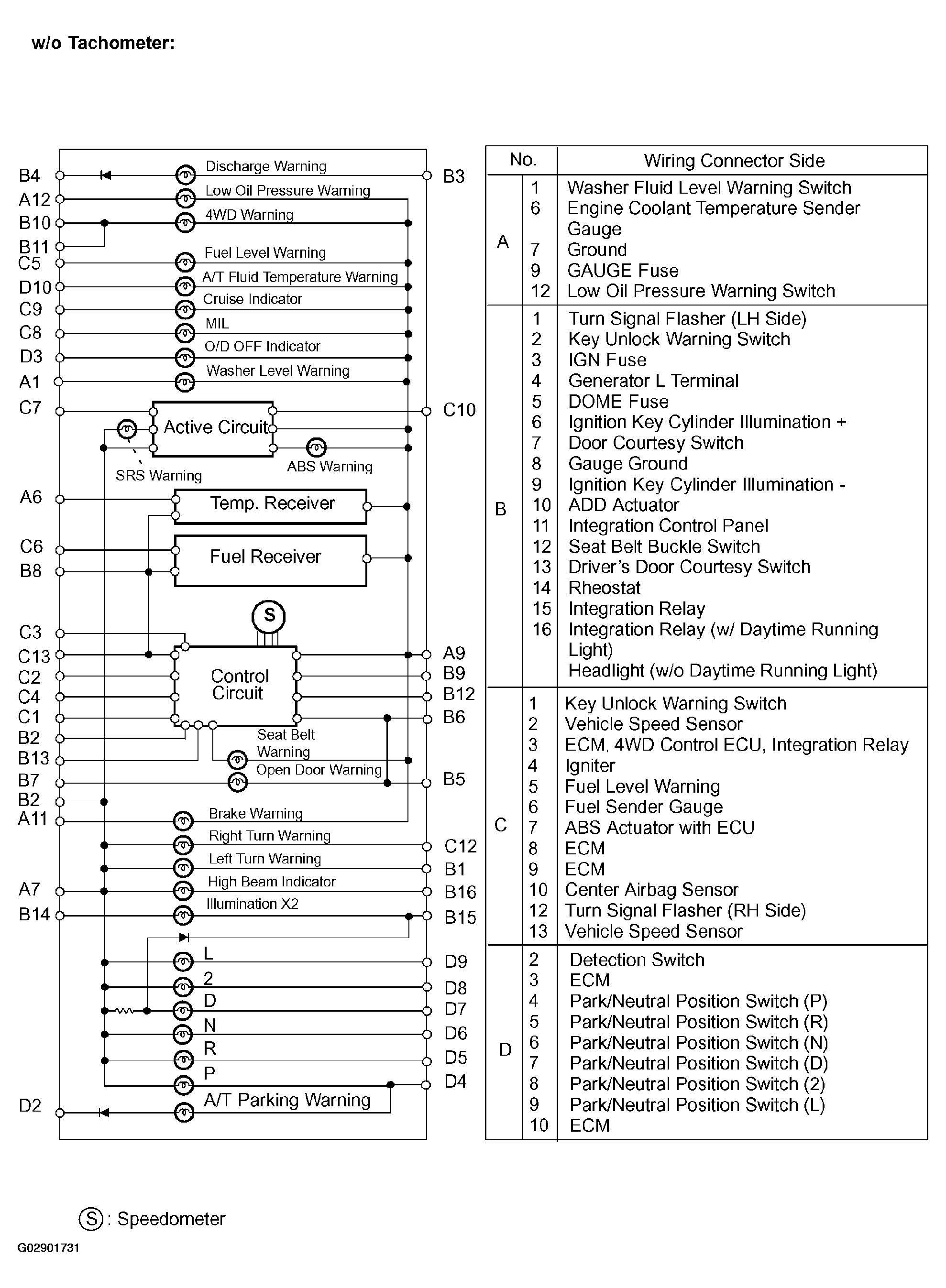

Fig 2: Combination Meter Circuit Diagram - W/O Tachometer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

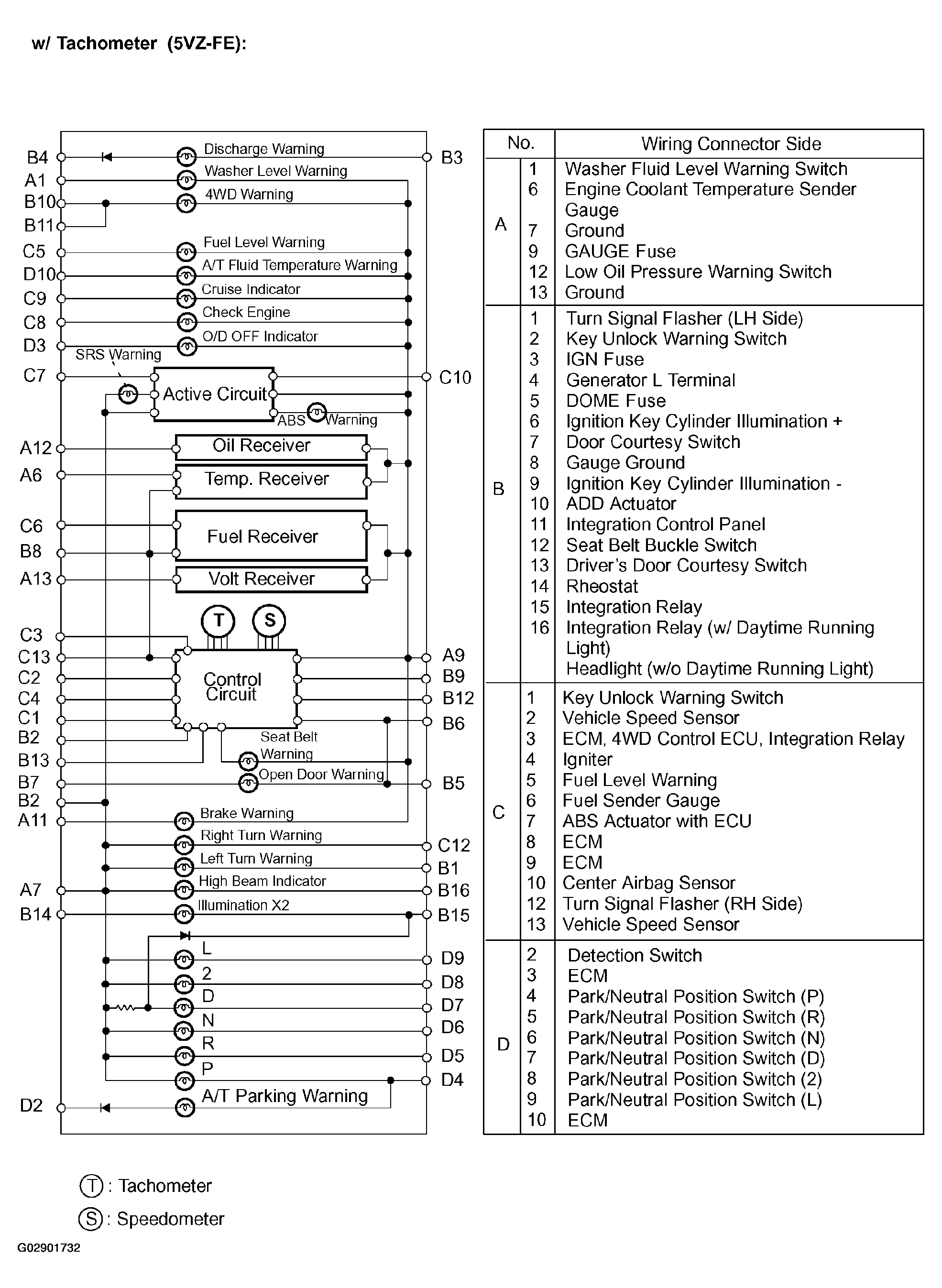

Fig 3: Combination Meter Circuit Diagram - W/Tachometer (5VZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

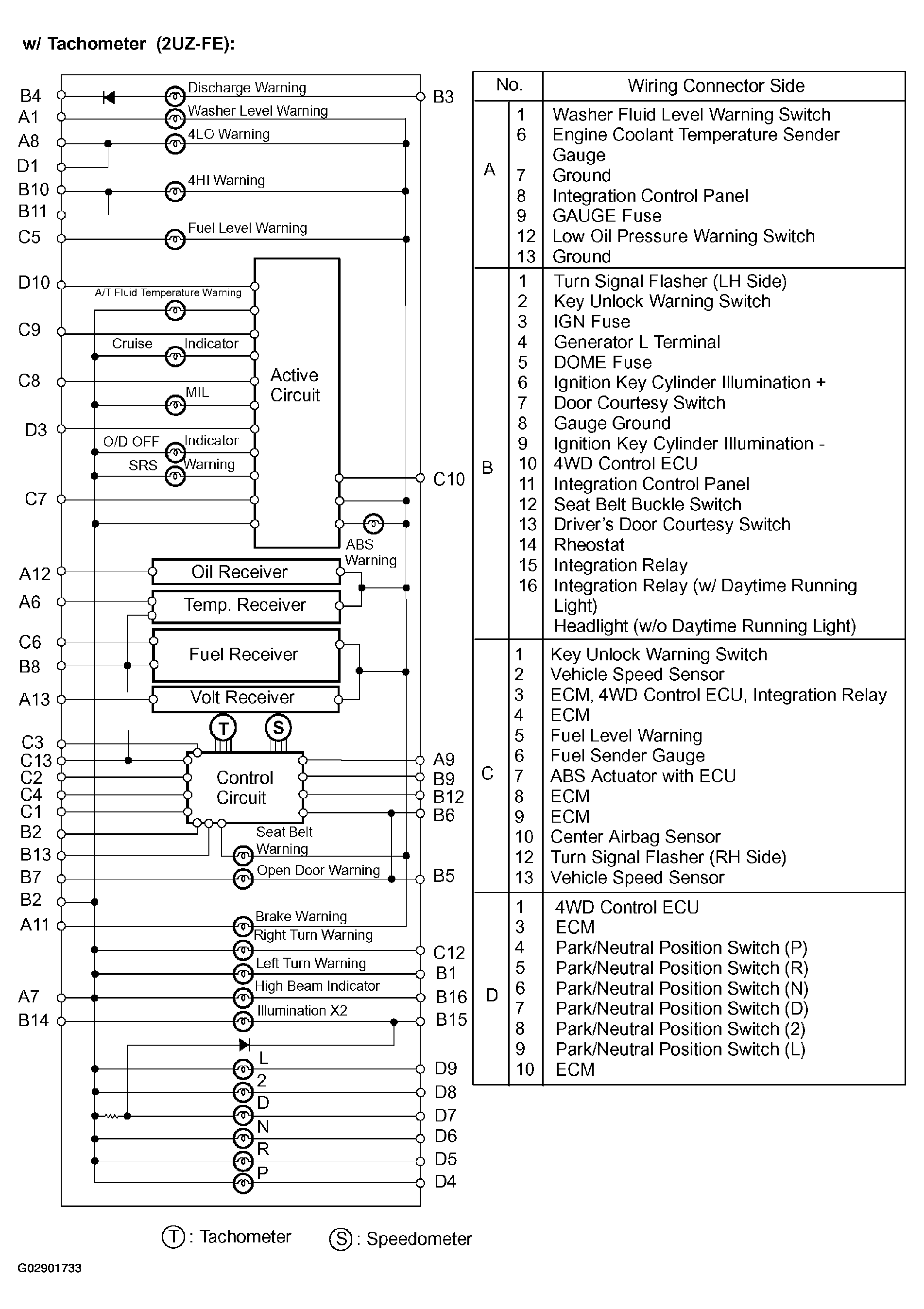

Fig 4: Combination Meter Circuit Diagram - W/Tachometer (2UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
